User Manual for Really Right Stuff BH-25 Ball Head with Screw-Knob Clamp Click to enlarge the picture
Contents of the user manual for the Really Right Stuff BH-25 Ball Head
- Product category: Tripod Heads Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Tripod Heads
 |
User manual for the Really Right Stuff BH-25 Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|

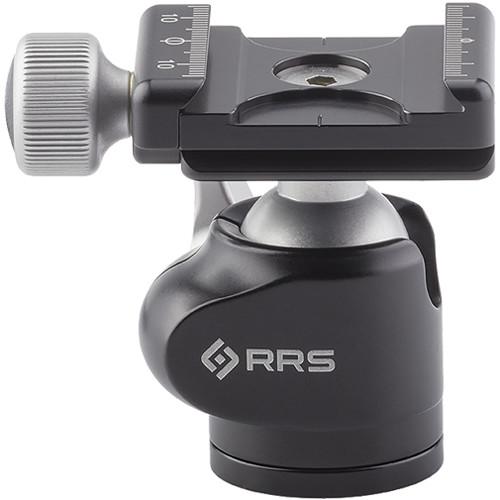

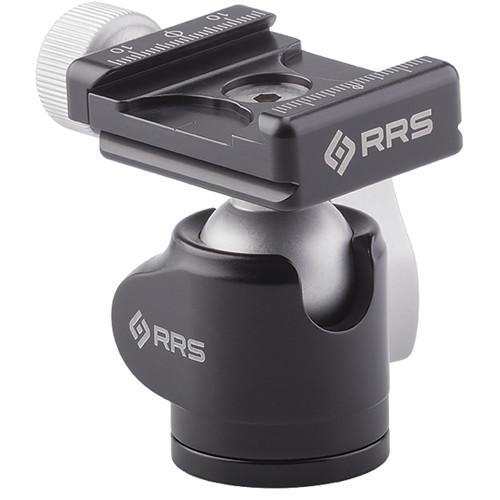

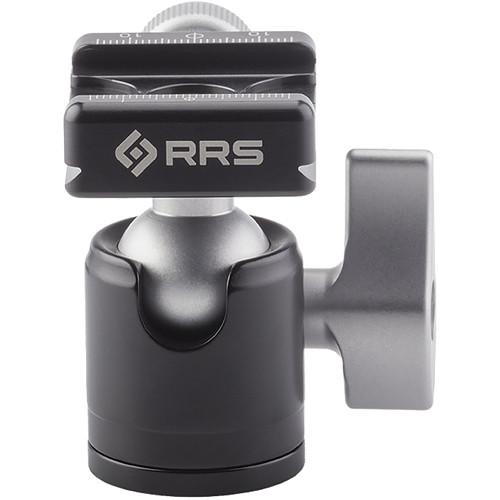

Product description The BH-25 Ball Head with Screw-Knob Clamp from Really Right Stuff is an Arca-compatible, single action tripod head that represents the smallest and lightest ball head offering in the RRS line-up.
Despite the BH-25's small stature it's an impressively capable support, able to hold up to 8.8 lb, while standing just 2.6" tall and weighing a negligible 6.5 oz. The single action design of the head allows the user to unlock the 360° pan and the ball at the same time, facilitating completely free movement in any direction and locking in any position. The T-style lever lock assists the user when locking and unlocking the ball head by providing a large grip for maximum leverage. The T-style handle is also set on a spring loaded ratcheting joint, which allows the user to rotate the handle, freeing it of obstruction caused by large tripod baseplates.
On the technical side, the BH-25 features a few classic additions that make the head almost universally compatible and customizable. The bottom of the head features a standard 3/8"-16 mount for wide compatibility with most tripod legs, while the connecting stem features a standard 1/4"-20 thread that makes swapping quick release clamps as simple as possible. Also, to save weight, the 0.9" ball uses a hollow design, which maintains strength while adding to the BH-25's lightweight design. UPC: 818413022218 In the Box Really Right Stuff BH-25 Ball Head with Screw-Knob Clamp 5/32" Hex Key Limited 5-Year Warranty User Manual PDF 292.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff BH-25 Ball Head with Screw-Knob Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff BH-25 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 8.8 lb / 4 kg | | Number of Bubble Levels | None | | Friction Control | No | | Independent Pan Lock | No | | | | Ball Sphere Diameter | 1" / 25 mm | | Base Diameter | 1.3" / 34 mm | | Dimensions | H: 2.6" / H: 66.0 mm | | Weight | 6.5 oz / 185.0 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.0 x 4.3 x 2.2" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
