User Manual for Really Right Stuff FG-02 LR Fluid-Gimbal Head with B2-LR II Lever-Release Clamp Click to enlarge the picture
Contents of the user manual for the Really Right Stuff FG-02 LR Fluid-Gimbal
- Product category: Panoramic & Time Lapse Heads Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Panoramic & Time Lapse Heads
|
User manual for the Really Right Stuff FG-02 LR Fluid-Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|

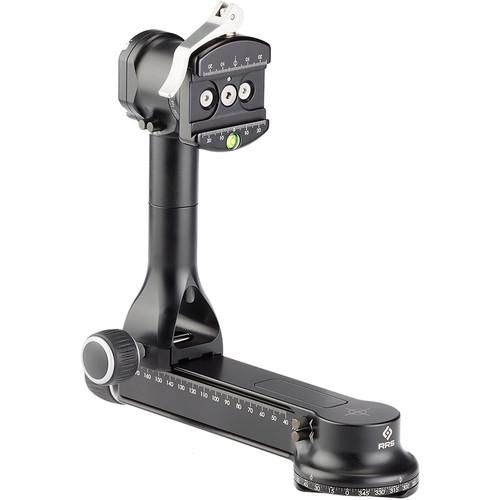

Product description Time-Lapse Tips and Tools Read More The FG-02 LR Fluid-Gimbal Head with B2-LR II Lever-Release Clamp from Really Right Stuff is a full-size fluid-gimbal tripod head designed to provide users with video quality fluid pans, while tracking and photographing moving subjects.
An innovative and original design, the FG-02 is recommended for users wishing to capture photo or video of moving subjects with smooth, shake-free, uninhibited movement. With a load capacity of 50 lb the FG-02 has the ability to support large camera and lens combinations, but is limited to a maximum load capacity of just 15 lb when the maximum effects of the fluid mechanisms are required. The fluid rotators also feature 3 selectable levels of dampening, allowing the user to choose how much resistance is necessary for their needs. Of course, the mechanisms also feature an "off" setting for those who do not require the fluid movement at all.
The FG-02's design consists of two arms that control the rotation and swing of the cameras position. The base arm is connected directly to the integrated base rotator, which features a laser-engraved 360° scale for accurate horizontal positioning, while the vertical arm, which mounts to the base arm via Arca-type clamp, may be positioned with the assistance of a laser-engraved millimeter scale. The vertical arm also features an adjustable fluid rotator with engraved 360° markings and a lever-lock equipped Arca-type side-mounted clamp for mounting and dismounting your camera or lens foot. - Supports up to 50 lb of gear with fluid controlled support up to 15 lb
- Pivots 360° on both the horizontal and vertical plane
- Lever-release Arca-type compatible quick release side-mounted clamp
- Sturdy, professional design—weighs just 3.3 lb
- Laser-engraved degree markings and millimeter scale
- Machined from solid aluminum and stainless steel components
UPC: 818413022737 In the Box Really Right Stuff FG-02 LR Fluid-Gimbal Head with B2-LR II Lever-Release Clamp 5/32 Hex Key M3 Hex Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff FG-02 LR Fluid-Gimbal Head with B2-LR II Lever-Release Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff FG-02 LR Specs | Material of Construction | Aluminum and Stainless Steel | | Load Capacity | 50 lb (23 kg) | | Maximum Fluid Capacity | 15 lb (6.8 kg) | | Quick Release System | Arca-type | | Pan & Tilt Range | 360° | | Tripod Mounting Thread | 3/8"-16 | | Operating Temperature Range | 0 to 140°F (-18 to 60°C) | | Height | 9.5" (24.1 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 11.3 x 6.8 x 5.9" |
