Product description

• Harris Clamp Adapter Use the Really Right Stuff Harris Clamp Adapter to securely attach Harris bipods with a sling stud attachment feature to the RRS lever-release and screw-knob clamps. A 1/4"-20 accessory mount socket is provided for applications and equipment that need it, and the adapter's contact pads grab surfaces and edges on a variety of objects. Machined from a solid block of 303 stainless steel, this adapter is designed and manufactured in San Luis Obispo, California. UPC: 818413028623

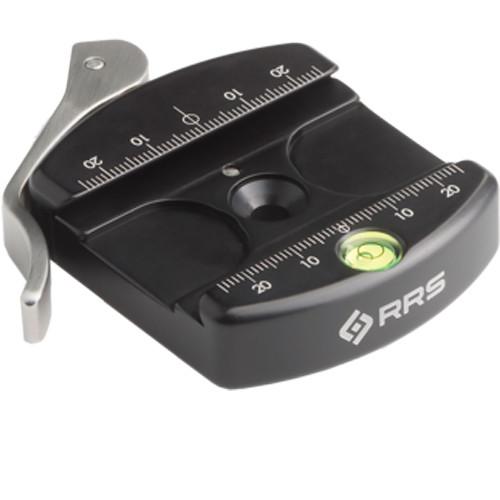

• B2-AS-II Lever-Release Clamp with 1/4"-20 Screw (60mm) This B2-AS-II Lever-Release Clamp with 1/4"-20 Screw from Really Right Stuff is compatible with most Arca-type camera plates, lens plates, and multi-purpose rails. The jaws of the clamp open wide for plates to be top-loaded quickly and easily with no mishandling of the camera during mounting. The locking lever-release is opened or closed by only using finger force, and once the clamp is locked down onto the plate, it has a holding power of up to 50 lb. At the top of the clamp, it features a non-threaded, counter-sunk center socket, which mounts through the top via a 1/4"-20 mounting screw. The clamp is compatible with Really Right Stuff, some Arca-Swiss, and Manfrotto ball heads. The CNC machined 6061-T6 aluminum clamp has a type II black anodized finish. Index marks are laser-engraved on both sides of the clamp so a position can be repeated. Additionally, the stainless steel locking-lever has a low profile, and the lever hugs the side of the clamp very closely, so it is very unlikely to snag onto clothing or something else in the field. The clamp has a built-in bullseye spirit level, which keeps your camera leveled in a horizontal plane.
  • Arca-type compatible clamp
  • Easy top-loading, low profile clamp
  • Stainless steel locking lever-release cam, which opens and closes with finger force
  • Clamp has up to 50 lb of holding power
  • CNC machined 6061-T6, type II black anodized aluminum
  • Laser-engraved scale for repeated positions
  • 1/4"-20 mounting screw mounts through the top non-threaded, counter-sunk center socket onto Really Right Stuff, some Arca-Swiss, and Manfrotto ball heads
  UPC: 818413023017

• Limited 5-Year Warranty

• 1/4"-20 Screw

• 5/32" Hex Key

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Harris Clamp Adapter

  Dimensions	1.5 x 1.25 x 0.7"/ 3.8 x 2.2 x 1.8 cm
  Weight	1.4 oz / 39.7g

  Box Dimensions (LxWxH)	5.95 x 4.0 x 0.8"

• B2-AS-II Lever-Release Clamp with 1/4"-20 Screw (60mm)

  Assembly Dimensions	L: 3.4 x W: 2.4 x H: 0.6" / L: 86.0 x W: 61.0 x H: 15.0 mm

  Quick Release Type	Arca-Type
  Material	Aluminum
  Weight	5.6 oz / 158.8 g

  Box Dimensions (LxWxH)	4.5 x 3.2 x 1.0"
