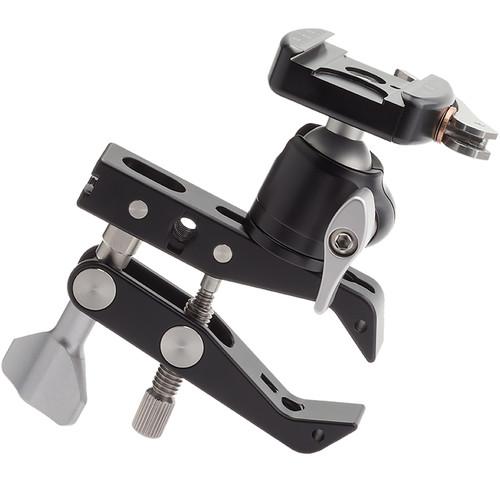

Product description This Multi-Clamp Kit with BH-25 Ball Head from Really Right Stuff combines an RRS multi-clamp with an RRS ultralight ball head. Suitable for travel, this compact kit takes care of supporting and leveling your DSLR or small camcorder. The multi-clamp can be fixed to any rail, post, or similar object with a diameter up to 3.5". Mount the BH-25 Ball Head to the multi-clamp's single 1/4"-20 socket. It also has four 3/8"-16 sockets for mounting accessories. The lever-operated BH-25 Ball Head works with any RRS or Arca-Swiss-style quick release plate (not included). Note: Does not include a quick release plate (available separately). - BH-25 Ball Head with Lever-Release Clamp The BH-25 Ball Head with Lever-Release Clamp from Really Right Stuff is an Arca-compatible, single action tripod head that represents the smallest and lightest ball head offering in the RRS line-up.
Despite the BH-25's small stature it's an impressively capable support, able to hold up to 8.8 lb, while standing just 2.6" tall and weighing a negligible 7.8 oz. The single action design of the head allows the user to unlock the 360° pan and the ball at the same time, facilitating completely free movement in any direction and locking in any position. The T-style lever lock assists the user when locking and unlocking the ball head by providing a large grip for maximum leverage. The T-style handle is also set on a spring loaded ratcheting joint, which allows the user to rotate the handle, freeing it of obstruction caused by large tripod baseplates.
On the technical side, the BH-25 features a few classic additions that make the head almost universally compatible and customizable. The bottom of the head features a standard 3/8"-16 mount for wide compatibility with most tripod legs, while the connecting stem features a standard 1/4"-20 thread that makes swapping quick release clamps as simple as possible. Also, to save weight, the 0.9" ball uses a hollow design, which maintains strength while adding to the BH-25's lightweight design. UPC: 818413022201 - Multi-Clamp The Multi-Clamp from Really Right Stuff can be used to fasten your camera and/or accessories to railings, poles, or other rounded objects up to 3.5" in diameter. This versatile, sturdy clamp has four 3/8"-16, and one 1/4"-20 threaded holes for mounting items. Use it with a DSLR or small camcorder, or with accessories such as a ball-leveling head, LED light, flag, or monitor.Adjust and tighten the clamp using its two captive thumbscrews (one winged and one knurled). The body of the Multi-Clamp is constructed from anodized, machined aluminum, and the hardware is made of stainless steel. UPC: 818413028234
In the Box Bundle Items BH-25 Ball Head with Lever-Release Clamp Multi-Clamp fadzaqrzecssyesavuwaycycarwwefxqevyqts Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff Multi-Clamp Kit with BH-25 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BH-25 Ball Head with Lever-Release Clamp
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 8.8 lb / 4 kg | | Number of Bubble Levels | None | | Friction Control | No | | Independent Pan Lock | No | | | | Ball Sphere Diameter | 1" / 25 mm | | Base Diameter | 1.3" / 34 mm | | Dimensions | H: 2.6" / H: 66.0 mm | | Weight | 7.8 oz / 221.0 g | | | | Box Dimensions (LxWxH) | 5.4 x 3.7 x 0.7" | - Multi-Clamp
| Material of Construction | Anodized, machined aluminum
Stainless steel | | Accessory Mounting Threads | 4 x 3/8"-16
1 x 1/4"-20 | | Clamp Mount Surface Thickness | Minimum Diameter: 0.6" (1.5 cm)
Maximum Diameter: 3.5" (8.9 cm) | | | | Box Dimensions (LxWxH) | 4.6 x 3.5 x 0.8" |
