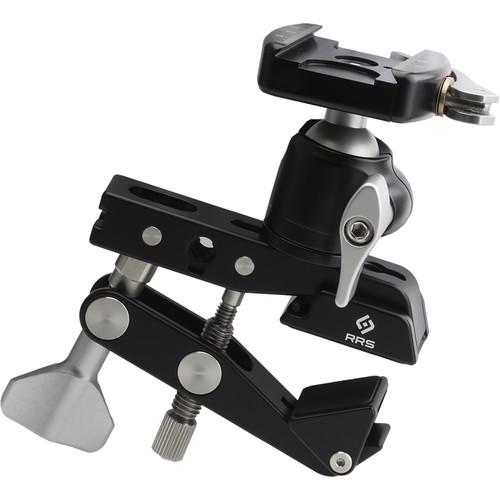

Product description

• BH-25 Ball Head with Lever-Release Clamp The BH-25 Ball Head with Lever-Release Clamp from Really Right Stuff is an Arca-compatible, single action tripod head that represents the smallest and lightest ball head offering in the RRS line-up.

  Despite the BH-25's small stature it's an impressively capable support, able to hold up to 8.8 lb, while standing just 2.6" tall and weighing a negligible 7.8 oz. The single action design of the head allows the user to unlock the 360° pan and the ball at the same time, facilitating completely free movement in any direction and locking in any position. The T-style lever lock assists the user when locking and unlocking the ball head by providing a large grip for maximum leverage. The T-style handle is also set on a spring loaded ratcheting joint, which allows the user to rotate the handle, freeing it of obstruction caused by large tripod baseplates.

  On the technical side, the BH-25 features a few classic additions that make the head almost universally compatible and customizable. The bottom of the head features a standard 3/8"-16 mount for wide compatibility with most tripod legs, while the connecting stem features a standard 1/4"-20 thread that makes swapping quick release clamps as simple as possible. Also, to save weight, the 0.9" ball uses a hollow design, which maintains strength while adding to the BH-25's lightweight design. UPC: 818413022201
• Multi-Clamp with Flat Surface Adapters The Multi-Clamp with Flat Surface Adapters from Really Right Stuff can be used to fasten your camera and/or accessories to railings, poles, or other rounded objects up to 3.5" in diameter. Use the included flat surface adapters to mount the clamp to flat planes up to 2.4" thick. This versatile, sturdy clamp has four 3/8"-16, and one 1/4"-20 threaded holes for mounting items. Use it with a DSLR or small camcorder, or with accessories such as a ball-leveling head, LED light, flag, or monitor.Adjust and tighten the clamp using its two captive thumbscrews (one winged and one knurled). The body of the Multi-Clamp is constructed from anodized, machined aluminum, and the hardware is made of stainless steel. UPC: 818413028104

• 5/32" Hex Key

• Limited 5-Year Warranty

• 2 x Flat Surface Adapters

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BH-25 Ball Head with Lever-Release Clamp

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Quick Release Plate Type	Arca-Type
  Load Capacity	8.8 lb / 4 kg
  Number of Bubble Levels	None
  Friction Control	No
  Independent Pan Lock	No

  Ball Sphere Diameter	1" / 25 mm
  Base Diameter	1.3" / 34 mm
  Dimensions	H: 2.6" / H: 66.0 mm
  Weight	7.8 oz / 221.0 g

  Box Dimensions (LxWxH)	5.4 x 3.7 x 0.7"

• Multi-Clamp with Flat Surface Adapters

  Material of Construction	Anodized, machined aluminum Stainless steel
  Accessory Mounting Threads	4 x 3/8"-16 1 x 1/4"-20
  Clamp Mount Surface Thickness	Minimum Diameter: 0.6" (1.5 cm) Maximum Diameter: 3.5" (8.9 cm) Maximum Flat Plane: 2.4" (6.1 cm)

  Box Dimensions (LxWxH)	5.5 x 4.9 x 1.1"
