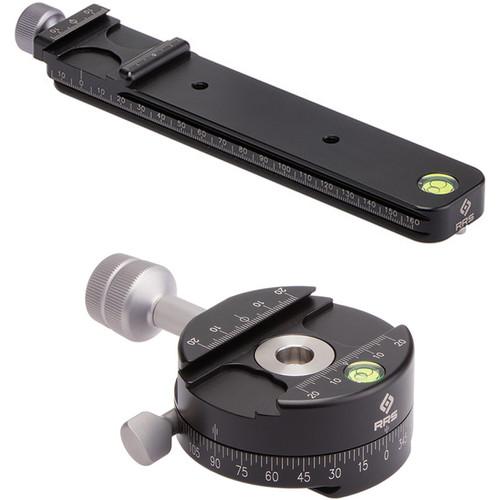

Really Right Stuff Pano Elements Package

User Manual for Really Right Stuff Pano Elements Package with Screw-Knob

• Product category: Panoramic & Time Lapse Heads Really Right Stuff
• Brand: Really Right Stuff
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Really Right Stuff Panoramic & Time Lapse Heads

Product description

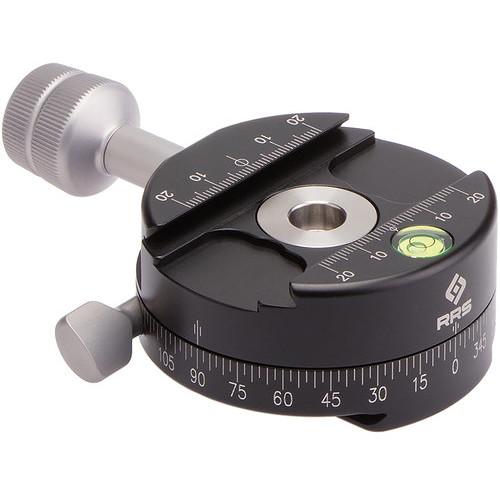

• PC-PRO Round Panning Clamp with Screw-Knob Release The PC-PRO Round Panning Clamp from Really Right Stuff is an Arca-type compatible dovetail equipped, 360° panning base that features a screw-knob equipped Arca-type clamp.

  A useful accessory for panoramic and landscape photographers, the PC-PRO base allows the user to rotate their camera 360° on top of a tripod, ball head, or other support. The base may be attached to a support or Arca-type equipped ball head via the integrated Arca-type dovetail, a 3/8"-16 threaded socket, or a 1/4"-20 threaded socket.

  When in use, the rotation of the mounted camera may be accurately monitored via a laser engraved degree scale which features markings in 2.5° increments. When the photographer decides on a stopping point the rotation may be locked by an integrated screw knob. The clamp also features a diameter of 2.9", a total height of 1.4", and includes a single bull's-eye bubble level for accurate leveling. UPC: 818413023093

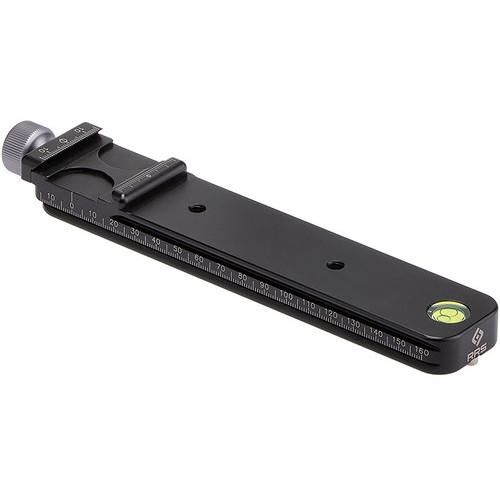

• MPR-CL II Rail with Integral Clamp (7.4") This 7.4" MPR-CL II Rail with Integral Clamp from Really Right Stuff has an Arca-type double dovetail design that can accept accessories on either the top or bottom of the rail. The rail also sports a screw-knob style clamp on one end. The MPR-CL II rail can be mounted on a ball head, used as a macro slider or focuser, or can have an orbital-style flash bracket attached to it. There is a laser-engraved scale with 1mm increments on both sides of the rail, for precise position repeatability. Additionally, a built-in bull's-eye bubble level is located towards the front of rail to keep the camera level.
  • Really Right Stuff and Arca-type compatible
  • Double dovetail design allows accessories to mount top or bottom of the rail
  • CNC machined 6061-T6 type II black anodized aluminum
  • Becomes a nodal slider for panoramic gear, a platform for flash brackets, or a macro slider
  • Built-in bull's-eye bubble level to level out camera
  UPC: 818413028098

• OP/TECH Neoprene Storage Pouch

• Cap-Head 1/4"-20 x 1.25" and M6-1.0 x 40mm Screws

• 7/32" Hex Key

• M5 Hex Key

• Limited 5-Year Warranty

• 2 x M3-0.5 x 5mm Safety Stop Screws

• M2.5 Hex Key

• Limited 5-Year Warranty

Also Includes

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PC-PRO Round Panning Clamp with Screw-Knob Release

  Quick Release System	Arca-type
  Tripod Mounting Threads	3/8"-16 and 1/4"-20
  Height	1.4" (3.5 cm)
  Diameter	2.9" (7.2 cm)
  Weight	11 oz (310 g)

  Box Dimensions (LxWxH)	5.5 x 4.1 x 0.9"

• MPR-CL II Rail with Integral Clamp (7.4")

  Material of Construction	CNC machined 6061-T6 aluminum
  Dimensions	7.4 x 1.5" (189 x 38 mm)
  Weight	6.1 oz (174 g)

  Box Dimensions (LxWxH)	8.9 x 2.7 x 0.7"
