User Manual for Really Right Stuff Pano-Gimbal Head with B2-LLR II Lever-Release Clamp Click to enlarge the picture
Contents of the user manual for the Really Right Stuff Pano-Gimbal Head with
- Product category: Panoramic & Time Lapse Heads Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Panoramic & Time Lapse Heads
 |
User manual for the Really Right Stuff Pano-Gimbal Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|

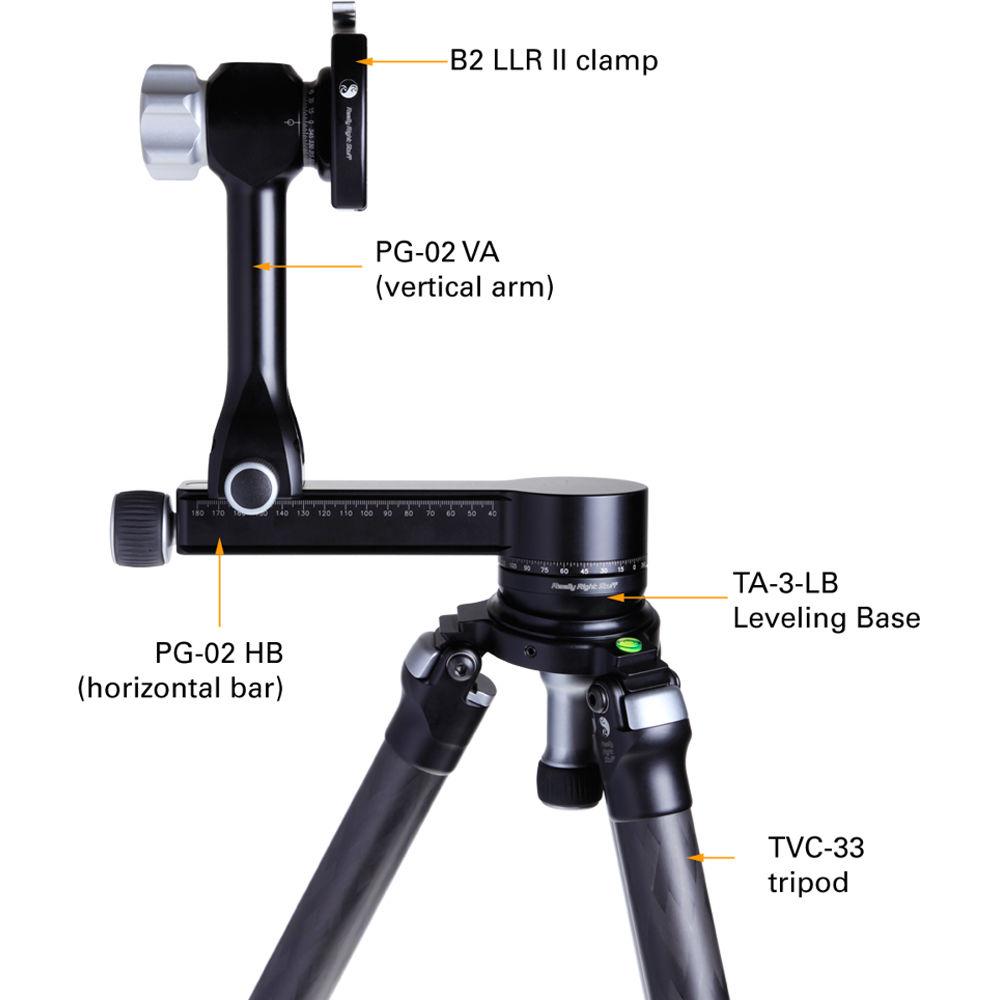

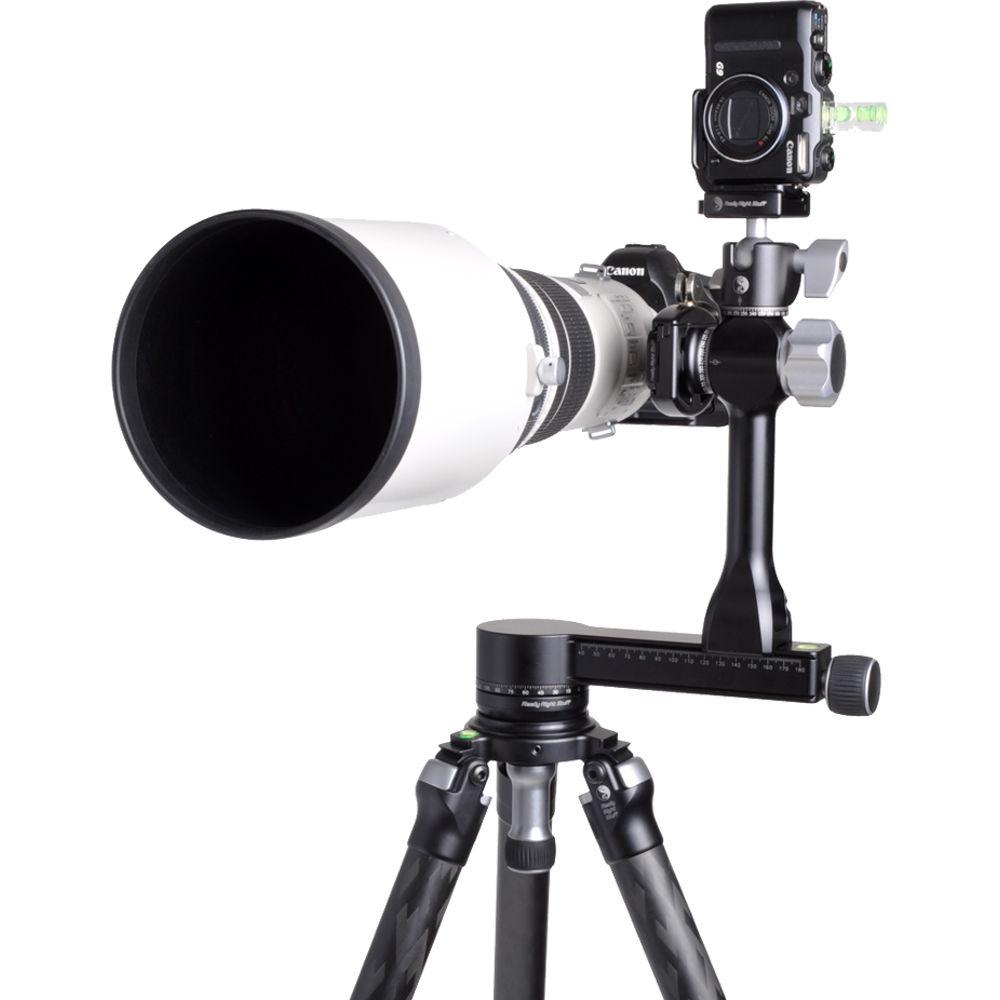

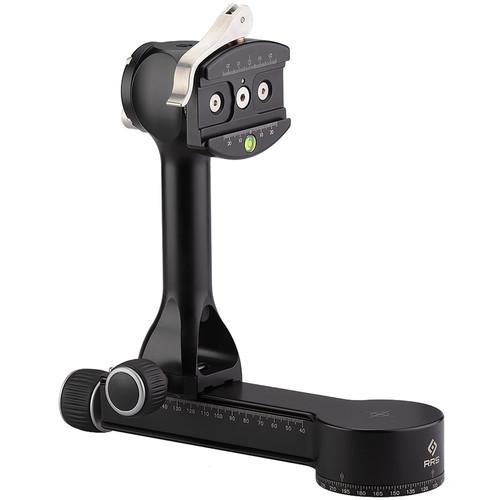

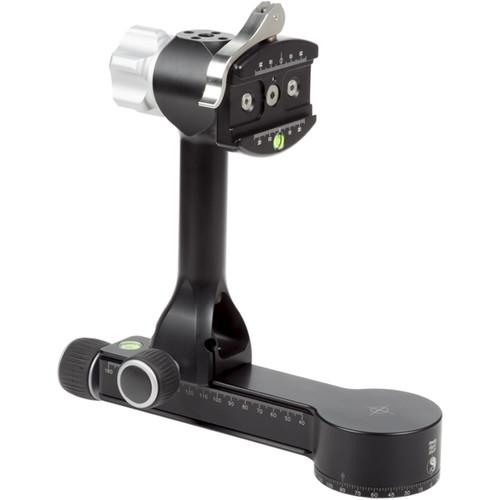

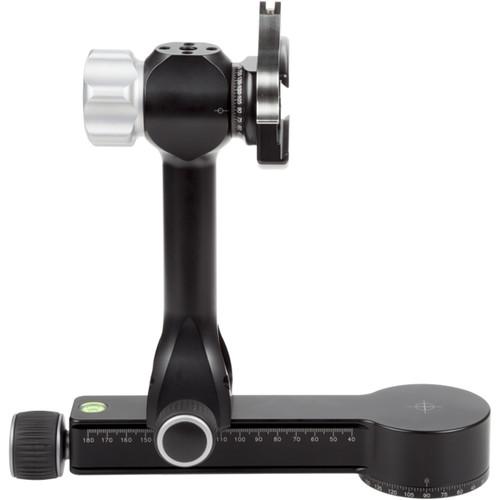

Product description Time-Lapse Tips and Tools Read More The Pano-Gimbal Head with B2-LLR II Lever-Release Clamp from Really Right Stuff is designed to pivot on both vertical and horizontal axes, which enable the head to do a 360° panoramic photograph. Because the head has a weight capacity of 50 lb, it can support large telephoto lenses, such as a 600mm. The Pano-Gimbal Head can track fast-moving objects typically found in sports, action, and wildlife photography.The Pano-Gimbal Head consists of a vertical arm and horizontal bar, which have both have been laser-engraved for precise panning and positioning the height of the lens. The horizontal bar has a 2.5° increment scale, and the vertical arm is engraved with a millimeter scale. Both the arm and bar are machined from aircraft aluminum and steel parts, and each axis has its own independent lock, which firmly holds your position in place. Additionally, mounting sockets are located at the top of the vertical arm, and they allow other accessories to attach like smaller ball heads, lights, or microphones.The B2-LLR II Lever-Release Clamp is an Arca-type compatible mount with a jaw length of 80mm. Moreover, the top of the clamp is also laser-engraved with a millimeter scale to help you center a quick release plate on a dovetailed tripod foot. The S-shaped locking cam lever swivels seamlessly, and clamps down onto the plate or tripod foot, securely holding the lens in place. - The Pano-Gimbal Head pivots independently on both axes and is ideal for action, panoramic, sports, and bird photography

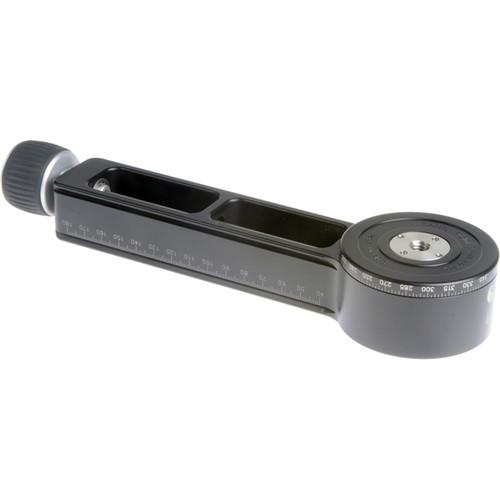

- Panning bar has a panning range of 360° and has been laser-engraved with a 2.5° increment scale
- Vertical arm is laser-engraved with a millimeter scale, and an Arca-type clamp with an s-shaped cam locking lever is located at the top
UPC: 818413022799 In the Box Really Right Stuff Pano-Gimbal Head with B2-LLR II Lever-Release Clamp 1/4"-20 x 3/4 Flathead Screw 5/32" Hex Key 2 x M5-0.8 x 12mm Flathead Screws M3 Hex Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff Pano-Gimbal Head with B2-LLR II Lever-Release Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff 9072 Specs | Material of Construction | Aluminum and steel | | Load Capacity | 50 lb (23 kg) | | Quick Release System | Arca-type | | Tripod Mount | 3/8"-16 | | Pan & Tilt | 360° | | Dimensions | Overall H x L: 9.7 x 10.3" (24.6 x 26.2 cm)Base Diameter: 2.9" (7.4 cm)Horizontal Bar H x L: 1.5 x 10.2" (3.8 x 25.9 cm)Panning Base Diameter: 2.75" (7 cm)Vertical Arm Height: 8.1" (20.6 cm) | | Weight | Overall: 2.95 lb (1339 g)Horizontal Bar: 21.5 oz (610 g)Vertical Arm: 19 oz (540 g) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 14.0 x 8.5 x 5.2" |
