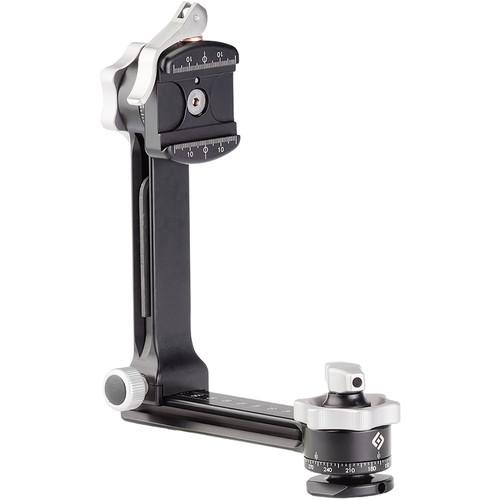

User Manual for Really Right Stuff PG-01 Compact Pano-Gimbal Head with Lever-Release Clamp and Leveling Base Click to enlarge the picture
Contents of the user manual for the Really Right Stuff PG-01 Compact Pano-Gimbal
- Product category: Panoramic & Time Lapse Heads Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Panoramic & Time Lapse Heads
|
User manual for the Really Right Stuff PG-01 Compact Pano-Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More The PG-01 Compact Pano-Gimbal Head from Really Right Stuff is an ultra-portable, lightweight tripod head offered in numerous configurations depending on the needs of the user. This version includes a lever-release Arca-type quick release clamp and an integrated leveling base with Arca-type dovetail compatibility.
Designed as both a panoramic and gimbal head, the PG-01 is recommended for users wishing to capture single or multi-row panoramas with non-collared lenses. It can also be used as a small gimbal support for cameras with medium telephoto lenses, or in layman's terms, lenses no larger than a traditional 70-200mm f/2.8 lens. With a load capacity of 8 lb, Really Right Stuff suggests using this head exclusively for mirrorless cameras or small DSLR's—users with larger gear should consider similar heads with higher weight capacities.
The PG-01's design consists of two arms that control the rotation and swing of the cameras position. The base arm is connected directly to the integrated base rotator, which features a laser-engraved 360° scale for accurate positioning when capturing single or multi-row panoramas. The vertical arm, which mounts to the base arm via an Arca-type clamp, may be positioned with the assistance of a laser-engraved millimeter scale. The vertical arm also features an adjustable rotator with engraved 360° markings and a lever-release equipped Arca-type clamp for mounting and dismounting your camera, extension plate, or nodal slide.
This version of the PG-01 also includes an integrated leveling base built into the horizontal rotator. The inclusion of the base eliminates the need for users to purchase a separate leveling device or use with PG-01 with an additional ball head. The base is controlled by a precision-machined knob that provides the user with maximum locking power for a stable grip. Accurate leveling is achieved with the assistance of a built-in bubble level, which has been placed at the far-end of the horizontal arm.
Additional technical features include a 3/8"-16 tripod mounting thread, an Arca-type dovetail integrated into the base rotator, a lightweight construction of just 1.2 lb, and an included 5/32 hex key with magnetic storage slot. - Designed for gimbal support and single and multi-row panoramas
- Supports DSLRs and mirrorless cameras with up to a 70-200mm f/2.8 lens
- Integrated leveling base with bubble level
- Pivots 360° on both the horizontal and vertical plane
- Arca-type compatible lever-release quick release clamp
- Ultra lightweight design—just 1.2 lb
- Laser-engraved degree markings and millimeter scale
- Machined from solid aluminum and stainless steel components
UPC: 818413022836 In the Box Really Right Stuff PG-01 Compact Pano-Gimbal Head with Lever-Release Clamp and Leveling Base 5/32 Hex Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff PG-01 Compact Pano-Gimbal Head with Lever-Release Clamp and Leveling Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff PG-01 LR Specs | Material of Construction | Aluminum and Stainless Steel | | Load Capacity | 8 lb (3.6 kg) | | Quick Release System | Arca-type | | Panning Range | 360° | | Tripod Mounting Thread | 3/8"-16 | | Dimensions | 7.75 x 6.6 x 2.8" (19.7 x 16.9 x 7.1 cm) | | Weight | 1.2 lb (528 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.9 x 3.6 x 0.8" |
