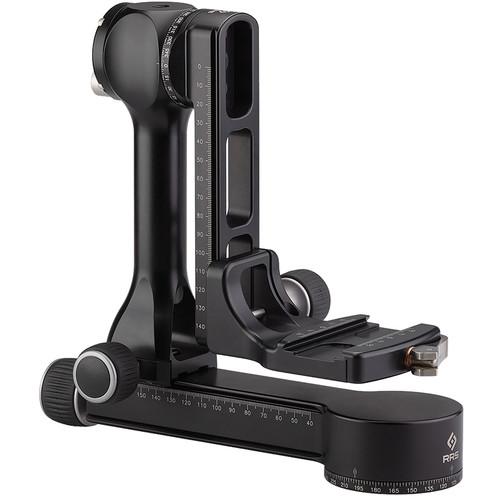

User Manual for Really Right Stuff PG-02 FG Pano-Gimbal Head with PG-CC Cradle Clamp Click to enlarge the picture
Contents of the user manual for the Really Right Stuff PG-02 FG Pano-Gimbal
- Product category: Panoramic & Time Lapse Heads Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Panoramic & Time Lapse Heads
|
User manual for the Really Right Stuff PG-02 FG Pano-Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More The PG-02 FG Pano-Gimbal Head with PG-CC Cradle Clamp from Really Right Stuff is a full-size, dual-function tripod head designed to support DSLRs with up to a 600mm lens attached.
With a load capacity of 50 lb, the PG-02 is a reliable and stable support able to effortlessly and accurately shift position when tracking moving subjects like wildlife or birds in flight. With a separately available Really Right Stuff B2-LLR-II Lever-Release Clamp, the PG-02 is also recommended for users wishing to capture single or multi-row panoramas with collared lenses.
The PG-02's design consists of two arms that control the rotation and swing of the cameras position. The base arm is connected directly to the integrated base rotator, which features a laser-engraved 360° scale for accurate positioning when capturing single or multi-row panoramas. The vertical arm, which mounts to the base arm via Arca-type clamp, may be positioned with the assistance of a laser-engraved millimeter scale. The vertical arm also features an adjustable rotator with engraved 360° markings and a lever-lock equipped Arca-type cradle clamp for mounting and dismounting your camera and lens foot.
Although the PG-02 is primarily a still photography support, considerations for video users have also been made to make the head more accessible. On the top of the vertical side arm is an array of threaded accessory ports that can accommodate clamps, magic arms, and the direct mounting of LCD monitors, and microphones. The array features a 3/8"-16 female socket in the center which is surrounded by four 1/4"-20 female threads on the top, bottom, left, and, right. - Designed for gimbal support
- Suitable for single and multi-row panoramas with separately available Really Right Stuff B2-LLR-II Lever-Release Clamp
- Supports cameras and lenses up to 600mm
- Pivots 360° on both the horizontal and vertical plane
- Lever-release Arca-type compatible quick release cradle clamp
- Sturdy, professional design—weighs just 3.6 lb
- Laser-engraved degree markings and millimeter scale
- Machined from solid aluminum and stainless steel components
UPC: 818413022850 In the Box Really Right Stuff PG-02 FG Pano-Gimbal Head with PG-CC Cradle Clamp 5/32 Hex Key Case M3 Hex Key 1/4"-20 x 3/4" Flathead Screw 2 x M5-0.8 x 12mm Flathead Screw Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff PG-02 FG Pano-Gimbal Head with PG-CC Cradle Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff PG-02 FG Specs | Material of Construction | Aluminum and Stainless Steel | | Load Capacity | 50 lb (23 kg) | | Quick Release System | Arca-type | | Pan & Tilt Range | 360° | | Tripod Mounting Thread | 3/8"-16 | | Accessory Mount Thread Sizes | 3/8"-16 and 1/4"-20 | | Dimensions | 8.1 x 10.3 x 2.9" (20.5 x 26 x 7.3 cm) | | Weight | 3.6 lb (1.6 kg) | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 13.8 x 8.5 x 5.2" |
