Product description

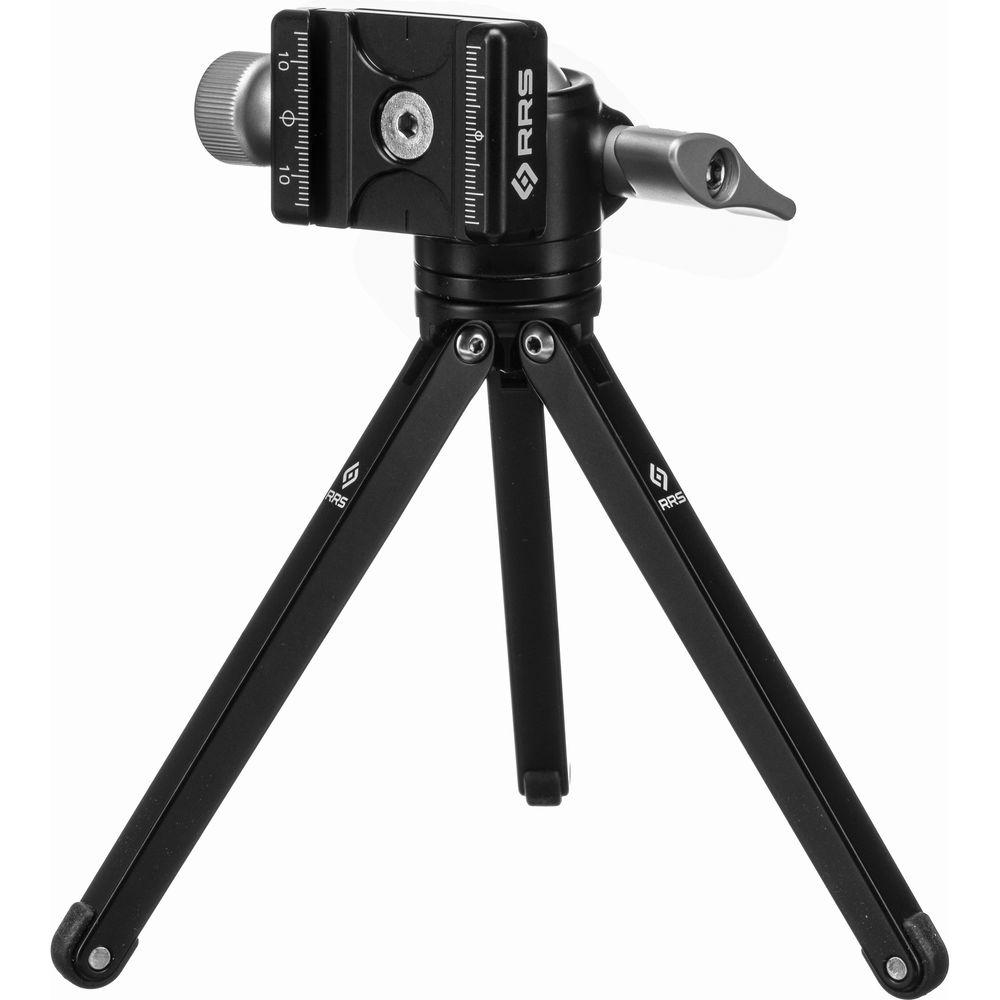

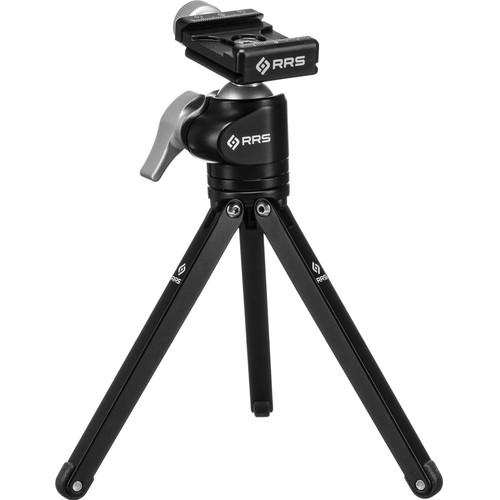

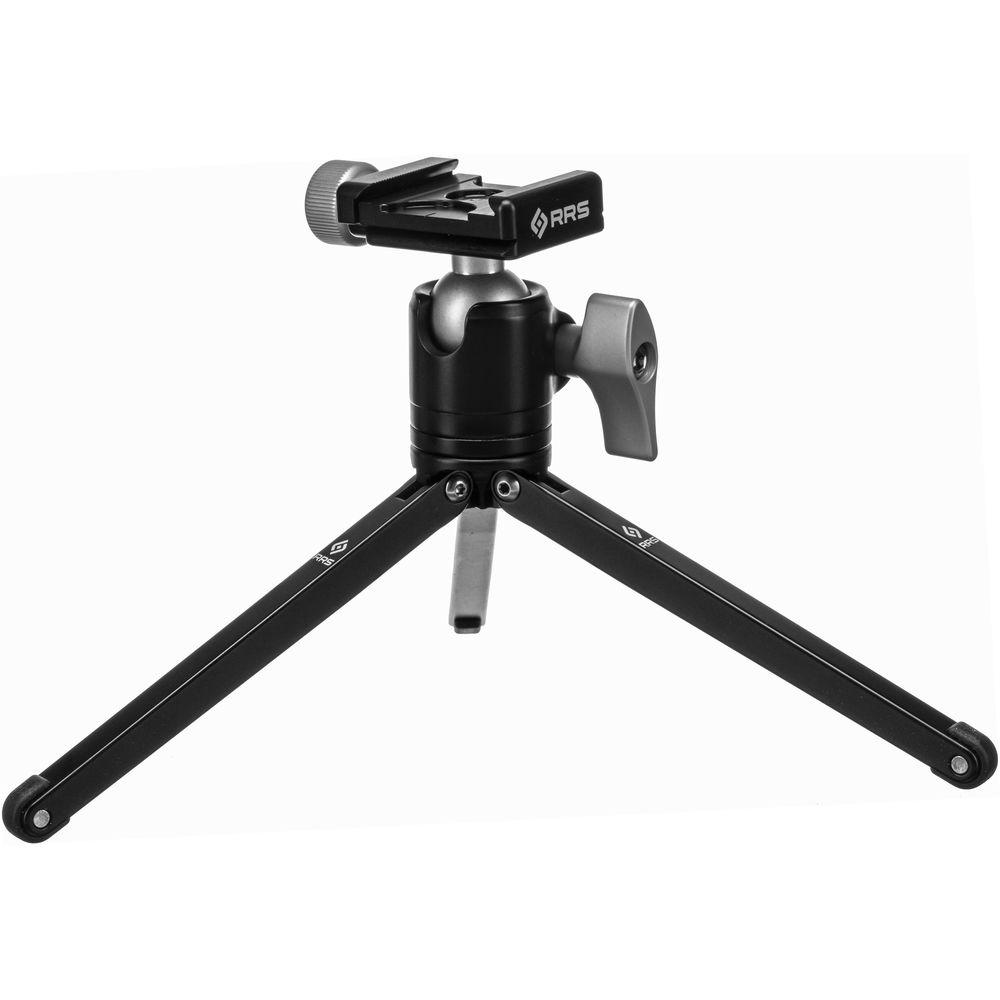

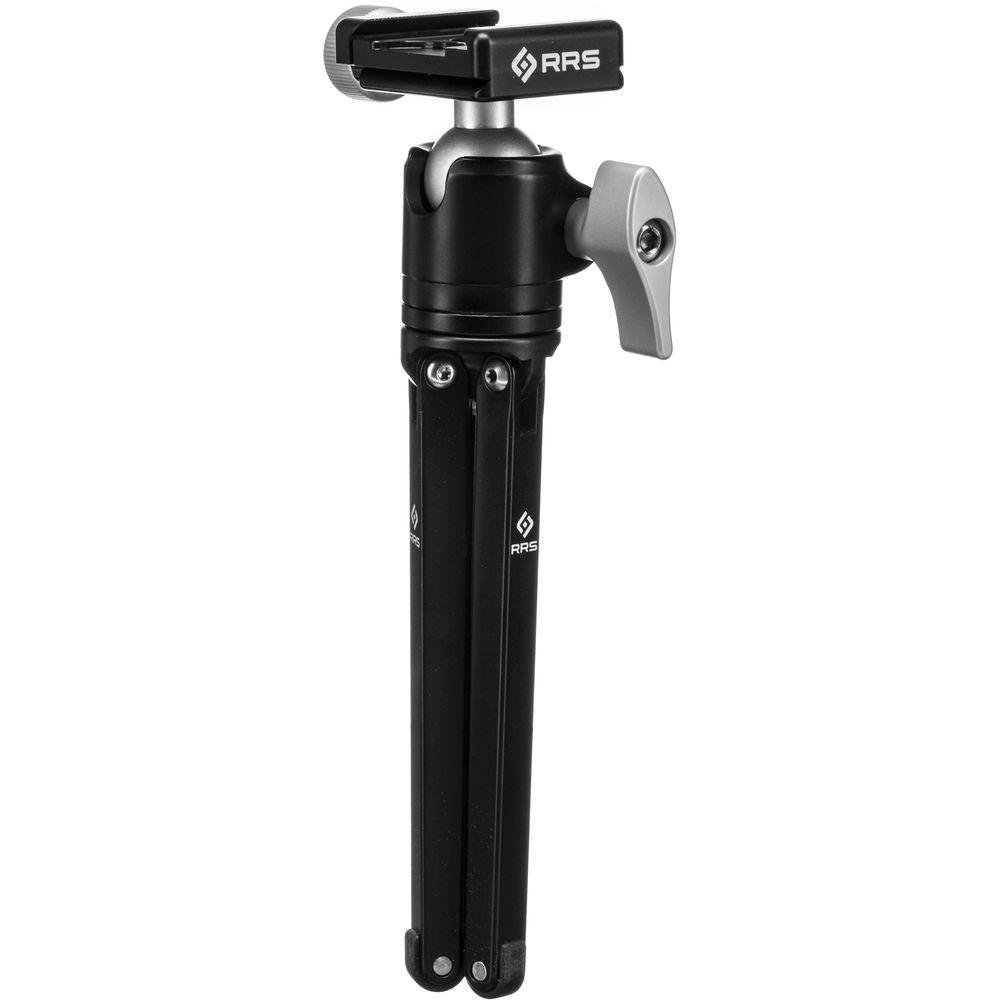

• TFA-01 Basic Pocket 'Pod The ultra-portable TFA-01 Basic Pocket 'Pod from Really Right Stuff supports up to 15 lb, and measures 5.8" when folded. Its aluminum-alloy legs each feature an independent spread and when fully splayed, provide a height of 1.5". To enhance stability, rubber feet are included at the end of each leg, all of which allow the level of tension that is applied toward their range of movement to be individually adjusted.

  Cameras, lenses, sport optics, or accessories that are compatible with a 1/4"-20 mount can be directly connected to the tripod's 1.3" diameter platform. An adapter bushing is included for cameras, lenses, sport optics, or accessories that require a 3/8"-16 mount.
  Use and Handling
  • • Supports up to 15.0 lb
    • Legs each feature 1 section and a rubber foot for stability
    • Weighs 4.7 oz, measures 5.8" when folded
    • Included torx keys to adjust the level of tension applied to each leg when moving between the spread and folded position
  Construction Details
  • • Aluminum-alloy legs and 1.3" diameter platform with 1/4"-20 mount
    • Includes adapter bushing for cameras, lenses, sport optics, or accessories that require a 3/8"-16 mount
  UPC: 818413021013
• BH-25 Ball Head with Screw-Knob Clamp The BH-25 Ball Head with Screw-Knob Clamp from Really Right Stuff is an Arca-compatible, single action tripod head that represents the smallest and lightest ball head offering in the RRS line-up.

  Despite the BH-25's small stature it's an impressively capable support, able to hold up to 8.8 lb, while standing just 2.6" tall and weighing a negligible 6.5 oz. The single action design of the head allows the user to unlock the 360° pan and the ball at the same time, facilitating completely free movement in any direction and locking in any position. The T-style lever lock assists the user when locking and unlocking the ball head by providing a large grip for maximum leverage. The T-style handle is also set on a spring loaded ratcheting joint, which allows the user to rotate the handle, freeing it of obstruction caused by large tripod baseplates.

  On the technical side, the BH-25 features a few classic additions that make the head almost universally compatible and customizable. The bottom of the head features a standard 3/8"-16 mount for wide compatibility with most tripod legs, while the connecting stem features a standard 1/4"-20 thread that makes swapping quick release clamps as simple as possible. Also, to save weight, the 0.9" ball uses a hollow design, which maintains strength while adding to the BH-25's lightweight design. UPC: 818413022218

• 2 x Torx Keys

• 3/8"-16 Adapter Bushing

• Limited 5-Year Warranty

• 5/32" Hex Key

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TFA-01 Basic Pocket 'Pod

  Load Capacity	15 lb / 6.8 kg
  Minimum Working Height	1.5" / 3.8 cm
  Dimensions	H: 5.8" / H: 14.7 cm (Folded)
  Materials	Aluminum Alloy
  Weight	4.7 oz / 133.2 g

  Mounting Screw	1/4"-20 Male
  Leg Positions	1 Position
  Independent Leg Spread	Yes
  Leg Sections	1

  Box Dimensions (LxWxH)	8.3 x 1.8 x 0.5"

• BH-25 Ball Head with Screw-Knob Clamp

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Quick Release Plate Type	Arca-Type
  Load Capacity	8.8 lb / 4 kg
  Number of Bubble Levels	None
  Friction Control	No
  Independent Pan Lock	No

  Ball Sphere Diameter	1" / 25 mm
  Base Diameter	1.3" / 34 mm
  Dimensions	H: 2.6" / H: 66.0 mm
  Weight	6.5 oz / 185.0 g

  Box Dimensions (LxWxH)	5.0 x 4.3 x 2.2"
