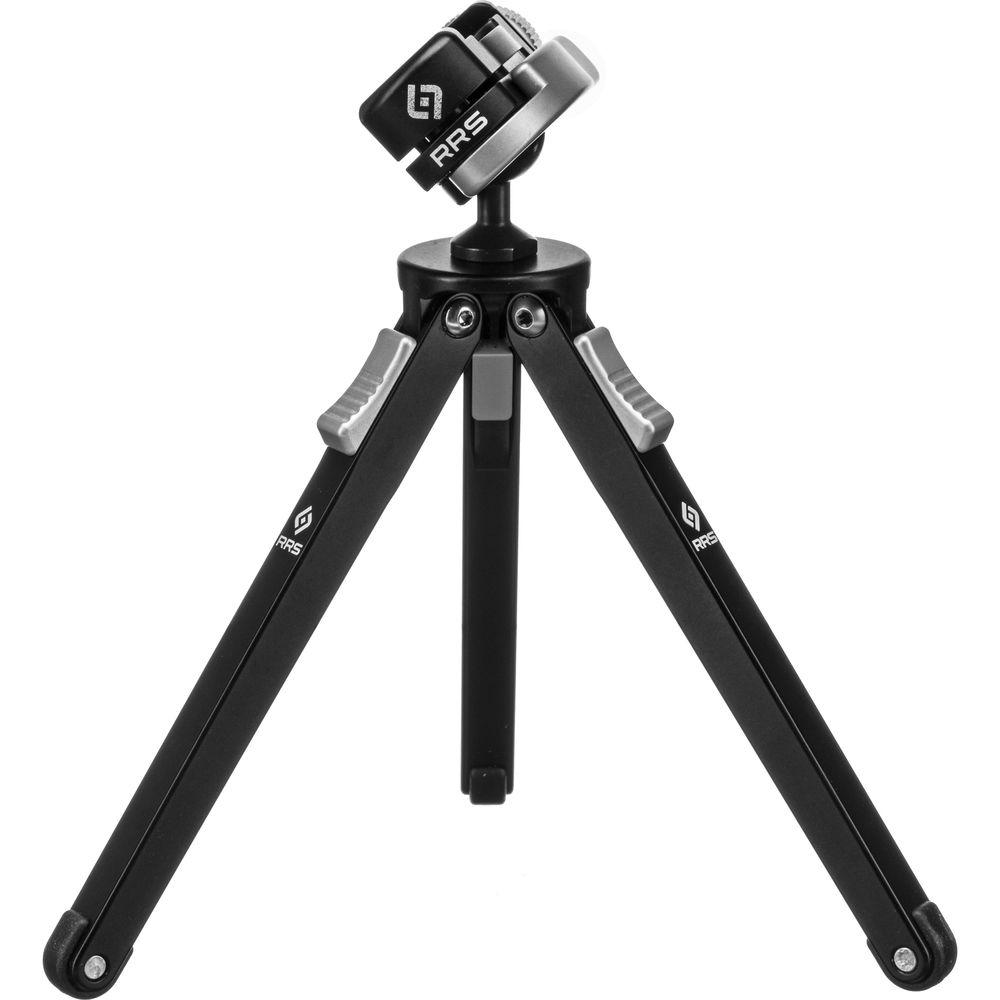

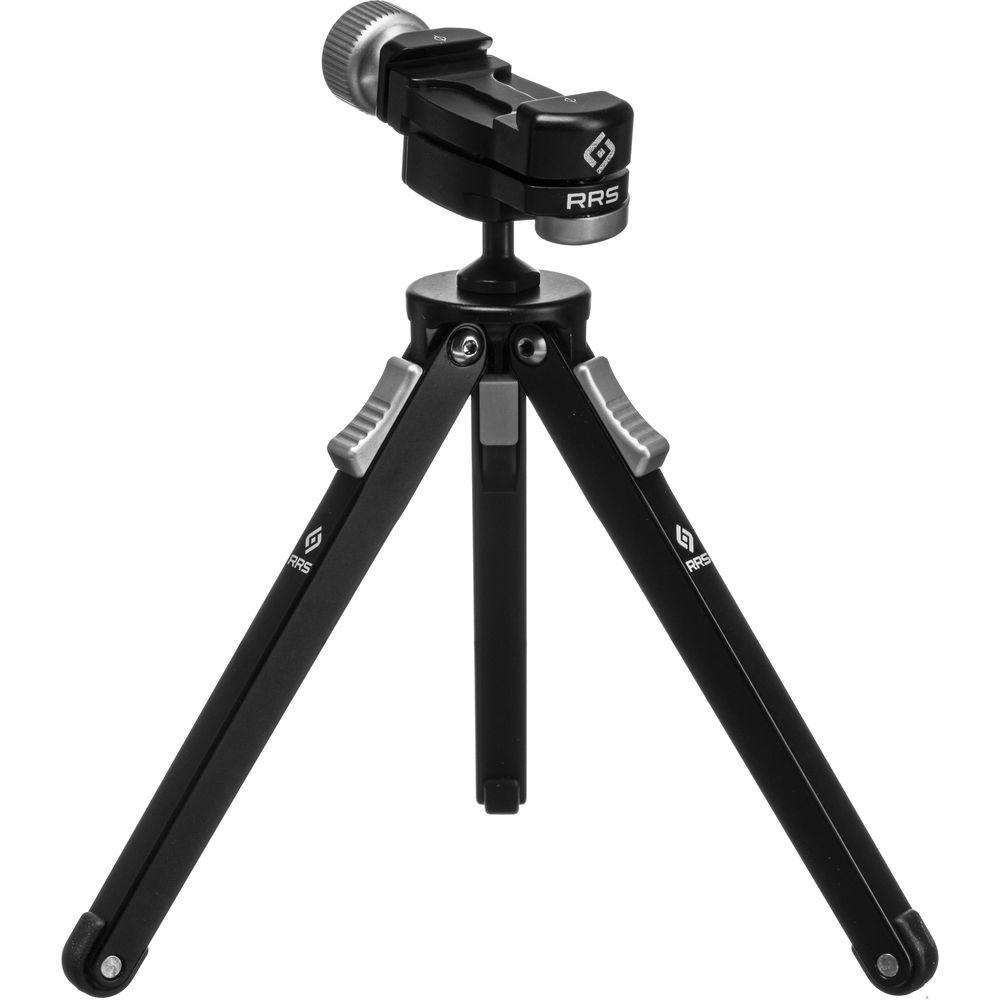

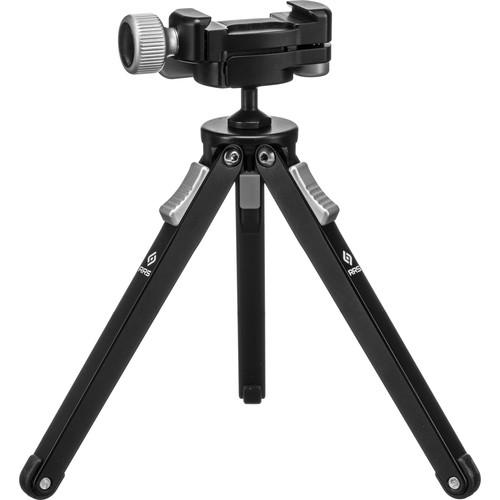

Product description The TFA-01 Ultra Pocket Pod and BC-18 Microball Package from Really Right Stuff is a great combination of a lightweight and portable table top tripod and the Arca-type compatible BC-18 Microball. - Pocket Pod The Pocket Pod from Really Right Stuff is a 5.1 oz support that folds down to 6" inches in length to fit in just about any bag. Made of aluminum and stainless steel, the Pocket Pod can be used as a monopod with its legs together or as a tripod with a maximum height of 6" with its legs partially splayed where it can support up to 15 lb. A 1/8" hex key is provided to adjust the leg tension. It's at its default setting of 1.7" with the legs fully splayed however, that it's a real performer. Used this way it's a suitable choice for mirrorless cameras or DSLRs with 70-200mm f/2.8 and 300mm f/4 equivalent telephotos. The Pocket Pod is compatible with several Really Right Stuff ball heads and comes with a 3/8"-16 adapter to accommodate them.
- Benefits
-
- For travel, macro, and general photography
- Great choice for mirrorless and standard DSLR cameras with 70-200mm f/2.8 and 300mm f/4 equivalent telephotos
- Entirely CNC machined 6061T aluminum and stainless steel
- Adjustable leg tension with provided 1/8" hex key
- Head screw size: 1/4"-20 with 3/8"-16 adapter
- Rubber feet grip at any angle
- Corrosion-resistant parts
- 15 lb load capacity
UPC: 818413021006 - BC-18 Micro Ball Clamp The BC-18 Micro Ball Clamp from Really Right Stuff is lightweight and ultra-compact, which makes it a nice addition to your camera bag for travel photography or video needs. The clamp's 1/4"-20 male threaded mounting post will fit into any bracket, cage, or video rig that contains a 1/4"-20 female thread. The screw-knob style clamp can hold most Arca-type compatible plates, and has a load capacity of up to 10 lb. The articulated ball joint has 45° of movement in four different directions, and it locks into place with the locking lever located right under the clamp.The CNC machined 6061-T6 aluminum Micro Ball Clamp has an black anodized type II finish, making it wear- and corrosion-resistant.
- Ultra-compact profile for travel
- Lever lock for ball joint and screw knob lock for clamp
- Ball joint articulation up to 45°
- CNC machined 6061-T6 type II anodized black aluminum
UPC: 818413022102 In the Box Bundle Items Pocket Pod - 1/8" Hex Key to Loosen/Tighten Leg Angle Tension
- 1/4"-20 to 3/8"-16 Stainless Steel Adapter Bushing
BC-18 Micro Ball Clamp User Manual PDF 531.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff TFA-01 Ultra Pocket Pod and BC-18 Microball Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pocket Pod
| | | Load Capacity | 15 lb / 6.8 kg | | Maximum Working Height | 6" / 14.5 cm | | Minimum Working Height | 1.7" / 44 mm | | Dimensions | H: 6.0" / H: 15.2 cm (Folded) | | Materials | Aluminum Alloy | | Weight | 5.1 oz / 146 g | | | | Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Leg Sections | 1 | | | | Box Dimensions (LxWxH) | 8.1 x 3.6 x 0.7" | - BC-18 Micro Ball Clamp
| | | Assembly Dimensions | L: 2.9 x W: 1.8 x H: 1.2" / L: 73.2 x W: 46.0 x H: 30.0 mm | | | | Quick Release Type | Arca-Type | | Load Capacity | 10 lb / 4.5 kg | | Material | Aluminum | | Weight | 3.7 oz / 104.9 g | | | | Box Dimensions (LxWxH) | 3.6 x 1.7 x 1.2" |
