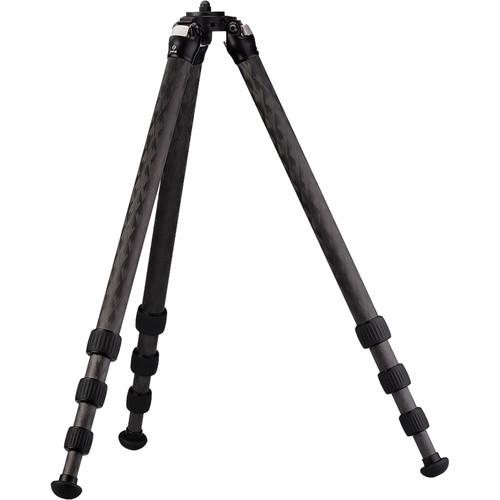

Product description The TFC-14 Mk2 from Really Right Stuff is one of the lightest and most compact tripod in the RRS product lineup. As a scaled-down version of other Series 1 models, the TFC-14 maintains most standard features like ratcheting leg locks and carbon fiber construction, but also adds new features like a reversible and removable mounting stud and a stabilizing hand strap.

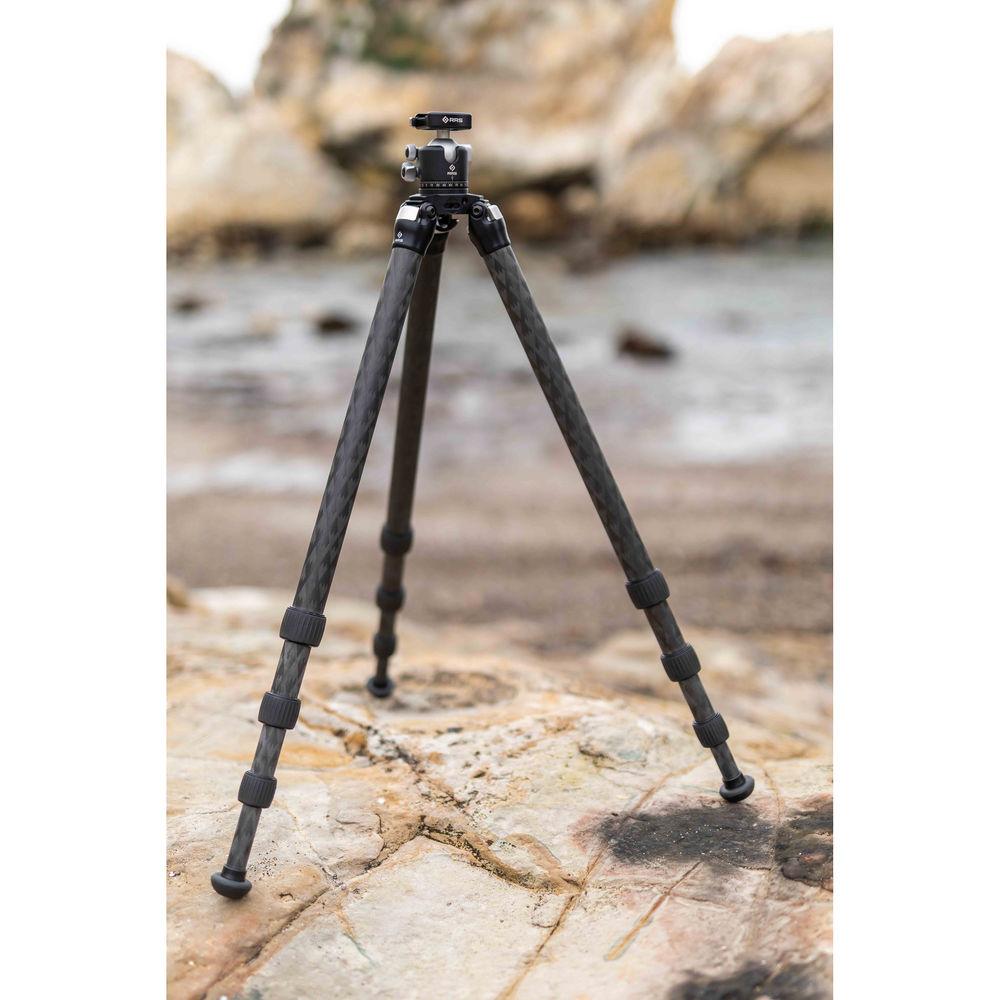

Constructed from Really Right Stuff's patented carbon fiber weave, the TFC-14 weighs in at an impressive 2.3 lb and can safely support up to 25 lb. Its 4-section leg design allows the tripod to extend to a maximum height of 47.6" and lower down to a minimum working height of just 2.8".
Quick set-up and break-down is facilitated by easy-to-use twist locks that require a very short rotation to unlock and re-lock each leg section. This design also helps to maintain the tripod's slim folded silhouette. A ballast/hand strap has also been added to the bottom of the tripod collar to allow users to increase stability by hand or with additional weights. Additionally, when traveling with or storing the tripod, the entire support can fold down to just 17.2" in length, small enough to fit into nearly any backpack or carry-on bag.

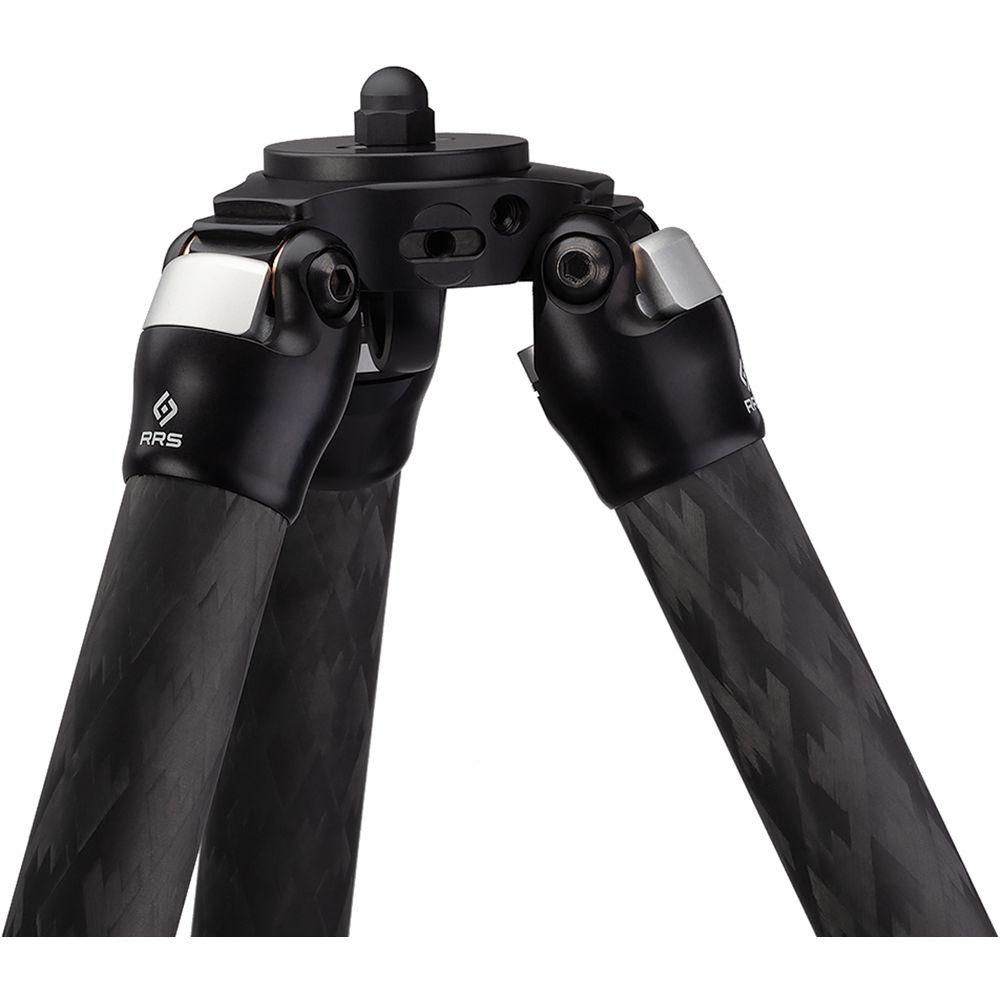

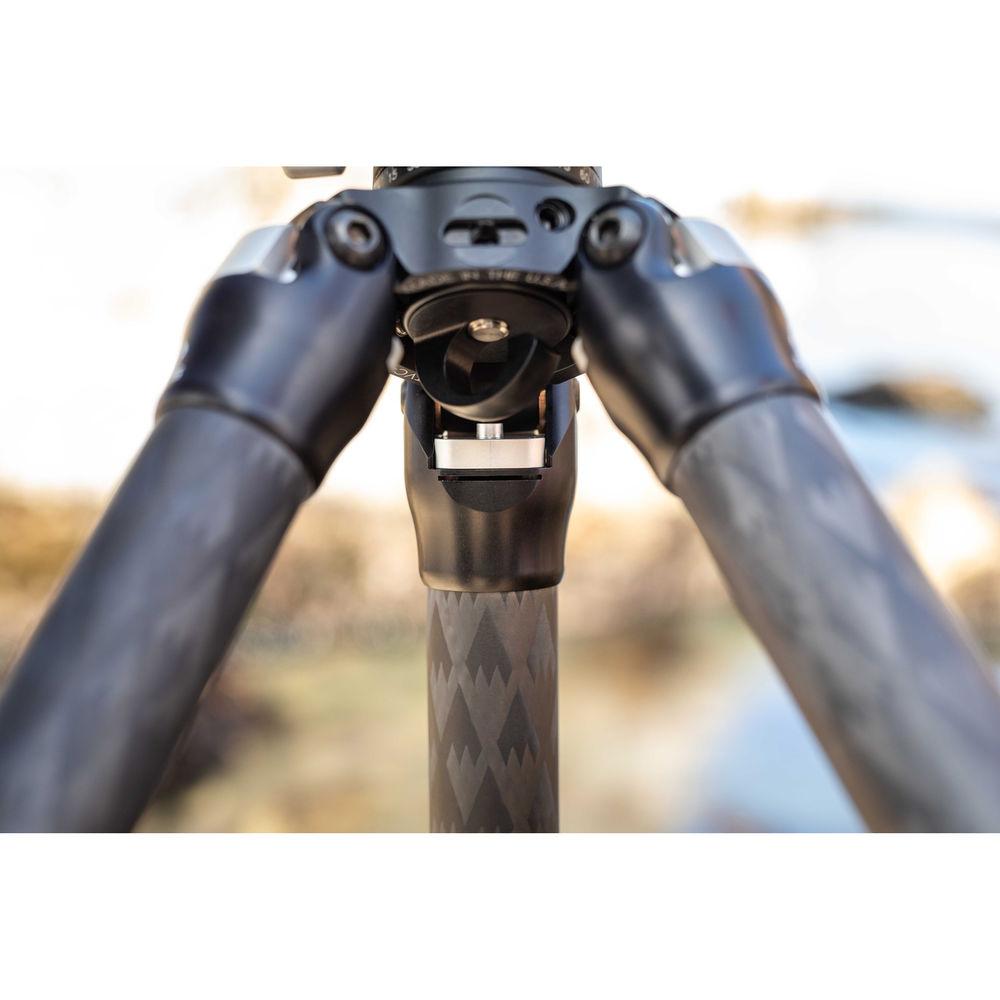

Each leg is attached to the tripod's collar via an offset leg joint that helps to evenly distribute heavy loads and maintain the tripod's rigidity. The joints and collar itself are constructed of lightweight anodized aluminum which, aside from lending inherent strength to the tripod, also provides it with natural wear and corrosion resistance. The collar's base plate utilizes a reversible 1/4"-20 or 3/8"-16 stud that can provide direct mounting of a camera or head. The stud can also be removed entirely, providing the user with a female 1/4"-20 socket for use with a variety of accessories including magic arms and accessory supports. Additionally, three 1/4"-20 threads are also available for easily mounting accessories. Each one of the three leg joints also feature a ratcheting angle stop that automatically locks into place as the legs are folded downward into "standard" position.

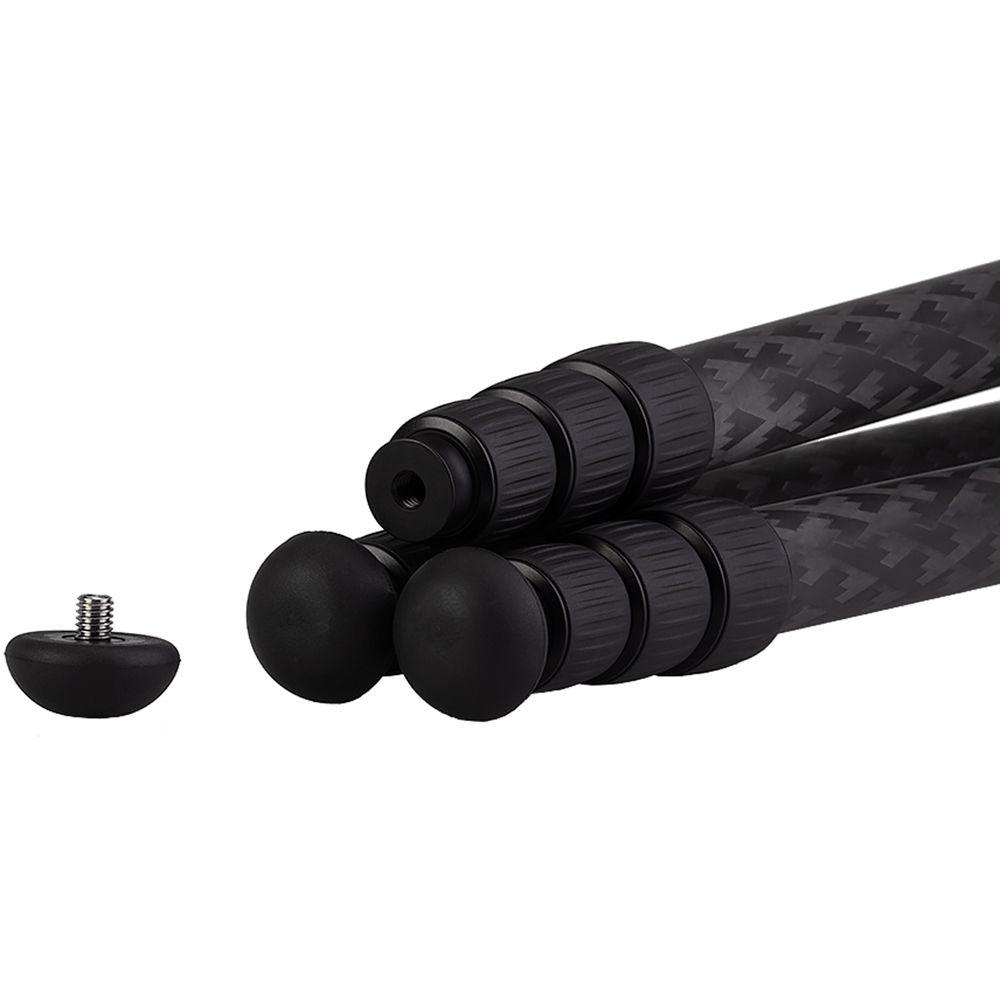

The TFC-14's feet are a unique teardrop shape, which prevents the leg sections from touching the ground at even the lowest height settings and the most unusual angles. Their rubber exterior provides a non-slip grip on nearly any surface and can be used both indoors and outdoors without concern. For users wishing to change the native rubber feet to metal "all-terrain" spikes, a set of metal spikes are available separately. -
- Reversible apex stud can be flipped from a male 1/4"-20 to male 3/8"-16, or removed entirely for a female 1/4"-20 socket option

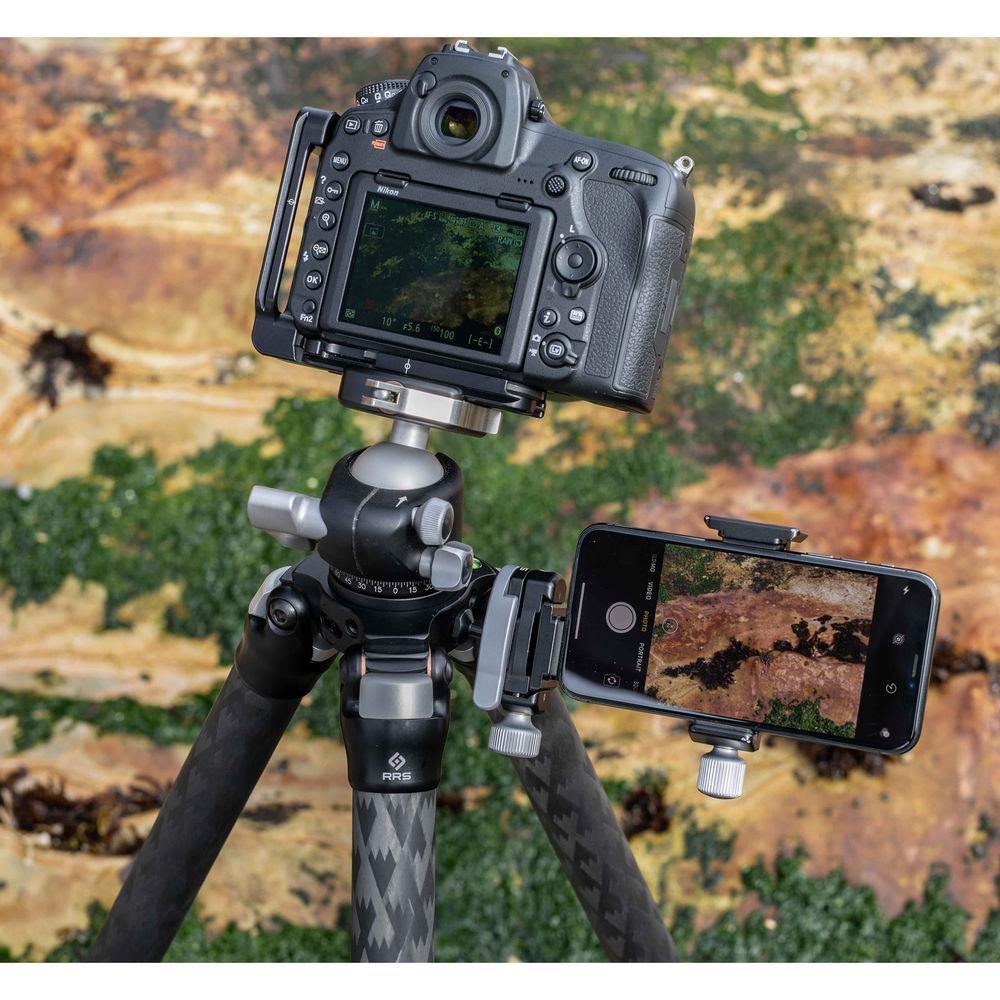

- Apex hosts three female 1/4"-20 perimeter mounting sockets to which optional accessories may be attached

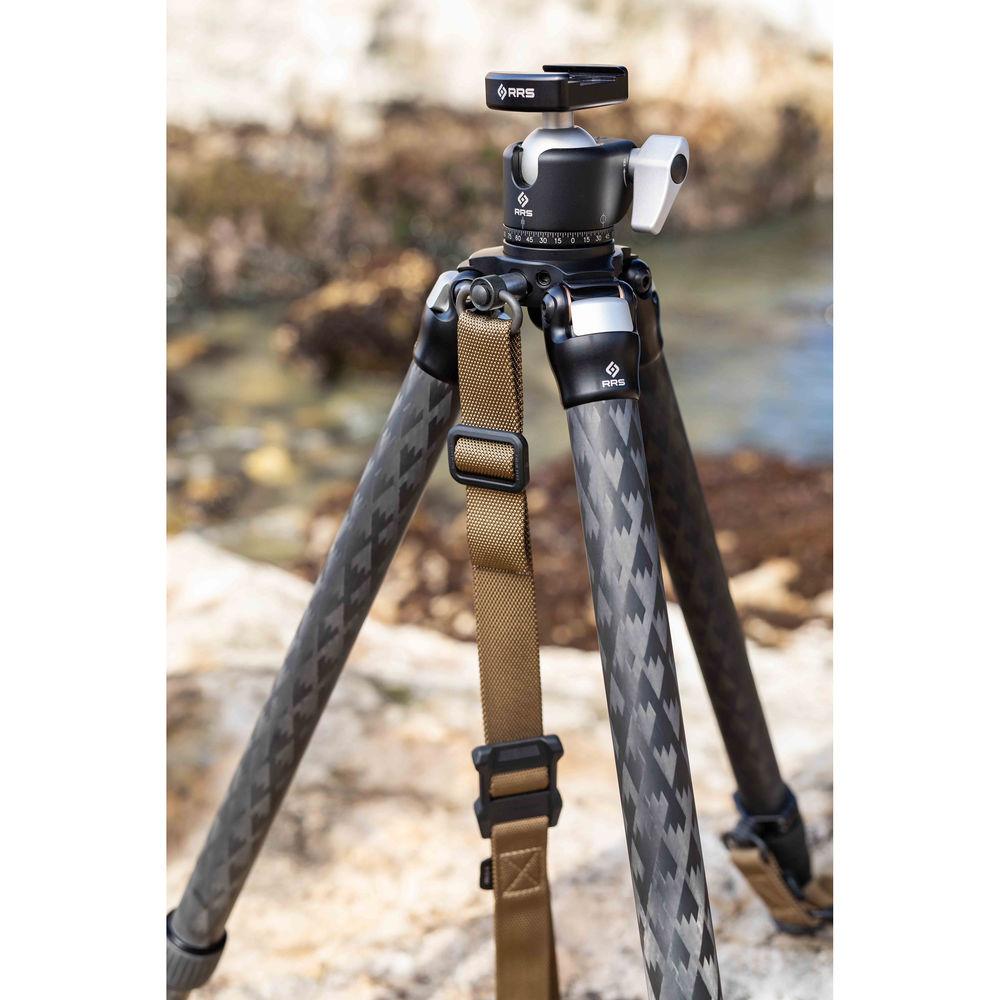

- Removable hand strap eliminates need for additional weights. Use your own body weight against the strap to stabilize shots and slip the strap over your hand when you're on the move for increased carrying security
- Rubber ball feet with large diameter teardrop shape keeps leg sidewalls from touching the ground even at the lowest settings, and makes positive contact with the ground at virtually any angle
UPC: 818413029002 In the Box Really Right Stuff TFC-14 Series 1 Mk2 Carbon Fiber Tripod - Nylon Hand Strap
- 2 x 5/32" Hex Key
- 2.5mm Hex Key
- Single-Use Tube of Medium-Strength Thread-Locking Compound
- Nylon Stud Cover
- Limited 5-Year Warranty
User Manual PDF 4.3mbbcaxtawbztuvxcexarxwwwdwd Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff TFC-14 Series 1 Mk2 Carbon Fiber Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff Mk2 Specs | | | Load Capacity | 25 lb / 11.34 kg | | Maximum Working Height | 47.6" / 121 cm | | Minimum Working Height | 2.8" / 7.2 cm | | Folded Length | 17.20" / 43.7 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 2.34 lb / 1.06 kg | | Materials | Carbon Fiber | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Feet Features | Rubber, Removable | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 25.3 x 3.4 x 3.3" |
