User Manual for Really Right Stuff TH-DVTL-55 Dovetail Plate Click to enlarge the picture
Contents of the user manual for the Really Right Stuff TH-DVTL-55 Dovetail Plate
- Product category: Misc. Parts & Accessories Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Misc. Parts & Accessories
 |
User manual for the Really Right Stuff TH-DVTL-55 Dovetail Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|

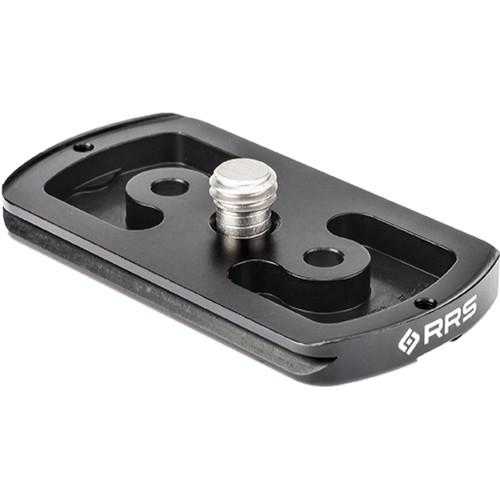

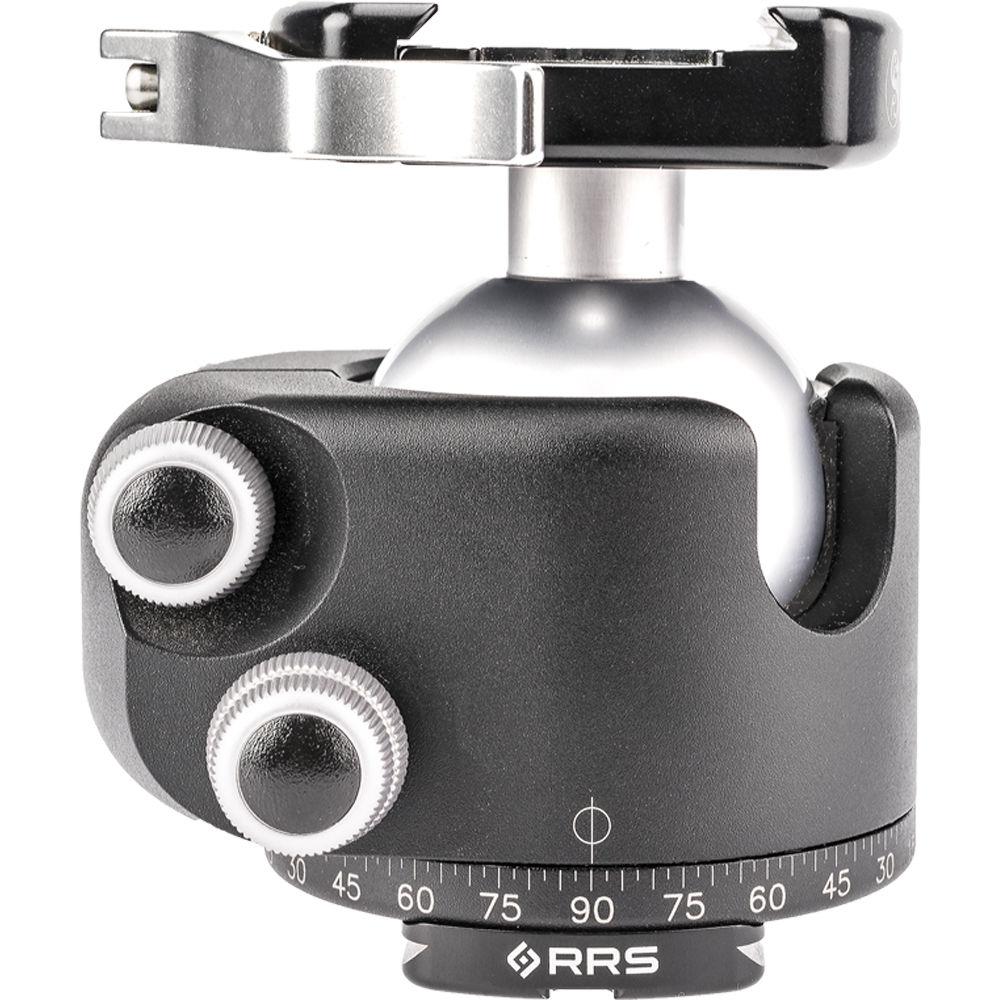

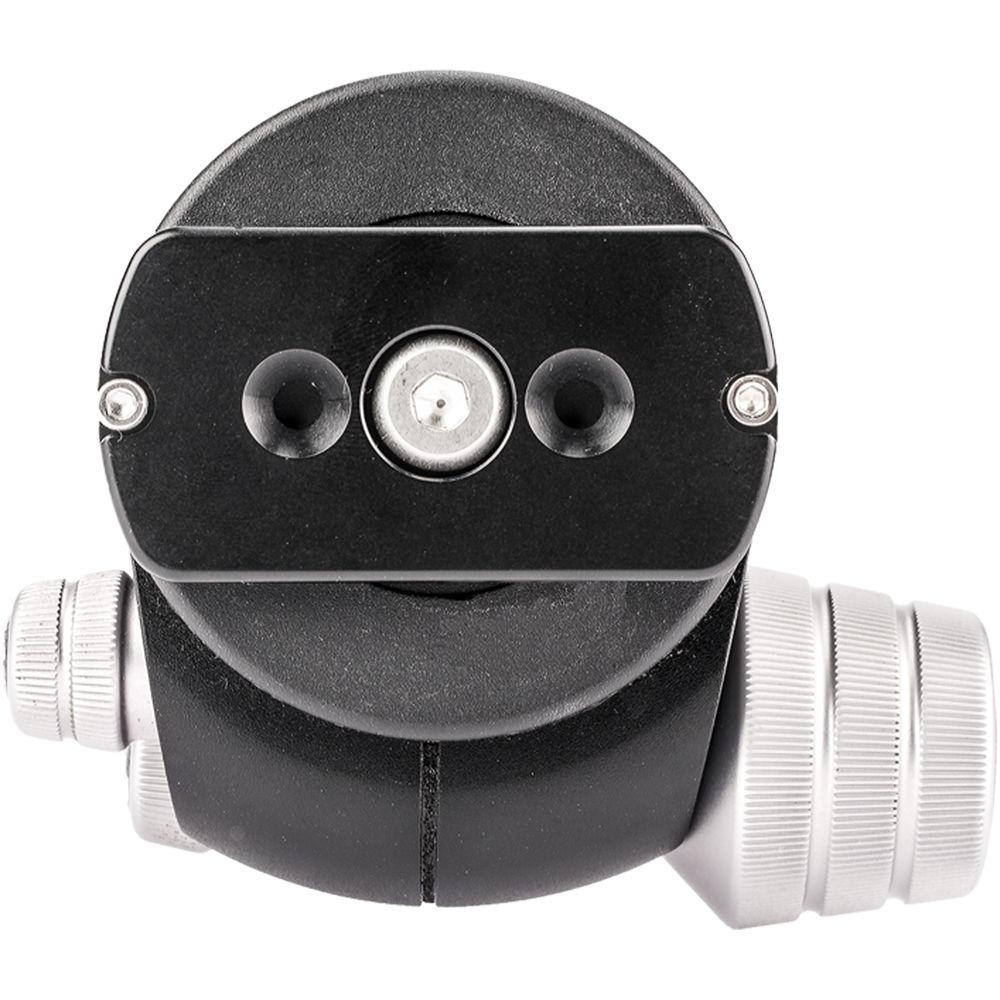

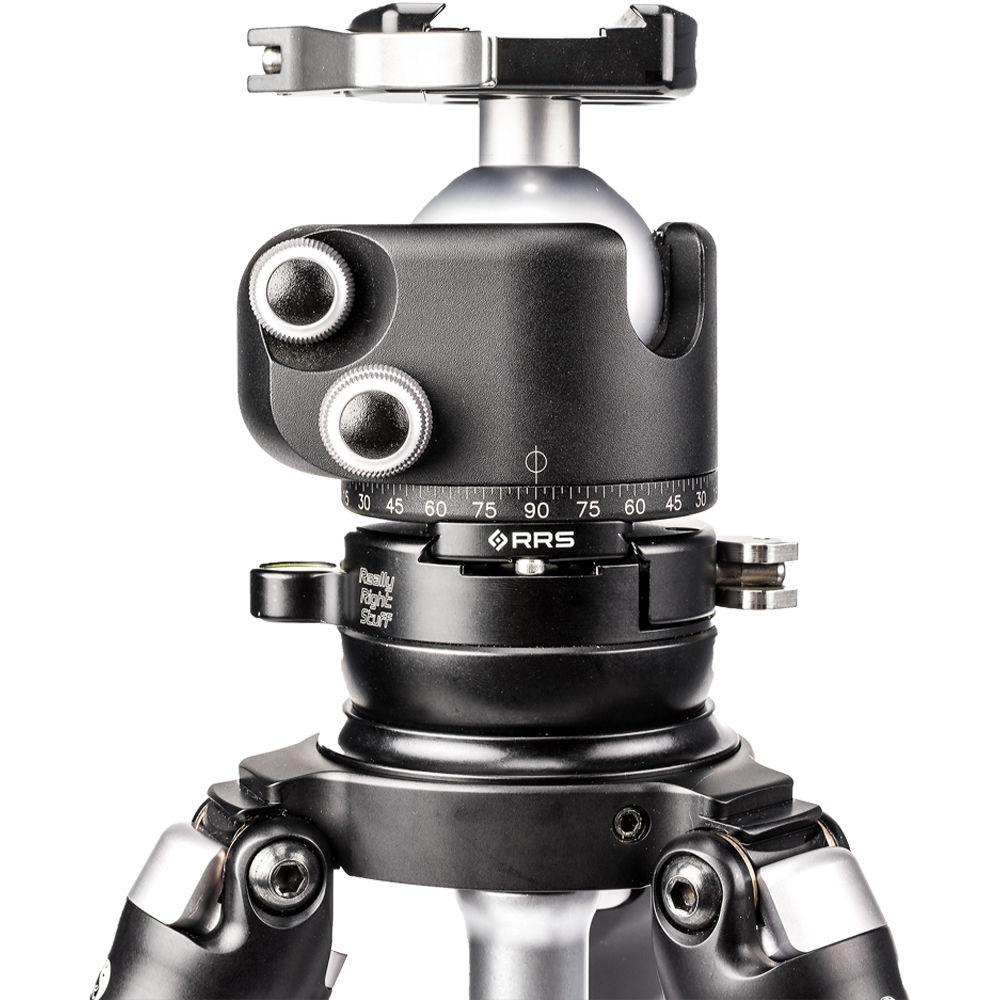

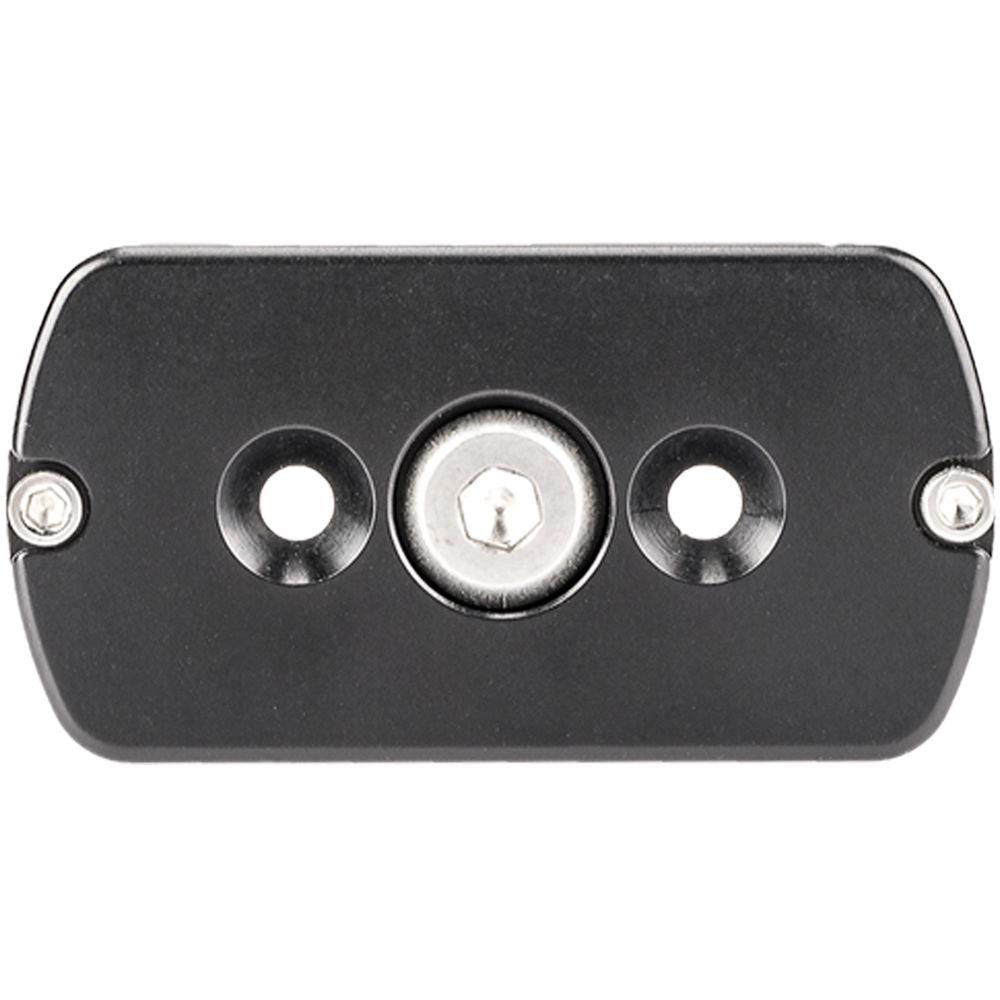

Product description The TH-DVTL-55 Dovetail Plate from Really Right Stuff is designed to mount to the bottom of ball, panoramic, and Gimbal-type heads that do not exceed a base diameter of 2.75". The CNC machined 6061-T6 aluminum plate has a black anodized type II finish, and the plate mounts to a head via a 3/8"-16 mounting screw. Additionally, the plate is not completely flat, it has a thin lip around the perimeter of the base. Safety stop screws are located under the plate to prevent accidental detachment from the clamp. - CNC machined 6061-T6 type II black anodized aluminum
- Mounts under ball, panoramic, and gimbal-type heads, which can be removed quickly from a tripod, and gives interchangeability between heads
- Compatibility

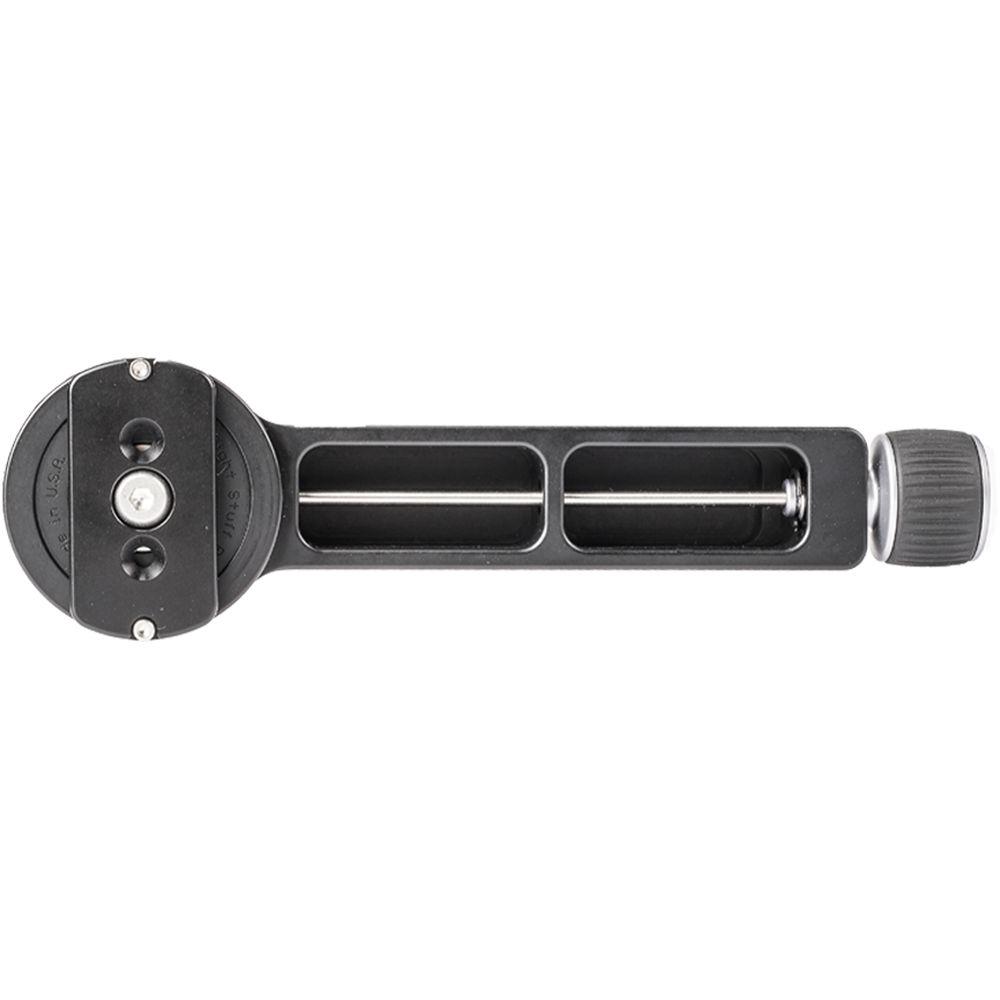

- Really Right Stuff: BH-55 ball head and PG-02 HB horizontal base (included with PG-02 Pano-Gimbal head
- GigaPan: EPIC Pro motorized pano head
- Arca-Swiss: B1 and Z1 ball heads
- Accepts base diameters that do not exceed 2.75"
UPC: 818413024250 In the Box Really Right Stuff TH-DVTL-55 Dovetail Plate 3/8"-16 Screw 2 x M3 Safety Stop Screw 7/32" Hex Key M2.5 Hex Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff TH-DVTL-55 Dovetail Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff TH-DVTL-55 DOVETAIL PLATE Specs | Material of Construction | CNC machined 6061-T6 aluminum | | Dimensions | Length and width: 2.86 x 1.5 (72.7 x 38 mm)Height (with screw) 0.57" (14.55 mm)Diameter: 2.9" (73 mm) | | Weight | 1.4 oz (39 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.6 x 3.3 x 0.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
