User Manual for Really Right Stuff TQC-14 Series 1 Mk2 Carbon Fiber Tripod Click to enlarge the picture
Contents of the user manual for the Really Right Stuff TQC-14 Series 1
- Product category: Tripod Legs Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Tripod Legs
 |
User manual for the Really Right Stuff TQC-14 Series 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|

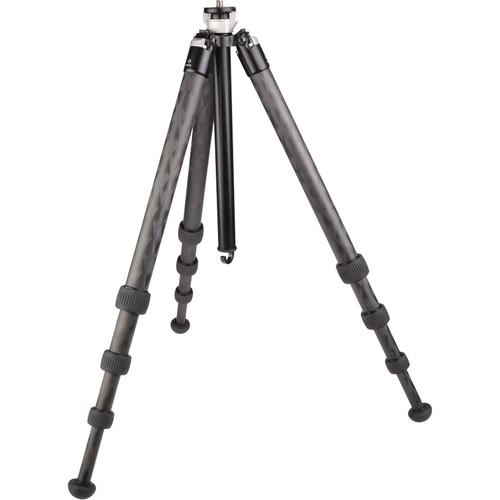

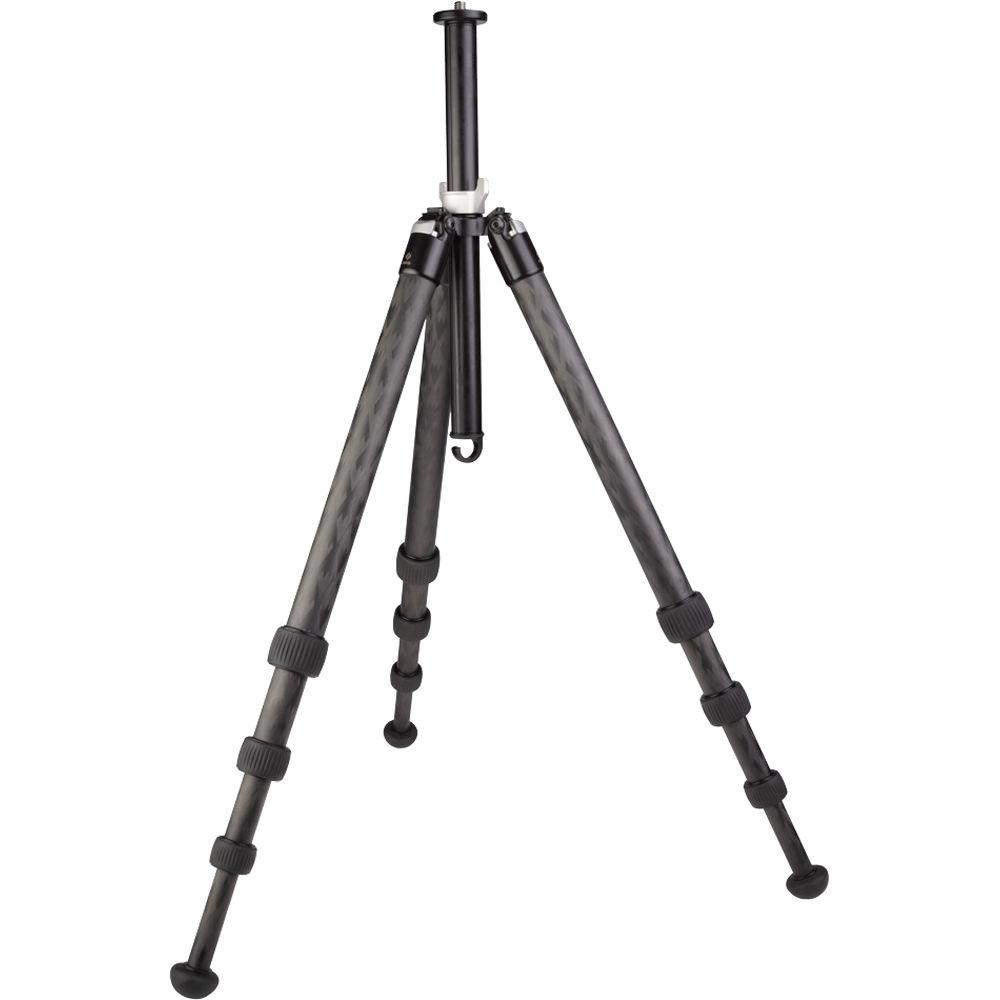

Product description The TQC-14 Mk2 from Really Right Stuff is one of the lightest and most compact tripods in the RRS product lineup. As a scaled-down version of other Series 1 models, the TQC-14 maintains most standard features like ratcheting leg locks and a carbon fiber construction, but also adds new features like a reversible and removable mounting stud and a stabilizing hand strap.
Constructed from Really Right Stuff's patented carbon fiber weave, the TQC-14 weighs in at an impressive 2.6 lb and can safely support up to 25 lb. Its 4-section leg design and center column allow the tripod to extend to a maximum height of 58.5", and still reaches a notable 47.6" even when the center column is retracted. Plus, it can go down to a minimum working height of just 3.3".
Quick set-up and break-down is facilitated by easy-to-use twist locks that require a very short rotation to unlock and re-lock each leg section. This design also helps to maintain the tripod's slim folded silhouette. A ballast/hand strap has also been added to the bottom of the tripod collar to allow users to increase stability by hand or with additional weights. Additionally, when traveling with or storing the tripod, the entire support can fold down to just 17.7" in length, small enough to fit into nearly any backpack or carry-on bag.

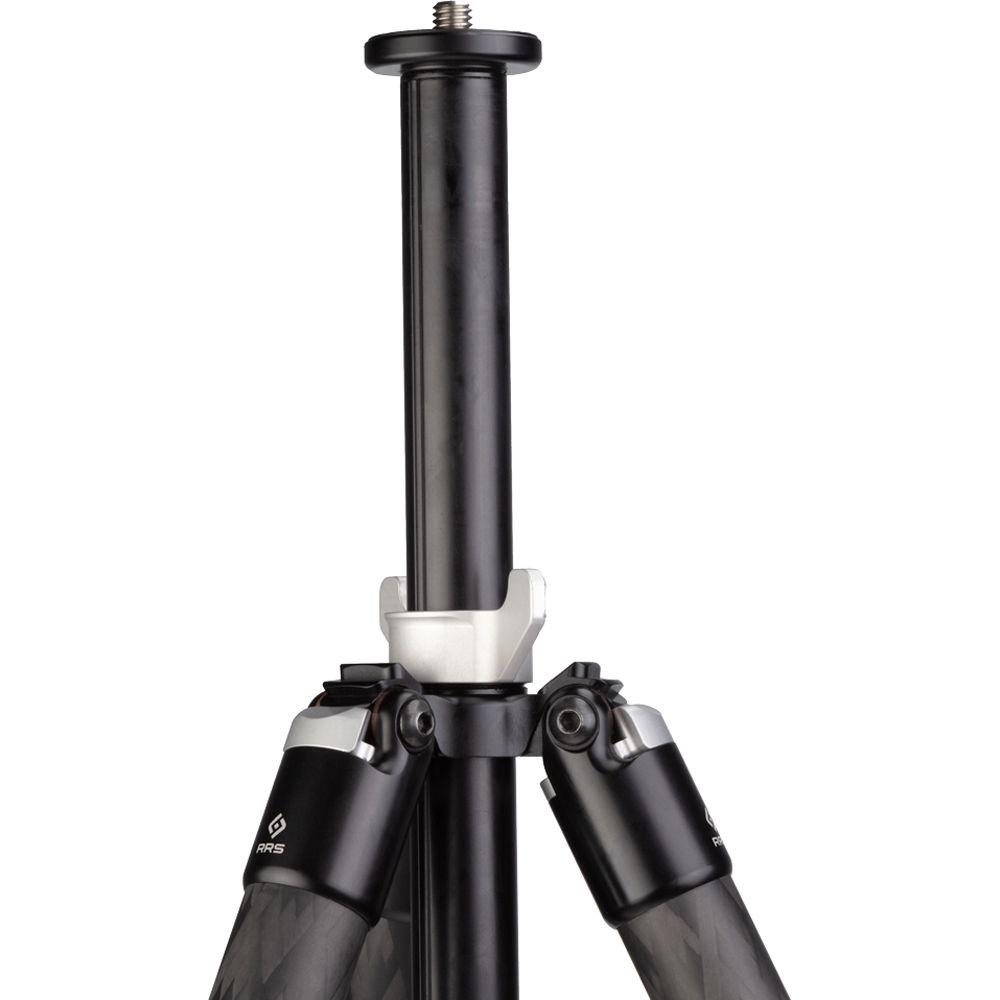

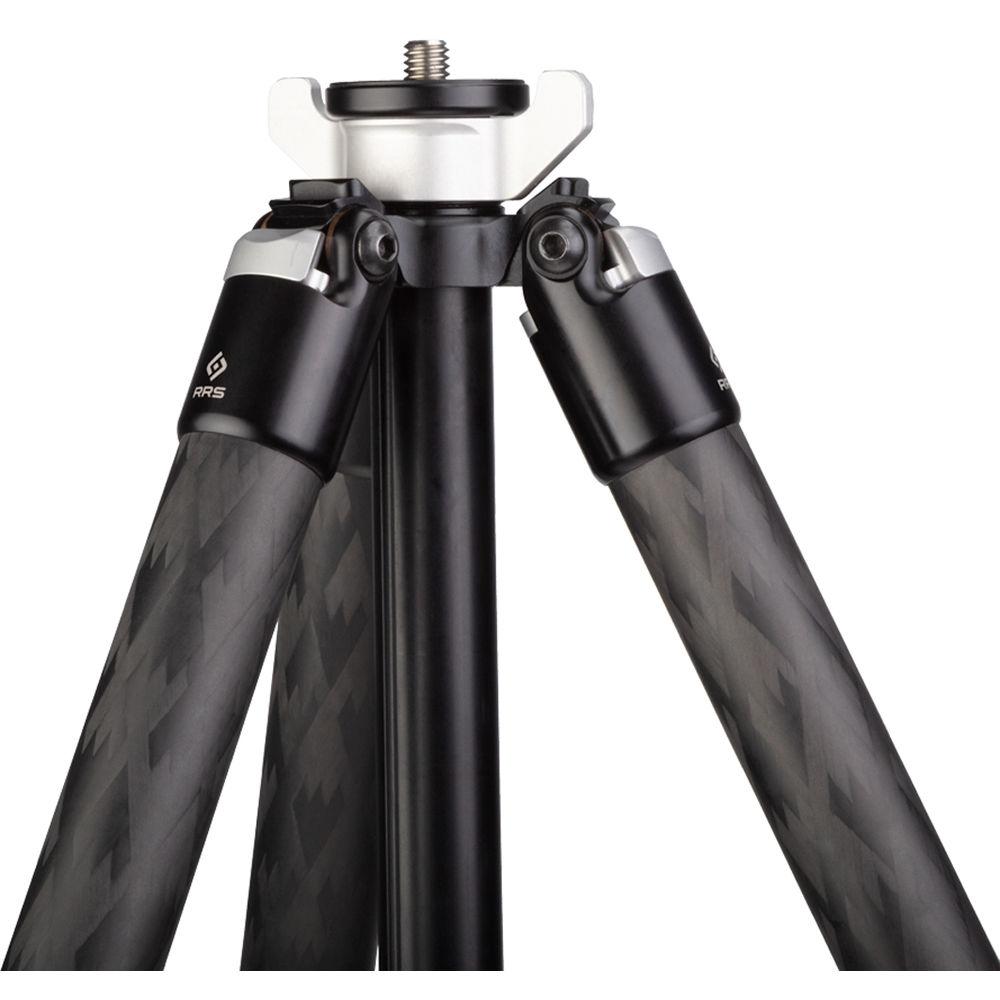

Each leg is attached to the tripod's collar via an offset leg joint that helps to evenly distribute heavy loads and maintain the tripod's rigidity. The joints and collar itself are constructed of lightweight anodized aluminum which, aside from lending inherent strength to the tripod, also provides it with natural wear and corrosion resistance. The collar's base plate utilizes a reversible 1/4"-20 or 3/8"-16 stud that can provide direct mounting of a camera or head. The stud can also be removed entirely, providing the user with a female 1/4"-20 socket for use with a variety of accessories including magic arms and accessory supports. Additionally, three 1/4"-20 threads are also available for easily mounting accessories. Each one of the three leg joints also feature a ratcheting angle stop that automatically locks into place as the legs are folded downward into "standard" position.
The TQC-14's feet are a unique teardrop shape, which prevents the leg sections from touching the ground at even the lowest height settings and the most unusual angles. Their rubber exterior provides a non-slip grip on nearly any surface and can be used both indoors and outdoors without concern. For users wishing to change the native rubber feet to metal "all-terrain" spikes, a set of metal spikes are available separately. -
- Twist locks with integrated wipers to keep particles out of the locking mechanism, providing better resistance to the elements
- Improved knurling pattern designed to feel better on your skin
- Collets replace the old locking gibbs, reducing lock engagement to half the travel to lock and unlock faster with less effort
- O-rings help keep threads clean and smooth while providing better tactile feedback
- Vented clevis design allows legs to collapse faster without pressure buildup
- Threaded sockets on the sides of the apex provide better placement for accessories like QD attachments or a BC-18
UPC: 818413029019 In the Box Really Right Stuff TQC-14 Series 1 Mk2 Carbon Fiber Tripod Nylon Hand Strap 2 x 5/32" Hex Key 2.5mm Hex Key Single-Use Tube of Medium-Strength Thread-Locking Compound Nylon Stud Cover Limited 5-Year Warranty User Manual PDF 4.3mbcevduqtwaausvcrs Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff TQC-14 Series 1 Mk2 Carbon Fiber Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff Mk2 Specs | | | Load Capacity | 25 lb / 11.34 kg | | Maximum Working Height | 58.5" / 148.6 cm | | Max Height without Center Column | 47.64" / 121 cm | | Minimum Working Height | 3.3" / 8.4 cm | | Folded Length | 17.64" / 44.8 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 2.62 lb / 1.19 kg | | Materials | Carbon Fiber | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Feet Features | Rubber, Removable | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 27.25 x 4.75 x 4.75" |
