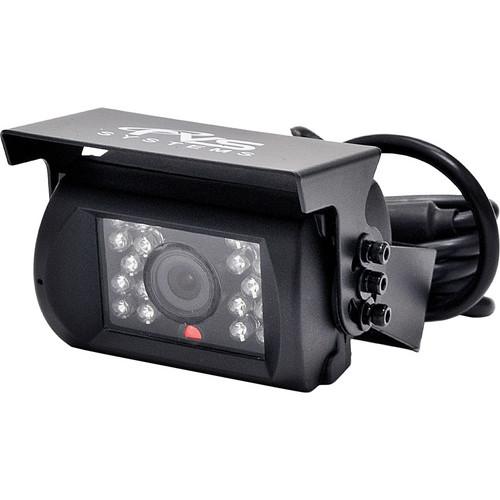

User Manual for Rear View Safety 130° Back Up Camera Click to enlarge the picture
Contents of the user manual for the Rear View Safety 130° Back Up
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
|
User manual for the Rear View Safety 130° Back Up contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description The 130° Back Up Camera from Rear View Safety is an ideal solution for any vehicle that requires to be frequently backed up without the aid of a rear view mirror. Featuring a 1/3" Sharp CCD sensor and a 2.5mm wide lens, the camera delivers clear and crisp images at 620 TVL. Equipped with 18 IR LEDs effective up to 50', the camera is suitable for capturing clear images even in total darkness.
The built-in microphone streams clear audio footage along with video. With an IP69K-rated casing, the camera operates well in harsh weather conditions. Furthermore, the camera has 20G vibration and 100G shock ratings, meaning that even when the camera is subject to vibrations, you will still get clear streamed footage. The camera comes with a 66' weatherproof cable and aircraft grade connectors. - 1/3" Sharp CCD sensor delivers clear and crisp images at resolutions up to 620 TVL
- 130° angle of view allows for capture of wide surveillance area, which prevents blind spots
- 0 lux minimum illumination for surveillance in total darkness (with IR LEDs switched on)
- IR LEDs for capturing high-quality images even in complete darkness at a distance up to 50' (15.24 m)
- Built-in high-gain microphone streams clear audio along with the video footage
- Even when faced with vibrations, the camera streams clear footage
- IP69K-rated casing allows the camera to operate in adverse weather conditions
UPC: 813380015539 In the Box Rear View Safety 130° Back Up Camera Extension Cable (66') Screw Kit for Installation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety 130° Back Up Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS 770130 Specs | Image Sensor | 1/3" Sharp color CCD | | Picture Elements | 410,000 pixels | | Gamma Correction | R = 0.45 to 1.0 | | Resolution | 620 TVL
PAL: 752 (H) x 582 (V)
NTSC: 811 (H) x 507 (V) | | Lens | 2.5mm wide | | View Angle | 130° | | Electronic Iris | 1/50, 160 to 1/100,000 second | | Sync System | Internal synchronization | | IR Illumination | 18 IR LEDs effective up to 50' (15.24 m) | | Minimum Illumination | 0 lux (with LEDs on) | | Power Source | 9-32 VDC | | S/N Ratio | More than 48 dB | | Video Output | 1 Vp-p, 75 ohms | | IR Switch Control | ACDS automatic control | | Vibration/Shock Resistance | 20G vibration, 100G shock | | Ingress Protection Rating | IP69K | | Operating Temperature & Humidity | -40 to 158°F / -40 to 70°C
RH 95% maximum | | Storage Temperature & Humidity | -40 to 185°F / -40 to 85°C
RH 95% maximum | | | | Package Weight | 3.07 lb | | Box Dimensions (LxWxH) | 8.6 x 7.7 x 2.45" |
