User Manual for Rear View Safety 480TVL Backup Camera System with 7" Flush Mount Monitor Click to enlarge the picture
Contents of the user manual for the Rear View Safety 480TVL Backup Camera
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
|
User manual for the Rear View Safety 480TVL Backup Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description The 480TVL Backup Camera System from Rear View Safety includes an industrial-grade backup camera along with a 7" TFT LCD color monitor. The integrated 2.1mm fixed lens provides a 130° wide field of view for capturing the whole road, without any blind spots. The camera uses a 1/4" Sharp CCD color sensor to capture images in 480 TVL resolution, and 18 IR LEDs provide up to 50' of night vision. Distance grid lines are adjustable and can also be switched completely off, and mirror image capability controls the way the image is displayed on the screen. A 3-channel multiplexer allows you to connect up to 3 cameras or 2 cameras and a DVD player, for viewing video on a larger screen. Additional features include a built-in speaker, a removable sunshade, auto dimming, and back-lit buttons. The backup camera system is IP68-rated weatherproof for outdoor use, shock resistant, and 20G/100G vibration- and impact-rated in case of bumpy roads or a collision. Camera - 1/4" Sharp color CCD with 250,000 pixels for 420 TVL resolution
- 2.1mm fixed lens produces a 130° wide-angle lens
- Clear images with no blind spots
- 18 automatic IR LEDs illuminate up to 50' even in complete darkness
- Built with heavy-duty zinc metal which encases the 2.1mm Sharp lens
- Weather-proof with a IP68K rating
- IP68 rating for installation in adverse weather conditions
- 20G vibration and 100G impact rating, as well as aircraft grade cable connections
Monitor - 7" digital TFT LCD color monitor with mirror image capability
- Distance grid lines that come standard with the monitor are optional and adjustable
- Menu can be navigated with the dash buttons or with the included remote control
Multiplexer & System - Allows you to connect additional cameras or DVD players
- Connects straight to the fuse box and comes with a separate trigger wire for each connected camera
- Powers the system, receives all camera feeds, and sends them to the monitor
- Mirror/Normal switch controls whether the camera displays a mirror or normal image

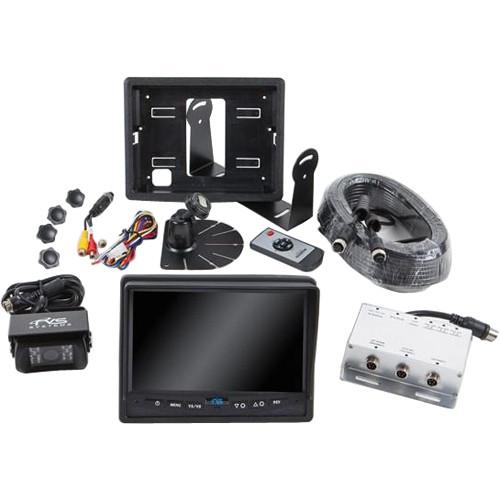

UPC: 818137011338 In the Box Rear View Safety 480TVL Backup Camera System with 7" Flush Mount Monitor 7" (177.8 mm) TFT LCD Color Monitor with Universal Mount & Stand Flush-Mount Monitor Bracket Surface-Mount Bracket U-Bracket Monitor Mount 3-Channel Multiplexer Control Unit 66' (20.2 m) Extension Cable for Camera Remote Control Power Connection Wire Double RCA & Power Converter Screw Kit for Installation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety 480TVL Backup Camera System with 7" Flush Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-7706133 Specs | Image Sensor | 1/4" Sharp color CCD | Picture Elements | 250,000 pixels | Gamma Correction | r=0.45 to 1 | Resolution | 480 TVL PAL: 500 x 582 NTSC: 510 x 492 | Lens | 2.1mm fixed | View Angle | 130° | Sync System | Internal synchronization | Night Vision Range | 50' (15.24 m) with 18 IR LEDs | Min. Illumination | 0 lux with IR on | Power Source | 12 to 24 VDC (±10%) | S/N Ratio | More than 48 dB | Electronic Iris | 1/50, 1/60 to 1/100,000 sec | Video Output | 1 Vp-p, 75 ohms | IR Switch Control | CDS automatic control | Vibration/Impact Rating | 20G/100G | Operating Temperature | -22 to 122°F (-30 to 50°C) / RH 95% maximum | Storage Temperature | -22 to 140°F (-30 to 60°C) / RH 95% maximum | | Screen Size | 7.0" (177.8 mm) | Dot Resolution | 800 x 3 (RGB) x 480 | Display Format | 16:9 | Brightness | 400 | Contrast Ratio | 500:1 | Viewing Angle | Up: 50°, Down: 60°, Left/Right: 70° | Video Input | 3-channel | Video Source | 1 Vp-p, 75 ohms | Power Supply | 12-24 VDC (±10%) | Power Consumption | 5 W | Operating Temperature | -22 to 176°F (-30 to 80° C) | Video System | Auto NTSC / PAL | Impact Rating | 5G | Dot Pitch | H x V: 0.192 x 0.1805 mm | Sync System | Internal | Dimensions (LxHxD) | 7.0 x 5.0 x 1.0" (177.8 x 127 x 25.4 mm) | Weight | 14.1 oz (400.0 g) | | Package Weight | 6.8 lb | Box Dimensions (LxWxH) | 9.8 x 7.9 x 7.9" |
