User Manual for Rear View Safety 540 TVL Backup Camera with RCA Connectors Click to enlarge the picture
Contents of the user manual for the Rear View Safety 540 TVL Backup
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
|
User manual for the Rear View Safety 540 TVL Backup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|

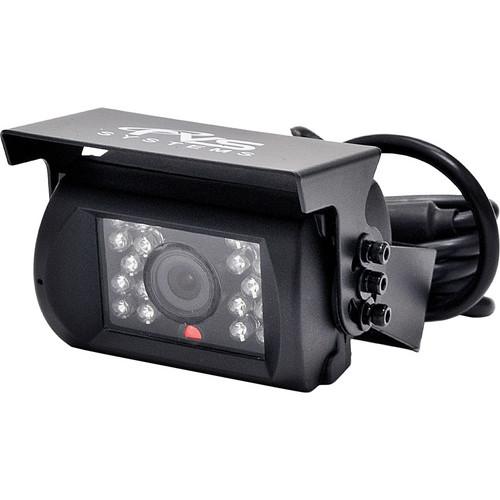

Product description Monitor the rear of your vehicle with the 540 TVL Backup Camera from Rear View Safety. The camera's integrated 2.1mm fixed lens provides a 130° wide field of view for capturing the whole road, without any blind spots. A 1/4" Sharp CCD color sensor provides 540 TVL resolution, and 18 IR LEDs offer illumination for up to 50' of night vision. Additionally, an auto iris sensor will automatically adjust the LED's strength depending on outside lighting. There is a built-in high-gain microphone for audio accompaniment, and mirror image capability controls the way the camera's image is displayed when connected to a screen. The backup camera is IP69K-rated weatherproof for outdoor use, shock resistant, and 20G/100G vibration- and impact-rated in case of bumpy roads or a collision. Furthermore, it is constructed of heavy duty zinc metal for durability, and it features an adjustable sunshade, enabling operation in ambient lighting. - 1/4" Sharp color CCD sensor with 250,000 pixels for 540 TVL resolution
- 2.1mm fixed lens produces a 130° wide-angle lens
- 18 automatic IR LEDs illuminate up to 50' even in complete darkness
- Automatic Iris sensor adjusts IR LED strength based on outside light
- Built-in microphone for audio accompaniment to video
- Mirror image capability for choosing the way the camera's image is displayed
- Constructed with heavy-duty zinc metal that encases the 2.1mm Sharp lens
- Adjustable sunshade blocks ambient light for clear pictures
- IP69K weatherproof rating with screw base and water proof sleeve connection
- 20G vibration and 100G impact rating, as well as aircraft grade cable connections
UPC: 813380015546 In the Box Rear View Safety 540 TVL Backup Camera with RCA Connectors 66' Extension Cable RCA Adaptor Screw Kit for Installation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety 540 TVL Backup Camera with RCA Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS 771130 Specs | Image Sensor | 1/4" Sharp color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | r = 0.45 to 1.0 | | Resolution | 540 TVL
PAL: 500 (H) x 582 (V)
NTSC: 510 (H) x 492 (V) | | Lens | 2.1mm | | View Angle | 130° | | Sync System | Internal synchronization | | IR Distance | 50' (15.24 m) with 18 IR LEDs | | Illumination | 0 lux (LED on) | | Power Source | 12 VDC (±10%) | | S/N Ratio | > 48 dB | | Electronic Iris | 1/50, 160-1/100,000 seconds | | Video Output | 1 V p-p, 75 ohms | | IR Switch Control | ACDS automatic control | | Operating Temperature | -40 to 176°F / -40 to 80°C
Humidity: 95% RH (max) | | Storage Temperature | -40 to 140°F / -40 to 60°C
Humidity: 95% RH (max) | | Ratings | Weatherproof: IP69K rated
Vibration and Shock: 20 G / 100 G | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 8.6 x 7.8 x 2.5" |
