User Manual for Rear View Safety 7" LED Digital Color Rear View Monitor Click to enlarge the picture
Contents of the user manual for the Rear View Safety 7" LED Digital
- Product category: Back-Up Camera Accessories Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Camera Accessories
 |
User manual for the Rear View Safety 7" LED Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|

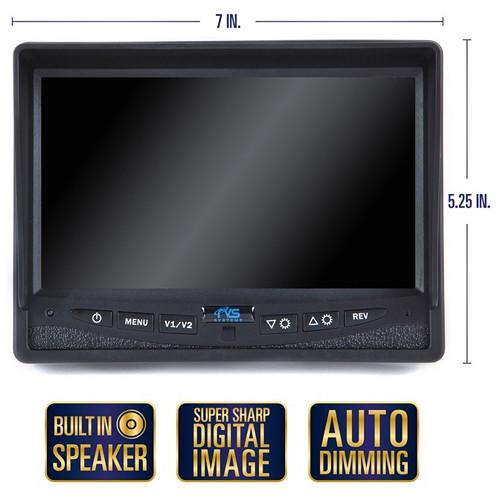

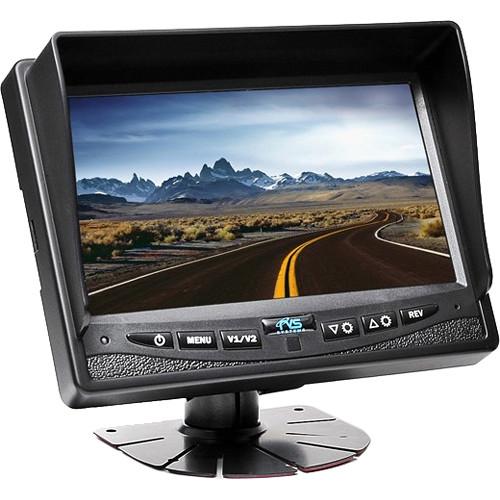

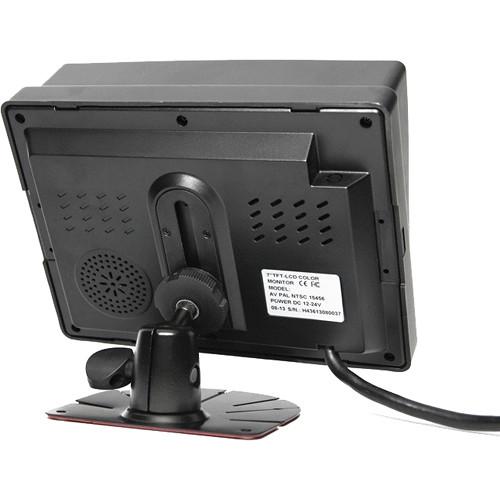

Product description The 7" LED Digital Color Rear View Monitor from Rear View Safety supports up to three cameras and features an LED-backlit TFT LCD display, a three-channel RGB 800 x 480 resolution, a 16:9 aspect ratio, a 500:1 contrast ratio, 400 cd/m2 brightness, viewing angles of 50/60/70/70°, and built-in speakers for audio. When backing your vehicle up, adjustable grid lines provide reference points for cars or other objects, and attached camera feeds can also be displayed as a standard or mirrored image. This display can be controlled using integrated buttons or an included remote control. Also included are a universal mount/stand and wire, a 3-port power harness, and a screw kit for installation. Protection is provided by a limited 1-year warranty and lifetime technical support. General Features - An auto-dimming screen decreases its brightness in low light
- The TFT LCD display is 1" thick
- Adjustable distance grid lines for reference when backing up can be turned on or off
- Built-in speakers for audio
- Backlit buttons illuminate in the dark
- Switch between mirror and normal image from any attached camera
- A 3-port power harness supports three cameras

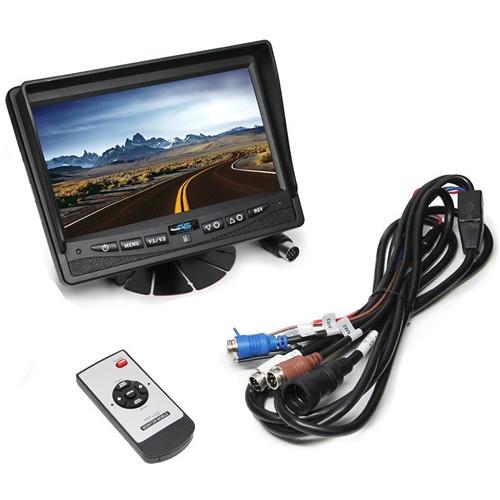

UPC: 740972890673 In the Box Rear View Safety 7" LED Digital Color Rear View Monitor Universal Mount/Stand and Wire 3-Port Power Harness Remote Control Screw Kit for installation Lifetime Technical Support Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety 7" LED Digital Color Rear View Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-6137-NM Specs | Panel Size | 7.0" / 17.8 cm | | Dot Resolution | 800 x 3 (RGB) x 480 | | Dot Pitch | 0.1926 (H) x 0.1710 (V) | | Aspect Ratio | 16:9 | | Contrast Ratio | 500:1 | | Brightness | 400 cd/m2 | | Field of View | Up: 50°
Down: 60°
Left/Right: 70° | | Camera Input | 3-channel CVBS | | Video Source | 1 V p-p, 75 Ohms | | Sync System | Internal | | Power Supply | 9-32 VDC | | Power Consumption | 5 W | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Storage Temperature | -22 to 185°F / -30 to 85°C | | Video System | Auto NTSC/PAL | | Dimensions | 7.0 x 5.0 x 1.0" / 17.8 x 12.7 x 2.5 cm | | Weight | 14.1 oz / 400 g | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 5.0" |
