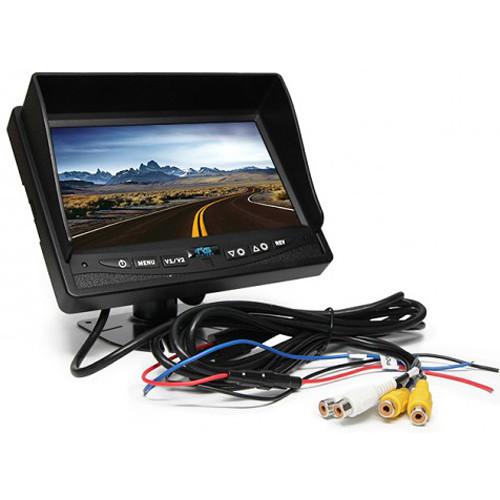

User Manual for Rear View Safety 7" LED Rear View Monitor with RCA Connectors Click to enlarge the picture
Contents of the user manual for the Rear View Safety 7" LED Rear
- Product category: Surveillance Monitors Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Surveillance Monitors
|
User manual for the Rear View Safety 7" LED Rear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description The 7" LED Rear View Monitor from Rear View Safety displays what's behind your car at a resolution of 800 x 480. The distance grid lines that come standard with the monitor can be switched on or off and are adjustable. The monitor features RCA connectors to accept video input from cameras with RCA output. The RCA connections and wires for power, ground, and trigger are hardwired to the monitor. In addition, it has built-in speakers and its menu can be navigated with the backlit on-dash buttons or with the included remote control. - Delivers high-quality images at a resolution of 800 x 480 with 16:9 aspect ratio
- 400 cd/m2 brightness with auto-dimming in low light
- Accepts video signals from 2 different sources
- Built-in speaker, backlit buttons, and removable sunshade
- Distance grid lines can be adjusted and switched on or off
UPC: 751369643031 In the Box Rear View Safety 7" LED Rear View Monitor with RCA Connectors Sunshade Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety 7" LED Rear View Monitor with RCA Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-6137-RCA Specs | Display Type | LED | | Screen Size | 7" / 17.8 cm | | Resolution | 800 x 480 | | Aspect Ratio | 16:9 | | Dot Pitch | 0.1926 x 0.1710 mm | | Contrast | 500:1 | | Brightness | 400 cd/m2 | | Sync System | Internal | | Viewing Angle | Up: 50°
Down: 60°
Left/Right: 70° | | Video Input | 2 channels | | Input Connector | RCA female | | Video Source | 1 V p-p, 75 Ohms | | Power Input | 12 to 24 VDC ± 10% (available separately) | | Power Consumption | 5 W | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Impact Rating | 5 g | | Dimensions (L x H x D) | 7 x 5 x 1" / 17.8 x 12.7 x 2.5 cm | | Weight | 14 oz / 0.4 kg | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.9 x 7.6 x 4.1" |
