User Manual for Rear View Safety Backup Camera System with 7" Monitor and Trailer Tow Quick Connect Kit Click to enlarge the picture
Contents of the user manual for the Rear View Safety Backup Camera System
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
 |
User manual for the Rear View Safety Backup Camera System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|

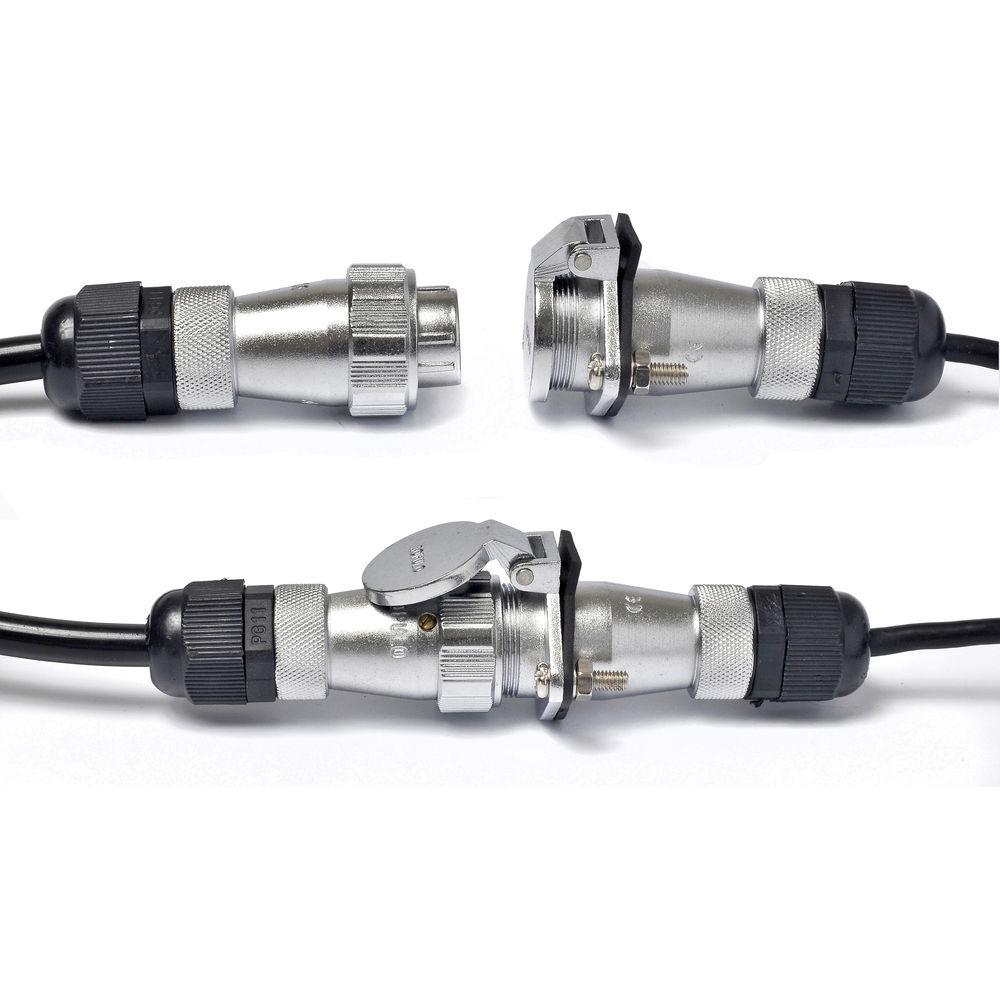

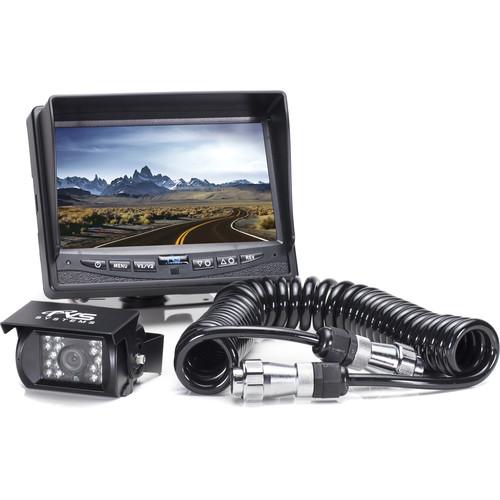

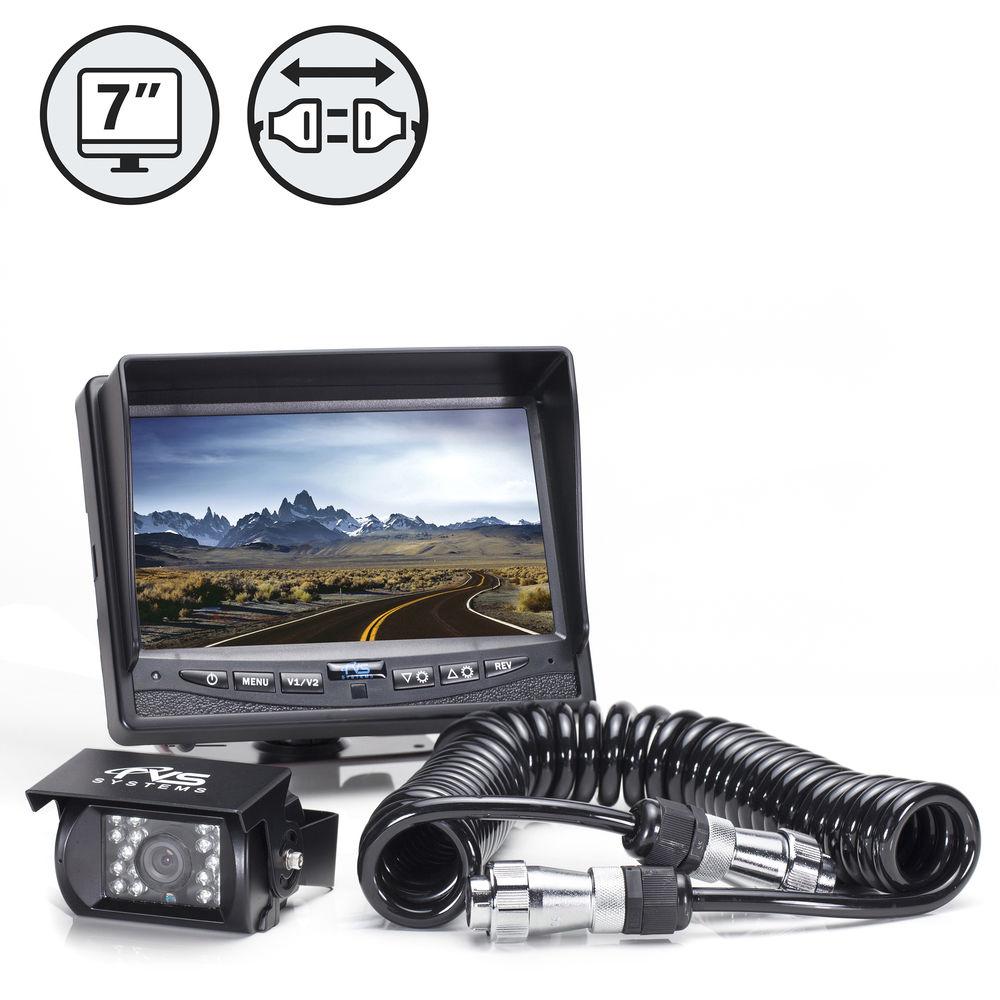

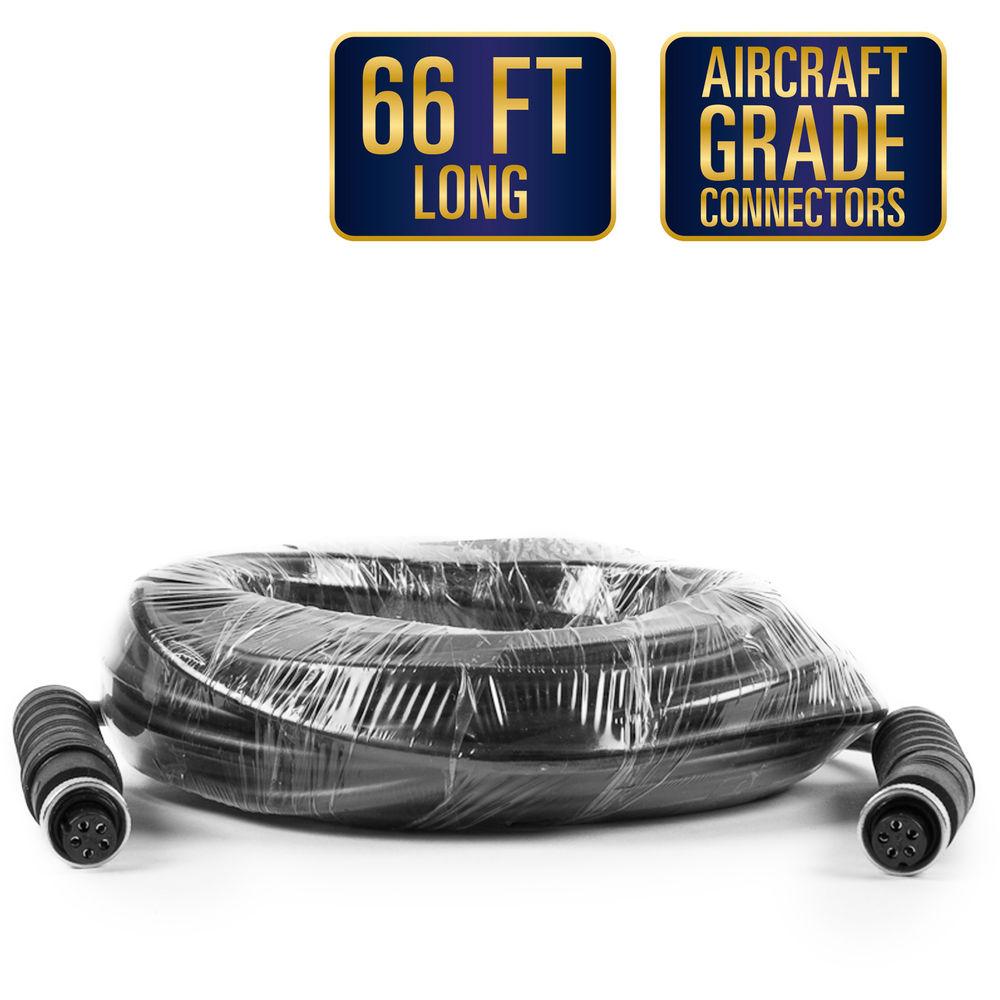

Product description Equipped with an industrial-grade backup camera, a 7" TFT LCD color monitor, and a 3 channel power harness, the Backup Camera System from Rear View Safety is designed for use in 5th wheel and large truck applications. The included quick connect kit features 66' of cable on the camera end, a 12' pigtail for use between vehicles, and a 26' cable on the monitor end. Therefore, you can mount the included camera to the rear of your camper or trailer, run the 66' of wire through your 5th wheel vehicle, leave the 12' pigtail in between vehicles, and run the 26' of additional cable through your car to the display mounted on your dash. This setup will allow you to safely and easily drive a truck or trailer.

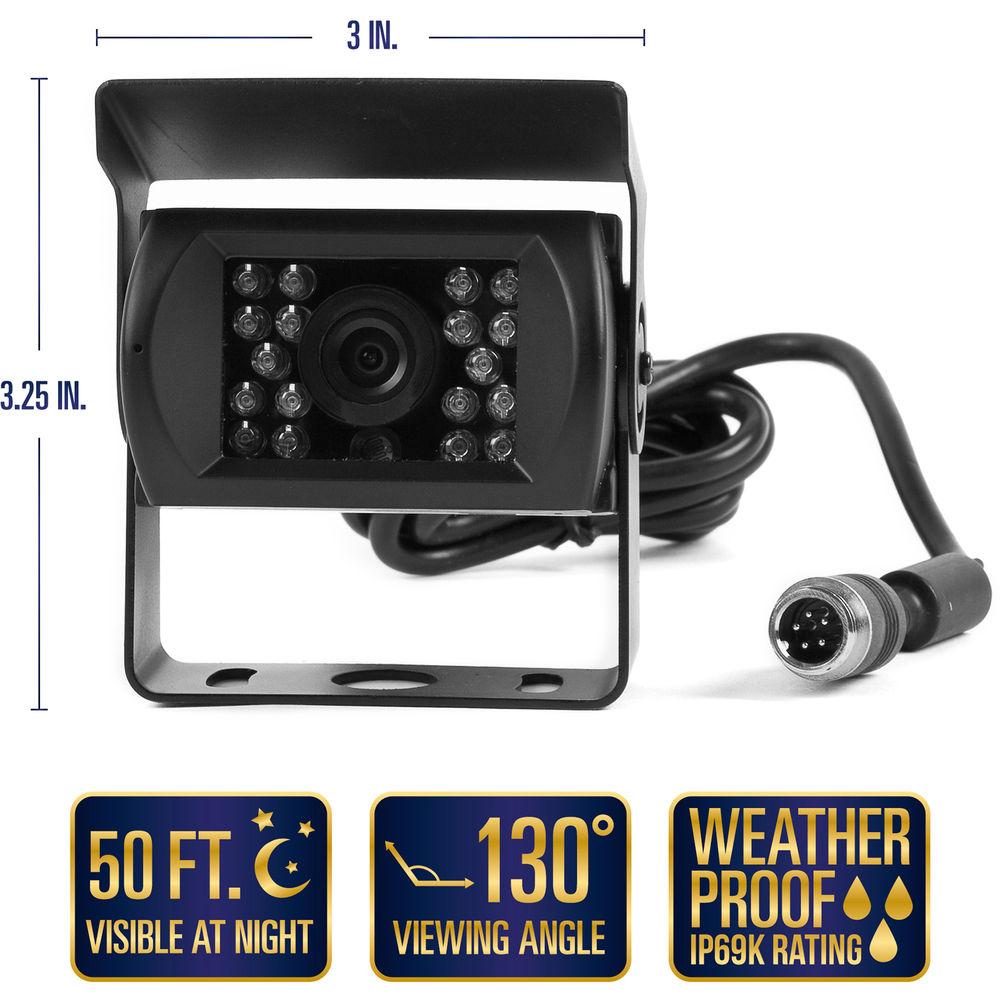

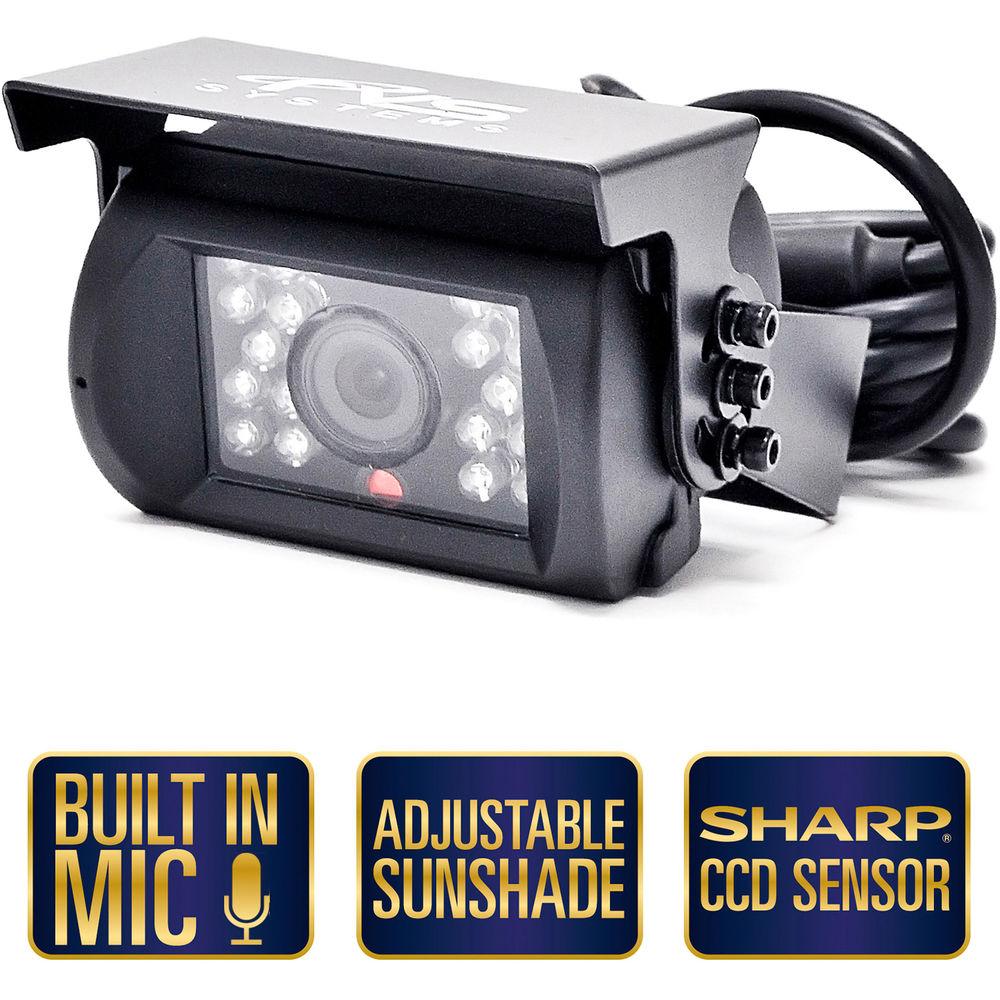

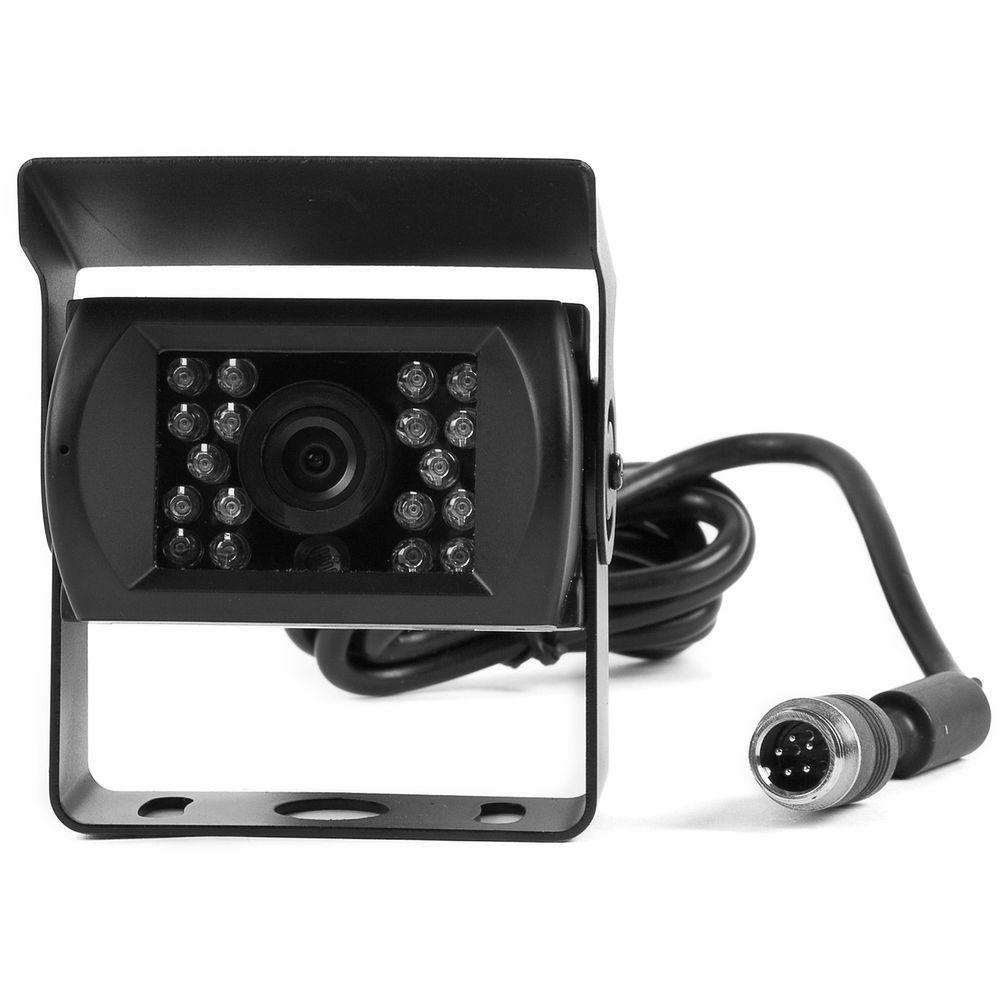

The camera features an integrated 2.1mm fixed lens which provides a 130° wide field of view for capturing the whole road, without any blind spots. It uses a 1/4" Sharp CCD color sensor to capture images in 540 TVL resolution, and 18 IR LEDs provide up to 50' of night vision. Distance grid lines are adjustable and can also be switched completely off, and mirror image capability controls the way the image is displayed on the screen. Additional features include a built-in speaker, a removable sunshade, auto dimming, and back-lit buttons. The backup camera system is IP69K-rated weatherproof for outdoor use, shock resistant, and 20G/100G vibration- and impact-rated in case of bumpy roads or a collision. - Camera
-
- 1/4" Sharp color CCD sensor with 250,000 pixels for 540 TVL resolution
- 2.1mm fixed lens produces a 130° wide-angle lens
- 18 automatic IR LEDs illuminate up to 50' even in complete darkness
- Automatic Iris sensor adjusts IR LED strength based on outside light
- Built-in microphone for audio accompaniment to video
- Constructed with heavy-duty zinc metal which encases the 2.1mm Sharp lens
- Weather-proof with an IP69K rating
- Adjustable sunshade blocks ambient light for clear pictures
- 20G vibration and 100G impact rating, as well as aircraft grade cable connections/li>
- Monitor
-

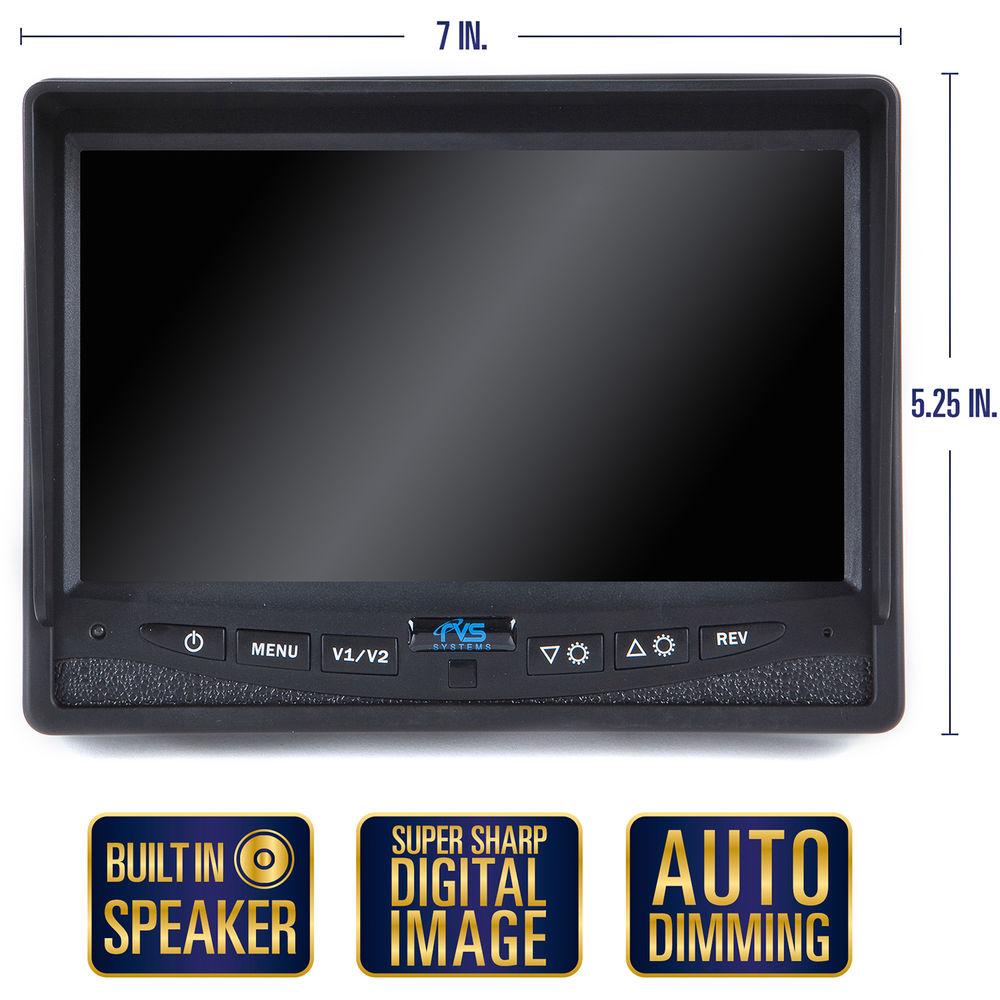

- 7" digital TFT LCD color monitor
- Pixel resolution of 800 x 480 for high-quality images
- Distance grid lines that come standard with the monitor are optional and adjustable
- Built-in speaker for viewing video with audio accompaniment
- Back-lit buttons illuminate in the dark for use at all times
- Menu can be navigated with the dash buttons or with the included remote control
- Auto dimming will dim the screen in low light environments
- Form factor is just 1" thick and includes a removable sunshade

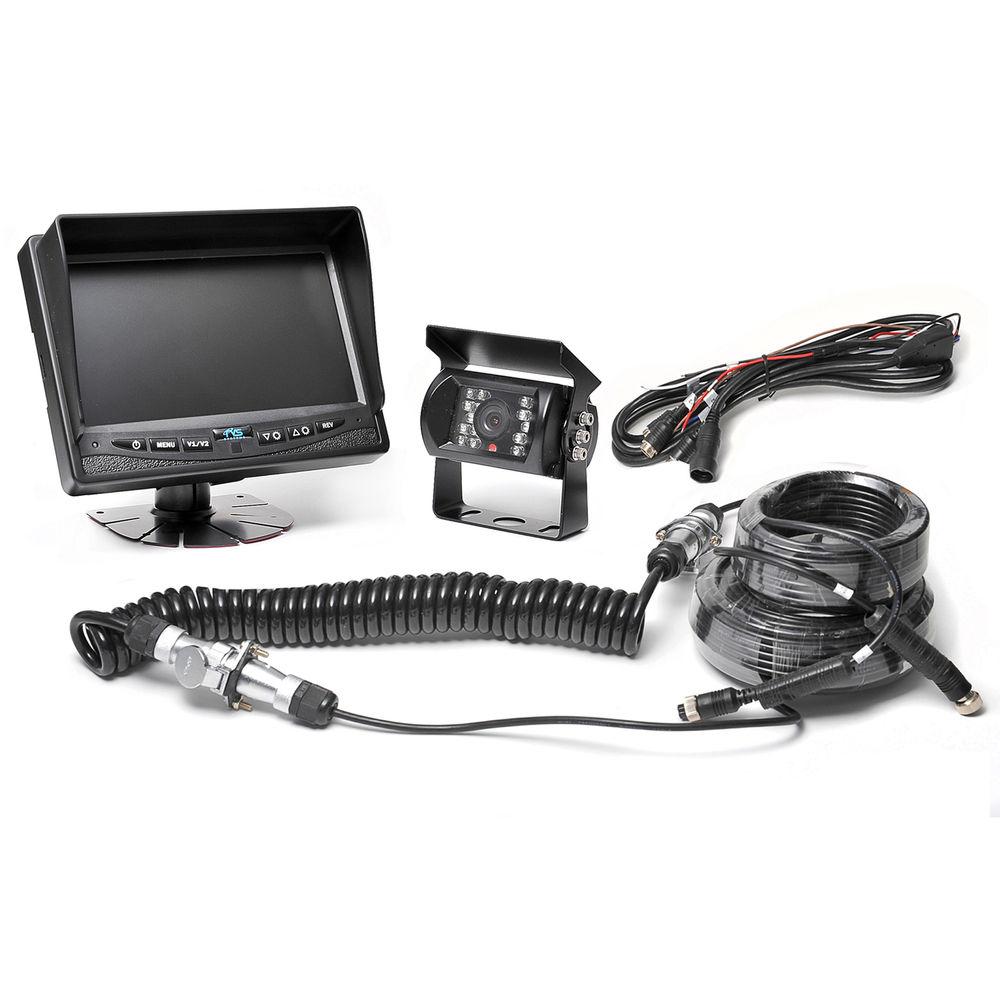

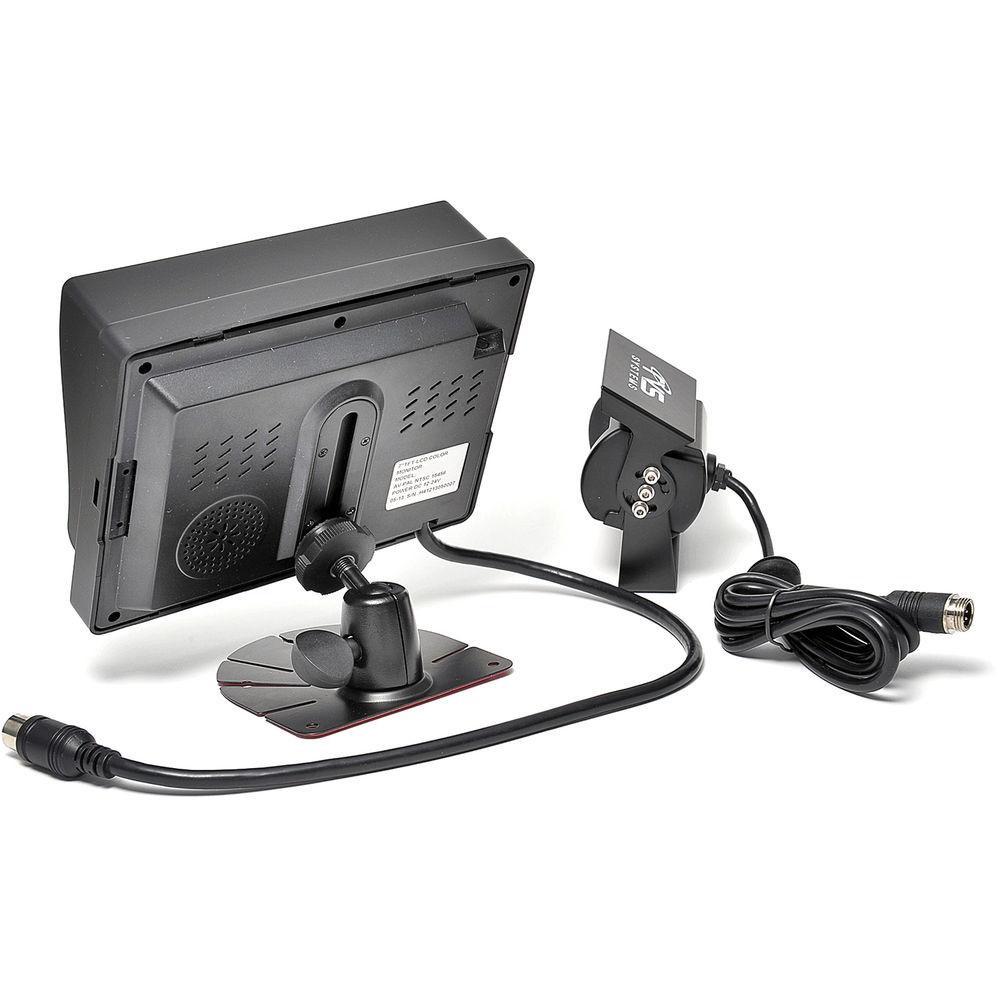

UPC: 813380017519 In the Box Rear View Safety Backup Camera System with 7" Monitor and Trailer Tow Quick Connect Kit Backup Camera 7" Monitor with Universal Mount/Stand Trailer Quick Connect/Disconnect Kit Remote Control Power Connection Wire Double RCA + Power Converter Installation Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety Backup Camera System with 7" Monitor and Trailer Tow Quick Connect Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-770613-213 Specs | | | Screen | 7" (17.8 cm) TFT LCD | | Dot Resolution | 800 x 480 | | Dot Pitch | 0.192 (H) x 0.1805 (V) | | Display Format | 16:9 | | Brightness | 400 cd/m² | | Contrast Ratio | 500:1 | | Viewing Angle | U: 50°
D: 60°
L/R: 70° | | Video Input | 3-channel | | Video Source | 1 V p-p, 75 ohm | | Power Supply | 12 to 24 VDC (±10%) | | Power Consumption | 5 W | | Operating Temperature | -22 to 176°F / -30 to 80°C | | Video System | Auto NTSC/PAL | | Impact Rating | 5G | | Sync System | Internal | | Dimensions (HxDxL) | 5 x 1 x 7" (127 x 25.4 x 177.8 mm) | | Weight | 14.1 oz (400 g) | | | | Image Sensor | 1/4" Sharp color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | r = 0.45 to 1.0 | | Resolution | 540 TVL
PAL: 500 (H) x 582 (V)
NTSC: 510 (H) x 492 (V) | | Lens | 2.1mm | | View Angle | 130° | | Sync System | Internal synchronization | | IR Distance | 50' (15.24 m) with 18 IR LEDs | | Illumination | 0 lux (LED on) | | Power Source | 12 to 24 VDC (±10%) | | S/N Ratio | > 48 dB | | Electronic Iris | 1/50, 160-1/100,000 seconds | | Video Output | 1 V p-p, 75 ohms | | IR Switch Control | CDS automatic control | | Operating Temperature | -40 to 176°F / -40 to 80°C
Humidity: 95% RH (max) | | Storage Temperature | -40 to 140°F / -40 to 60°C
Humidity: 95% RH (max) | | Ratings | Waterproof: IP69K rated
Vibration and Shock: 20G / 100G | | Dimensions | Not specified by manufacturer | | Weight | 22.0 oz / 623.7 g | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 10.1 x 8.1 x 6.8" |
