Product description The Backup Camera System from Rear View Safety includes two industrial-grade backup cameras along with a 7" TFT LCD color monitor. The cameras' integrated 2.1mm fixed lenses provide a 130° wide field of view for capturing the whole road, without any blind spots. Each camera uses a 1/4" Sharp CCD color sensor to capture images in 540 TVL resolution, and 18 IR LEDs provide up to 50' of night vision. Distance grid lines are adjustable and can also be switched completely off, and mirror image capability controls the way the image is displayed on the screen. An included 3-channel multiplexer allows you to connect up to 3 cameras, or 2 cameras and a DVD player, for viewing video on a larger screen. Additional features include a built-in speaker, a removable sunshade, auto dimming, and back-lit buttons. The Backup Camera System is IP69K-rated weatherproof for outdoor use, shock resistant, and 20G/100G vibration- and impact-rated in case of bumpy roads or a collision. - Camera
-
- System includes two cameras for viewing multiple angles of the road
- 1/4" Sharp color CCD sensor with 250,000 pixels for 540 TVL resolution
- 2.1mm fixed lens produces a 130° wide-angle lens
- 18 automatic IR LEDs illuminate up to 50' even in complete darkness
- Automatic iris sensor adjusts IR LED strength based on outside light
- Built-in microphone for audio accompaniment to video
- Constructed with heavy-duty zinc metal that encases the 2.1mm Sharp lens
- Weather-proof with an IP69K rating
- Adjustable sunshade blocks ambient light for clear pictures
- 20G vibration and 100G impact rating, as well as aircraft grade cable connections
- Monitor
-
- 7" digital TFT LCD color monitor
- Pixel resolution of 800 x 480 for high-quality images
- Distance grid lines that come standard with the monitor are optional and adjustable
- Built-in speaker for viewing video with audio accompaniment
- Back-lit buttons illuminate in the dark for use at all times
- Menu can be navigated with the dash buttons or with the included remote control
- Auto dimming will dim the screen in low light environments
- Form factor is just 1" thick and includes a removable sunshade
- Multiplexer & System
-
- Allows you to connect additional cameras or a DVD player
- Connects straight to the fuse box and comes with a separate trigger wire for each connected camera
- Power the system, receives all camera feeds, and sends them to the monitor
- Mirror/Normal switch controls whether the camera displays a mirror or normal image
- Brushed aluminum finish

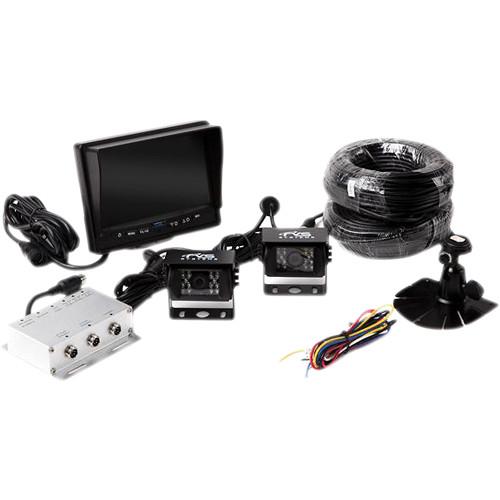

UPC: 813380015492 In the Box Rear View Safety Backup Camera System with Two Cameras and 7" Flush Mount Monitor 2 x Weatherproof Cameras 7" Monitor with Universal Mount/Stand and Wire 3-Channel Multiplexer Control Unit 2 x 66' Extension Cable for Camera Remote Control Power Connection Wire Double RCA + Power Converter Screw Kit for Installation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety Backup Camera System with Two Cameras and 7" Flush Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-770614 Specs | | | Screen | 7" (17.8 cm) TFT LCD | | Dot Resolution | 800 x 480 | | Dot Pitch | 0.192 (H) x 0.1805 (V) | | Display Format | 16:9 | | Contrast Ratio | 500:1 | | Brightness | 400 cd/m² | | Viewing Angle | U: 50°
D: 60°
L/R: 70° | | Video Input | 3-channel | | Video Source | 1 V p-p, 75 ohm | | Power Supply | 12 to 24 VDC (±10%) | | Power Consumption | 5 W | | Operating Temperature | -22 to 176°F / -30 to 80°C | | Video System | Auto NTSC/PAL | | Impact Rating | 5 G | | Sync System | Internal | | Dimensions | 7.0 x 5.3 x 1.0" / 17.8 x 13.3 x 2.5 cm | | Weight | 14.1 oz / 400.0 g | | | | Image Sensor | 1/4" Sharp color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | r = 0.45 to 1.0 | | Resolution | 540 TVL
PAL: 500 (H) x 582 (V)
NTSC: 510 (H) x 492 (V) | | Lens | 2.1mm | | View Angle | 130° | | Sync System | Internal synchronization | | IR Distance | 50' (15.24 m) with 18 IR LEDs | | Illumination | 0 lux (LED on) | | Power Source | 12 to 24 VDC (±10%) | | S/N Ratio | > 48 dB | | Electronic Iris | 1/50, 160-1/100,000 seconds | | Video Output | 1 V p-p, 75 ohms | | IR Switch Control | CDS automatic control | | Operating Temperature | -40 to 176°F / -40 to 80°C
Humidity: 95% RH (max) | | Storage Temperature | -40 to 140°F / -40 to 60°C
Humidity: 95% RH (max) | | Ratings | Waterproof: IP69K rated
Vibration and Shock: 20 G / 100 G | | Dimensions | Not specified by manufacturer | | Weight | 22.0 oz / 623.7 g | | | | Package Weight | 9.385 lb | | Box Dimensions (LxWxH) | 10.4 x 9.8 x 7.7" |
