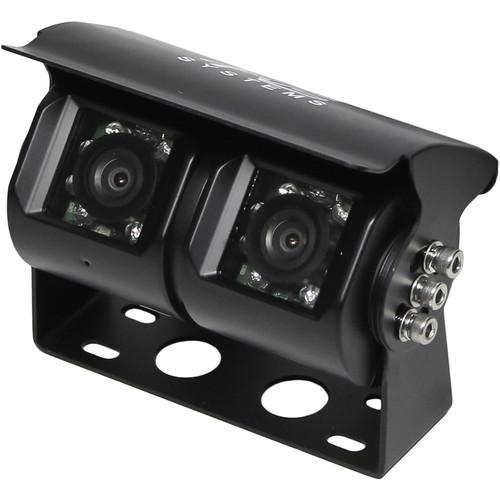

User Manual for Rear View Safety Double-Lens Backup Camera Click to enlarge the picture
Contents of the user manual for the Rear View Safety Double-Lens Backup Camera
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
|
User manual for the Rear View Safety Double-Lens Backup Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description Be safe on the road with the Double-Lens Backup Camera from Rear View Safety. Featuring an ultra-wide 130° dual-lens design, the RVS-813 enables you to capture two different viewpoints with a single device. The orientation of the 2.1mm lenses can be easily adjusted so you can have one lens facing down at your vehicle's bumper and one at the traffic. The Double-Lens Backup Camera uses a 250,000-pixel image sensor and a total of 18 IR lights, allowing for up to 50' visibility at night. With its IP68-rated waterproof enclosure, the RVS-813 has you covered rain or shine. - Dual camera allows viewing traffic and vehicle bumper
- 18 infrared lights, 9 per camera
- Auto iris sensor – IR lights adjust strength based on outside light
- Heavy-duty zinc enclosure
- IP68 rating ensures protection against weather elements
UPC: 818137012410 In the Box Rear View Safety Double-Lens Backup Camera (RCA) 2 x Extension Cables for Cameras (66') RCA Adapter Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety Double-Lens Backup Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-813 Specs | Image Sensor | 1/3" Sony color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | 0.45 to 1 | | Resolution | 480 TVL | | Number of Pixels | NTSC: 510 x 492
PAL: 500 x 582 | | Focal Length | 2.1mm | | View Angle | 130° | | Sync System | Internal | | IR Illumination | 18 x IR LEDs, total | | IR Distance | 50' / 15.24 m | | Minimum Illumination | 0 lux (LED on) | | Power Source | 12 VDC | | S/N Ratio | More than 48 dB | | Electronic Iris | 1/50, 160-1/100,000 sec | | Video Output | 1 Vpp 75 Ohms | | IR Switch Control | CDS automatic | | Vibration Resistance | 20 G | | Impact Rating | 100 G | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 95% RH max. | | Storage Humidity | 95% RH max. | | Dimensions | 3.25 x 4.00 x 2.00" / 8.25 x 10.16 x 5.08 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 3.0 x 3.0 x 3.0" |
