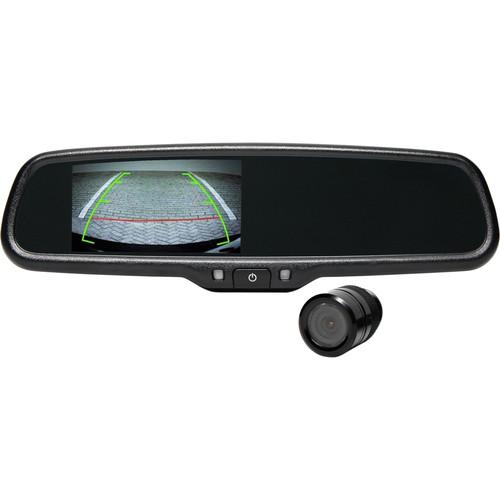

Product description Monitor the back end of your vehicle using the Flush Mount Camera System with Mirror Monitor from Rear View Safety. This system includes a compact, heavy-duty, metal camera and a mirror monitor that can be attached directly to your windshield, replacing your existing rear view mirror. The camera can be flush mounted to your vehicle for inconspicuous use, or it can be mounted using an included mount bracket for standard placement. The package also includes a power harness with two camera inputs for expanding your system, a 33' extension cable for the camera, a remote control, and installation hardware.

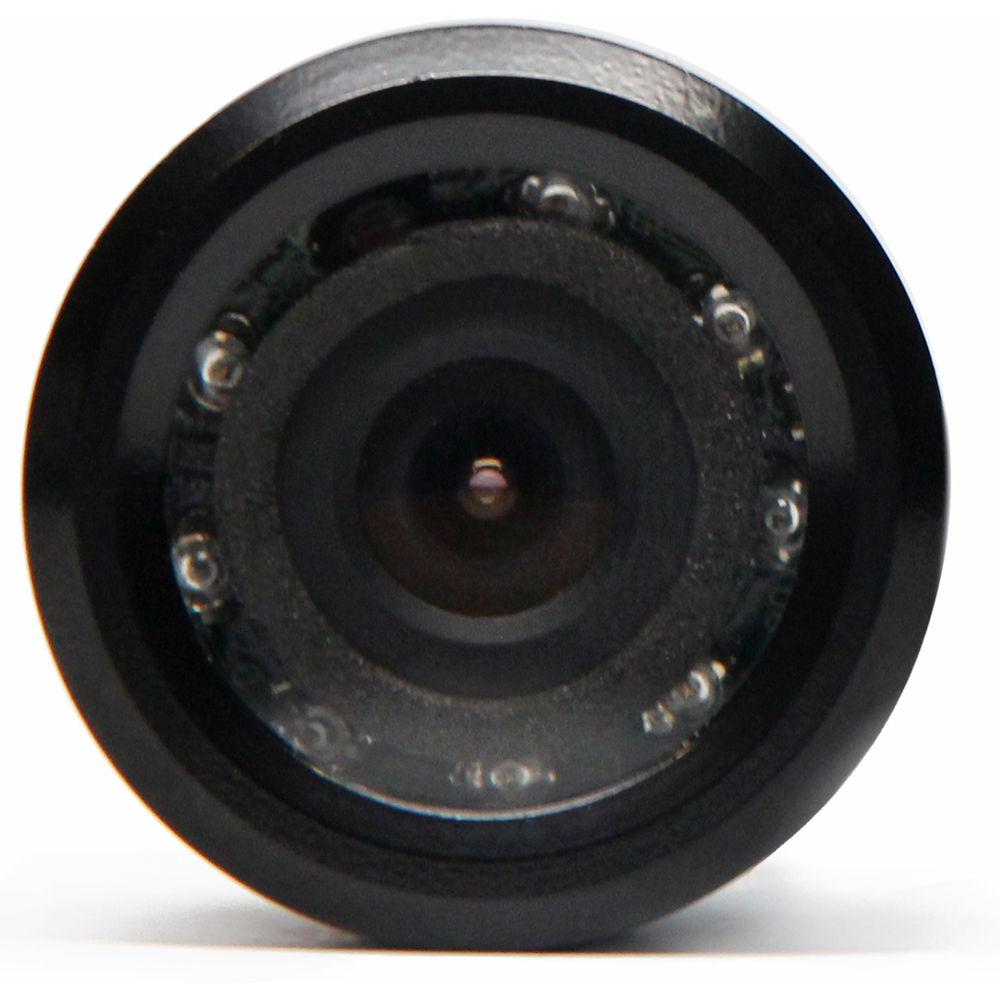

The included camera produces video in 420 TVL resolution for high-quality images, and it features a 120° field of view for capturing the whole road, without any blind spots. Nine integrated IR LEDs provide up to 30' of night vision for use at all times, and the lens is surrounded by foam so there is no glare from the infrared light. With an IP68 waterproof rating and a 15G impact rating, the camera can be used outdoors and can withstand bumps and scratches. The camera's view is displayed on the side of the mirror closer to the driver, allowing the rest of the mirror to be used as a standard reflective rear view mirror. The monitor can also show optional and adjustable distance grid lines for assisting in backing up your vehicle. - Camera
-
- 420 TVL resolution for high-quality video
- 120° wide viewing angle for capturing the road without blind spots
- 9 IR LEDs provide up to 30' of night vision
- Lens is surrounded by foam, preventing glare from IR LEDs

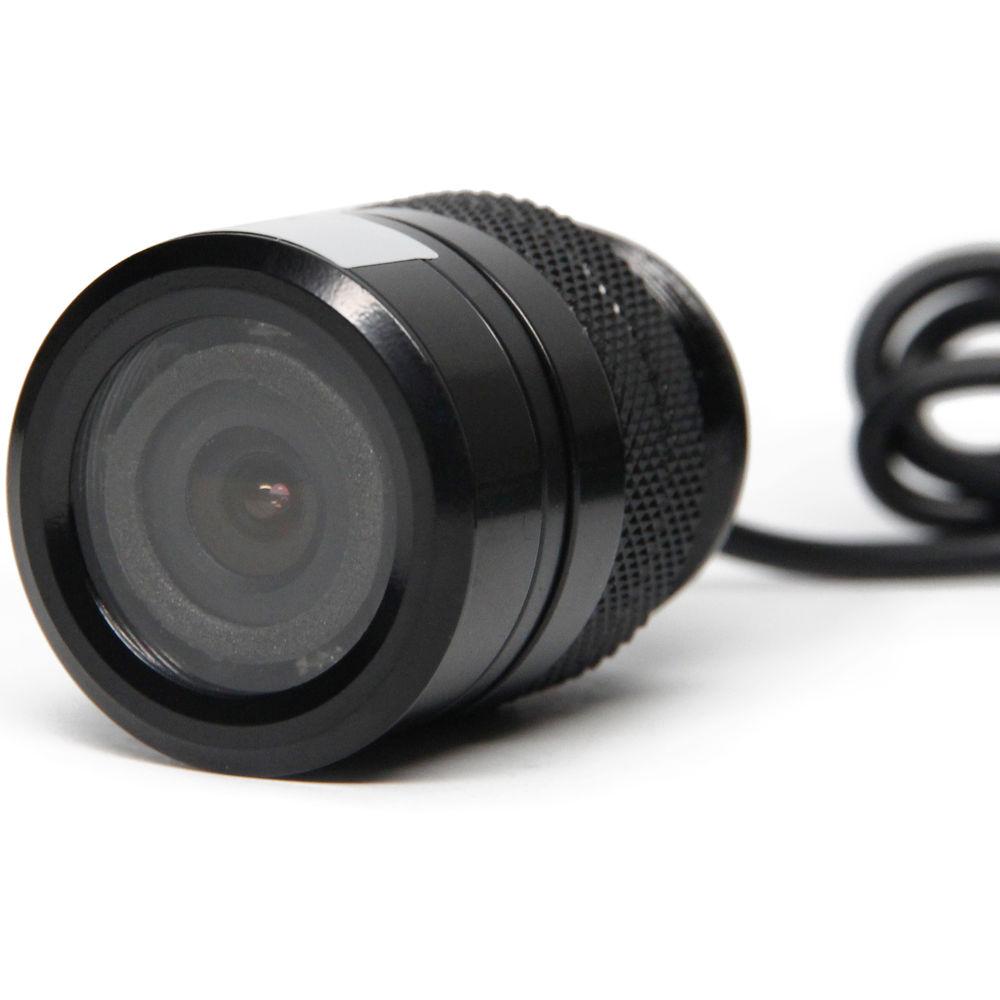

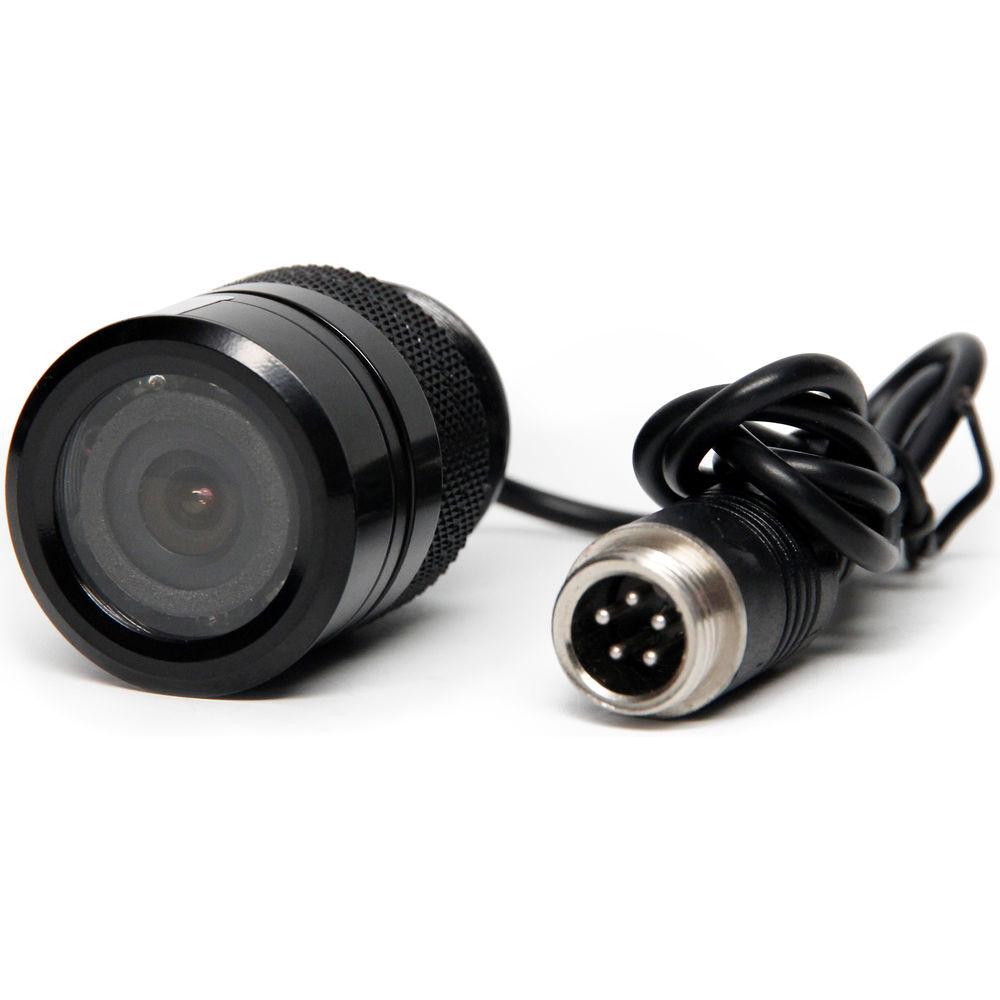

- Flush mounted for inconspicuous use, or mount with a bracket
- Compact and heavy-duty metal design
- 15G impact rating and aircraft-grade cable connections
- IP68 weatherproof rating protects against submersion in water
- Mirror Monitor
-

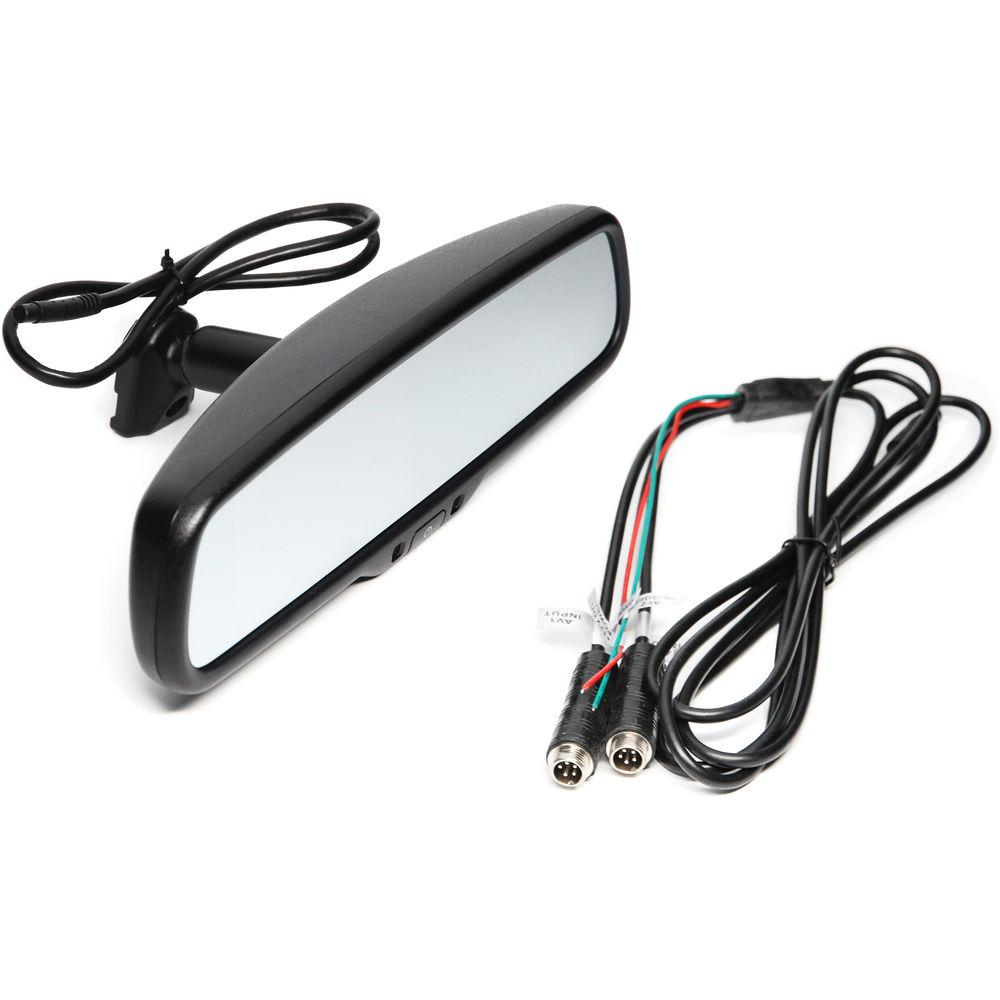

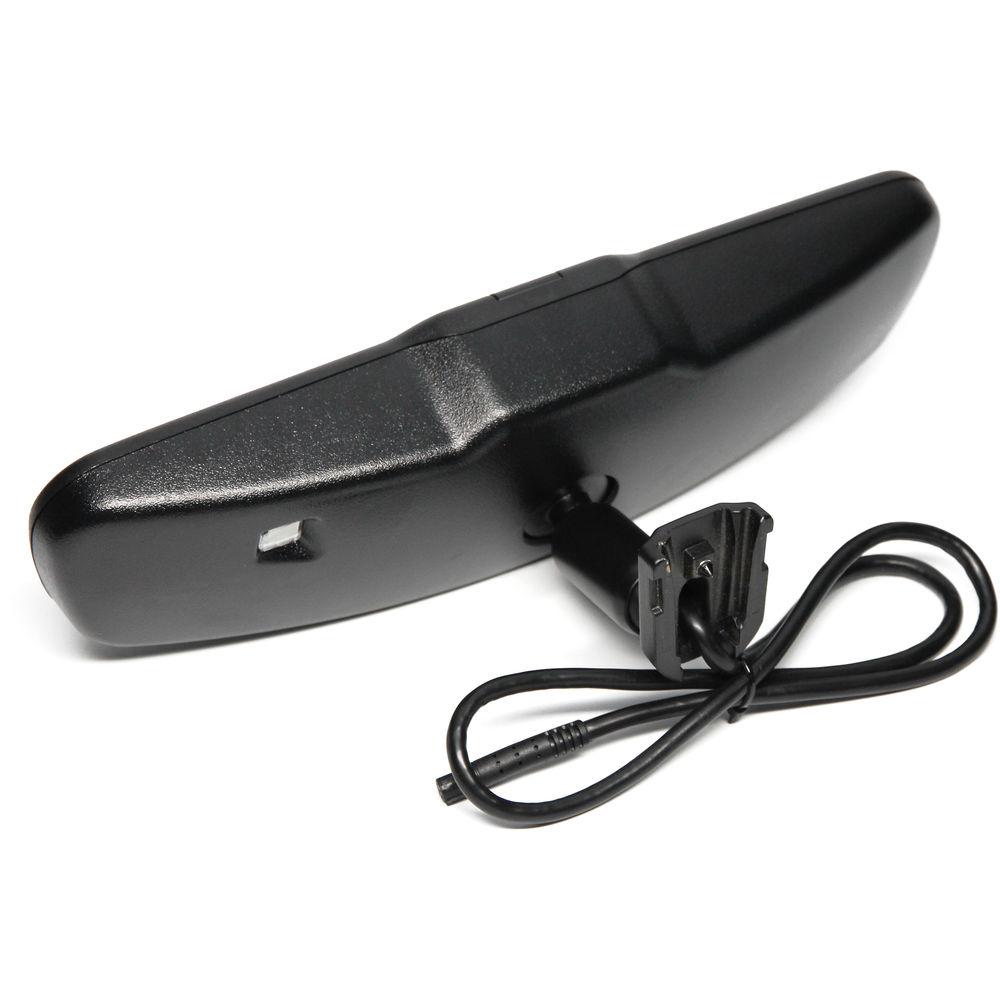

- Mirror monitor attaches to the windshield, replacing existing rear-view mirror
- Reflective ability to act as a mirror as well as a monitor
- 4.3" TFT LCD display with screen pushed closer to driver
- Super bright digital image for easy viewing
- Optional and adjustable distance grid lines assist with backing up

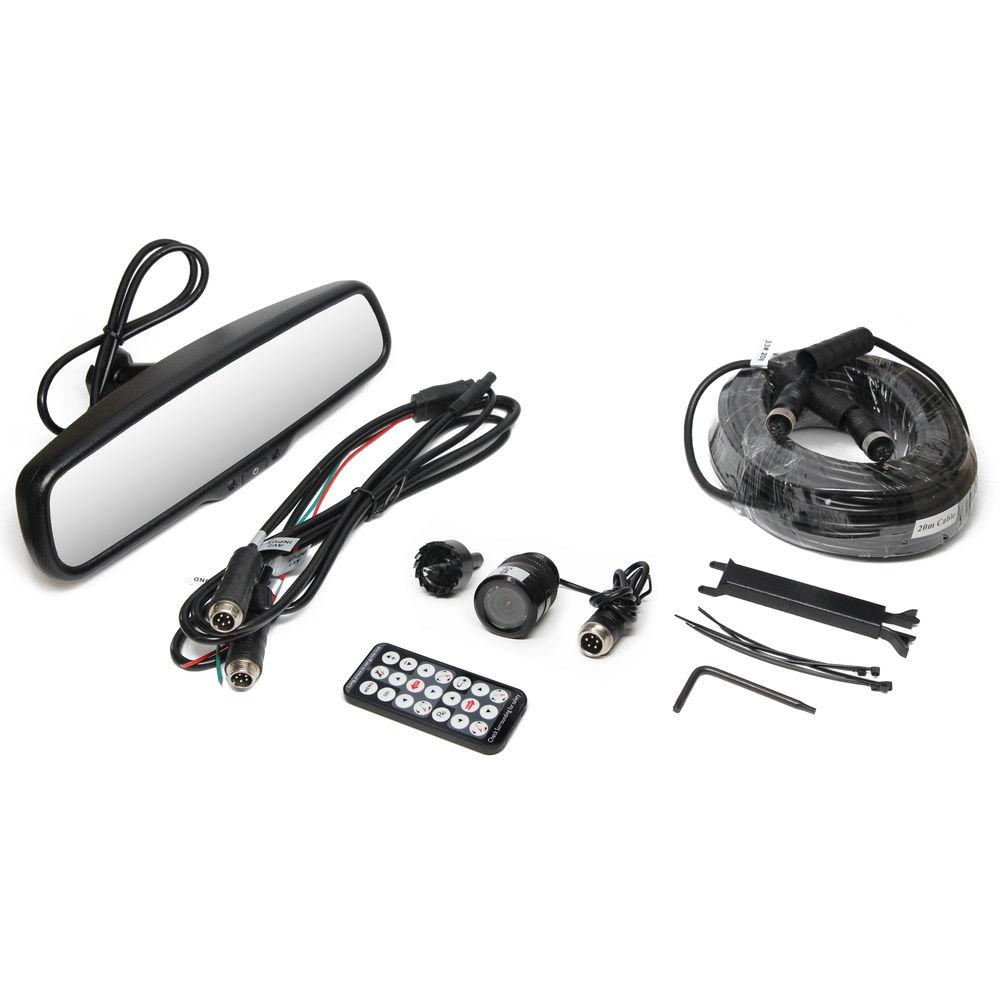

UPC: 818137012861 In the Box Rear View Safety Flush Mount Camera System with Mirror Monitor MT9V136 Color Camera 4.3" Mirror Monitor Power Harness 33' Extension Cable for Camera Remote Control Screw Kit for installation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety Flush Mount Camera System with Mirror Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-772718 Specs | | | Sensor | MT9V136 | | Lens | f/2.8 | | Resolution | 480 TVL | | Effective Pixels (H x V) | NTSC: 728 x 488
PAL: 762 x 504 | | TV System | NTSC or PAL | | Minimum Illumination | 0.5 lux | | Viewing Angle | 120° | | IR LEDs | Number: 9
Distance: 30' (9.1 m) | | AGC | Auto | | BLC | Auto | | S/N Ratio | > 48 dB | | Video Output | CVBS | | Signal | 1.0 Vp-p | | Impedance | 75 ohm | | Power | 1.5 W | | Ratings | Weatherproof: IP68

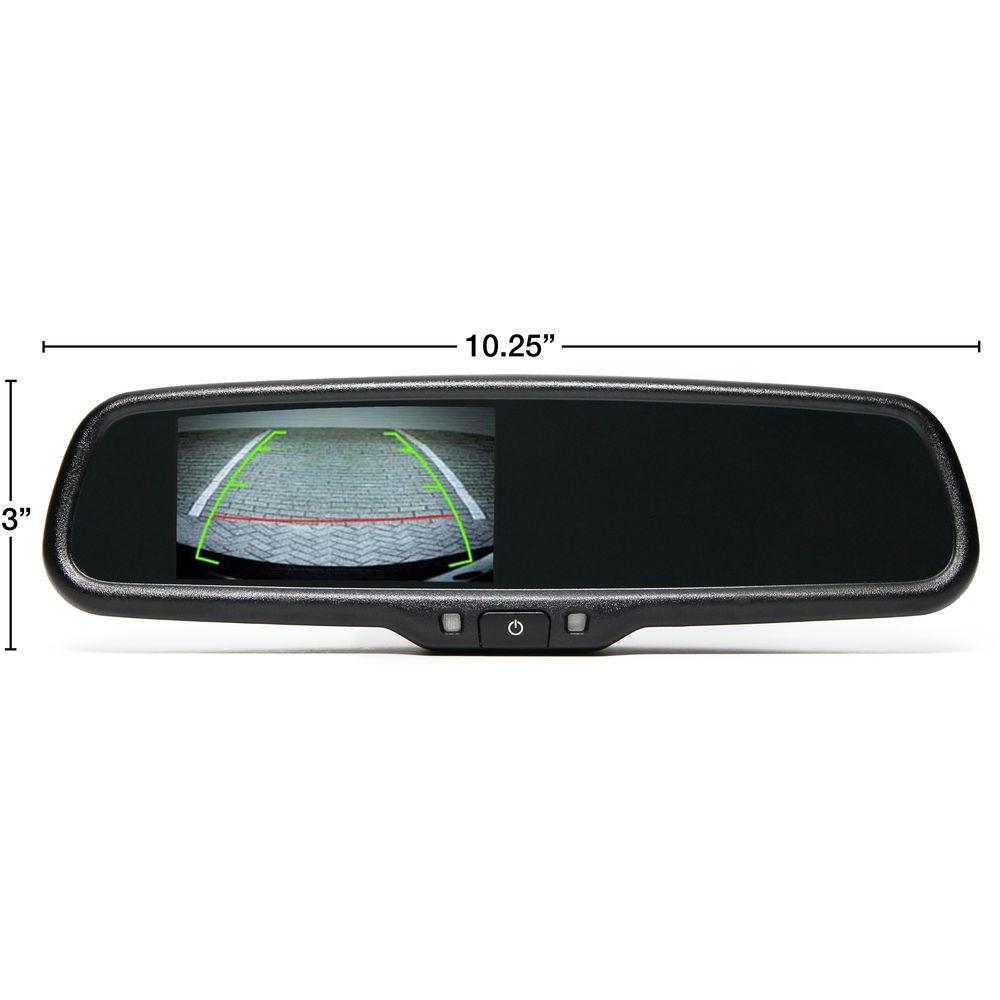

Impact: 15G | | Operating Temperature | -22 to 167°F (-30 to 75°C) | | | | Screen Size | 4.3" (11 cm) | | Dot Resolution | 480 x 272 | | Display Format | 16:9 | | Brightness | 400 cd/m² | | Viewing Angle | U&D: 100°, L&R: 120° | | Video Input | 2 channels | | Video Source | 1 Vp-p, 750 ohm | | Power Supply | 9 to 18 VDC (±10%) | | Power Consumption | 5 W | | Operating temperature | -4 to 167°F (-20 to 75°C) | | Video System | Auto NTSC/PAL | | Sync System | Internal | | Impact Rating | 5G | | Dimensions (L x H x D) | 10.3 x 3.0 x 1.0" / 26.0 x 7.6 x 2.5 cm | | Weight | 28.2 oz / 800.0 g | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 11.75 x 5.65 x 4.0" |
