Product description The G-SERIES Backup Camera System from Rear View Safety fits almost any vehicle. This system features a G-Series Monitor and a 776 Camera, both small in size and built to withstand all weather conditions. The mirror monitor also comes with auto-dimming and OnStar. With the built-in OnStar and your subscription (sold separately), all OnStar features and benefits are available with this monitor with just a push of a button. The backup camera is completely waterproof with an IP68 rating and boasts of excellent night vision. - Compact Backup Camera
-

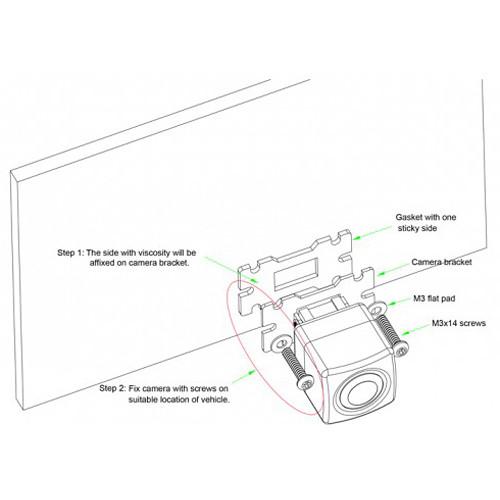

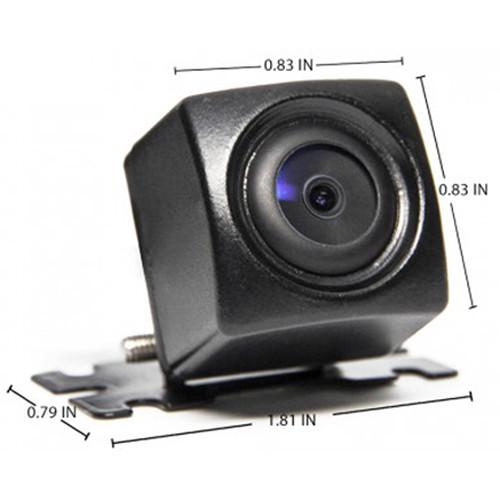

- This compact night vision backup camera is built with a MT9V136 lens with an ultra wide viewing angle of 170°. Its tiny size (less than an inch long, wide, and deep) makes it ideal for smaller vehicles and allows its installation to be virtually invisible. It comes with an adjustable mounting bracket and with an IP68 rating, which makes it an ideal fit in almost all weather conditions. It comes in a compact cube design.

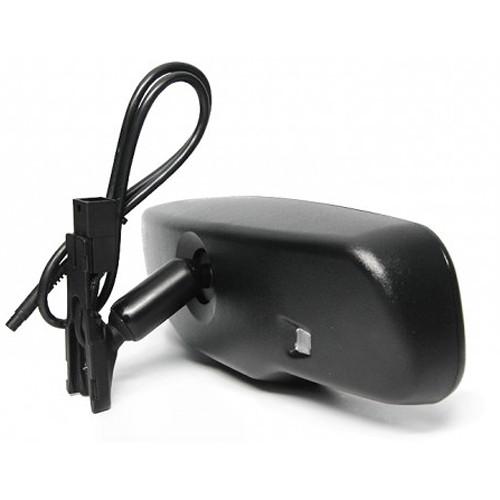

- OEM Mirror Monitor
-
- The OEM style mirror monitor provides great performance coupled with a clean, factory-like install. It attaches to the windshield, replacing the existing rear view mirror, and its bright screen and reflective ability contribute to an all-in-one backup experience. It comes with a 4.3" color TFT digital display and its distance grid lines are optional and adjustable.
- Auto-Dimming
-
- With auto-dimming, this mirror monitor reduces the glare from reflected headlights and keeps the driver without distraction.
- OnStar
-
- With full OnStar capabilities, this monitor can call for help and directions at just the push of a button.
- OnStar subscription sold separately

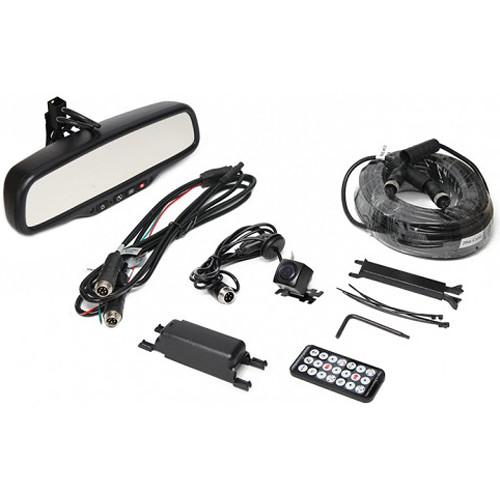

UPC: 818137012908 In the Box Rear View Safety G-SERIES Backup Camera System with Auto Dimming and OnStar RVS-718-DOS Monitor Power Harness Installation Hardware Remote RVS-776 Car Camera cfarycdavxxvdyzdrwtetyadyqfctqyvbzuee Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety G-SERIES Backup Camera System with Auto Dimming and OnStar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-776718-DOS Specs | | | Picture Elements | 250,000 pixels | | Gamma Correction | r: 0.45 to 1.0 | | Image Sensor | 480 TVL | | Lens | 2.1 mm | | View Angle | 170° | | Sync System | Internal synchronization | | Night Vision | Supported | | Illumination | Usable: 0.5 lux | | Power Source | 12 to 24 VDC (+/- 10%) | | S/N Ratio | >48 dB | | Electronic Iris | 1/50, 160-1/100,000 sec | | Video Output | 1 Vpp, 75 ohms | | Vibration and Shock Rating | 10G / 100G | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | RH 95% maximum | | Storage Humidity | RH 95% maximum | | | | Screen Size | 4.3" (10.9 cm) | | Dot Resolution | 480 x 3 (RGB) x 272 | | Display Format | 16:9 | | Brightness | Display: 12001x | | Viewing Angle | U&D: 100°
L&R: 120° | | Video Input | 2-channel | | Video Source | 1 Vpp, 750 | | Power Supply | 9 to 18 VDC (+/- 10%) | | Power Consumption | 5 W | | Operating Temperature | -4 to 167°F (-20 to 75°C) | | Video System | Auto NTSC / PAL | | Impact Rating | 5G | | Sync System | Internal | | | | Dimensions (L x H x D) | 10.3 x 3.0 x 1.0" (26.2 x 7.6 x 2.5 cm) | | Weight | 28.2 oz (800.0 g) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 14.2 x 6.3 x 4.8" |
