User Manual for Rear View Safety GoVue Wi-Fi Backup Camera System Click to enlarge the picture
Contents of the user manual for the Rear View Safety GoVue Wi-Fi Backup
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
 |
User manual for the Rear View Safety GoVue Wi-Fi Backup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|

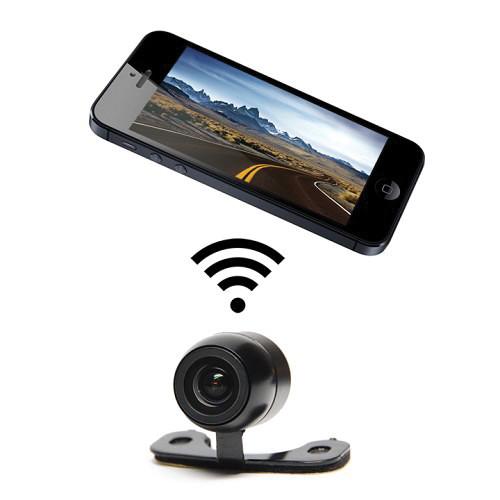

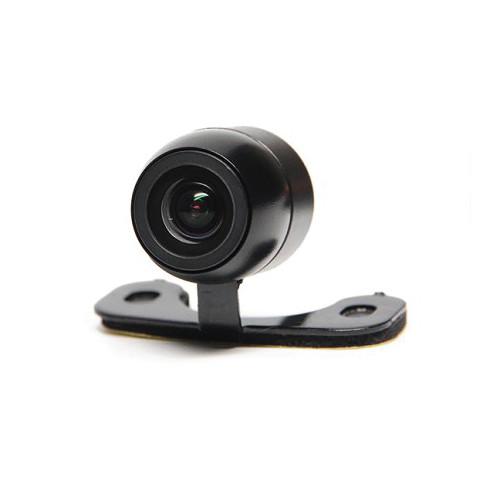

Product description A weatherproof camera designed to attach to the rear of your vehicle, the GoVue Wi-Fi Camera, from Rear View Safety, connects wirelessly to your mobile device and lets you see the camera view on your device's screen from up to a 100 ft line-of-sight. This is done through a free download app called GoVue, which also allows you to record what you see as well as grab still shots from the recorded footage. The entire system includes the camera, the app, and a transmitter, which is also weatherproof. The camera is also capable of approximately 10 ft of night vision with only 0.5 lux of illumination required.
The system works with iPhones, iPads, and Android devices. The camera features a 130° wide viewing angle and attaches to your vehicle via an adjustable mounting bracket. It connects to your mobile device by simply linking to the Wi-Fi network called "GoVue" once you download the app. The camera and transmitter are rainproof, dustproof, and shockproof, and both connect to a power source at the rear of the vehicle for power, such as to a brake light or rear light. Installation time is commonly about 15 minutes. - Key Features
-
- Monitor the camera view on your iPhone, iPad, or Android device
- Weatherproof camera designed to attach to the rear of your vehicle
- 100 ft line-of-sight transmission distance
- Record what you see to the GoVue app
- Approximately 10 ft of night-vision
- 130° wide viewing angle
- Approximately 15 minute installation time

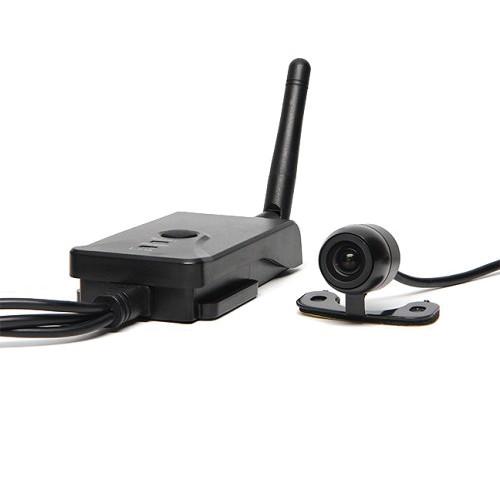

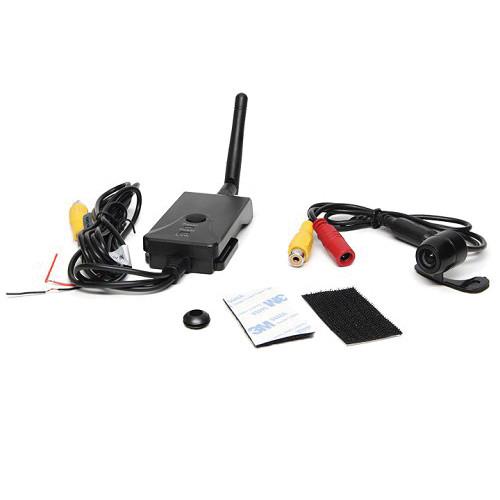

UPC: 818137011864 In the Box Rear View Safety GoVue Wi-Fi Backup Camera System Color Camera with Adjustable Mounting Bracket Transmitter Power Wire Installation Parts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety GoVue Wi-Fi Backup Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-020813 Specs | | | Image Sensor | 1/3" CMOS | | Effective Pixels | 670 x 490 pixels (PAL) | | Video Format | NTSC/PAL | | Viewing Angle | 130° | | Maximum Image Transfer Rate | NTSC: 60 fps (TV)
VGA: 60 fps (DV)
PAL: 50 fps | | Minimum Illumination | < 0.5 lux | | Power Supply | 12 VDC | | Consumption Current | 100 mA (max) | | Video Output | 0.9-1.3 Vp-p 75 ohms | | Night Vision Range | Approx. 10 ft (3 m) (5 W) | | Waterproof | IP68 | | Grid Lines | With On/Off switch | | Dimensions | 1.3 x 0.9 x 0.9" (3.3 x 2.2 x 2.3 cm) | | | | Frequency | 2400-2483.5 MHz | | Modem Mode | 802.11b: DSSS (CCK, DQPSK, DBPSK) | | Transmission Distance | 100 ft (30.5 m) | | Frame Rate | 30 fps | | Video Resolution | VGA 640 x 480 | | Video Compression | H.264 | | Wireless Protocols | IEEE 802.11b, IEEE 802.11g, IEEE 802.n (1t 1R modes) | | Power Supply | 12 VDC | | Consumption Current | 150 mA (max) | | Encryption | WPA2 | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 15~85% RH | | Dimensions | 1.8 x 3 x 0.7" (4.5 x 7.5 x 1.8 cm) (excluding antenna) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 4.9 x 3.6 x 1.8" |
