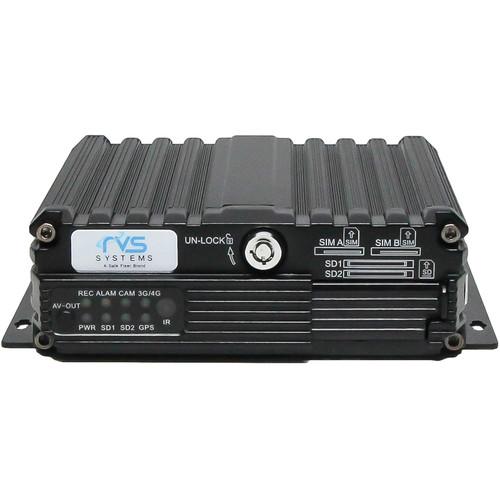

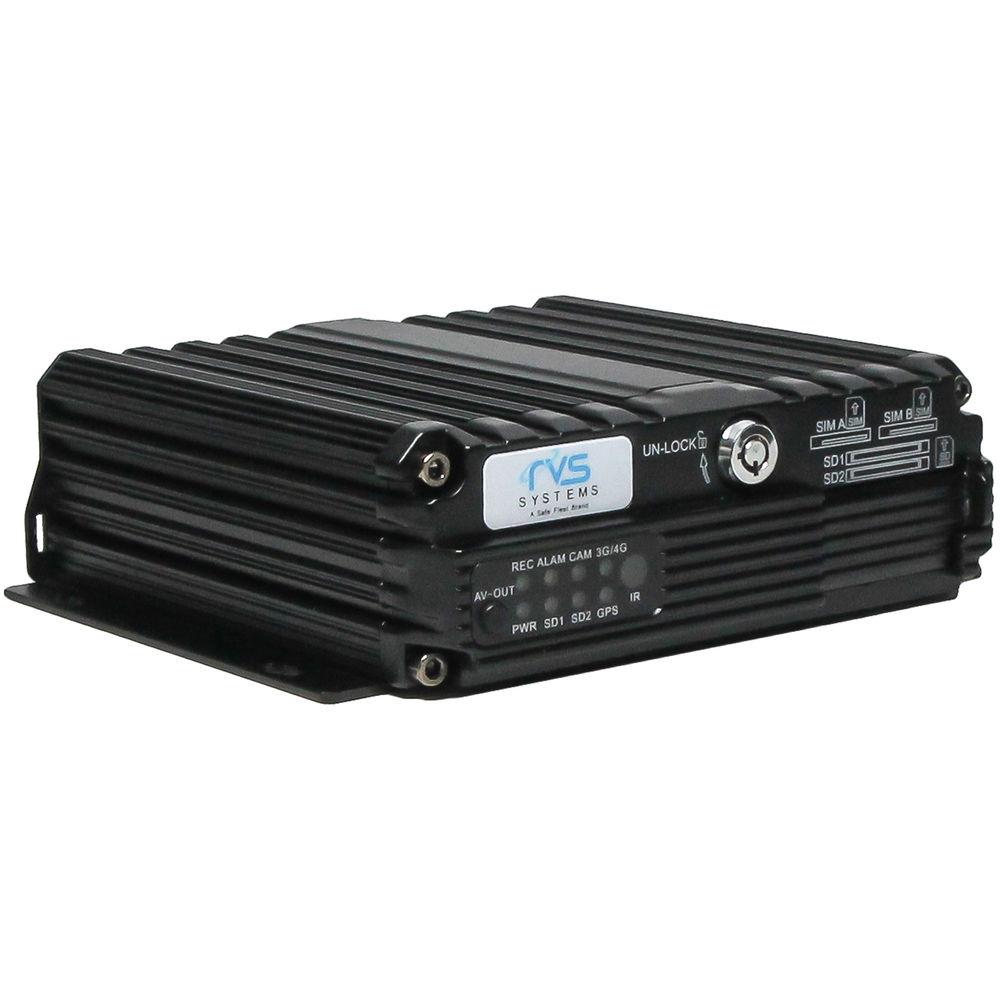

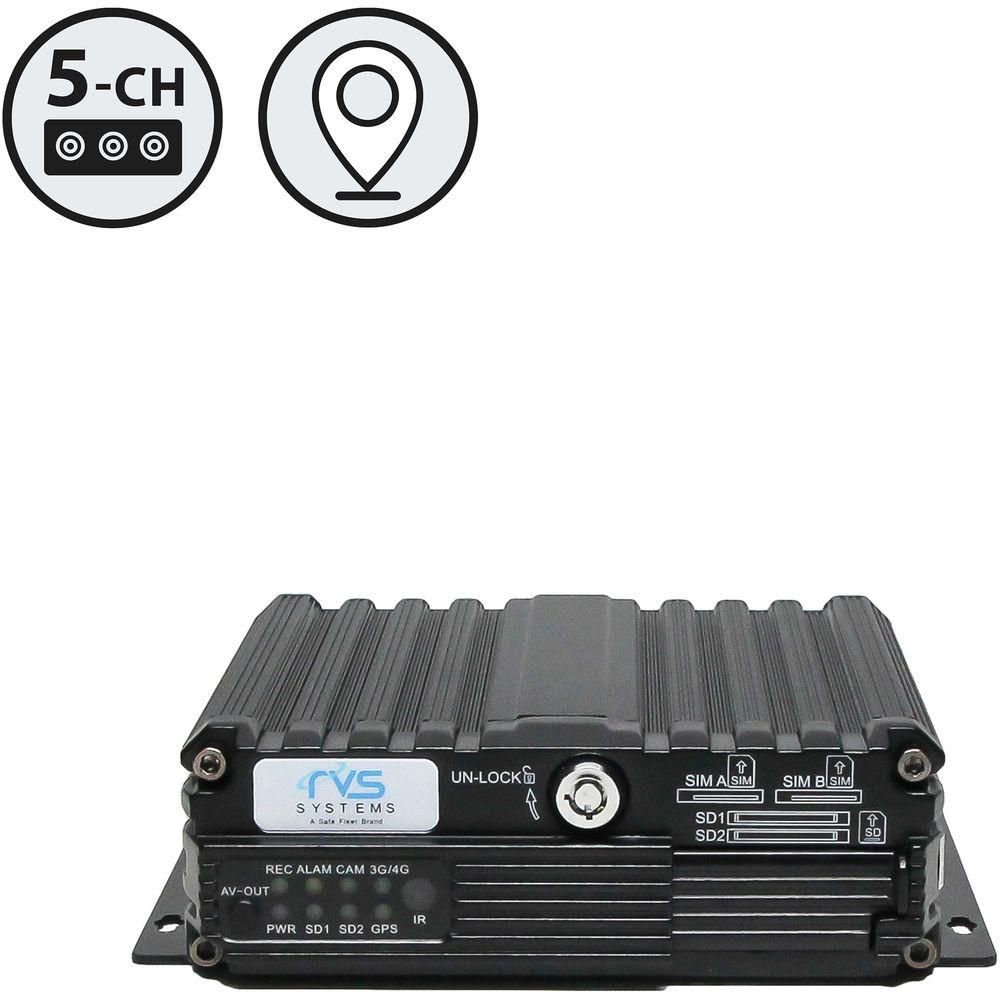

User Manual for Rear View Safety MobileMule 5500 4-Channel Mobile DVR with GPS Click to enlarge the picture
Contents of the user manual for the Rear View Safety MobileMule 5500 4-Channel
- Product category: Digital Video Recorders (DVRs) Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Digital Video Recorders (DVRs)
 |
User manual for the Rear View Safety MobileMule 5500 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|

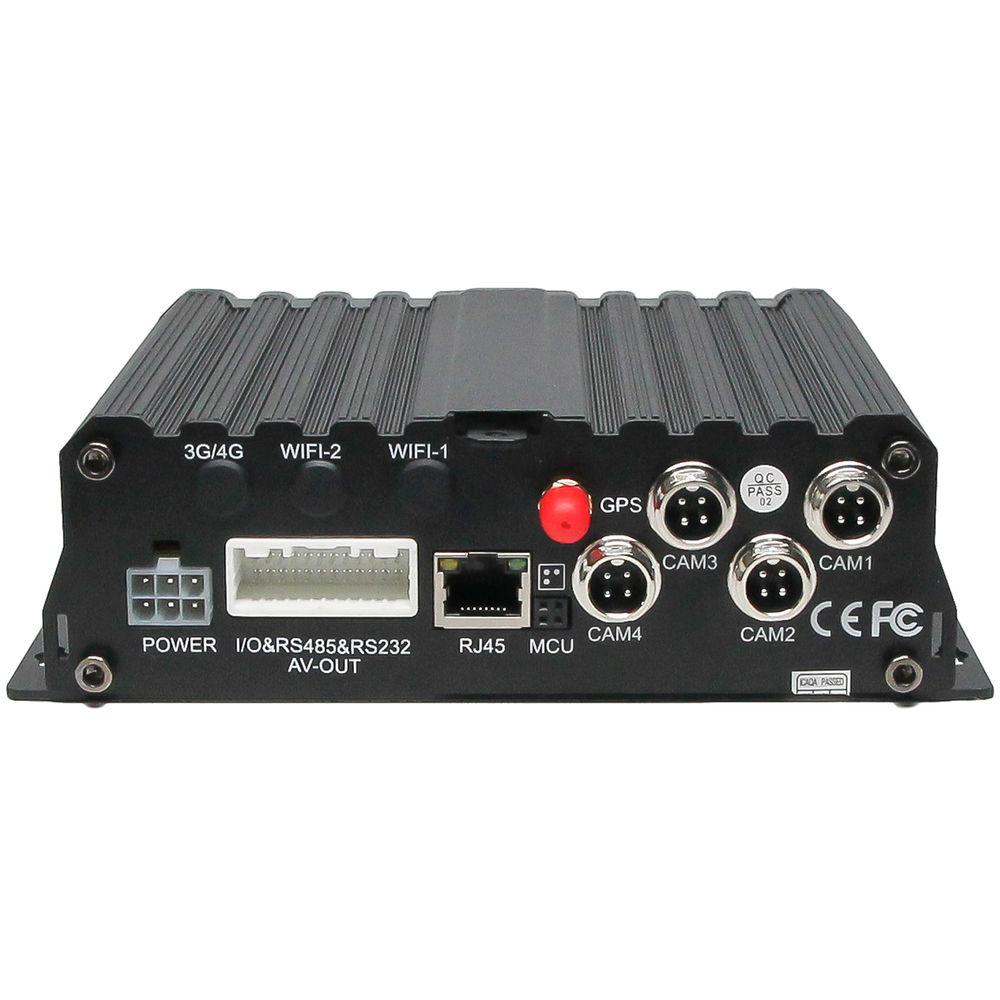

Product description The MobileMule 5500 4-Channel Mobile DVR from Rear View Safety is designed for on-board vehicle recording. It has four ports to record from up to four cameras simultaneously and an Ethernet port to connect a forward-facing IP camera. This DVR has a GPS logger which gives you the option of recording locations and driving routes with video footage. The DVR can be connected to a monitor so that you can view the cameras in real time in addition to recording them, and it allows you to view each camera independently or all together in a split view. The footage can be recorded onto two SD cards supporting a total capacity of up to 256GB (128GB each card). In addition, the DVR is also vibration-resistant. - Can connect and record from up to four cameras (in addition to an IP camera) simultaneously
- Can be connected to a monitor, allowing the driver to view all cameras connected in addition to recording
- Allows trigger functions of a regular backup camera system
- GPS for recording speed, location, and exact driving route together with footage
- Supports integration with Google Maps
- Loop Recording: Records camera feeds continuously, looping over oldest recordings when storage is full
- Footage can be recorded onto two SD cards with a maximum total storage capacity of 256GB
- Events can trigger certain recorded footage as over-write protected
- G-Sensor for recognizing sudden movements such as hard acceleration, sudden stops, speeding, and impacts
- Delay Power Off: Up to 24-hour power off delay to record footage even after the vehicle is shut off

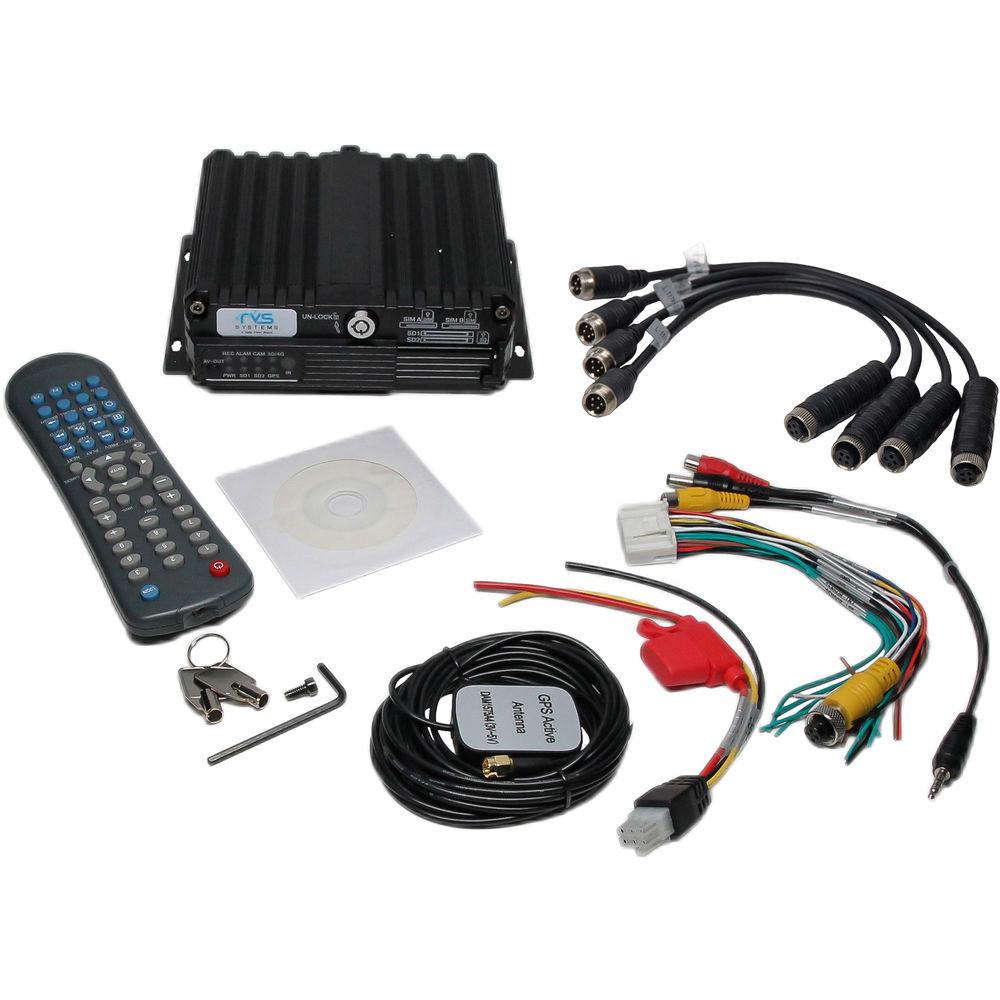

In the Box Rear View Safety MobileMule 5500 4-Channel Mobile DVR with GPS Remote Control GPS Module Power Harness Trigger Wire Harness Monitor Harness 2 x Lock Key Allen Wrench and Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety MobileMule 5500 4-Channel Mobile DVR with GPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety MobileMule 5500 Specs | Interface | Graphical User Interface (OSD menu) | | Security | 2 Levels: Administrator or User | | Video Input | Supports 4 channels CIF/HD1/D1/960H/720p AHD camera video input | | Video Output | 2 channels (front panel 3.5 mm jack, rear panel on 24-pin I/O port ) | | Video Display | Single picture, 1 to 5 pictures | | Signal System | PAL / NTSC (100 fps at 720p / 120 fps at 720p) | | Image Compression | H.264 main profile | | Audio Input | 4 channels | | Audio Output | 2 channels (front panel 3.5 mm jack, rear panel on 24-pin I/O port) | | Recording Format | Synchronized A/V recording | | Image Resolution | CIF / HD1 / D1 / 960H / 720p optional | | Video | Video Coding: ISO14496-10 industry standard | | Video Bit Rate | CIF: 1536 to 128 kbps
HD1/D1: 2048 to 400 kbps
960H: 2048 to 400 kbps
720p: 4096 to 400 kbps | | Audio Bit Rate | 40 kbps | | Storage | 2 x SD card slots, up to 128 GB each, Class 10 or higher | | Alarm Input | 8 channels, select trigger for either less than 1 VDC or greater than 5 VDC | | Alarm Output | 1 channel, 12 V output | | Ports | Communication Ports: RS-485 / RS-232 / RJ45 network | | GPS | Internal GPS module
Real-time geographic coordinates, speed information | | G-Sensor | Supports 3-axis motion detection with user defined ranges for X, Y, and Z coordinates | | Software | PC Playback / IVMS | | Software Upgrade | Upgrade through SD card or remotely via CMS/IVMS platform | | Voltage Input | 8 to 36 V | | Voltage Output | 12 (±0.2 V) Maximum 3A | | ACC Detection | Power Off: ≤4 V
Power On: ≥6 V | | Input Resistance | Video Input Resistance: 75 Ohms | | Video Output Voltage | 2 V p-p | | I/O Port | Low Voltage Trigger: <1 v
High Voltage Trigger: >5 V | | Operational Temperature | -13 to 167°F (-25 to 75℃) | | Dimensions | 6.7 x 5.6 x 1.9" (170 x 142 x 50 mm) | | Weight | Not Specified by the manufacturer |
