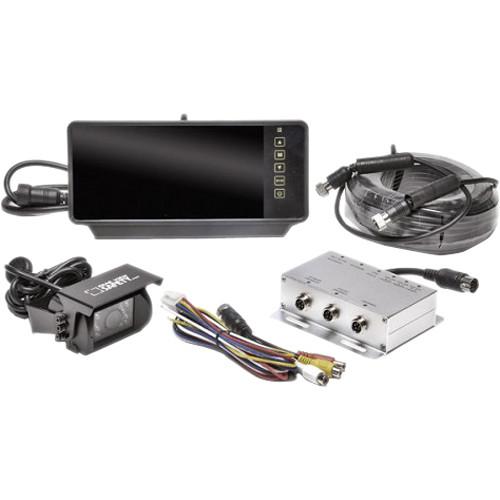

Product description The Rear View Backup Camera System from Rear View Safety includes a CCD weatherproof IR color camera, 7" color TFT-LCD mirror-mount monitor, and a 3-channel multiplexer control unit. It also includes a 66’ extension cable for the camera, a remote control, a power connection wire, as well as a double RCA and power converter to connect external audio/video and power sources.
The 7" color TFT digital LCD mirror-monitor has mirror image capability and replaces the existing rear view mirror inside the vehicle. The 3-channel multiplexer can connect a DVD player or other cameras with the automatic system switch. The CCD camera features 18 IR LEDs that offer a night vision range of up to 50'. The backup camera system features a 130° viewing angle and is shock resistant with a 20G impact rating. - Camera
-
- 1/4" sharp color CCD sensor, 250k pixels, 2.1mm wide lens with 130° angle, and 420 TVL resolution allow for capturing of high quality images with no blind spots
- 18 automatic IR LEDs allow night vision even in dark environments up to a distance of 50'
- Built-in foam around lens, weatherproof casing, a screw base, and a waterproof sleeve connection protect against outside elements
- 20G shock and 100G vibration rating
- Monitor
-
- 7" color TFT-LCD digital windshield mount monitor with a 16:9 wide screen
- Control functions from the monitor as well as the included remote control
- Built-in speaker
- Multiplexer
-
- 3 channels allow you to connect additional cameras or a DVD player
- Mirror imaging so that you can see the proper side
- Power Requirement: 12 to 24 VDC
- Cables and connectors are weatherproof with an IP67k-rating
UPC: 818137010775 In the Box Rear View Safety Rear View Backup Camera System with 7" Mirror Monitor - 3-Channel Multiplexer Control Unit
- 66' Extension Cable for Camera
- Remote Control
- Power Connection Wire
- Double RCA and Power Converter
- Screw Kit for Installation
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety Rear View Backup Camera System with 7" Mirror Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-770619N Specs | | | Type | 1/4" sharp color CCD | | Picture Elements | 250,000 | | Gamma Correction | r = 0.45 to 1.0 | | Image Sensor | 420 TVL
PAL (H x V): 500 x 582
NTSC (H x V): 510 x 492 | | Lens | 2.1mm | | View Angle | 130˚ | | Sync System | Internal synchronization | | IR Distance | 18 IR LEDs
50.0' (15.2 m) | | Illumination | Usable: 0 lux (IR on) | | Power Source | 12 to 24 VDC (±10%) | | S/N Ratio | >48 dB | | Electronic Iris | 1/50,160 to 1/100,000 sec | | Video Output | 1 Vpp, 75 ohms | | IR Switch Control | CDS Automatic Control | | Rating | Shock: 20 G
Vibration: 100 G | | Operation Temperature | Maximum: -22 to 176˚F (-30 to 80˚C) / RH 95% | | Storage Temperature | Maximum: -22 to 140˚F (-30 to 60˚C) / RH 95% | | Dimensions | L X H X D: 8.75 x 4.50 x 1.00" (222.25 x 114.3 x 25.4 mm) | | Weight | 17.6 oz (500.0 g) | | | | Type | TFT-LCD digital monitor | | Screen Size | Digital: 7.0" (17.7 cm) | | Dot Resolution | 800 x 3 (RGB) x 480 | | Display Format | 16:9 | | Brightness | Display: 400 | | Viewing Angle | 90˚ minimum | | Video Input | 3-channel | | Video Source | 1 Vpp, 75 ohms | | Power Requirement | 12 to 24 VDC (±10%) | | Power Consumption | 5 W | | Operating temperature | 14 to 149˚F (-10 to 65˚C) | | Video System | Auto NTSC / PAL | | Impact Rating | 5 G | | Dot Pitch | H x V: 0.192 x 0.1805 | | Sync System | Internal | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 14.2 x 7.7 x 5.0" |
