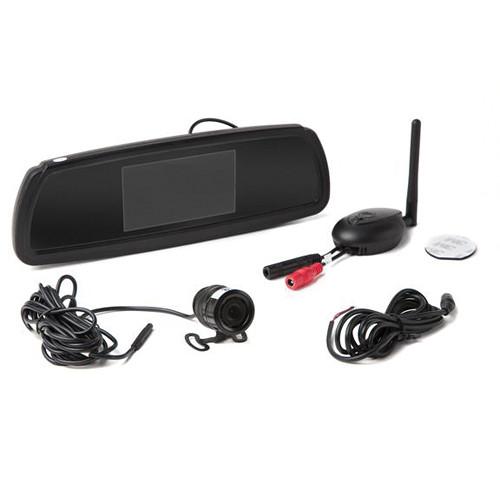

User Manual for Rear View Safety RVS-091407 Digital Wireless Backup Camera System Click to enlarge the picture
Contents of the user manual for the Rear View Safety RVS-091407 Digital Wireless
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
|
User manual for the Rear View Safety RVS-091407 Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description The RVS-091407 Digital Wireless Backup Camera System from Rear View Safety comes with an MTV136 camera and a 4.3" color TFT LCD monitor and offers zero interference while monitoring the rear of your vehicle. The MTV136 camera incorporates a 1/4" color CMOS sensor that helps it to capture clear and detailed images. The 9 IR night-vision lights enable you to see up to 50' even in complete darkness. And with a resolution of 480 TVL and 130° viewing angle, blind spots never appear in the picture. The color 4.3" TFT LCD monitor clips on to the existing rear view mirror of your vehicle. With a sturdy IP68K-rated weatherproof casing, the system is well-suited for use even in adverse weather conditions. The 10G-rated shock-resistant camera is capable of braving heavy impacts. Note: The system should only be used when the vehicle is in reverse. - MTV136 camera features a 2.1mm wide lens with 130° angle of view to cover a wide area
- 1/4" color CMOS sensor captures images with precision and clarity
- 4.3" TFT LCD monitor helps you view the recording clearly
- Resolution of 480 TVL offers clear view of the rear of your vehicle, eliminating blind spots
- 16:9 wide screen with selectable option from monitor for 4:3 ratio (1440 x 234 resolution)
- 9 IR night-vision lights help you to see up to 50' even in complete darkness
- With the special pressurized mechanism, monitor mounts on to the existing rear view mirror of your vehicle
- 10G impact rating of the camera combats heavy shocks
- IP68K-rated weatherproof casing makes the unit well-suited for use in adverse weather conditions
- Mirror imaging helps you to view the proper side
UPC: 818137010669 In the Box Rear View Safety RVS-091407 Digital Wireless Backup Camera System (NTSC) Color MT9V136 IR Weatherproof Camera 4.3" TFT LCD Clip-On Color Monitor Power Connection Cable Wireless Digital Transmitter Screw Kit for Installation 3M Sticker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-091407 Digital Wireless Backup Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-091407 Specs | | | Screen Size | 4.3" (109.2 mm) | | Video System | Auto NTSC/PAL | | Dot Resolution | H x V: 1440 x 234 | | Display Format | 16:9 | | Brightness | 350 | | Viewing Angle | 90° Min | | Video Input | 1-channel | | Video Source | 1 Vpp, 75 Ω | | Power Supply | 12 VDC | | Power Consumption | 5 W | | Impact Rating | 5G | | Active Area Size | 6.0 x 3.4" (154.08 x 86.58 mm) | | Sync System | Internal | | Operating Temperature | 50 to 149°F (10 to 65°C) | | Dimensions (W x H x D) | 10.0 x 3.5 x 1.0" (254.0 x 88.9 x 25.4 mm) | | Weight | 14.1 oz (400.0 g) | | | | Picture Elements | 250,000 pixels | | Gamma Correction | r=0.45 to 1.0 | | Image Sensor | 1/4" CMOS | | Resolution | 510 x 492 | | Sync System | Internal Synchronization | | View Angle | 130° | | Lens | 2.1 mm | | IR Distance | 30.0' (9.1 m) | | IR LED Count | 9 | | Illumination | 0 lux (IR On) | | Power Source | 12 VDC (+/- 10%) | | S/N Ratio | > 48 dB | | Electronic Iris | 1/50, 160-1/100,000 seconds | | Video Output | 1 Vpp, 75 Ω | | IR Switch Control | CDS Automatic Control | | Impact Rating | 10G | | Operating Temperature | -13 to 122°F (-25 to 50°C), RH 95% (maximum) | | Storage Temperature | -13 to 140°F (-25 to 60°C), RH 95% (maximum) | | | | Package Weight | 1.655 lb | | Box Dimensions (LxWxH) | 12.4 x 8.15 x 3.05" |
