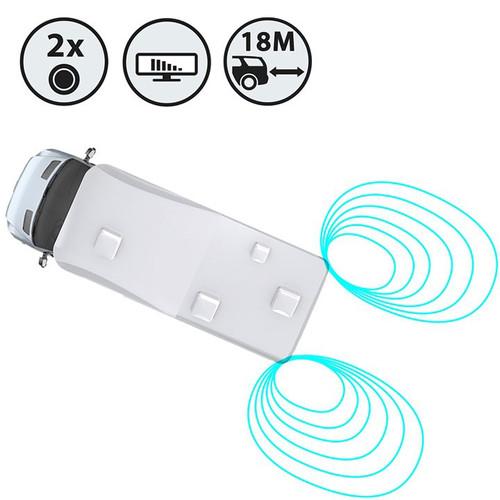

Product description The RVS-122 from Rear View Safety is a blind spot sensor system that utilizes microwave sensor technology. This system works on vehicles up to 49' in length, making it suitable for vans, pickup trucks, and recreational vehicles. Visual and audio alerts are provided when an object enters a blind spot slightly behind or to the side of the vehicle. Audio warnings are only triggered if the turn signals are on. Additionally, this system offers simultaneous detection of up to five objects. A GPS module is included. The included radar sensors are IP65-rated for water resistance and can be mounted behind the vehicle's paneling without drilling. The sensors will not work on metal bumpers. - Key Features
-
- Microwave sensor technology
- Ideal for blind spots on recreational vehicles, vans, and pickups
- Works on vehicles up to 49'
- Provides visual and audio alerts from vehicles in blind spots
- Five objects can be detected simultaneously
- 15 dBm transmission power
- 0.5 to 137 mph speed range
- Includes GPS module
- Mounts behind vehicle paneling without drilling
- IP65-rated radar sensors
- Lifetime tech support
- Detection Range
-
- Truck: 1 to 60'
- Car: 1 to 50'
- Motorcycle: 1 to 33'
- Pedestrian: 1 to 23'

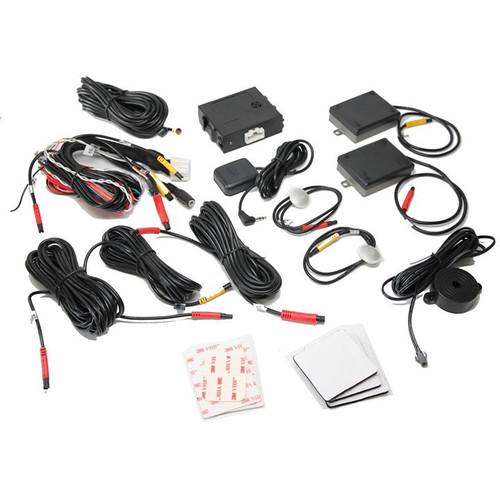

UPC: 740927289033 In the Box Rear View Safety RVS-122 Microwave Blind Spot Sensor System Control Module Power Harness 2 x Radar Sensors 2 x LED Indicators 2 x 23' LED Cables 2 x 48' Radar Sensor Cables GPS Module Speaker 3 x 3M Touch-Tab Fastener Adhesive Pads 3 x Mounting Pads Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-122 Microwave Blind Spot Sensor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-122 Specs | Operating Frequency | 24 to 24.25 GHz | | Transmission Power | 15 dBm | | Detection Angle | 40° (horizontal) | | Simultaneous Detection | Five objects can be detected simultaneously | | Speed | Speed Range: 0.5 to 137 mph
Speed Restrictions:
Notifications are activated at over 20 mph when GPS module is connected
System will give notifications at any speed if no GPS module is connected | | Movement | Direction of Movement:
Approached or overtaken by vehicles | | Detection Range | Truck: 1 to 60' / 0.3 to 18.3 m
Car: 1 to 50' / 0.3 to 15.2 m
Motorcycle: 1 to 33' / 0.3 to 10 m
Pedestrian: 1 to 23' / 0.3 to 7 m | | Operating Voltage | 9 to 35 V | | Working Current | Less than 200 mA | | IP Rating | Radar Sensors: IP65 | | Operating Temperature | -40 to 185°F / -40 to 85°C | | Dimensions (H x L x D) | Control Module: 1.25 x 3 x 3" / 31.8 x 76.2 x 76.2 mm
Sensors: 0.15 x 0.40 x 0.45" / 3.8 x 10.2 x 11.4 mm
Microwave Sensors: 1.1 x 1.25 x 2" / 28 x 31.8 x 50.8 mm
Speakers: 0.69 x 1.45 x 2" / 17.5 x 37 x 50.8 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 4.055 lb | | Box Dimensions (LxWxH) | 10.4 x 7.0 x 3.75" |
