User Manual for Rear View Safety RVS-155W Wireless Backup Camera System with 5" Monitor Click to enlarge the picture
Contents of the user manual for the Rear View Safety RVS-155W Wireless Backup
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
 |
User manual for the Rear View Safety RVS-155W Wireless Backup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|

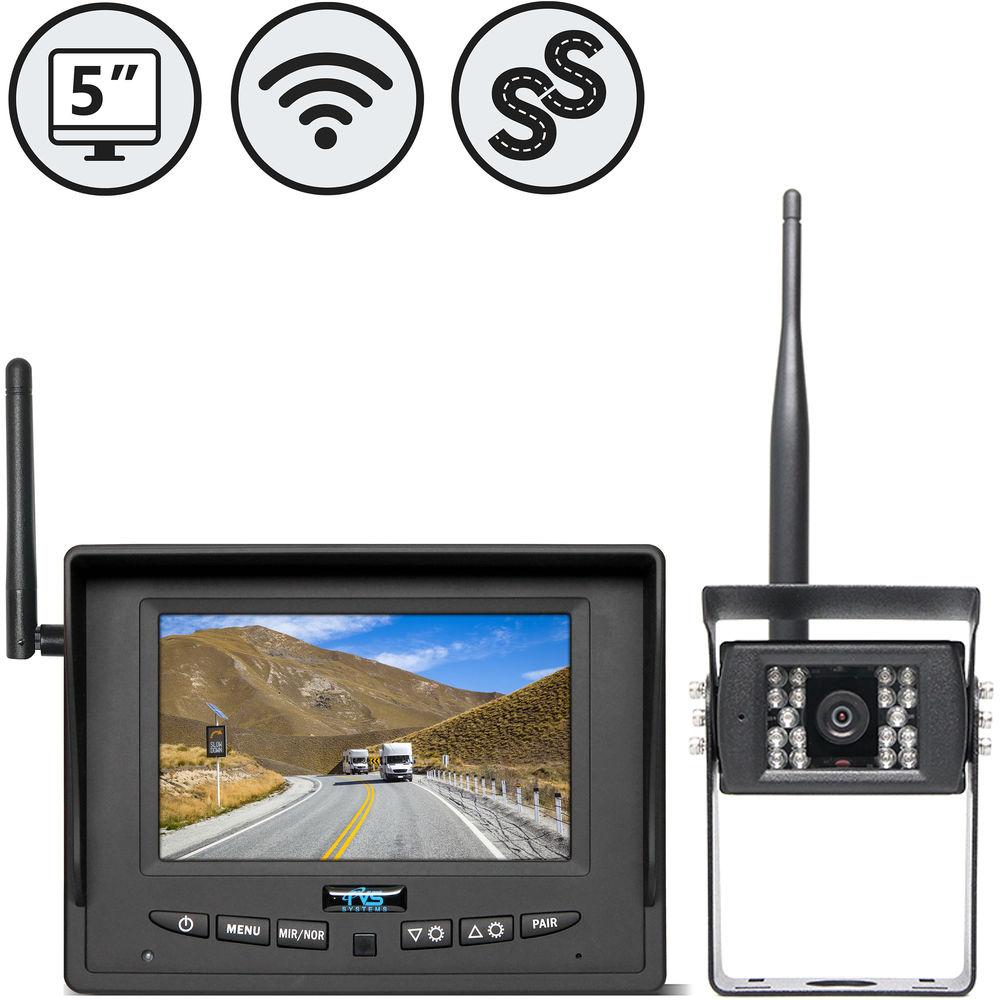

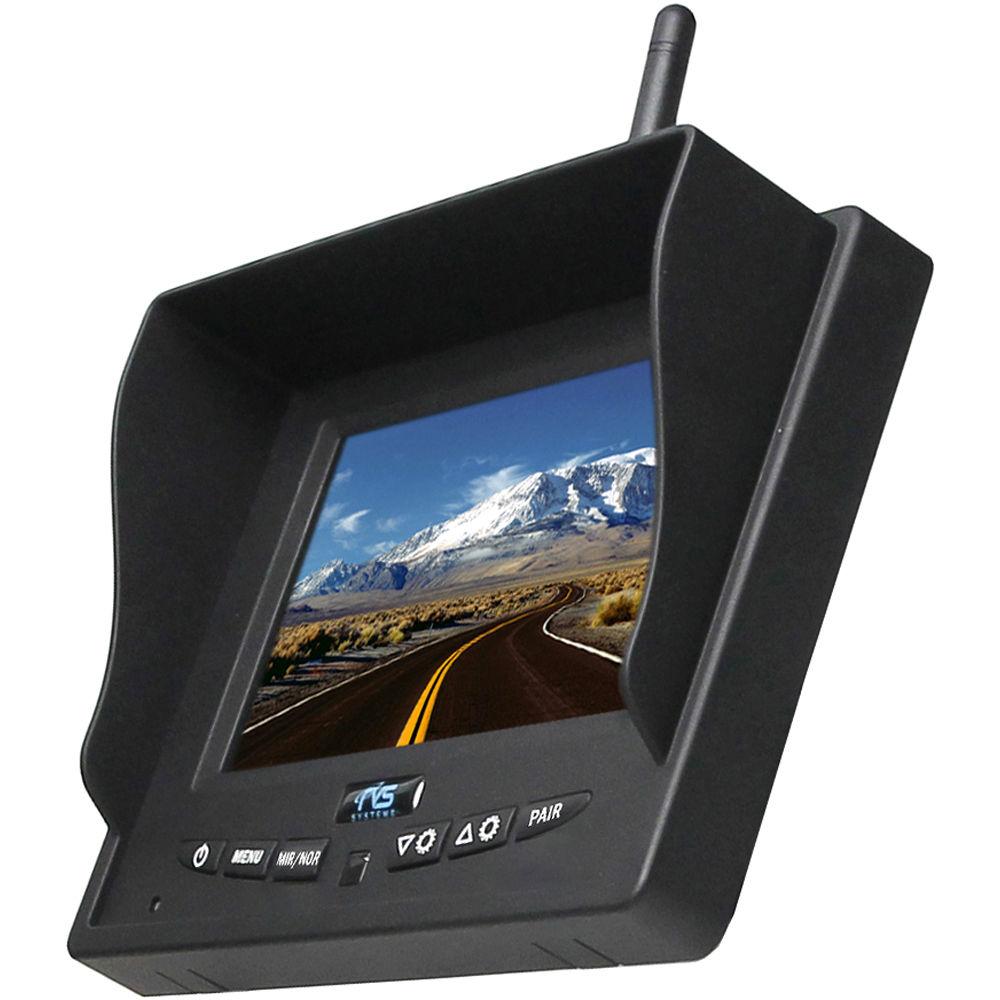

Product description The RVS-155W Wireless Backup Camera System from Rear View Safety includes a monitor and a wireless backup camera. With the push of a button you can connect the wireless camera to the monitor to view the rear of your car or truck. The 5" monitor displays video in 480 x 272 resolution and features a sunshade to help reduce glare. Its menu can be navigated with the buttons under the screen for quick customization.

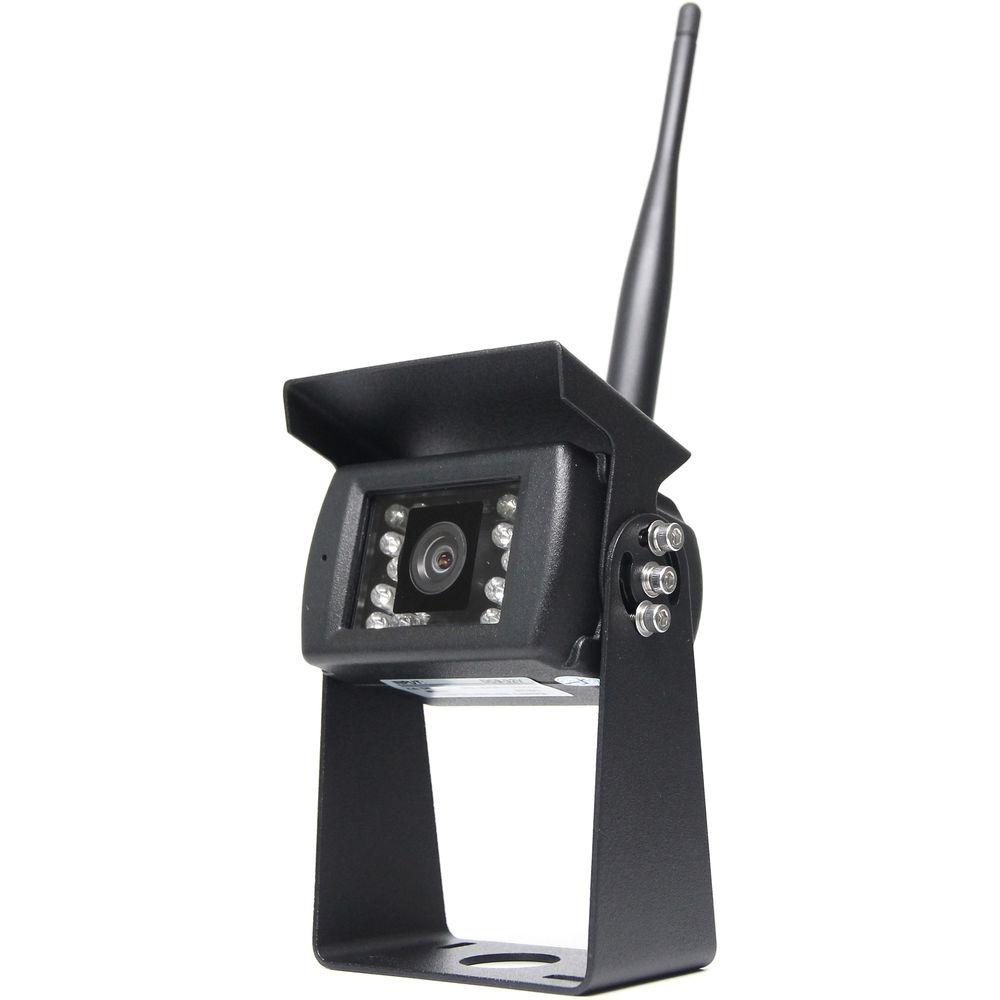

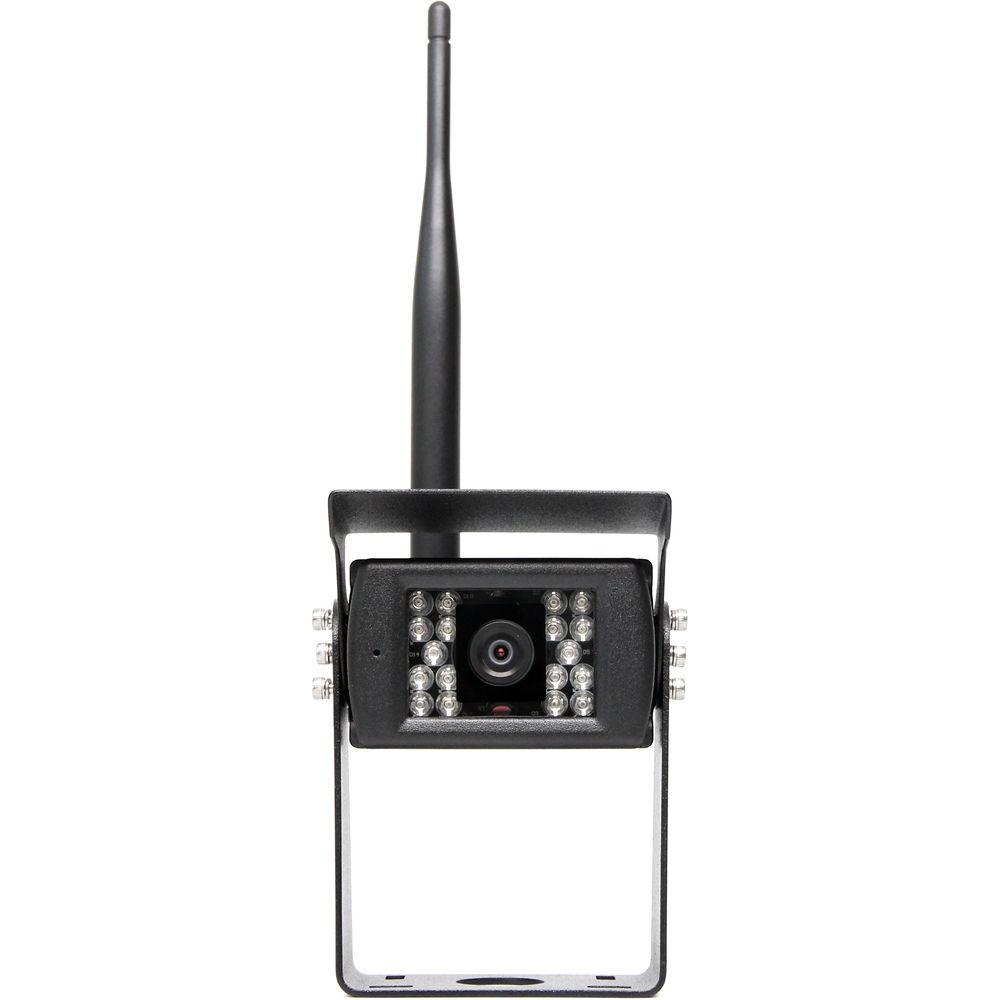

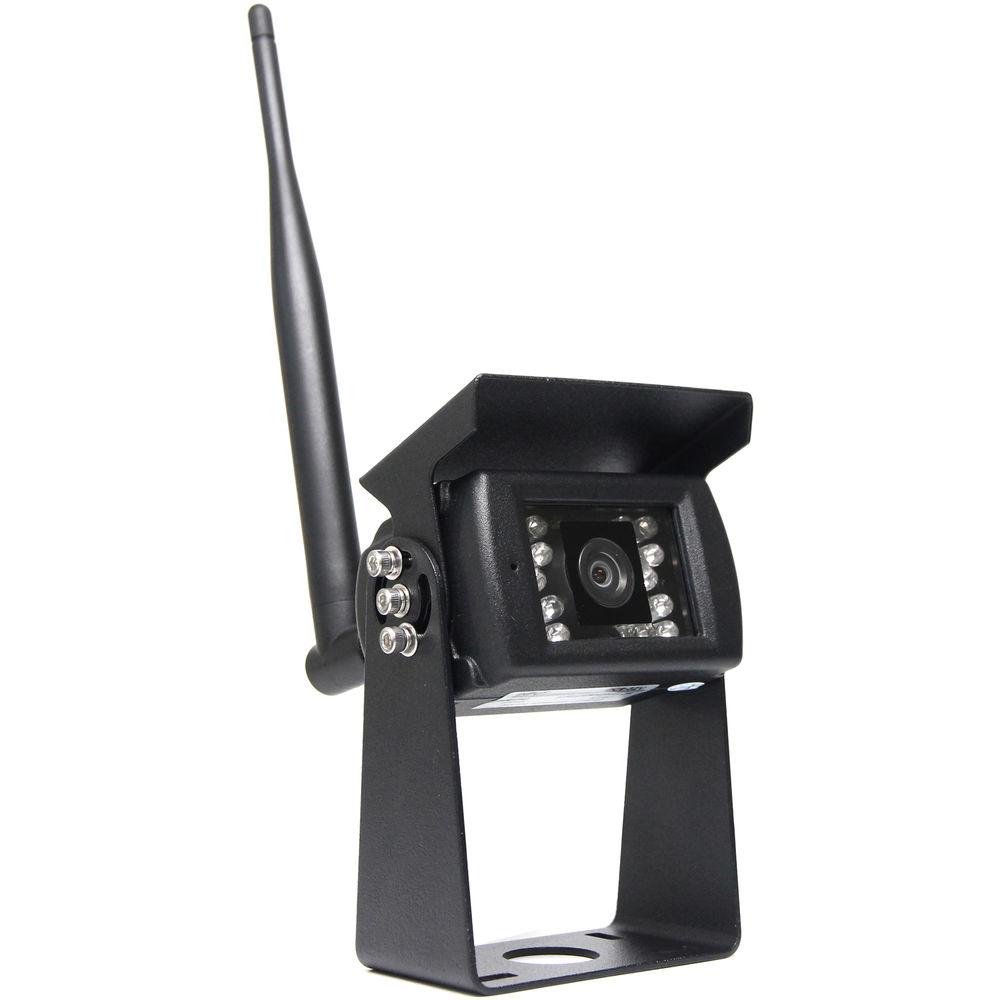

The backup camera is housed in an IP69K-rated enclosure to protect the camera from the elements, while its 2.5mm lens captures 720 x 480 resolution. 18 IR LEDs allow you to see in low-light conditions for around-the-clock use. - Monitor
- • 5" display
• Wireless connection up to 100'
• Powered via 12 VDC outlet or hardwired
• Auto-pair function - Backup Camera
- • 2.5mm lens
• 720 x 480 resolution
• 18 IR LEDs for low-light recording

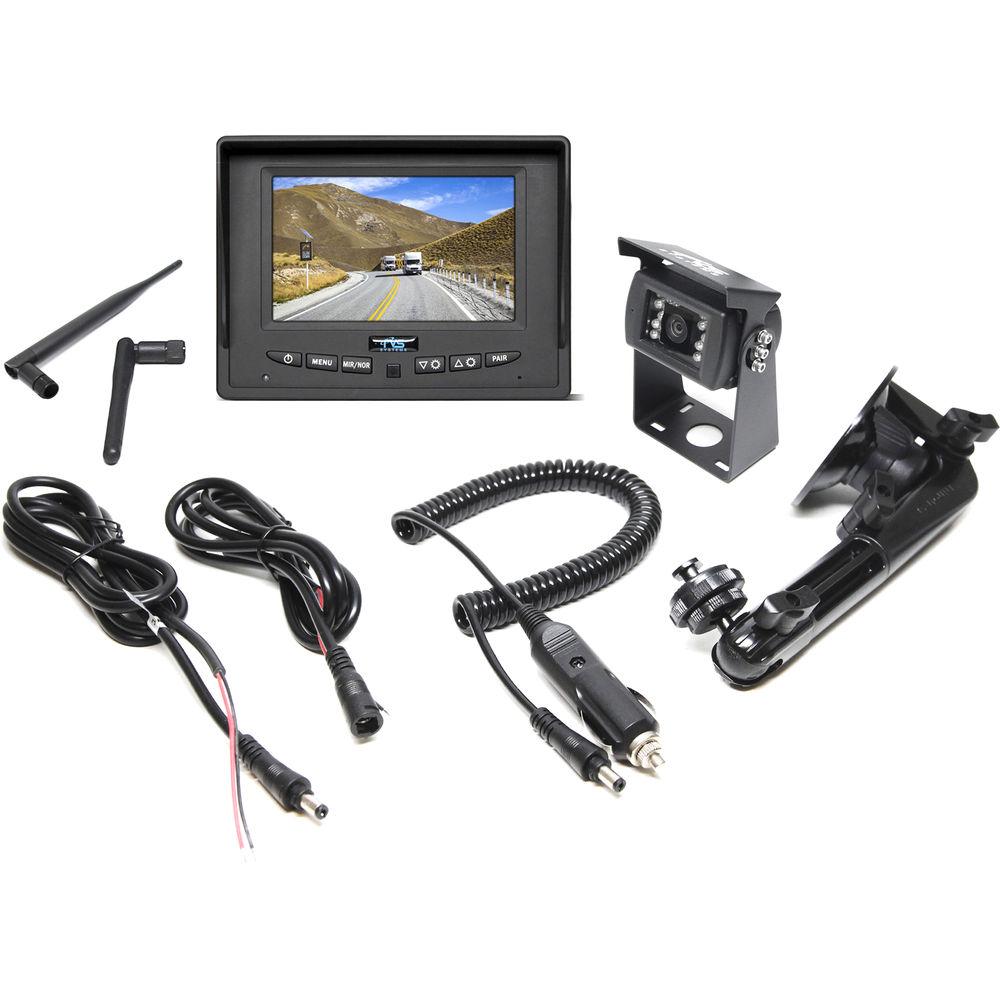

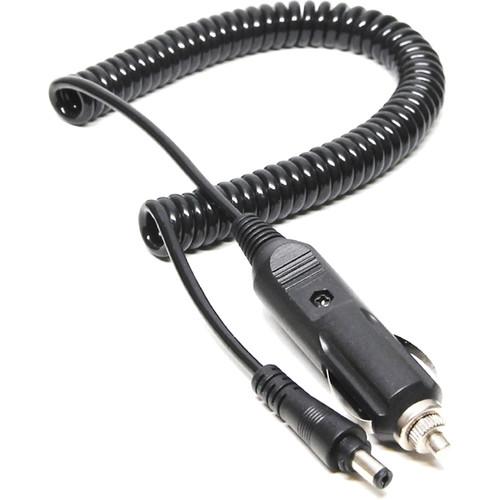

• IP69K-rated enclosure for use in harsh environments UPC: 751369644724 In the Box Rear View Safety RVS-155W Wireless Backup Camera System with 5" Monitor Wireless Monitor Wireless Backup Camera Dashboard Mount Windshield Mount 2 x Wireless Antennas 2 x Monitor Power Cables Camera Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-155W Wireless Backup Camera System with 5" Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-155W Specs | | | Signal System | NTSC and PAL auto detection | | Type | LED digital | | Screen Size | 5" / 12.7 cm | | Resolution | 480 x 272 | | Brightness | 450 cd/m2 | | Contrast Ratio | 500:1 | | Display Format | 16:9 | | Viewing Angle | Top: 50°
Bottom: 70°
Left/Right: 70° | | Dot Pitch | 0.077 x 0.231 mm | | Active Area | 4.33 x 2.47" / 110 x 62.832 mm | | Frequency | 2.4-2.5 GHz | | Transmission Type | Digital wireless | | Transmission Range | 100' / 30.5 m | | Video Input | 1 channel | | Video Source | 1 Vp-p, 75 Ohms | | Power Input | 10-32 VDC | | Power Supply | 9-32 VDC | | Power Consumption | Approximately 4 W | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 90% RH maximum | | Storage Temperature | -22 to 176°F / -30 to 80°C | | Storage Humidity | 90% RH maximum | | Dimensions | 6.1 x 4.5" / 15.5 x 11.4 cm | | | | Image Sensor | 1/4" 1099 color camera | | Sensor Format | 976 x 496 | | Total Pixels | 480,000 | | Resolution | NTSC: 720 x 480
PAL: 720 x 576 | | Gamma Correction | R=0.45-1 | | Lens Focal Length | 2.5mm | | IP Rating | IP69K | | Frequency | 2.4-2.5 GHz | | Transmission Type | Digital wireless | | Transmission Distance | 100' / 30.5 m | | Video Output | 1 Vp-p, 75 Ohms | | S/N Ratio | >48 dB | | White Balance | Auto | | IR Control | Auto | | Number of IR LEDs | 18 | | Power Consumption | Approximately 3.5 W with IR LEDs on | | Power Input | 10-32 VDC | | Operating Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 90% RH maximum | | Storage Temperature | -22 to 176°F / -30 to 80°C | | Storage Humidity | 90% RH maximum | | Dimensions | With Sunshade: 3.46 x 3 x 3.1" / 8.8 x 7.6 x 7.9 cm
Without Sunshade: 3.46 x 2.35 x 2.75" / 8.8 x 6 x 7 cm | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 11.8 x 10.0 x 3.5" |
