User Manual for Rear View Safety RVS-2CAM Wireless Backup Camera System Click to enlarge the picture
Contents of the user manual for the Rear View Safety RVS-2CAM Wireless Backup
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
 |
User manual for the Rear View Safety RVS-2CAM Wireless Backup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description The RVS-2CAM Wireless Backup Camera System from Rear View Safety includes a monitor and a wireless backup camera. Simply connect the wireless camera to display to monitor the rear of your car or truck. The display has the ability to display two feeds simultaneously on a single screen, when connected to an additional camera (available separately).

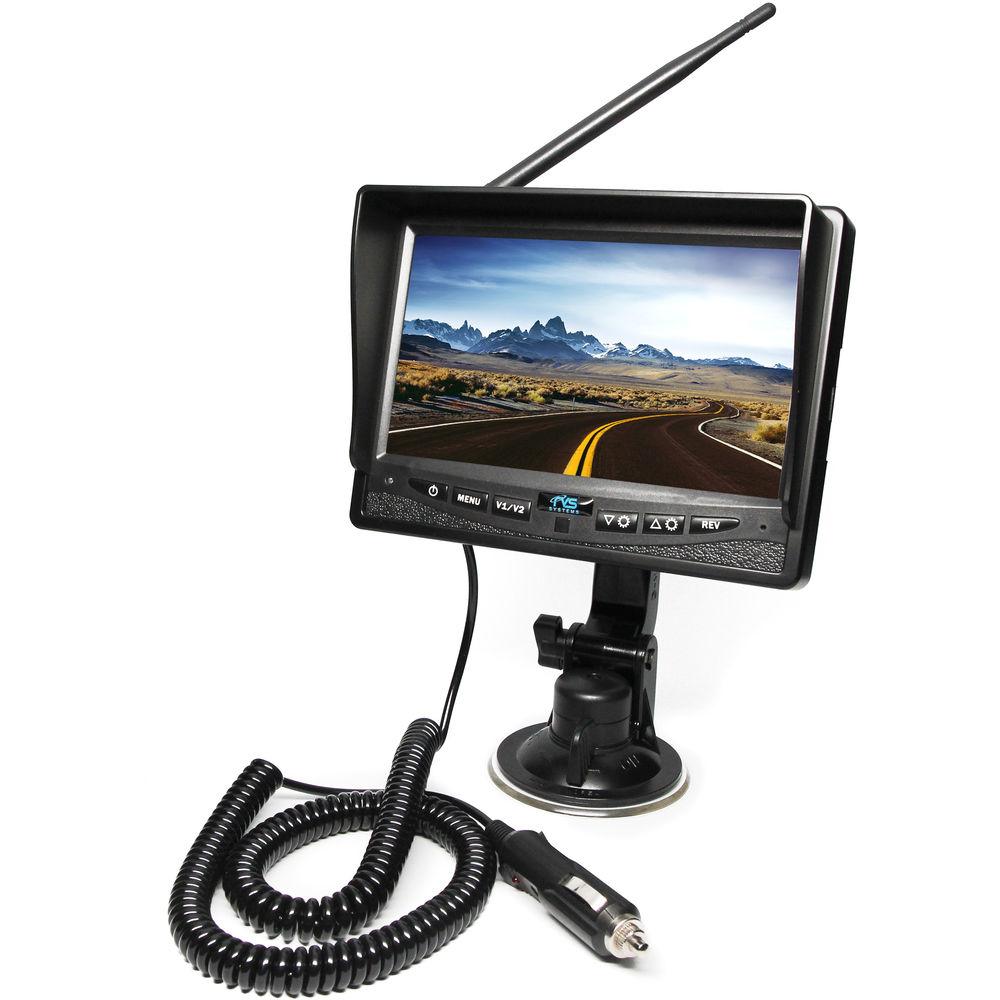

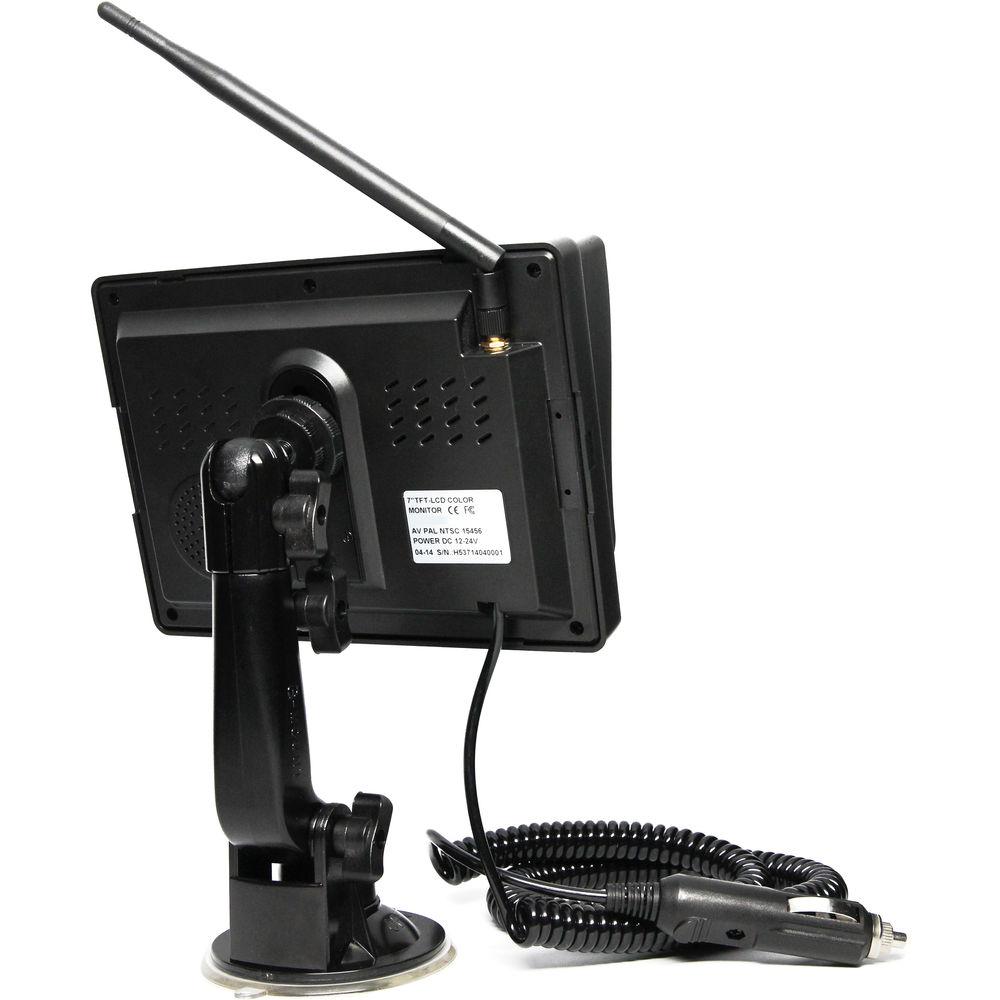

The 7" dual-screen monitor displays video in 800 x 480 resolution and features a removable sunshade and distance grid lines to help make backing up safer and easier. It has a built-in speaker to play recorded audio from the rear camera and its menu can be navigated with the backlit buttons under the screen.

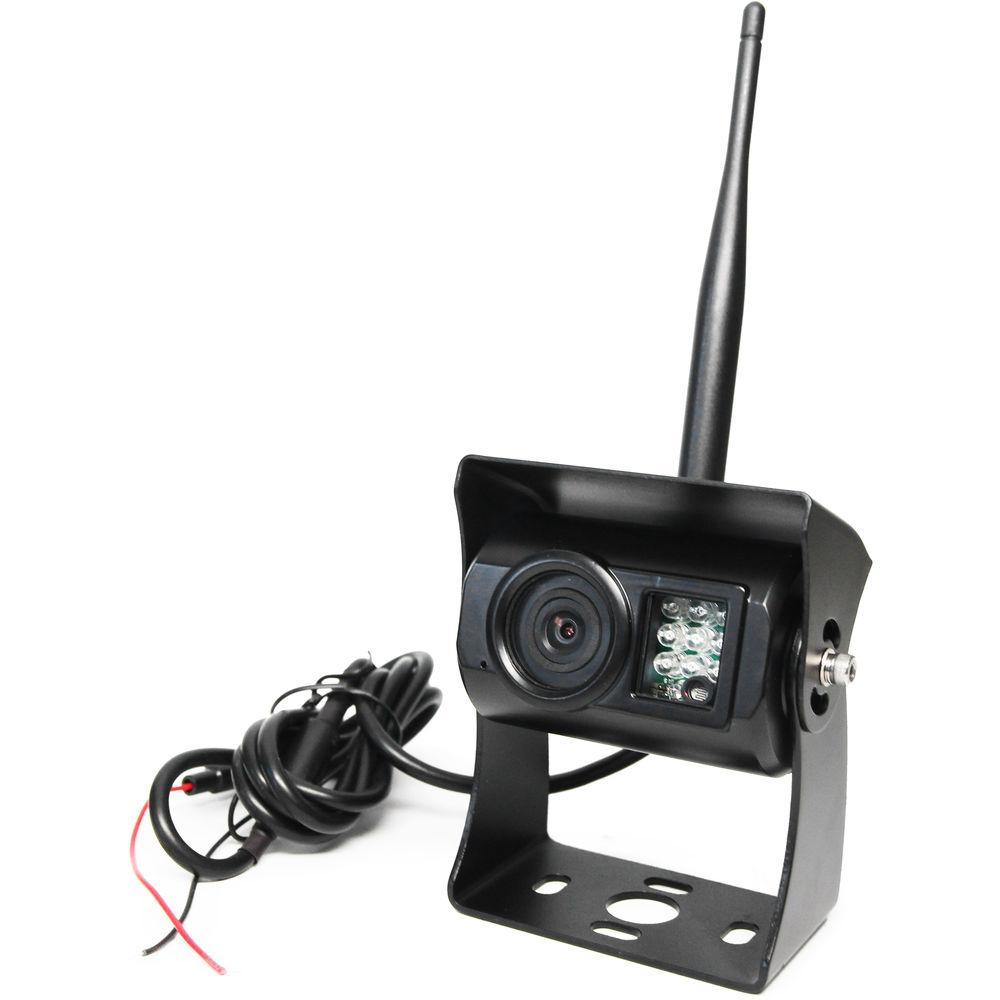

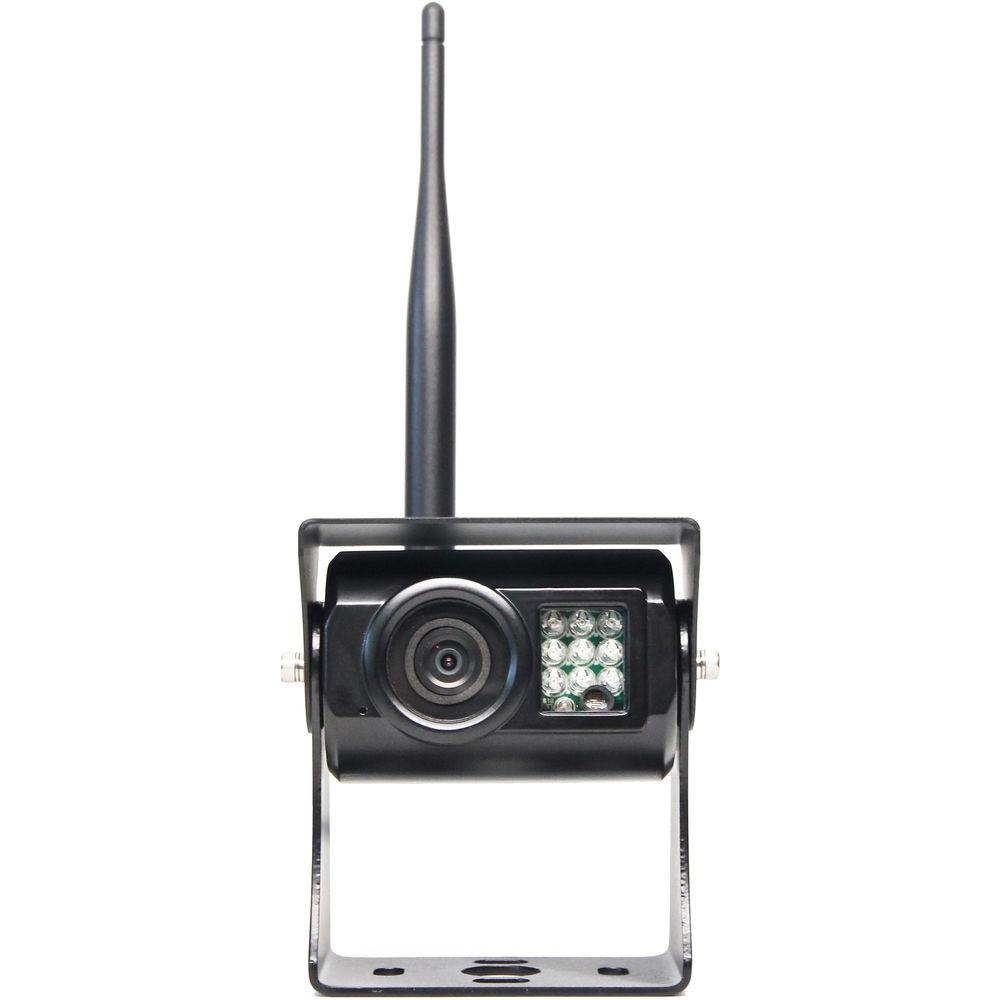

The backup camera is housed in an IP68-rated metal enclosure to protect the camera from the elements. Its 2.1mm lens has a wide-angle 130° field of view and captures 540 TVL resolution. The built-in IR LEDs allow you to see up to 50' in total darkness and the foam around the lens helps to reduce glare. - Monitor
- • 7" display for full-screen or dual-screen monitoring
• Wireless connection up to 70'
• Removable sunshade
• Built-in speaker
• Power monitor via 12 VDC outlet
• Auto-pair function - Backup Camera
- • 2.1mm lens has a 130° field of view
• 540 TVL resolution
• Nine IR LEDs for night vision up to 50'
• IP68-rated metal enclosure for use in harsh environments UPC: 751369642560 In the Box Rear View Safety RVS-2CAM Wireless Backup Camera System Wireless Monitor Wireless Backup Camera Suction Cup Monitor Mount 2 x Wireless Antennas Camera Power Cable Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-2CAM Wireless Backup Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-2CAM Specs | | | Type | TFT LCD | | Screen Size | 7" (17.78 cm) | | Resolution | 800 x 480 | | Display Format | 16:9 | | Contrast Ratio | 500:1 | | Brightness | 400 cd/m2 | | Viewing Angle | Up: 50°
Down: 60°
Left/Right: 70° | | Video Input | 2-channel | | Video Source | 1 V p-p, 75 Ohms | | Power Supply | 12 VDC (±10%) | | Power Consumption | 5 W | | Video System | Auto NTSC/PAL | | Rating | Vibration: 5G | | Sync System | Internal | | Operating Temperature | -22 to 176°F (-30 to 80°C) | | Dot Pitch | 0.192 x 0.1805 mm | | Dimensions | 7 x 5 x 1" (178 x 127 x 25.4 mm) | | Weight | 14.1 oz (400 g) | | | | Image Sensor | 1/4" Sharp color CCD sensor | | Lens | 2.1mm | | Picture Elements | 250,000 pixels | | Gamma Correction | r = 0.45 to 1.0 | | Resolution | 540 TVL
PAL: 752 x 582
NTSC: 769 x 494 | | Field of View | 130° | | Sync System | Internal synchronization | | IR Distance | 50' (15.24 m) | | Illumination | 0 lux with IR LEDs on | | Power Source | 12 VDC, 3 A (±10%) | | S/N Ratio | > 48 dB | | Shutter Speed | 1/50 (1/60) to 1/100,000 sec | | Video Output | 1 V p-p, 75 Ohms | | IR Switch Control | ACDS automatic control | | Rating | Vibration: 20G
Impact: 100G | | IP Rating | IP68 | | Operating Temperature | -22 to 176°F (-30 to 80°C) | | Operating Humidity | 95% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | 95% RH | | Dimensions | 3.25 x 3" (8.3 x 7.6 cm) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 15.1 x 8.3 x 3.5" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
