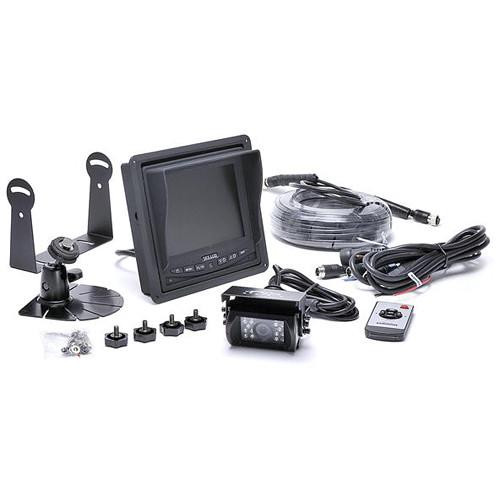

User Manual for Rear View Safety RVS-7706033 Rear View Camera System Click to enlarge the picture
Contents of the user manual for the Rear View Safety RVS-7706033 Rear View
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
|
User manual for the Rear View Safety RVS-7706033 Rear View contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description The Rear View Safety RVS-7706033 Rear View Camera System is a backup camera system complete with crystal clear 5.6" TFT digital LCD color monitor with mirror image capability. The system can be connected to up to 3 cameras with the automatic system switch. The system includes one 130° CCD camera with 50' (15.24 m) infrared night vision and all the wires, connectors, and mounts that are required for installation. The rear view system is completely weather proof with an IP68 rating, strong and reliable, shock resistant with a 15G impact rating. - 1/4" sharp color CCD sensor, 250k pixels, 2.1mm 130° wide-angle lens, and 420 TV lines resolution, ensure good quality image with no blind spots
- 18 automatic infrared night vision illuminators provide vision up to 50' (15.24 m) in the darkest night and built-in foam around lens prevents any glare from the LEDs
- Built-in high-gain microphone
- Extremely strong weatherproof casing, with 10G impact rating, as well as a screw base and waterproof sleeve connection
- 5.6" (14.22 cm) color TFT LCD 16:9 wide screen with selectable option from monitor for 4:3 (super sharp image 1440 x 234)
- Remote control - all functions can be controlled from the monitor
UPC: 818137010430 In the Box Rear View Safety RVS-7706033 Rear View Camera System Color CCD Infrared Weatherproof Camera 5.6" (14.22 cm) TFT LCD Digital Color Monitor with Universal Mount/Stand & Wire 66' (20.11 m) Extension Cable for Camera Remote Control Power Connection Wire Screw Kit for Installation 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-7706033 Rear View Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-7706033 Specs | | | Screen Size | 5.6" (14.22 cm) | | Dot Resolution | 1440 (H) x 234 (V) | | Display Format | 16:9 | | Brightness | Display: 400 | | Viewing Angle | 90° minimum | | Video Input | 3-channel | | Video Source | 1 Vpp, 75 Ω | | Power Supply | 12 VDC (24 DC) (+/-10%) | | Power Consumption | 5 W | | Operating Temperature | 14 to 149°F (-10 to 65°C) | | Video System | Auto NTSC/PAL | | Impact Rating | 5G | | Active Area | 154.08 (H) x 86.58 (V) | | Sync System | Internal | | Dimensions (HxDxL) | 5 x 1 x 7" (127 x 25.4 x 177.8 mm) | | Weight | 14.1 oz (400 g) | | | | Sensor | 1/4" Sharp color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | r = 0.45 to 1.0 | | Image Sensor | 420TV lines PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V) | | Lens | 2.1 mm | | View Angle | 130° | | Sync System | Internal synchronization | | IR Distance | 50' (15.24 m) with 18 IR LEDs | | Illumination | 0 lux (LED on) | | Power Source | 12 VDC (+/- 10%) | | S/N Ratio | More than 48 dB | | Electronic Iris | 1/50, 160-1/100,000 sec | | Video Output | 1 Vpp, 75 Ω | | IR Switch Control | CDS automatic control | | Impact Rating | 15G | | Operating Temperature | -22 to 122°F (-30 to 50°C) / RH 95% maximum | | Storage Temperature | -22 to 140°F (-30 to 60°C) / RH 95% maximum | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 5.0" |
