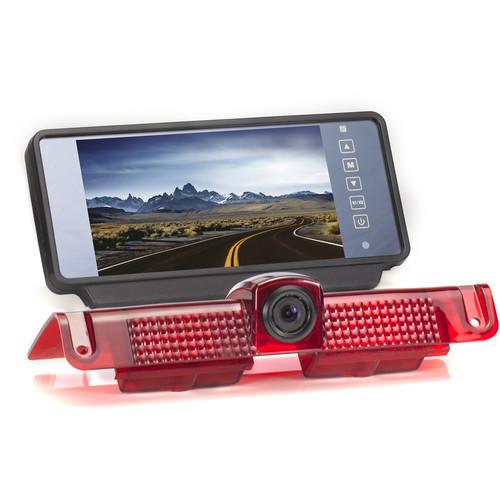

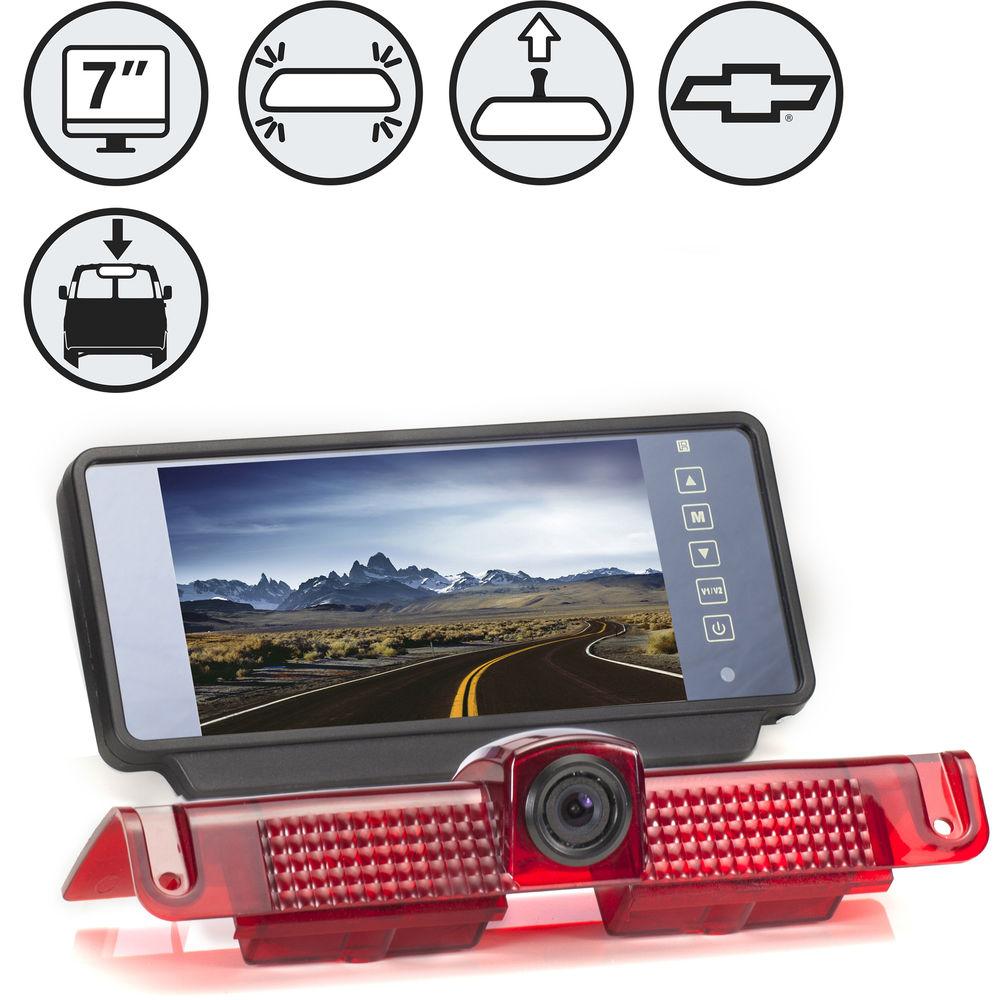

Product description The Rear View Safety RVS-770913 Camera System for Chevrolet Express Vans is a complete system with a crystal clear digital 7" (17.78 cm) TFT LCD color monitor with mirror image capability, a 3-channel multiplexer that connects to a DVD player or other cameras via an automatic system switch, a 120° CMOS rear backup camera with night vision, and all the wires, connectors, and mounts you will need. The camera system is completely weatherproof with an IP68 rating, strong and reliable, and shock-resistant with a 15G impact rating. Note: Only works on models 2003 through 2012.This backup camera system also works on Chevy-Savannah models 2003 to 2012 - Backup Camera
-
- 1/4" Sharp color CMOS sensor, 250k pixels, 120° wide-angle lens, 420 TVL resolution
- 9 IR to enable night vision

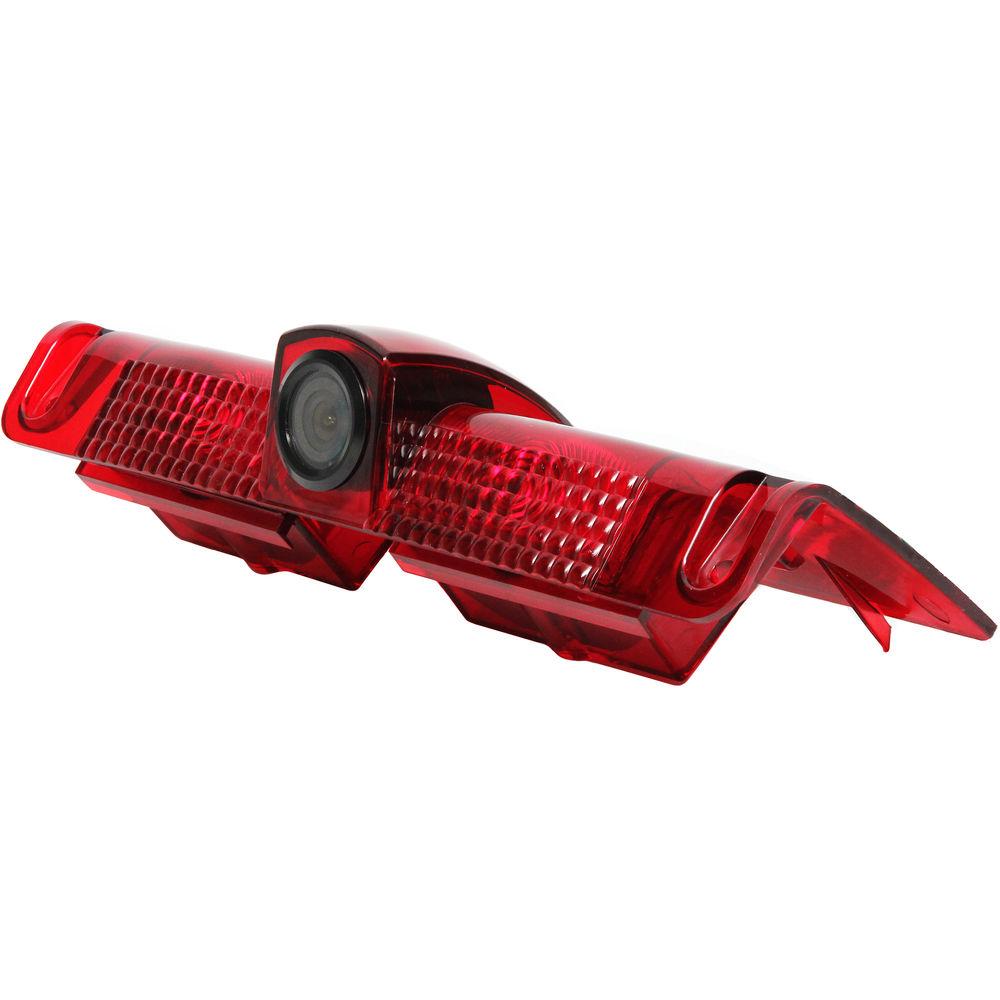

- Sleek Chevy Express 3rd brakelight
- Extremely strong weatherproof casing with 10G impact rating as well as a screw base and waterproof sleeve connection
- Monitor
-

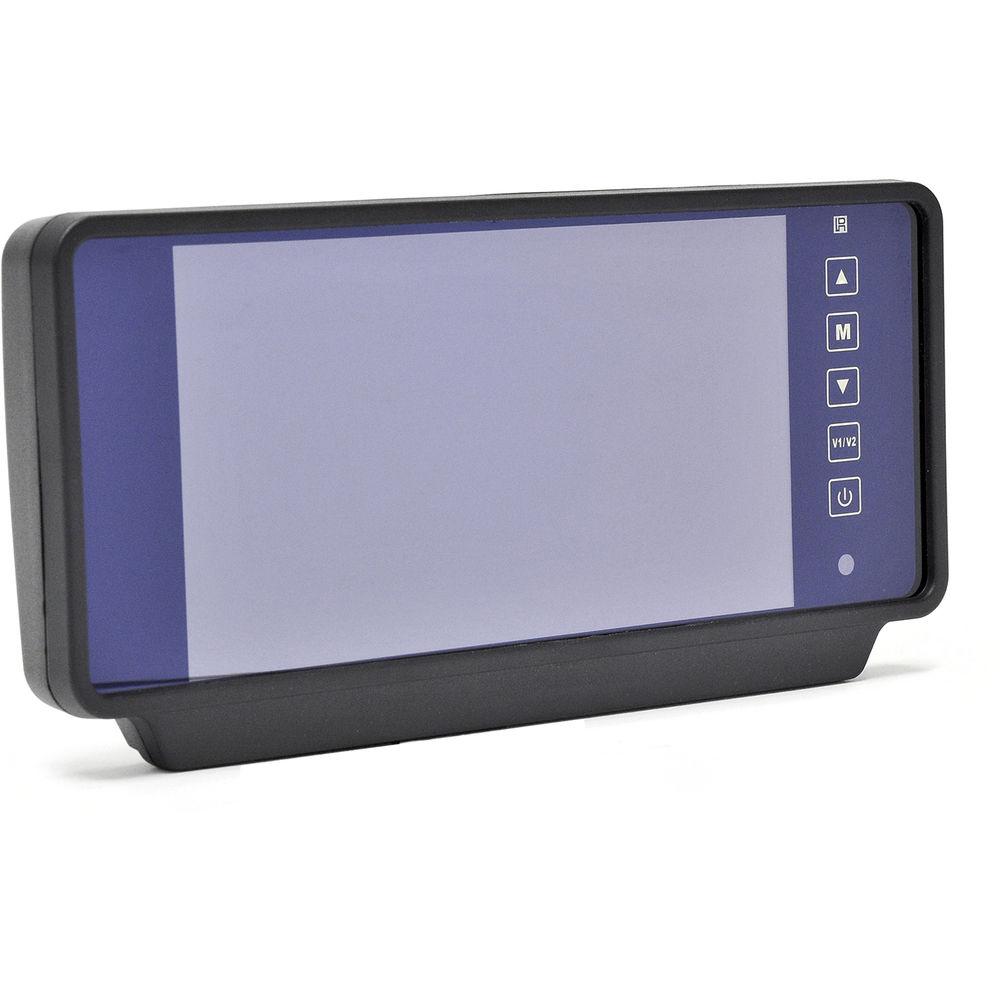

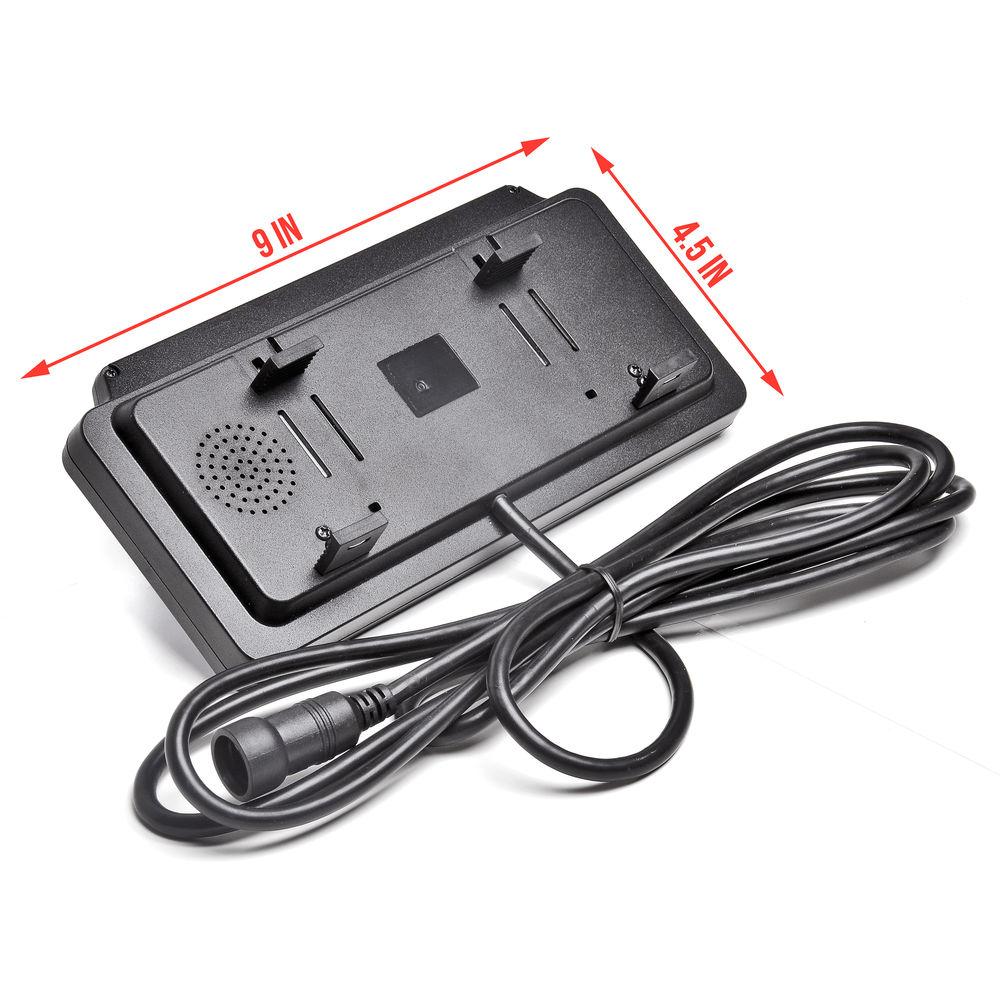

- Digital 7" (17.78 cm) color TFT LCD monitor with 16:9 wide (4:3 screen option selectable from monitor) for super sharp 1440 x 234 image
- Built-in speakers and earphone jack
- Remote control — all functions can be controlled from the monitor
- Multiplexer & System
-

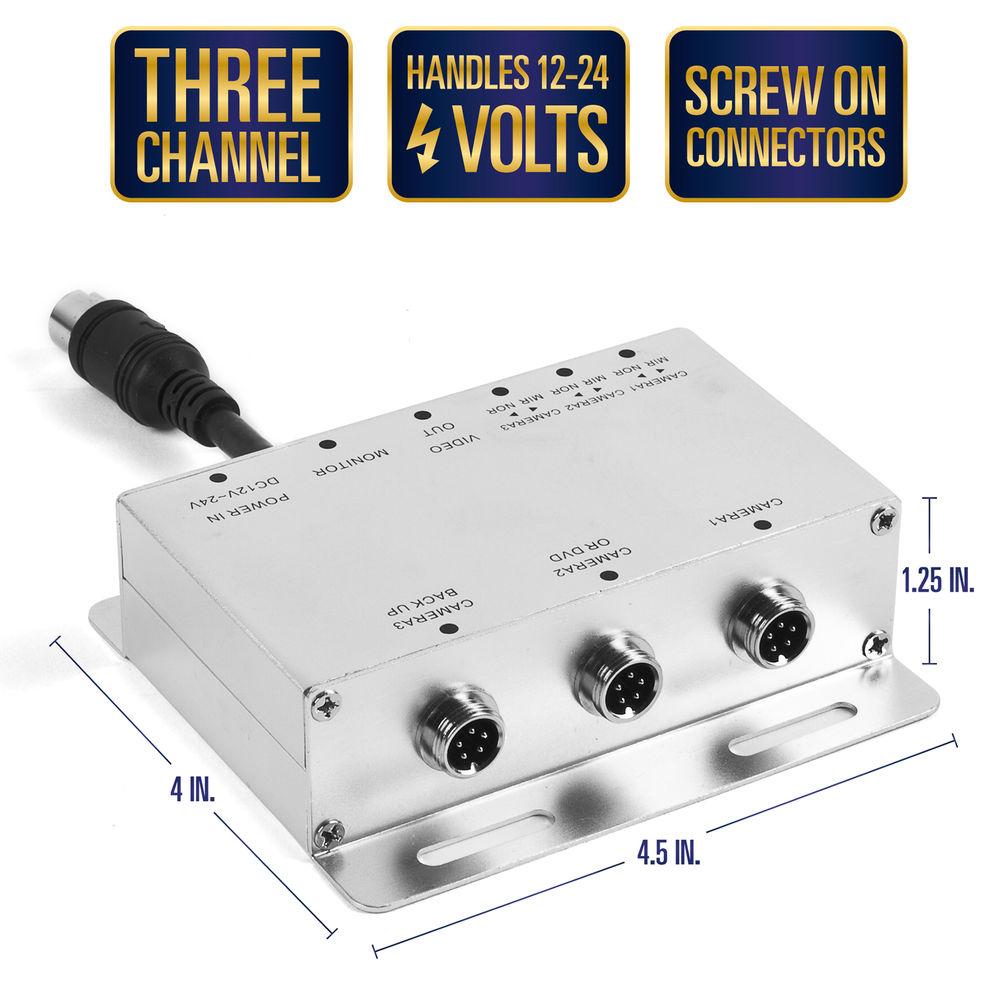

- 3-channel multiplexer allows you to connect additional cameras or a DVD player
- Mirror imaging so you can see the proper side
- Automatic switch option to automatically have the system turned on when in reverse
- 12 to 24 DC power
- All cables and connectors are weatherproof

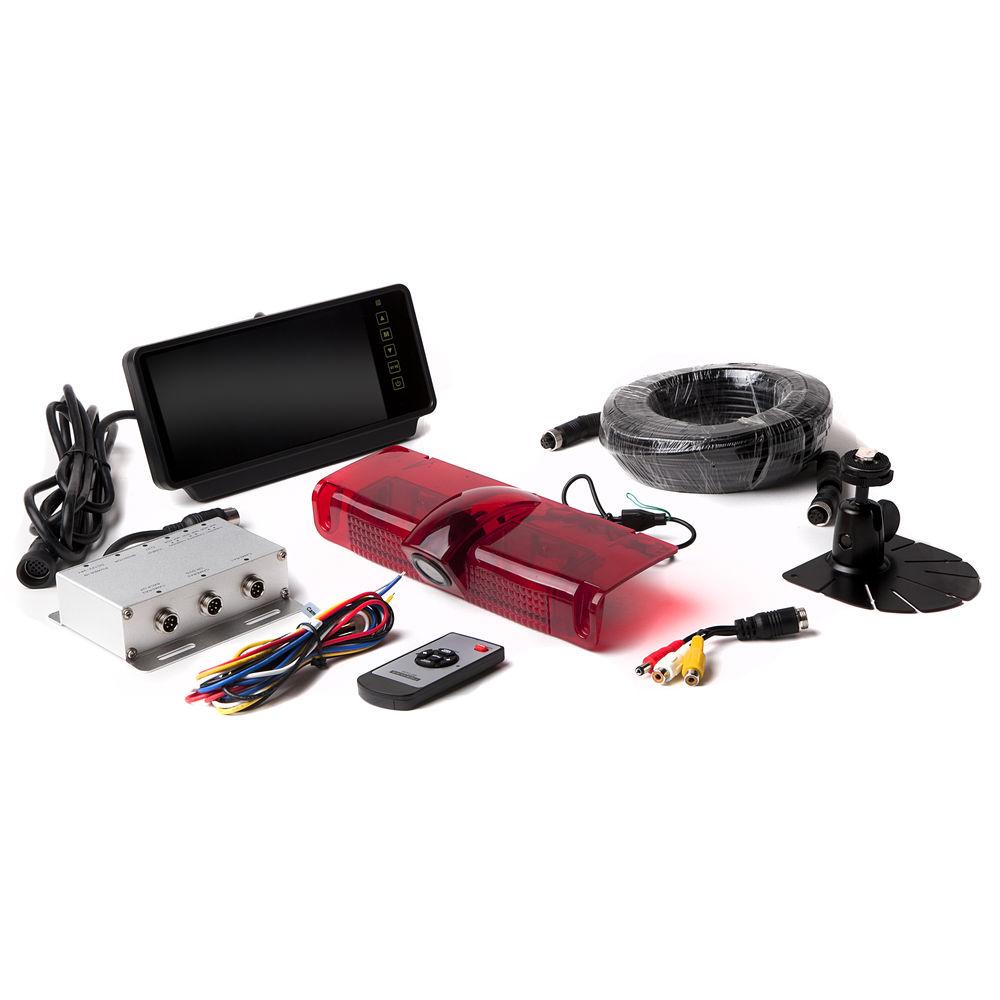

UPC: 813380019919 In the Box Rear View Safety RVS-770913 Camera System for Chevrolet Express Vans Color CMOS IR Weatherproof Backup Camera Digital 7" (17.78 cm) TFT LCD Color Rear View Monitor with Universal Mount / Stand & Wire 3-Channel Multiplexer Control Unit 33' (10.06 m) Extension Cable for Camera Remote Control Power Connection Wire Double RCA & Power Converter Screw Kit for Installation 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-770913 Camera System for Chevrolet Express Vans in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-770913 Specs | Camera | CMOS | | Picture Elements | 250,000 pixels | | Gamma Correction | 0.45 to 1 | | Image Sensor | 420 TVL
NTSC: 510 x 492
PAL: 500 x 582 (H x V) | | Lens | 2.1 mm | | View Angle | 120° | | Sync System | Internal | | Night Vision | Yes | | Illumination | 0 lux (IR on) | | Power Source | 12 to 24 VDC (+/- 10%) | | S/N Ratio | More than 48 dB | | Electronic Iris | 1/50, 160 to 1/100,000 sec | | Video Output | 1 Vpp, 75 Ω | | IR Switch Control | CDS automatic control | | Impact Rating | 10G | | Operating Temperature | -22 to 122°F (-30 to 50°C)/RH 95% maximum | | Storage Temperature | -22 to 140°F (-30 to 60°C)/RH 95% maximum | | | | Screen Size | 7" (17.78 cm) | | Dot Resolution | 1440 x 234 (H x V) | | Display Format | 16:9 | | Brightness | 300 | | Viewing Angle | 90° minimum | | Video Input | 2-channel | | Video Source | 1 Vpp, 75 Ω | | Power Supply | 12 to 24 VDC (+/- 10%) | | Power Consumption | 5 W | | Operating Temperature | 14 to 149°F (-10 to 65°C) | | Video System | Auto NTSC / PAL | | Impact Rating | 5G | | Active Area | 154.08 x 86.58 (H x V) | | Sync System | Internal | | Dimensions (LxHxD) | 7 x 5 x 1" (17.78 x 12.7 x 2.54 cm) | | Weight | 14.10 oz (400 g) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 8.0" |
