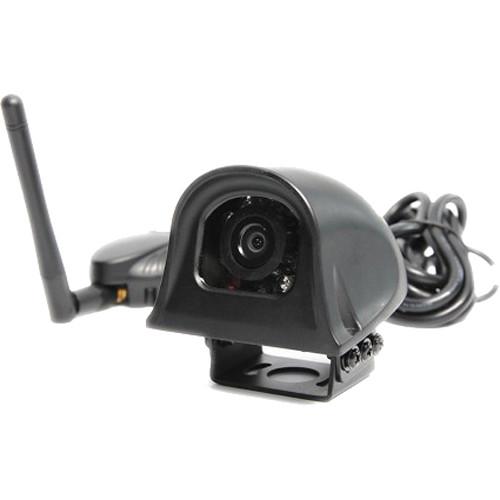

User Manual for Rear View Safety RVS-775W Wireless Color Weather-Resistant CCD Side Camera with 2.1mm Wide Lens Click to enlarge the picture
Contents of the user manual for the Rear View Safety RVS-775W Wireless Color
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
|
User manual for the Rear View Safety RVS-775W Wireless Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|
Product description The RVS-775W Wireless Color Weather-Resistant CCD Side Camera with 2.1mm Wide Lens (NTSC/PAL) from Rear View Safety Inc. offers a maximum resolution of 420 TVL and a viewing angle of 120° ensuring no blind spots. This camera can be used a part of the RVS-6123WQ System.
The 9 IR LEDs allow you to see up to 30’ in the dark and the foam around the lens reduces glare from these LEDs. This IP68-rated camera is suitable for both indoor/outdoor applications. The side camera includes the 33' RVS-826N Weather-Resistant Cable with 5-pin screw-tight connectors. - 1/4" Sharp color CCD sensor captures crisp and clear images at a maximum resolution of 420 TVL
- 2.1mm wide lens with 120° viewing angle ensures no blind spots
- Built-in foam around the lens to reduce glare from IR LEDs
- 9 IR LEDs offering a night vision range of up to 30'
- IP68 Rated: Camera is protected against continuous, complete submersion in water
UPC: 818137012397 In the Box Rear View Safety RVS-775W Wireless Color Weather-Resistant CCD Side Camera with 2.1mm Wide Lens (NTSC/PAL) RVS-826N Camera Cable (33') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-775W Wireless Color Weather-Resistant CCD Side Camera with 2.1mm Wide Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-775W Specs | Signal System | NTSC/PAL | | Sync | Internal | | Image Sensor | 1/4" Sharp color CCD | | Number of Pixels | 250,000 | | Resolution | 420 TVL
NTSC: 510 x 492, PAL: 582 x 500 | | Lens | 2.1 mm | | Viewing Angle | 120° | | Minimum Illumination | 0 Lux (IR on) | | IR Illumination | 9 IR LEDs
Illumination Distance: Up to 30.00' (9.14 m) | | S/N Ratio | >48 dB | | Controls | Electronic iris | | Microphone | Built-in | | Video Output | RCA | | Ingress Protection Rating | IP68 rated | | Vibration/Impact Rating | 20 G/100 G | | Power Requirements | 12 to 24 VDC (±10%) | | Operating Temperature | -22 to 176°F (-30 to 80°C) | | Dimensions (L x W x H) | With Swivel Base: 2.50 x 2.50 x 3.00" (6.35 x 6.35 x 7.62 cm)
Without Swivel Base: 2.50 x 2.50 x 1.87" (6.35 x 6.35 x 4.74 cm) | | Weight | 14.5 oz (411.0 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.2 x 5.1 x 3.0" |
