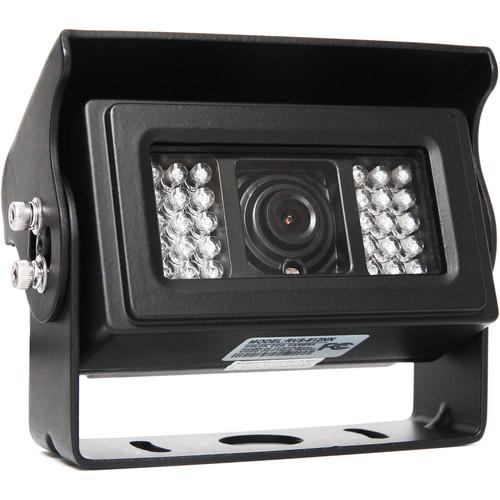

User Manual for Rear View Safety RVS-812 120° Heated Camera with 28 IR Illuminators Click to enlarge the picture
Contents of the user manual for the Rear View Safety RVS-812 120° Heated
- Product category: Back-Up Cameras Rear View Safety
- Brand: Rear View Safety
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rear View Safety Back-Up Cameras
 |
User manual for the Rear View Safety RVS-812 120° Heated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rear View Safety product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rear View Safety user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rear View Safety product will considerably shorten its lifespan!
|

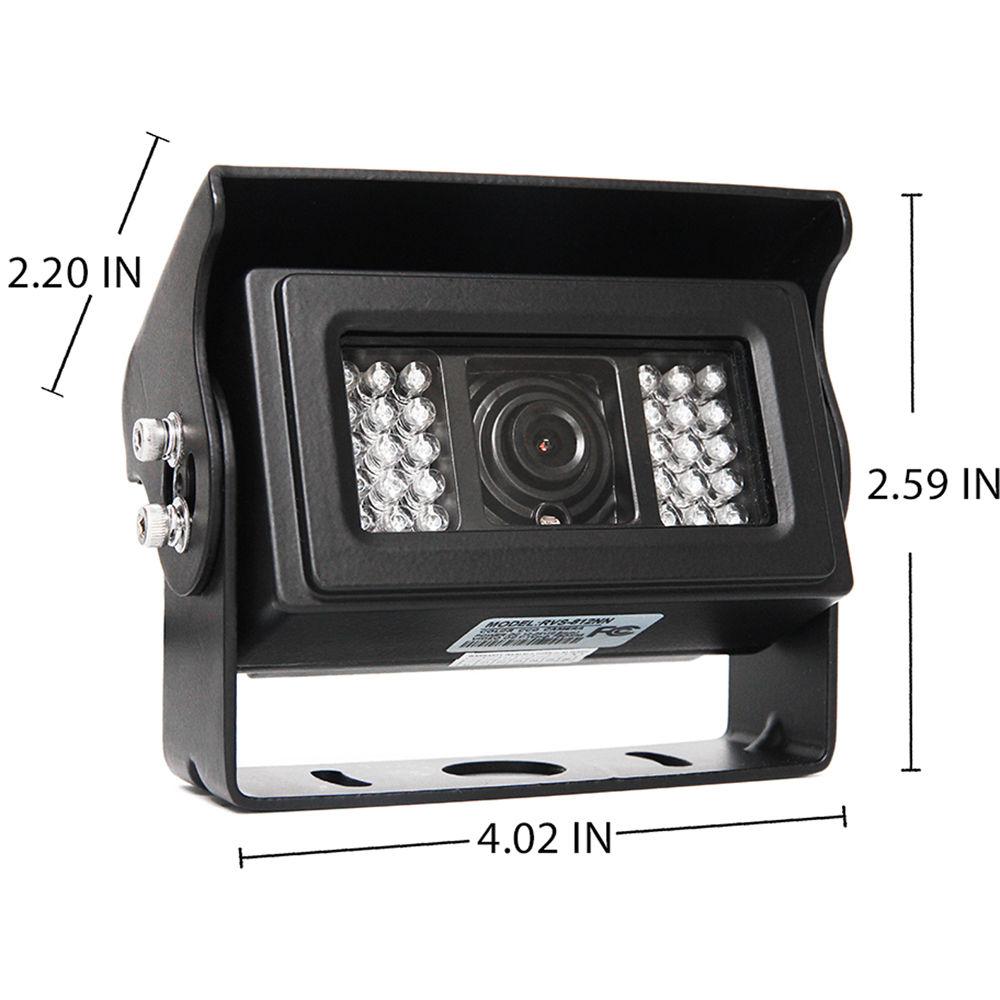

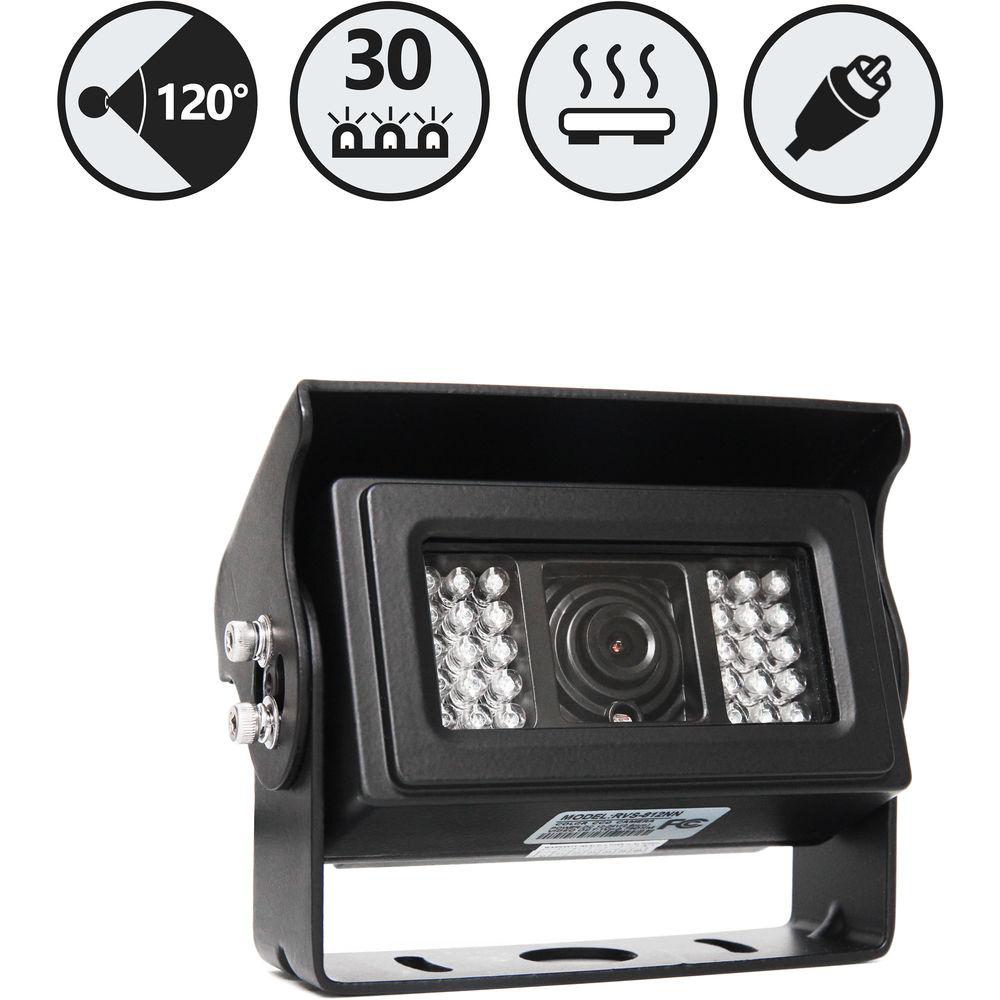

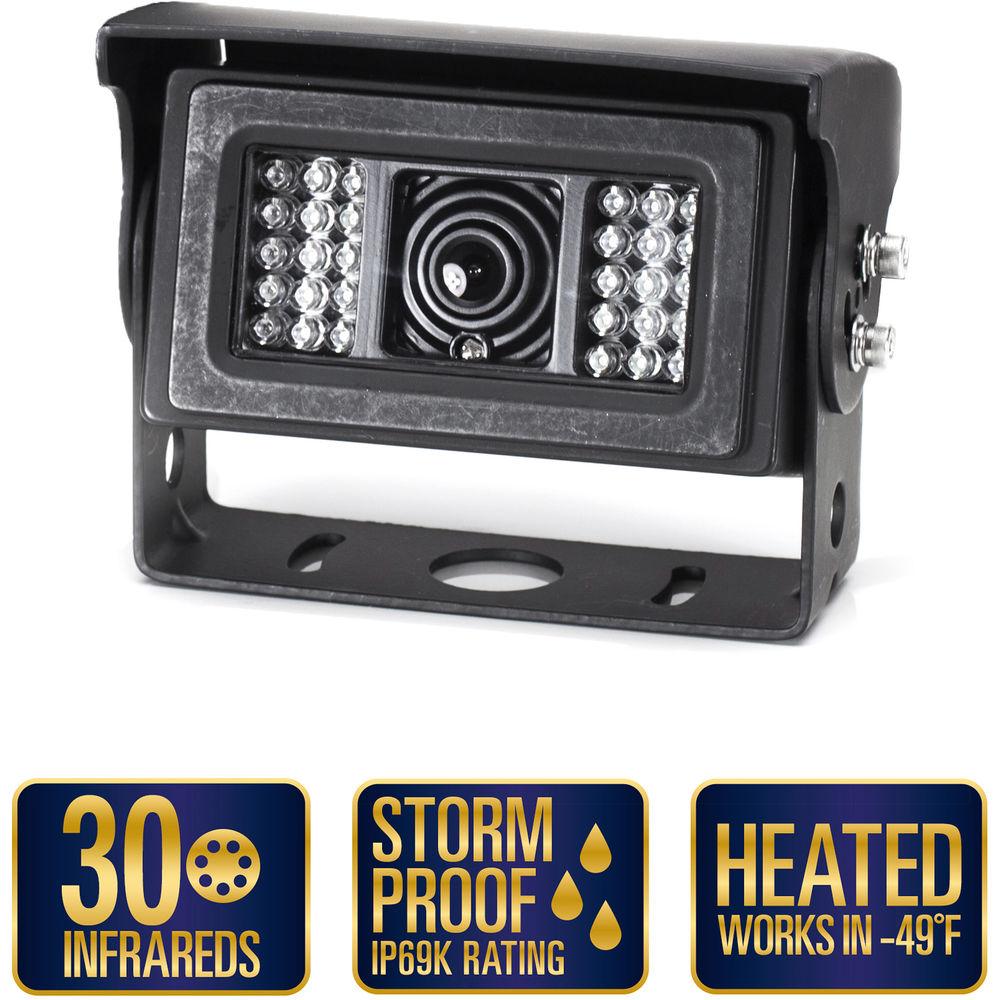

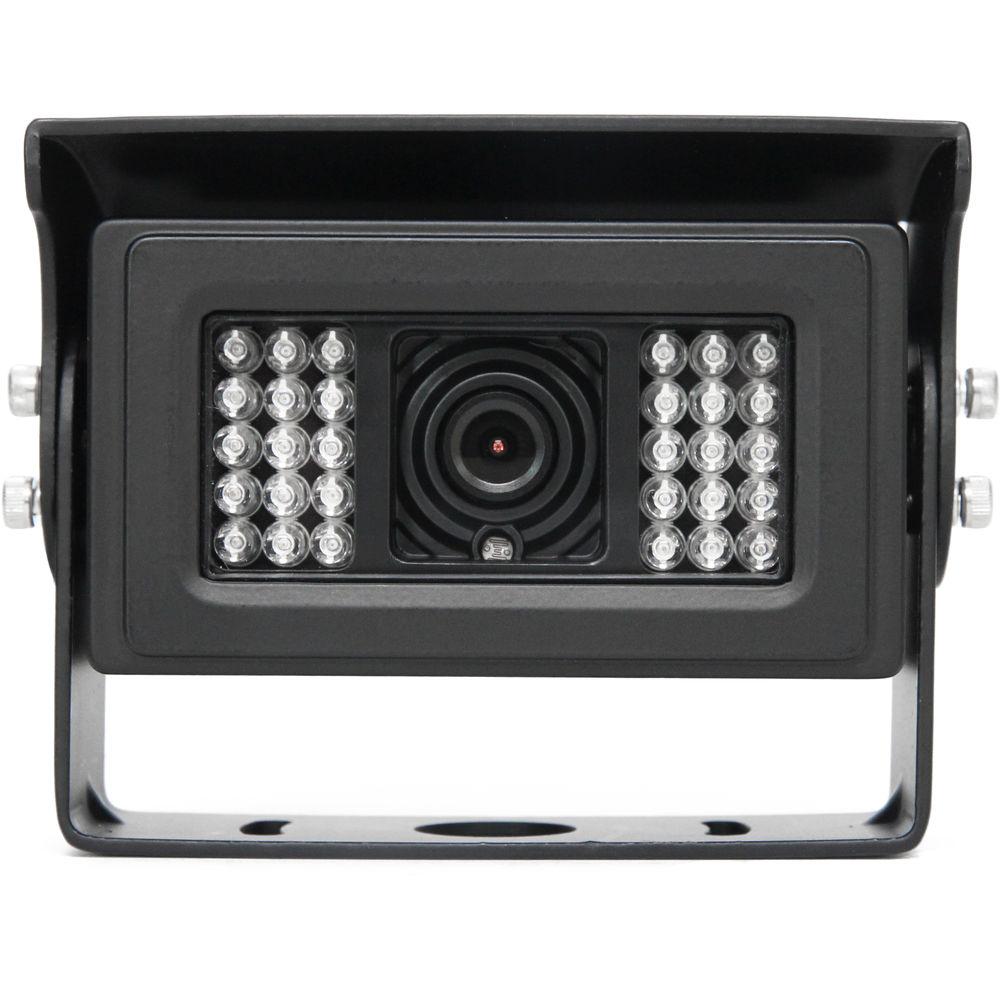

Product description The Rear View Safety RVS-812 120° Heated Camera with 28 IR Illuminators features a 1/3" Sony color CCD sensor with a resolution of 250,000 pixels for capturing clear images. This backup camera has a built-in heater for keeping it warm in cold climates. Apart from a 2.1mm lens, the camera boasts 28 IR illuminators that enable it to capture clear images in total darkness. The IP69-rated die-cast casing of the camera enables it to withstand harsh weather conditions. This backup camera has a built-in microphone that enables you to hear and see what is behind you. The camera includes a 66' (20.11 m) weather-resistant aircraft grade cable and an RCA adapter. - 1/3" Sony color CCD, 250k pixels, 2.1mm wide lens with 120° angle, 420 TVL (which means good quality images with no blind spots)
- 28 automatic IR night vision illuminates LEDs 50' (15.24 m) of vision in the dark night
- Features built-in foam around lens (to eliminate glare from the IR's), built-in high gain microphone, extremely strong weatherproof casing with 15g impact rating, a screw base, and a waterproof sleeve connection

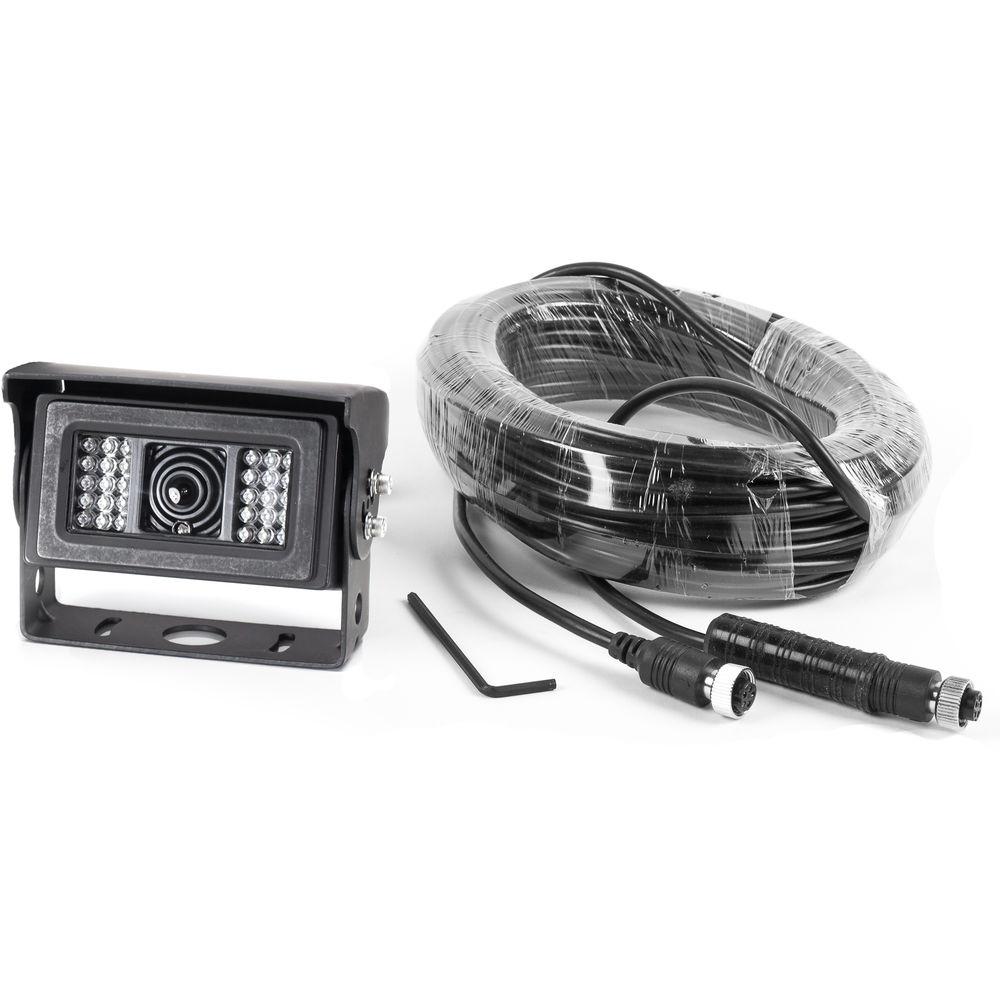

UPC: 751369642744 In the Box Rear View Safety RVS-812 120° Heated Camera with 28 IR Illuminators (RCA Connectors) 66' (20.11 m) Extension Cable for the Camera RCA Adapter Screw Kit for Installation 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety RVS-812 120° Heated Camera with 28 IR Illuminators in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety RVS-812 Specs | Camera | 1/3" Sony color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | 0.45 to 1.0 | | Image Sensor | 420 TVL
PAL: 500 x 582 (H x V), NTSC: 510 x 492 (H x V) | | Lens | 2.1 mm | | View Angle | 120° | | Sync System | Internal | | IR Distance | 50' (15.24 m) with 28 IR LEDs | | Illumination | 0 lux (LED on) | | Power Source | 12 VDC (±10%) | | S/N Ratio | More than 48 dB | | Electronic Iris | 1/50, 160 to 1/100,000 sec | | Video Output | 1 Vpp 75 Ω | | IR Switch Control | CDS automatic | | Impact Rating | 15G | | Operating Temperature | -40 to 140°F (-40 to 60°C) / RH 95% maximum | | Storage Temperature | -40 to 140°F (-40 to 60°C) / RH 95% maximum | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 3.0 x 3.0 x 3.0" |
