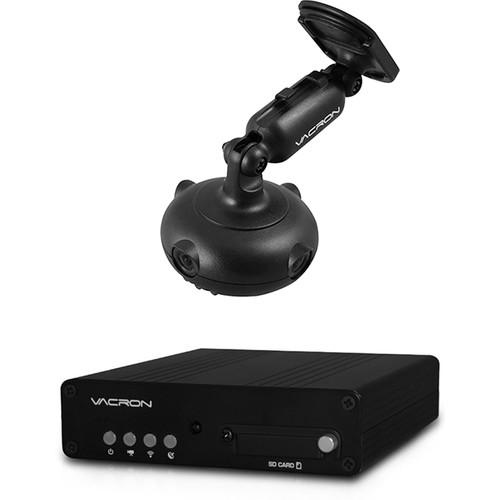

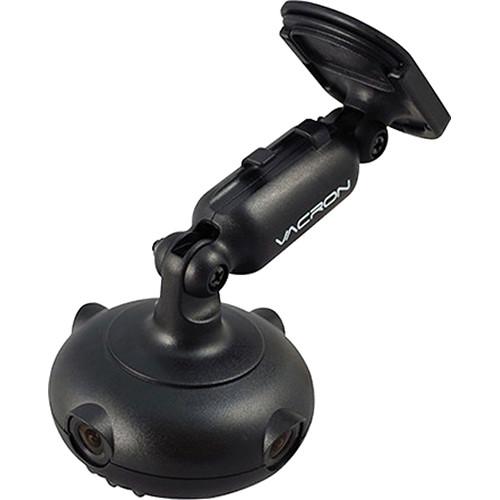

Product description Mount the Vacron VVH-MDE52 720p Wi-Fi Dash Cam with Four Sensors from Rear View Safety to your vehicle's windshield to monitor and record around your entire vehicle. The camera has four lenses that each capture 720p video at up to 30 fps during the day and at night, thanks to IR LEDs. The four lenses combine for a 360° field of view, ensuring you don't miss anything happening around your vehicle.

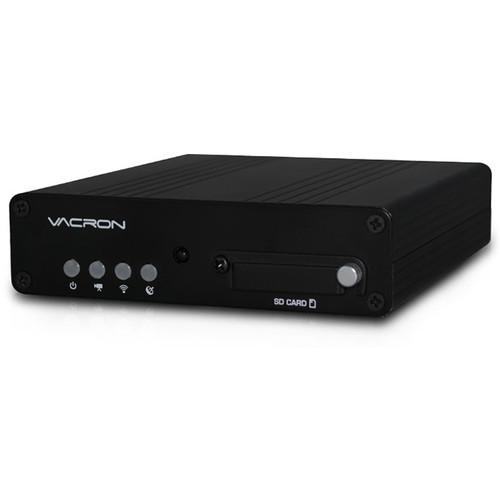

The 4-channel DVR is capable of recording from all four lenses and connects to them via Wi-Fi for a simple setup. The DVR features a built-in GPS module and G-sensor to track location and impacts, allowing the DVR to lock recorded video in case of an event trigger. A microphone cable is included to record nearby audio. Additionally, an 8GB SD card is included to store recorded video and audio. Access live video and save it right to your phone through the app. - Four lenses capture 360°, 720p video at up to 30 fps
- Microphone cable to record audio
- 4-channel DVR with 8GB SD card to save video and audio files
- Wi-Fi connectivity for wireless data transmission between camera and DVR
- GPS module in DVR stores location and travel history
- Built-in G-sensor automatically locks files during event triggers
- Supercapacitors automatically protect saved files in the event of a power loss
- Mobile viewing and video storage
- Adhesive windshield camera mount included
UPC: 471326931536 In the Box Rear View Safety Vacron VVH-MDE52 720p Wi-Fi Dash Cam with Four Sensors and 4-Channel DVR Power Cables Microphone Cable Adhesive Windshield Mount 8GB SD Card Remote Control IR Sensor for Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rear View Safety Vacron VVH-MDE52 720p Wi-Fi Dash Cam with Four Sensors and 4-Channel DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRear View Safety Vacron Specs | | | Number of Channels | 4 | | Recording Resolution | 1280 x 720 at 25/30 fps | | Recording | Mode: Automatic recording after device on for 30 sec
Content: Image, data, audio, GPS information, external trigger signal, G-sensor data | | Audio | 1 x mono microphone audio input jack (for included microphone cable) | | Memory Card Support | 8 GB SDHC card included, supports 8 GB Class 10 cards and higher | | Storage Formats | Uses specific file format, requires dedicated player (direct playback on the device) | | Capacitors | Supercapacitors: Delay recording time approximately 3 sec, then write buffer record data back to SD card | | Time Setting | Auto GPS adjustment, calendar clock activates when device cannot receive GPS signal
Initial: Requires GPS time adjustment, time resets when the device turns off | | Display | TV out video output, AV out audio output (AV terminal) | | GPS | Yes | | G-Sensor | Yes | | Delay | Record: ACC off, delay power support for approximately 3 sec | | Connectivity | Wi-Fi | | Power | 12 VDC, 1.25 A maximum
ACC Off: 12 VDC, 30 mA | | Voltage | Activate: >11 VDC
Working: >8-32 VDC | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Dimensions | 4.5 x 5.2 x 1.2" (11.5 x 13.3 x 3 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Signal Type | NTSC / PAL | | Image Sensor | 4 x 1/4" progressive scan CMOS sensors | | Resolution | 1280 x 720 at 25/30 fps | | Pixels | Approximately 1 MP | | Illumination | 3300 mV/lux-sec
0 lux with IR LEDs on | | Field of View | Horizontal: 360° (combined)
Vertical: 70° | | S/N Ratio | 37 dB maximum | | Gain Control | Auto | | Dynamic Range | 64 dB | | White Balance | Auto | | Electronic Shutter | Auto | | Signal Output | 1 V p-p standard video output, 75 Ohms | | Number of IR LEDs | 4 x IR LEDs | | Connectivity | Wi-Fi | | Power Supply | 12 ±1 VDC | | Power Consumption | IR LEDs Off: 280 mA
IR LEDs On: 340 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | | | Package Weight | 2.835 lb | | Box Dimensions (LxWxH) | 12.5 x 8.95 x 3.95" |
