User Manual for RECONYX HP2X Hyperfire 2 Professional Trail Camera Click to enlarge the picture
Contents of the user manual for the RECONYX HP2X Hyperfire 2 Professional Trail
- Product category: Trail/Wildlife Cameras RECONYX
- Brand: RECONYX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RECONYX Trail/Wildlife Cameras
 |
User manual for the RECONYX HP2X Hyperfire 2 Professional Trail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RECONYX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RECONYX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RECONYX product will considerably shorten its lifespan!
|

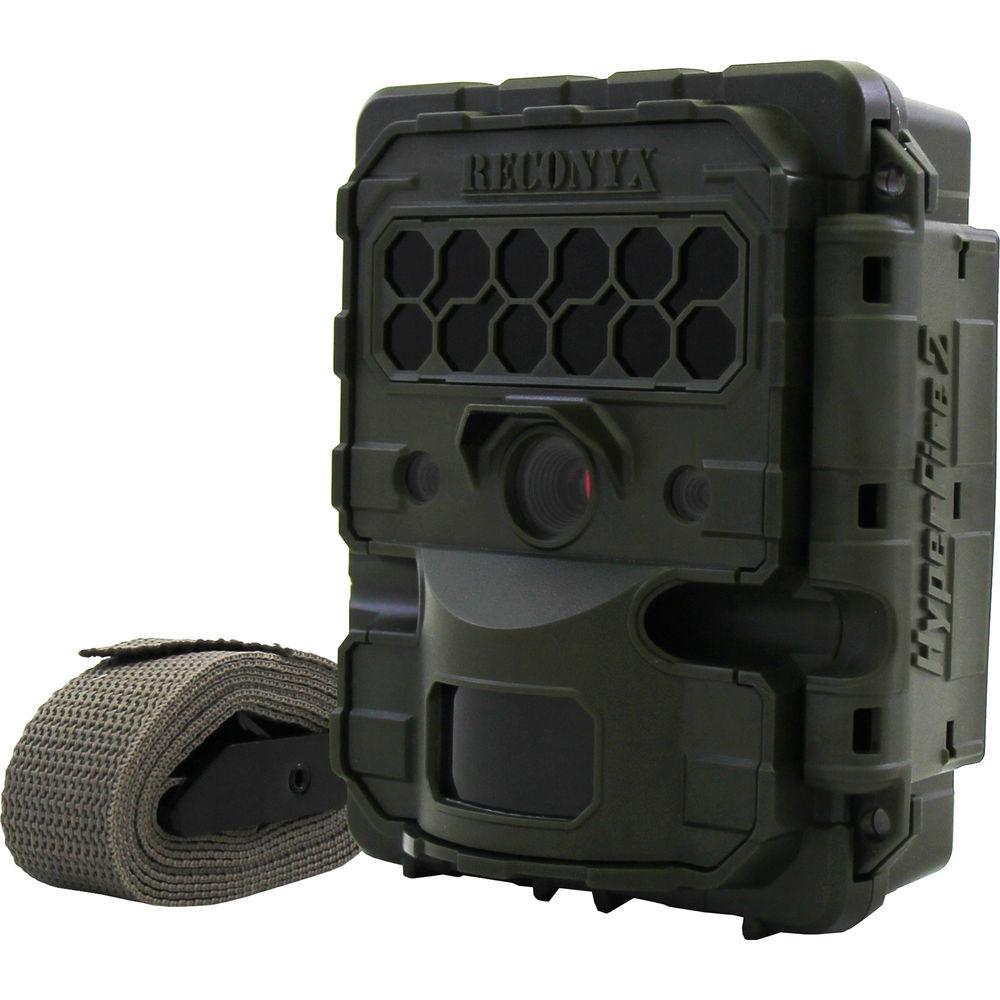

Product description With its fast 1/4-second trigger speed and no-glow flash with a 150' range, the olive-drab green Reconyx HP2X Hyperfire 2 Professional Trail Camera will make sure you see what (or who) is on the move in the woods. The camera shoots motion-triggered or time-lapse 3MP still photos at up to two frames per second, and 720p video with sound. The camera will capture up to 90 images per trigger event. Using NiMH or li-ion batteries gives this camera a remarkably wide operating temperature range of -40°-140°F.The Hyperfire 2 Professional records images onto SD/SDHC memory cards up to 512GB in capacity. The camera runs on 12 user-supplied AA NiMH or lithium batteries, which are easy to find and replace. The included MapView Professional software helps you to catalog, categorize and map your images using such features as geo-location with interactive Google Maps, unlimited keyword image tags, pattern tracking and image data export.The weatherproof, olive drab green housing is compatible with a padlock and a Masterlock Python cable lock for security. - Images & Video
-
- Shoots 3MP images at rates up to 2 frames per second, or 720p video with sound up to 90 seconds
- Daylight images are in color, night images in infrared monochrome
- Frame Rate
-
- RapidFire (2 FPS), 1 second to 1 minute between images
- 1-90 images per trigger
- Time-Lapse
-
- 1-second to 24-hour intervals
- Schedule up to 5 start/stop periods
- Flash
-
- No-glow invisible infrared flash
- Range: 150'
- High, medium & low settings
- Photo Settings
-
- Shutter speed: 1/30, 1/60, 1/120, 1/240, 1/480 second
- Max ISO: 800, 1600, 3200
- Motion Detector
-
- Passive Infrared motion sensor can detect movement 100' away to trigger camera
- Image Data
-
- Time, date, temperature, and moon phase (new, waxing crescent, first quarter, waxing gibbous, full, waning gibbous, last quarter, and waning crescent) can be stamped onto images
- Memory
-
- Records images onto user-supplied SD or SDHC memory cards up to 512GB in capacity
- Power
-

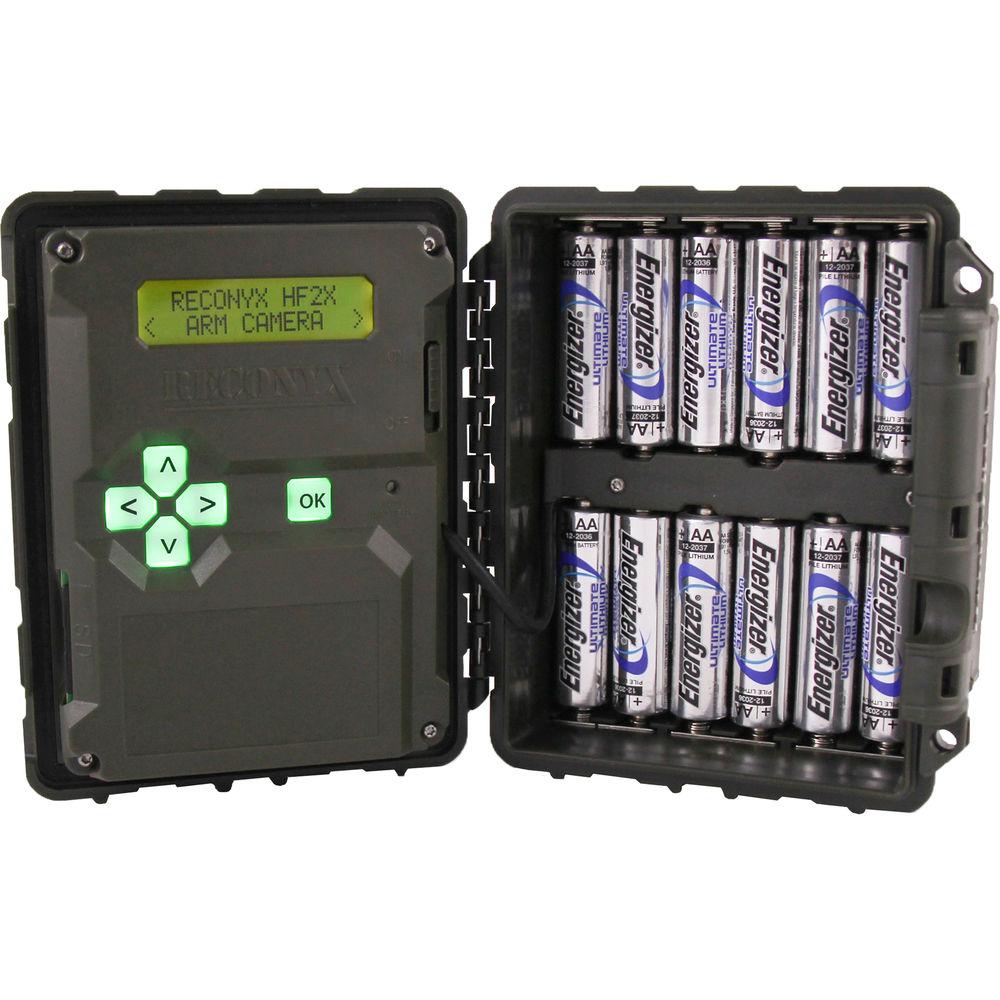

- Runs on 12 user-supplied AA NiMH rechargeable or lithium (1.5V) batteries
- MapView Professional Software
-
- Mapping and image management software
- Geo-location with interactive Google Maps, unlimited keyword image tags, pattern tracking and image data export
- Requires Windows PC running Windows 10, 8, 7 or Vista
- Mounting & Security
-
- Includes mounting strap
- Compatible with a padlock and a Masterlock Python cable lock
In the Box RECONYX HP2X Hyperfire 2 Professional Trail Camera (Olive-Drab Green) MapView Professional Mapping & Image Management Software for Windows Adjustable Strap for Mounting Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RECONYX HP2X Hyperfire 2 Professional Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRECONYX HP2X Specs | Camera Type | Trail/wildlife | | Resolution | 3.0 MP | | Sensor | Motion Sensor: Passive infrared / PIR with 1/4-sec trigger speed and 100' / 30.5 m range | | Delay | Default: 1 sec between images | | Exposure Modes | Day: Color
Night: Monochrome | | Interval Shooting | Time-lapse: 1-6 seconds, 10/12/15/20/30 seconds, 1-5 minutes, 6/10/12/15/20/30 minutes, 1-6 h, 8/12/24 h | | Built-in Flash | Yes, no-glow infrared flash | | Effective Flash Range | 150' / 45.7 m | | Memory Card Type | SD/SDHC up to 512 GB | | Video Resolution | 720p | | Shutter Speed | 1/30, 1/60, 1/120, 1/240, 1/480 | | ISO | 800, 1600, 3200 for night pictures & video | | Video Clip Length | 5/10/15/30/60/90 seconds, dynamic length | | System & Software Requirements | Windows 10, 8, 7 or Vista for MapView Professional mapping & image management software | | Operating Temperature | -40 to 140°F / -40 to 60°C with lithium batteries | | Durability | Weather-resistant housing | | Battery Type | 12 AA NiMH or 1.5 V lithium | | Dimensions | 5.5 x 4.5 x 2.5" / 14.0 x 11.4 x 6.4 cm |
