User Manual for RECONYX MS7 MicroFire 720p Wi-Fi License Plate Camera Click to enlarge the picture
Contents of the user manual for the RECONYX MS7 MicroFire 720p Wi-Fi License
- Product category: Wireless Cameras RECONYX
- Brand: RECONYX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RECONYX Wireless Cameras
 |
User manual for the RECONYX MS7 MicroFire 720p Wi-Fi License contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RECONYX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RECONYX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RECONYX product will considerably shorten its lifespan!
|

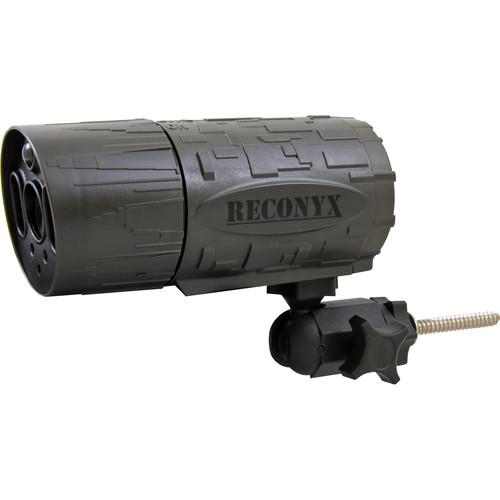

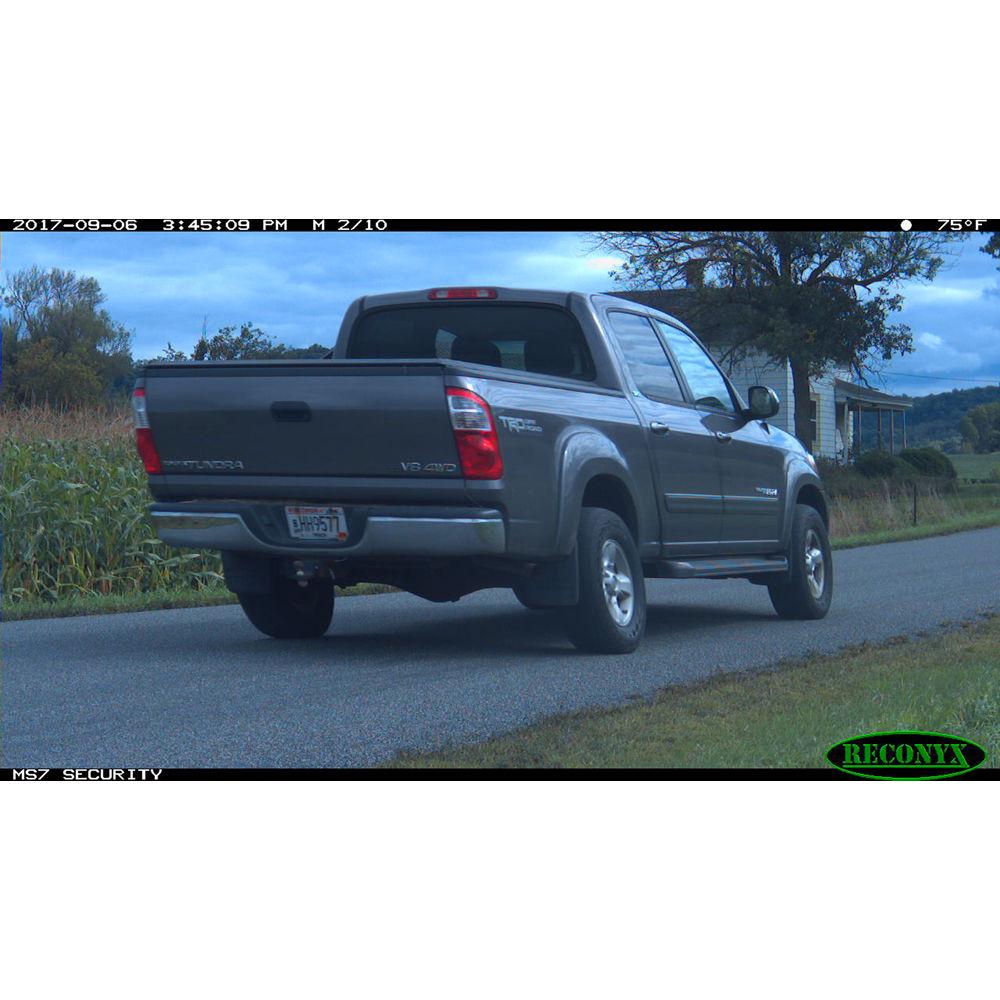

Product description Discretely capture video with the gray MS7 MicroFire 720p Wi-Fi License Plate Camera from RECONYX. The camera records video at a resolution of 720p and features GEN2 NoGlow covert infrared illumination that helps provide images from up to 50' away. Wi-Fi connectivity enables you to access the camera to transmit images and download video from up to 100' away via the free RECONYX mobile app for iOS and Android mobile devices. The mobile app enables you to check the camera's status, and customize and program all your settings.Video can be recorded onto a microSDXC card up to 512GB, which is available for purchase separately. The camera operates on six AA batteries, which are available for purchase separately, or via the included external power connector. A universal camera mount is included with the camera.Note: If using AA batteries, the manufacturer recommends Energizer lithium or NiMH rechargeable batteries. Alkaline batteries are not recommended. Visit the manufacturer's website for more information. - Captures images of license plates on vehicles traveling at up to 50 mph
- Wi-Fi enabled image transfer up to 100'
- Time-lapse surveillance and scheduling
- CodeLoc passcode protection helps keep camera data secure in the event of a theft

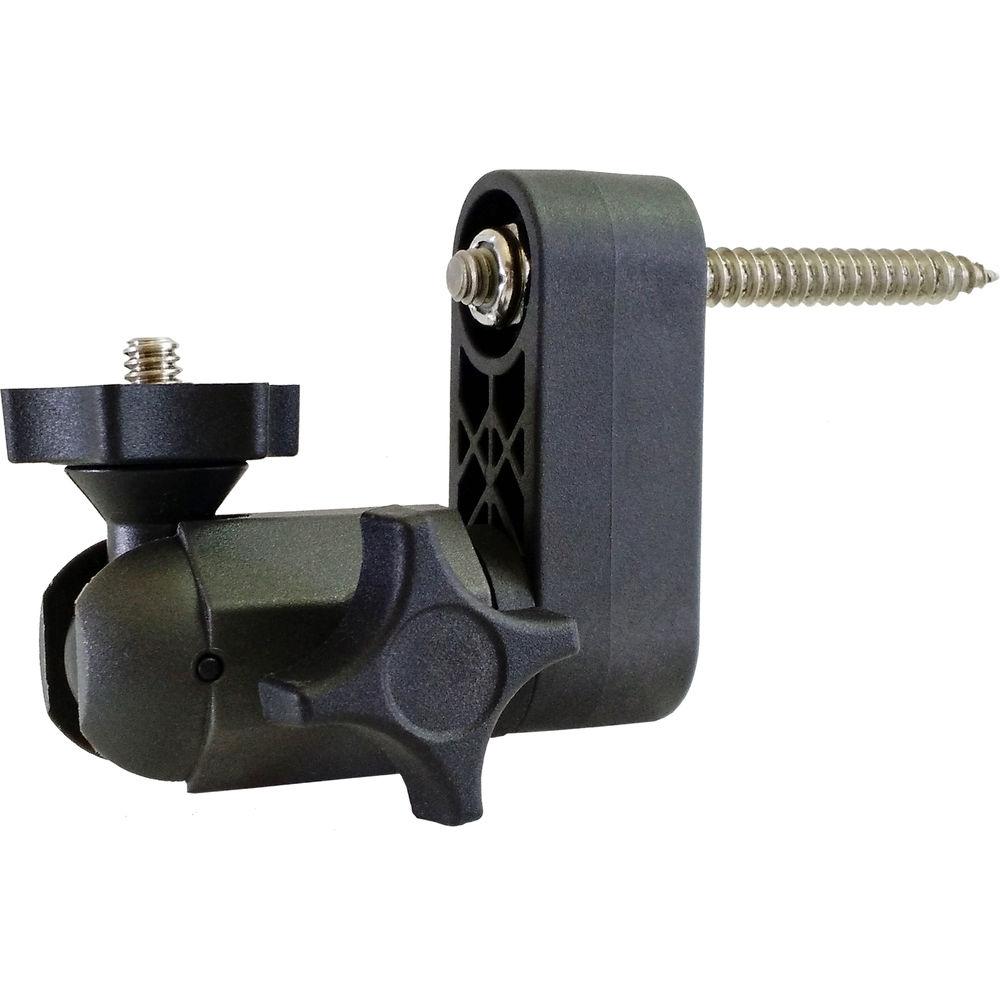

- Includes universal camera mount and external power connection
UPC: 858414001423 In the Box RECONYX MS7 MicroFire 720p Wi-Fi License Plate Camera (Gray) Universal Camera Mount External Power Connector Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RECONYX MS7 MicroFire 720p Wi-Fi License Plate Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRECONYX MS7GREY Specs | Image | Resolution: 1.2 MP
Detail: Color by day, monochrome infrared by night
Data: Date, time, temperature, and moon phase
| | Video Resolution | 1280 x 720 | | Audio | On/off | | Wi-Fi Connectivity | Yes | | Illumination | GEN2 covert infrared
On/Off Option: Included
| | Flash Range | Up to 50' / 15.2 m | | Management Software | Mapping and image management via Reconyx mobile app | | Mobile App Requirements | iOS version 9.0 and higher
Android version 4.4 (KitKat) and higher
Android devices must have Bluetooth Smart/BLE | | Mapview | User-defined metadata
Metadata export
| | Trigger Speed | 0.1 Second | | Event Trigger | Photos per Trigger: 1, 3, 5, or 10 images
Delay After Triggering: 0, 5, 15, and 30 seconds
1, 2, 3, 5, and 15 Minutes | | Frame Rates | RapidFire Near-Video Speed: Up to 3 fps
RapidFire 1, 3, 5, or 10 seconds between images
| | Motion Sensor | Yes | | Time Lapse | Yes | | Loop | Loop recording included | | Memory Card Slot | Up to 512 GB | | Battery Life | Up to 20,000 images | | Battery Requirements | Energizer lithium or NiMH | | Battery Quantity | 6 x AA | | External Power | External power connection included | | Settings | All camera settings are programmable through mobile app | | Theft Protection | CodeLoc passcode protection | | Operating Temperature | -20 to 120°F / -29 to 49°C | | Dimensions (H x L) | 2 x 5" / 51 x 127 mm | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 12.5 x 8.0 x 4.0" |
