Product description

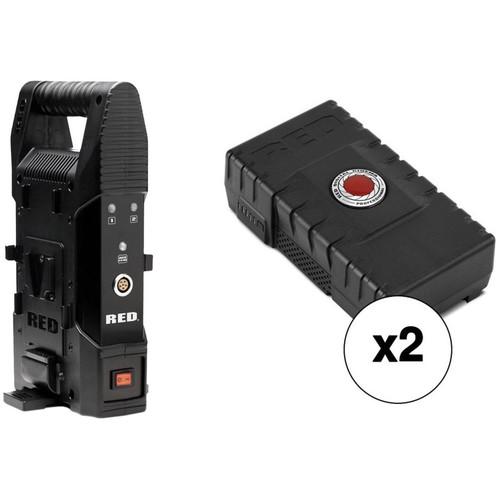

• RED DIGITAL CINEMA RED BRICK CHARGER The RED DIGITAL CINEMA RED BRICK CHARGER enables charging two RED BRICK batteries (not included) simultaneously. It plugs into any standard AC power outlet. This charger can also be used to power any DSMC or DSMC2 camera using an optional 2B to 1B power cable (not included). For those with a RED ONE camera, an optional RED ONE POWER CABLE allows you to use this charger as a power supply for your camera.
• 2 x RED DIGITAL CINEMA RED BRICK Battery This RED Digital Cinema RED BRICK battery has a capacity of 153Wh and can power a RED camera while displaying the full amount of available info in the viewfinder of both DSMC and DSMC2 cameras. It incorporates a push-button activated 5-LED power gauge that indicates roughly the amount of power remaining in the battery. It uses a V-mount battery mount, making it compatible with equipment that uses a V-mount battery system and select DSMC modules. To use the RED BRICK battery on your RED camera, the camera must have a V-mount, or use a V-mount expander module.
  • The RED BRICK battery can be charged up to 80% in 95 minutes, achieving a full charge in 190 minutes.
  • Please note that the manufacturer states that the RED BRICK battery requires a RED BRICK Charger to charge.

• RED BRICK CHARGER dyrauytx
• AC Power Cord
• Limited 1-Year Warranty

• 2 x RED BRICK Battery

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RED DIGITAL CINEMA RED BRICK CHARGER

  Compatibility	Red Brick batteries DSMC/DSMC2 Cameras (requires RED 2B to 1B LEMO Cable) RED ONE (requires RED ONE DC power cable)
  Battery Mount	2 x V-mount
  Auxiliary Output	13.8 VDC, 100 W (max)
  Output Connector	6-pin 2B LEMO
  Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 122°F / -20 to 50°C
  Dimensions	10.25 x 3.20 x 5.25" / 26.04 x 8.13 x 13.34 cm
  Weight	2.56 lb / 1.16 kg (approximately)

  Box Dimensions (LxWxH)	12.8 x 7.7 x 3.7"

• 2 x RED DIGITAL CINEMA RED BRICK Battery

  Capacity	153 Wh
  Type	Lithium-Ion
  Power	10.4 Ah
  Battery Mount	V-Mount
  Compatibility	Charger: RED BRICK Charger
  Output Voltage	14.8 VDC
  Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Charging Temperature: 32 to 113°F / 0 to 45°C Storage Temperature: -4 to 122°F / -20 to 50°C
  Dimensions	6.5 x 3.5 x 2.1" / 16.4 x 9.0 x 5.2 cm
  Weight	2.29 lb / 1.04 kg

  Box Dimensions (LxWxH)	8.9 x 5.5 x 2.4"
