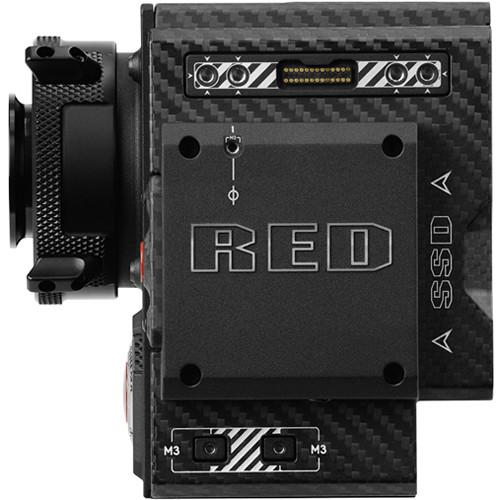

User Manual for RED DIGITAL CINEMA CF WEAPON BRAIN with MONSTRO 8K VV Sensor Click to enlarge the picture
Contents of the user manual for the RED DIGITAL CINEMA CF WEAPON BRAIN
- Product category: Digital Cine Cameras RED DIGITAL CINEMA
- Brand: RED DIGITAL CINEMA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RED DIGITAL CINEMA Digital Cine Cameras
 |
User manual for the RED DIGITAL CINEMA CF WEAPON BRAIN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RED DIGITAL CINEMA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RED DIGITAL CINEMA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RED DIGITAL CINEMA product will considerably shorten its lifespan!
|

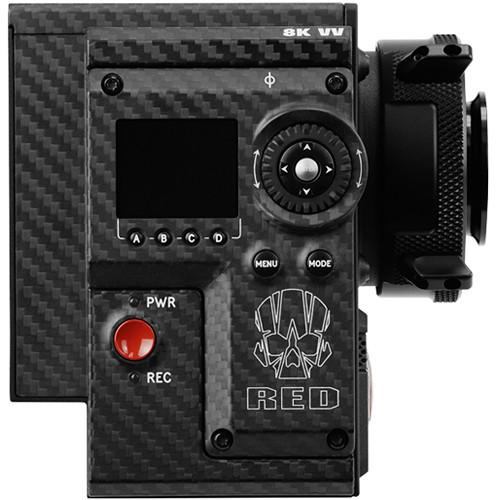

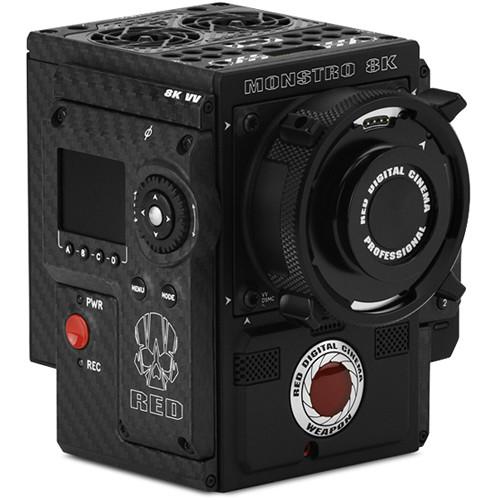

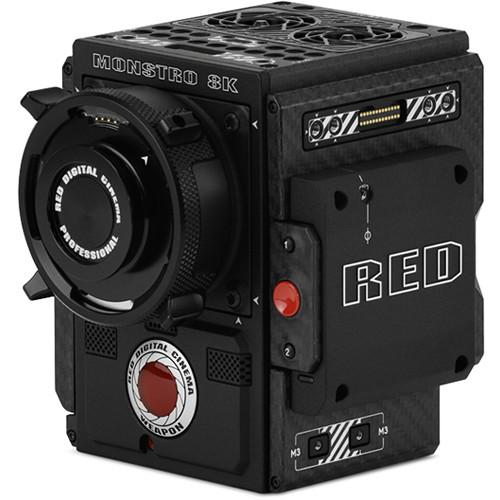

Product description The CF WEAPON BRAIN with MONSTRO 8K VV Sensor (PL) from RED DIGITAL CINEMA combines the full-frame MONSTRO 8K 35.4MP CMOS sensor with the lightweight, carbon fiber DSMC2 body. Advancing beyond the RED DRAGON 8K VV sensor, the MONSTRO 8K VV offers a wide dynamic range of 17 stops, and improved image quality with greater shadow detail. Use full-frame lenses to capture cinematic images at rates up to 60 fps in 8192 x 4320 8K, 75 fps in the 2.4:1 aspect ratio, 120 fps in 4K, and up to 240 fps in 2K. Record full-frame video in REDCODE RAW (R3D) and ProRes or DNxHR/HD simultaneously, or capture minutely detailed 35.4MP still images. With up to 4x greater resolution than 4K capture and over 17x more than HD, the WEAPON MONSTRO 8K VV provides the detail that enables cropping, re-centering, and additional tweaking during post while maintaining vivid, crisp imagery. Data rates of up to 300 MB/s can be reached when using 480 or 960GB MINI-MAGs, or up to 225 MB/s with 120 or 240GB MINI-MAGs (available separately).A carbon fiber DSMC2 Sidekick control panel and interchangeable magnesium RED DSMC S35 PL Mount 2.0 are included, both sharing the WEAPON's strong yet lightweight design. Build out your WEAPON MONSTRO 8K VV rig with separately available RED DSMC2 and third-party components including cable-free OLEDs, wireless remote control, media stations, power options, and various mounting solutions. A standard OLPF (optical low-pass filter) is included with this BRAIN, providing optimal color, IR protection, and glare reduction. This standard OLPF may be swapped out with a separately available specialized OLPF. This camera BRAIN is compatible with RED DSMC2 accessories. - Key Features
-

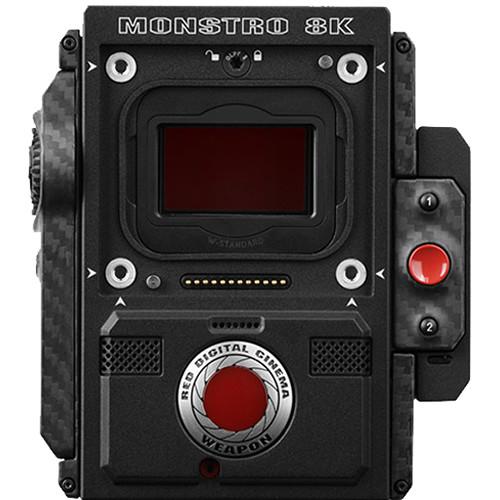

- 35.4MP, 40.96 x 21.60mm full-frame CMOS sensor for up to 8K-resolution images
- 17-stop dynamic range, with improved image quality and greater shadow detail
- Multiple capture rates including up to 60 fps 8K, 120 fps in 4K, and 240 fps in 2K full format
- Versatile workflow options with REDCODE RAW, ProRes, and DNx recording
- Lightweight yet sturdy carbon fiber DSMC2 form factor

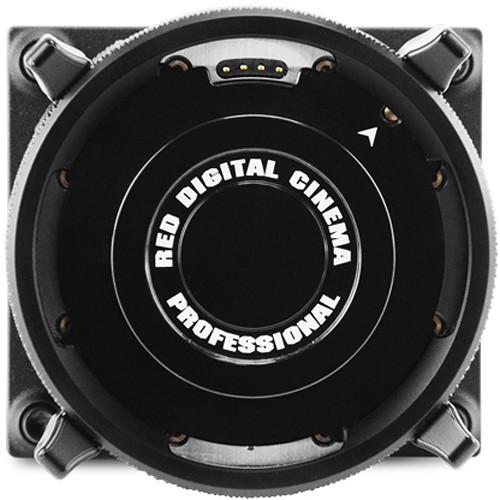

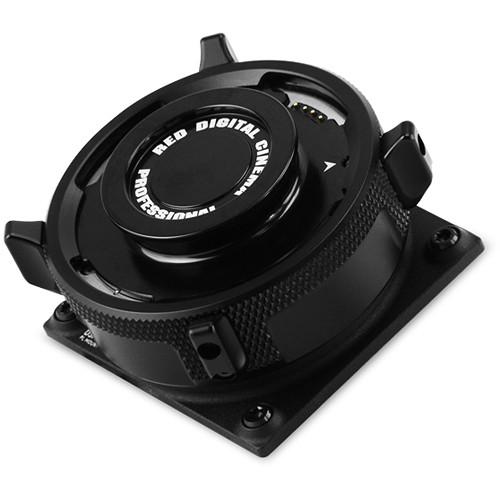

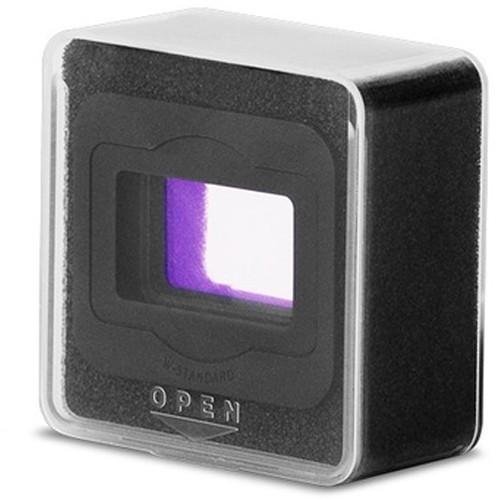

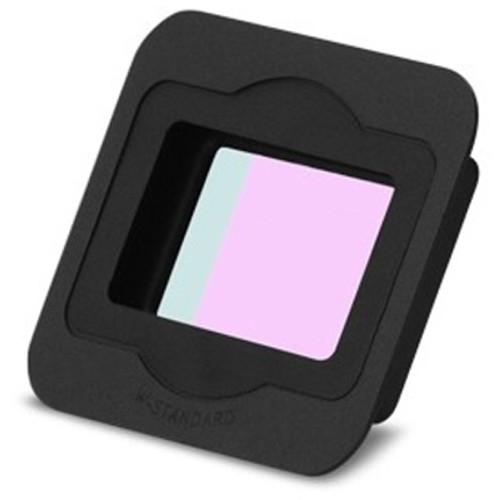

- Includes a magnesium PL lens mount, Sidekick controller, standard OLPF, and BRAIN case
- Up to 300 MB/s data rates with 480 or 960GB, or 225 MB/s with 120 or 240GB MINI-MAGs
- Compatible with separately available DSMC2 components and accessories
In the Box RED DIGITAL CINEMA CF WEAPON BRAIN with MONSTRO 8K VV Sensor (DSMC2, PL) DSMC S35 Magnesium PL Mount 2.0 DSMC2 Standard Optical Low-Pass Filter DSMC2 Sidekick Controller (Woven Carbon Fiber) Case for DSMC2 Camera BRAIN Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA CF WEAPON BRAIN with MONSTRO 8K VV Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA WEAPON Specs | | | Image Sensor Size | 40.96 x 21.6 mm (Full-Frame) | | Sensor Type | CMOS | | Sensor Resolution | 8192 x 4320 (35.4 MP) | | Color Filter | Bayer | | Shutter Type | Rolling Shutter | | Advertised Dynamic Range | 17 Stops | | Signal-to-Noise Ratio | 80 dB | | | | Lens Mount | PL Mount | | Lens Communication | Yes, Cooke /i | | Built-In ND Filter | None | | Built-In Microphone Type | Stereo | | Recording Media | None | | | | Raw Recording | REDCODE RAW:
8192 x 4320 at 23.98/24/25/29.97/48/50/59.94/60 fps
7168 x 3780 at 23.98/24/25/29.97/48/50/59.94/60 fps
6144 x 3240 at 23.98/24/25/29.97/48/50/59.94/60 fps
5120 x 2700 at 23.98/24/25/29.97/48/50/59.94/60 fps
4096 x 2160 at 23.98/24/25/29.97/48/50/59.94/60 fps
3072 x 1620 at 23.98/24/25/29.97/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/48/50/59.94/60 fps | | Recording Modes | ProRes 422HQ 4:2:2:
4096 x 2160 at 23.98/24/25/29.97 fps
2048 x 1080 at 23.98/24/25/29.97/48/50/59.94/60/120 fps
ProRes 4444XQ 4:4:4:
2048 x 1080 at 23.98/24/25/29.97/48/50/59.94/60/120 fps
DNxHR 4:2:2 12-Bit:
4096 x 2160 at 23.98/24/25/29.97 fps
2048 x 1080 at 23.98/24/25/29.97/48/50/59.94/60/120 fps
DNxHR 4:2:2 8-Bit:
4096 x 2160 at 23.98/24/25/29.97 fps
DNxHD 4:4:4 10-Bit:
1920 x 1080 at 23.98/24/25/29.97/48/50/59.94/60/120 fps
DNxHD 4:2:2 10-Bit:
1920 x 1080 at 23.98/24/25/29.97/48/50/59.94/60/120 fps
DNxHD 4:2:2 8-Bit:
1920 x 1080 at 23.98/24/25/29.97/48/50/59.94/60/120 fps | | | | Video Connectors | None | | Audio Connectors | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 85% | | Storage Humidity | 0 to 85% | | | | Accessory Mount | 17 x 1/4"-20 Females | | Tripod Mounting Thread | 1/4"-20, 3/8"-16 | | Material of Construction | Carbon Fiber | | Dimensions | 5.66 x 4.94 x 4.13" / 143.85 x 125.5 x 105 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 13.55 lb | | Box Dimensions (LxWxH) | 16.0 x 14.5 x 10.5" |
