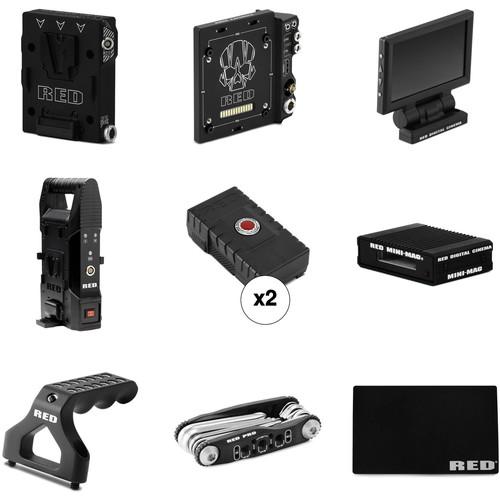

Product description

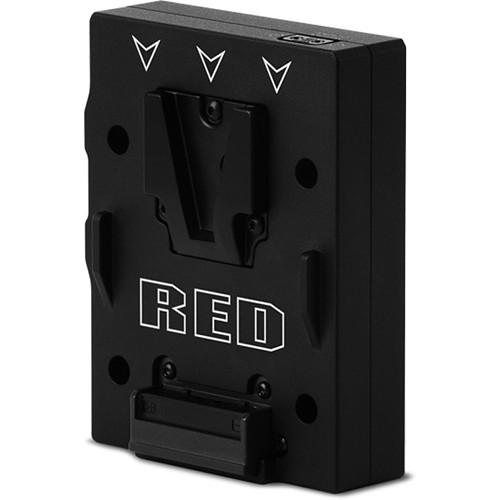

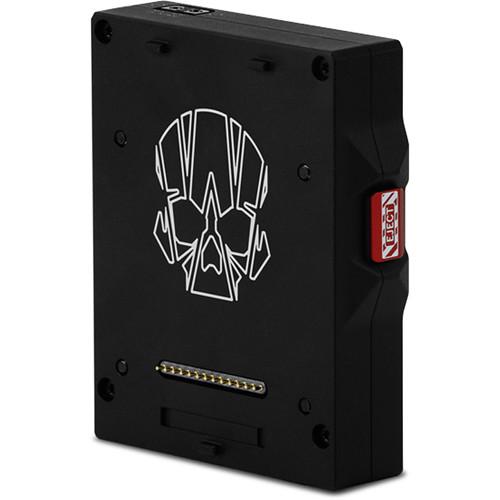

• RED DIGITAL CINEMA DSMC2 V-Mount Battery Module The DSMC2 V-Mount Battery Module from RED DIGITAL CINEMA is a low-profile, cable-free module that enables you to power your DSMC2 BRAIN and camera accessories using RED BRICK, REDVOLT-V, and other standard V-lock batteries. The V-lock mount and protected release button ensure ongoing power even during mobile shoots.

  This DSMC2 battery module offers a D-Tap connector on top and an auxiliary port on the side for powering peripherals and accessories. Together, the D-Tap and auxiliary connectors support a maximum combined current of 3.8A. The module also offers a DC input port that can be used to power the camera system when the module is attached to the BRAIN. When DC input power is supplied to the module and the camera is turned off, this module can also trickle-charge the attached V-lock battery.

  Manufactured from robust aluminum alloy, this DSMC2 battery module offers a blend of utility and power support in a lightweight and space-saving form factor. It is an ideal power solution for use with most DSMC2 expanders. Alternatively, connect the module directly to your DSMC2 BRAIN for a low-profile, battery-only power configuration.
• RED DIGITAL CINEMA DSMC2 Base Expander The RED Digital Cinema DSMC2 Base Expander mounts to your camera/BRAIN module providing a host of interface connectors such as DC in, HDMI, 3G/HD-SDI, control and sync ports, and both a 3.5mm stereo mic input and a 3.5mm stereo headphone output. UPC: 856672007126
• RED DIGITAL CINEMA Touch 4.7" LCD for Select DSMC2 RED Cameras Designed for cable-free mounting to select DSMC2 RED cameras, the RED DIGITAL CINEMA Touch 4.7" LCD features 1280 x 720 resolution. The design of the LCD provides good off-axis viewing up to 160°, with 80° left, right, up, or down so you don't have to be directly aligned with the viewfinder to see an optimal image. The LCD features multi-touch control, with hard navigation buttons on the side.

  With a brightness level of 400 cd/m² and contrast ration of 1000:1 providing a clear image, the RED Touch LCD mounts directly to your camera without any cables needed between the LCD and your camera. It can mount directly onto DSMC2 cameras including the WEAPON 8K S35, WEAPON 6K, EPIC/SCARLET-W, EPIC/SCARLET M-X, EPIC/SCARLET DRAGON, and the RED RAVEN. A built-in mirror and image flip allow for monitoring while upside down for special applications.
  • The LCD is designed to mount directly to select cameras for cable-free operation.
  • Used in conjunction with the optional DSMC2 LEMO Adapter Collection, you can mount your DSMC2 display away from the camera body.
  • The built-in hinge provides up to 240° of tilt—90° forward and 150° back—which allows the LCD to fold flat on your camera.
  • You can use an optional DSMC2 LEMO Adapter B to mount the LCD to RED EPIC or RED SCARLET cameras.
  UPC: 856672007393
• RED DIGITAL CINEMA RED BRICK CHARGER The RED DIGITAL CINEMA RED BRICK CHARGER enables charging two RED BRICK batteries (not included) simultaneously. It plugs into any standard AC power outlet. This charger can also be used to power any DSMC or DSMC2 camera using an optional 2B to 1B power cable (not included). For those with a RED ONE camera, an optional RED ONE POWER CABLE allows you to use this charger as a power supply for your camera. UPC: 856672007706
• 2 x RED DIGITAL CINEMA RED BRICK Battery This RED Digital Cinema RED BRICK battery has a capacity of 153Wh and can power a RED camera while displaying the full amount of available info in the viewfinder of both DSMC and DSMC2 cameras. It incorporates a push-button activated 5-LED power gauge that indicates roughly the amount of power remaining in the battery. It uses a V-mount battery mount, making it compatible with equipment that uses a V-mount battery system and select DSMC modules. To use the RED BRICK battery on your RED camera, the camera must have a V-mount, or use a V-mount expander module.
  • The RED BRICK battery can be charged up to 80% in 95 minutes, achieving a full charge in 190 minutes.
  • Please note that the manufacturer states that the RED BRICK battery requires a RED BRICK Charger to charge.
  UPC: 856672007607

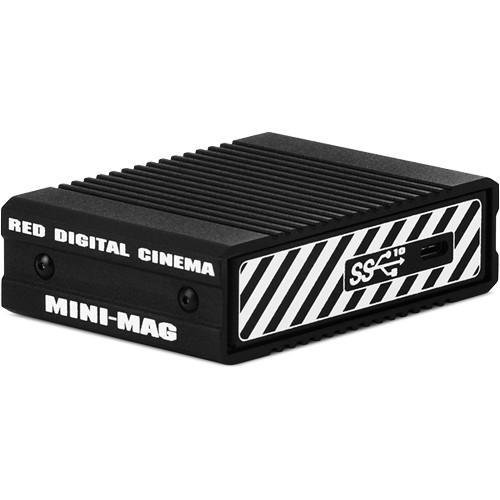

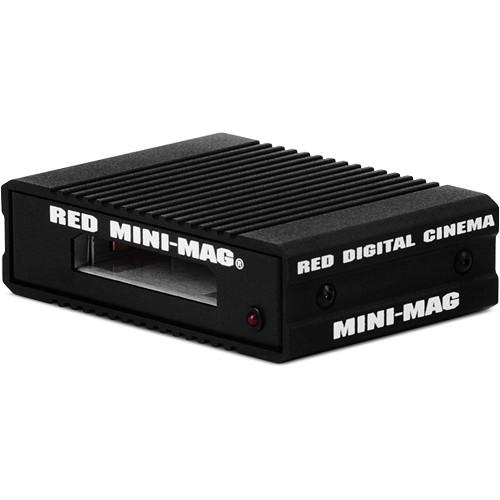

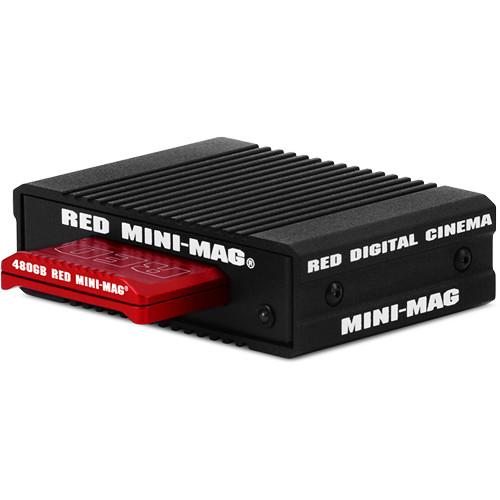

• RED DIGITAL CINEMA RED STATION RED MINI-MAG (USB 3.1) Designed with the sole purpose of offloading data from your RED MINI-MAG SSD media, the RED STATION RED MINI-MAG supports USB 3.1 protocols and allows you to transfer files to your computer at up to 10 Gbps. Sleek, compact, and durable, the unit takes up little desktop room and its small size provides more possibilities for fitting it into cases. It includes one each of a USB Type-C, and a USB Type-C to Type-A cable. UPC: 856672007041

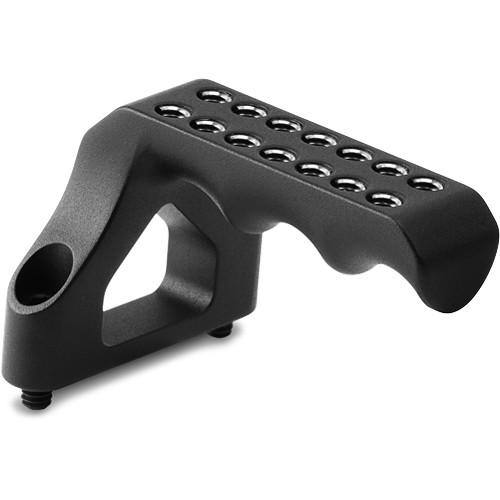

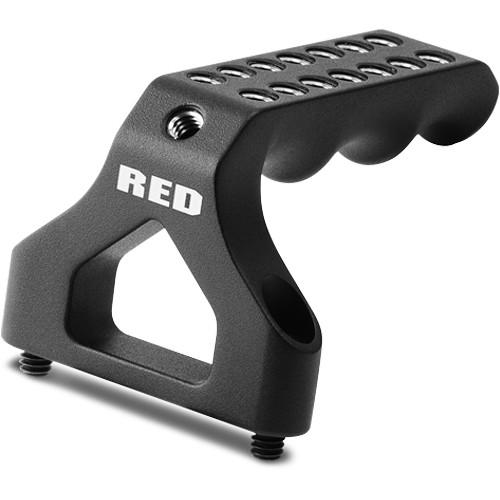

• RED DIGITAL CINEMA DSMC2 Universal Handle Secure the DSMC2 Universal Handle from RED DIGITAL CINEMA to your DSMC2 camera for a low-profile convenient handling option. The simple design has deep finger cutouts for comfort, and is lightweight so it won't weigh down your rig. Fourteen 1/4"-20 threaded holes configured along the top can be used to mount accessories. If you have an original DSMC camera (EPIC or SCARLET), the DSMC2 Universal Handle can be secured to the DSMC Tactical Top Plate accessory.

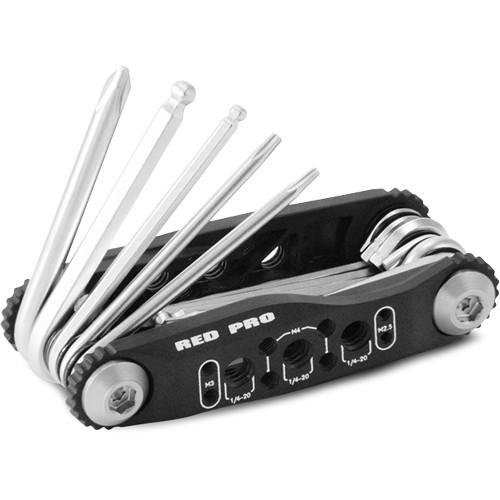

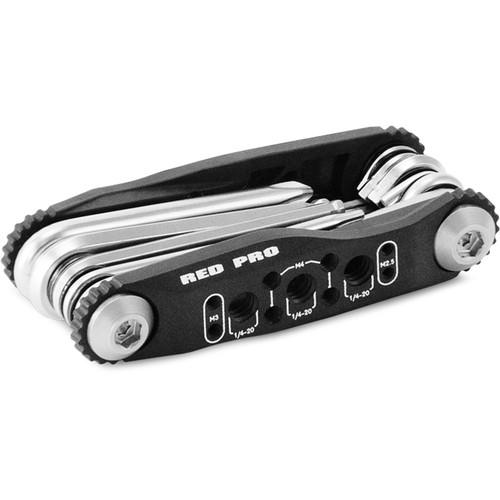

• RED DIGITAL CINEMA RED SIDEWINDER Multi-Tool The RED SIDEWINDER Multi-Tool from RED DIGITAL CINEMA is a great workbench companion for your DSMC and DSMC2 gear. The 11 different drivers can be opened to adjust the screws found throughout the modular DSMC and DSMC2 camera systems. Threaded holes on the sides of the multi-tool can hold non-captive screws safely, so they don't get lost while you make adjustments to your camera or add/remove camera modules. To ensure a long life, the nickel-plated, high-carbon steel alloy driver keys are secured to a heat-resistant polymer composite that should survive many a production. UPC: 856672007065
• RED DIGITAL CINEMA RED WORK MAT (18 x 24") The RED Digital Cinema RED WORK MAT is a portable flexible non-slip surface for building your camera or for use on a DIT cart. It provides a clean surface to work on and at 18 x 24", it is large enough for you to place your camera's components on during set up or break down. When you are done, the mat is flexible enough that you can just roll it up for storage.

• DSMC2 V-Mount Battery Module caeqbfsdvrab
• Limited 1-Year Warranty

• DSMC2 Base Expander

• Touch 4.7" LCD for Select DSMC2 RED Cameras

• RED BRICK CHARGER

• 2 x RED BRICK Battery caeqbfsdvrab

• RED STATION RED MINI-MAG (USB 3.1)

• DSMC2 Universal Handle

• RED SIDEWINDER Multi-Tool

• RED WORK MAT (18 x 24")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RED DIGITAL CINEMA DSMC2 V-Mount Battery Module

  Compatibility	RED BRICK, REDVOLT-V, and other standard V-lock batteries
  Power Connector	13-pin rear pogo connector
  Connectors	1 x 6-pin DC input (1B LEMO socket) 1 x 2-pin aux power output (D-Tap), 3 A 1 x 2-pin aux power output (0B LEMO), 3.8 A shared
  Mounting	4 x M4 captive mounting screws
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 122°F / -20 to 50°C
  Material	Aluminum alloy
  Dimensions	4.57 x 4.06 x 1.51" / 11.6 x 10.3 x 3.8 cm
  Weight	0.82 lb / 374 g

  Box Dimensions (LxWxH)	7.4 x 7.2 x 2.6"

• RED DIGITAL CINEMA DSMC2 Base Expander

  Material of Construction	Magnesium
  Audio	24-bit 48 kHz, uncompressed, unbalanced mic level
  Connections	BRAIN Power: 13-pin DSMC2 rear pogo connector Communication: 4 x 40-pin DSMC2 rear I/O connector Module DC In: 6-pin 1B LEMO socket 3G-SDI: 1 x BNC (75 Ohms), 60 Hz max frame rate HDMI 1.2: 1 x Type A, 60 Hz max frame rate Sync: 1 x 4-pin 00B LEMO socket (Genlock in/timecode in/sync in) Control: 1 x 4-pin 00B LEMO socket (tally out/RS-232 RX and TX) Mic In: 1 x 3.5 mm stereo jack Headphone Out: 1 x 3.5 mm stereo jack Power: 13-pin DSMC2 rear pogo connector
  Mounting	BRAIN: 4 x Captive M4 mounting screws
  Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Humidity: 0 to 85%, non-condensing Storage Temperature: -4 to 122°F / -20 to 50°C Humidity: 0 to 85%, non-condensing
  Dimensions	4.57 x 4.76 x 1.50" / 11.61 x 12.09 x 3.81 cm
  Weight	7.16 oz / 203 g

  Box Dimensions (LxWxH)	6.95 x 6.9 x 3.1"

• RED DIGITAL CINEMA Touch 4.7" LCD for Select DSMC2 RED Cameras

  Type	Touchscreen LCD
  Resolution	1280 x 720
  Contrast Ratio	1000:1
  Brightness	400 cd/m²
  Pixel Density	315 PPI
  Color Depth	8-bit RGB, 4:4:4 progressive scan (16.7 million colors)
  Colors	70% NTSC
  Viewing Angle	±80° U/D/L/R
  Touch	Projected capacitive (PCAP), multi-touch
  Range of Motion	Tilt: +90 to -150°
  Connector	DSMC2 LCD/EVF pogo connector (26-pin)
  Mounting	2 x M4 captive screws
  Hood	Mounting: M2x0.4 x 4.5 mm (max depth)
  Power Consumption	4 W
  Operating Conditions	Temperature: 32 to 104°F / 0 to 40°C Humidity: 0 to 85% non-condensing
  Storage Conditions	Temperature: -4 to 122°F / -20 to 50°C Humidity: 0 to 85% non-condensing
  Dimensions	4.21 x 4.92 x 0.49" / 107 x 125 x 12.5 mm (with hinge)
  Weight	8.0 oz / 226.5 g

  Box Dimensions (LxWxH)	9.1 x 5.95 x 2.7"

• RED DIGITAL CINEMA RED BRICK CHARGER

  Compatibility	Red Brick batteries DSMC/DSMC2 Cameras (requires RED 2B to 1B LEMO Cable) RED ONE (requires RED ONE DC power cable)
  Battery Mount	2 x V-mount
  Auxiliary Output	13.8 VDC, 100 W (max)
  Output Connector	6-pin 2B LEMO
  Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 122°F / -20 to 50°C
  Dimensions	10.25 x 3.20 x 5.25" / 26.04 x 8.13 x 13.34 cm
  Weight	2.56 lb / 1.16 kg (approximately)

  Box Dimensions (LxWxH)	12.8 x 7.7 x 3.7"

• 2 x RED DIGITAL CINEMA RED BRICK Battery

  Capacity	153 Wh
  Type	Lithium-Ion
  Power	10.4 Ah
  Battery Mount	V-Mount
  Compatibility	Charger: RED BRICK Charger
  Output Voltage	14.8 VDC
  Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Charging Temperature: 32 to 113°F / 0 to 45°C Storage Temperature: -4 to 122°F / -20 to 50°C
  Dimensions	6.5 x 3.5 x 2.1" / 16.4 x 9.0 x 5.2 cm
  Weight	2.29 lb / 1.04 kg

  Box Dimensions (LxWxH)	8.9 x 5.5 x 2.4"

• RED DIGITAL CINEMA RED STATION RED MINI-MAG (USB 3.1)

  Connections

  1 x USB 3.1 port 1 x RED MINI-MAG slot

  Box Dimensions (LxWxH)	9.55 x 5.85 x 2.65"

• RED DIGITAL CINEMA DSMC2 Universal Handle

  Box Dimensions (LxWxH)	3.7 x 1.2 x 1.2"

• RED DIGITAL CINEMA RED SIDEWINDER Multi-Tool

  Keys	Imperial Allen/Hex: 1/8", 5/32", 3/16" Metric Allen/Hex: M2.5, M3 Torx: T6, T8, T10, T20 Screwdriver: Flat (slotted), Phillips #1
  Threaded Holes	6 x 1/4"-20 8 x M4 4 x M3 4 x M2.5

  Box Dimensions (LxWxH)	3.5 x 2.6 x 0.8"

• RED DIGITAL CINEMA RED WORK MAT (18 x 24")

  Size	18 x 24" / 45.72 x 60.96 cm

  Box Dimensions (LxWxH)	12.55 x 10.2 x 3.05"
