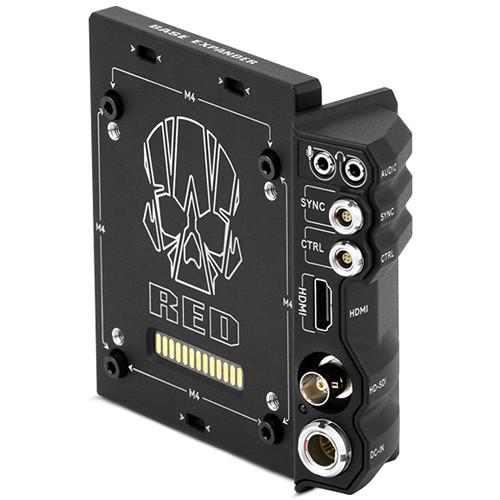

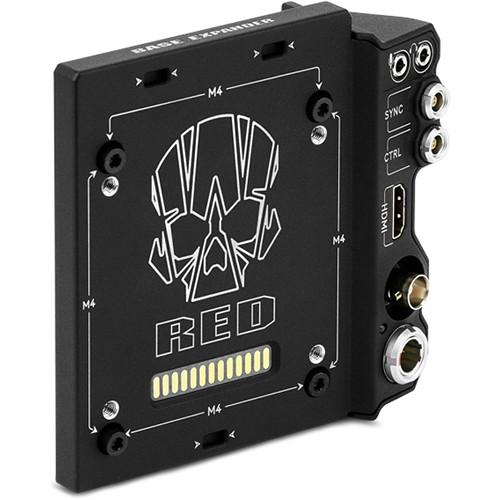

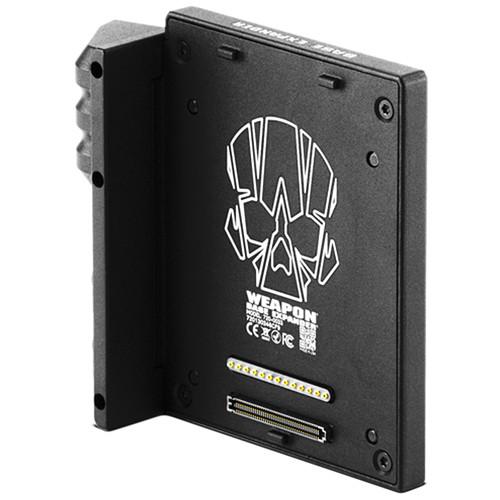

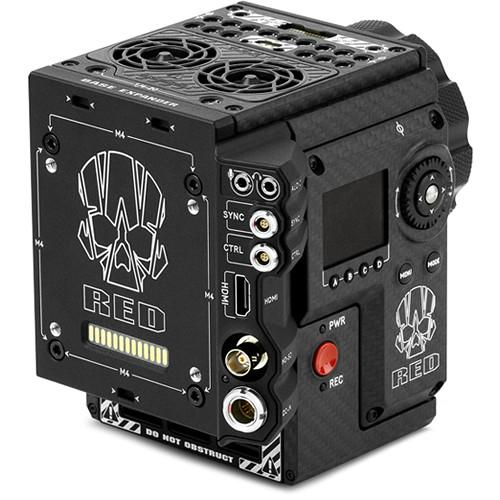

Product description The RED Digital Cinema DSMC2 Base Expander mounts to your camera/BRAIN module providing a host of interface connectors such as DC in, HDMI, 3G/HD-SDI, control and sync ports, and both a 3.5mm stereo mic input and a 3.5mm stereo headphone output. In the Box RED DIGITAL CINEMA DSMC2 Base Expander Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 Base Expander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 720-0033 Specs | Material of Construction | Magnesium | | Audio | 24-bit 48 kHz, uncompressed, unbalanced mic level | | Connections | BRAIN
Power: 13-pin DSMC2 rear pogo connector
Communication: 4 x 40-pin DSMC2 rear I/O connector
Module
DC In: 6-pin 1B LEMO socket
3G-SDI: 1 x BNC (75 Ohms), 60 Hz max frame rate
HDMI 1.2: 1 x Type A, 60 Hz max frame rate
Sync: 1 x 4-pin 00B LEMO socket (Genlock in/timecode in/sync in)
Control: 1 x 4-pin 00B LEMO socket (tally out/RS-232 RX and TX)
Mic In: 1 x 3.5 mm stereo jack
Headphone Out: 1 x 3.5 mm stereo jack
Power: 13-pin DSMC2 rear pogo connector | | Mounting | BRAIN: 4 x Captive M4 mounting screws | | Environmental | Operating
Temperature: 32 to 104°F / 0 to 40°C
Humidity: 0 to 85%, non-condensing
Storage
Temperature: -4 to 122°F / -20 to 50°C
Humidity: 0 to 85%, non-condensing | | Dimensions | 4.57 x 4.76 x 1.50" / 11.61 x 12.09 x 3.81 cm | | Weight | 7.16 oz / 203 g | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 6.95 x 6.9 x 3.1" |
