User Manual for RED DIGITAL CINEMA DSMC2 BRAIN with MONSTRO 8K VV Sensor Click to enlarge the picture
Contents of the user manual for the RED DIGITAL CINEMA DSMC2 BRAIN with
- Product category: Digital Cine Cameras RED DIGITAL CINEMA
- Brand: RED DIGITAL CINEMA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RED DIGITAL CINEMA Digital Cine Cameras
 |
User manual for the RED DIGITAL CINEMA DSMC2 BRAIN with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RED DIGITAL CINEMA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RED DIGITAL CINEMA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RED DIGITAL CINEMA product will considerably shorten its lifespan!
|

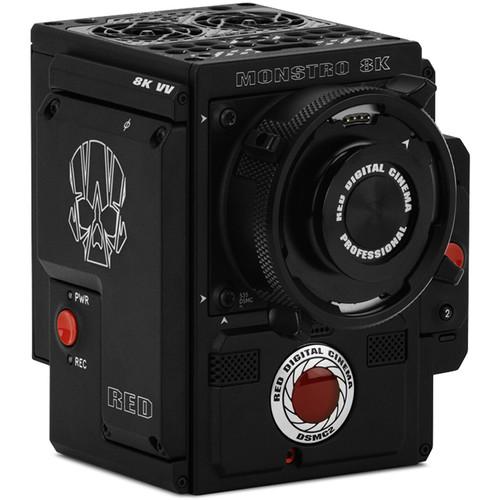

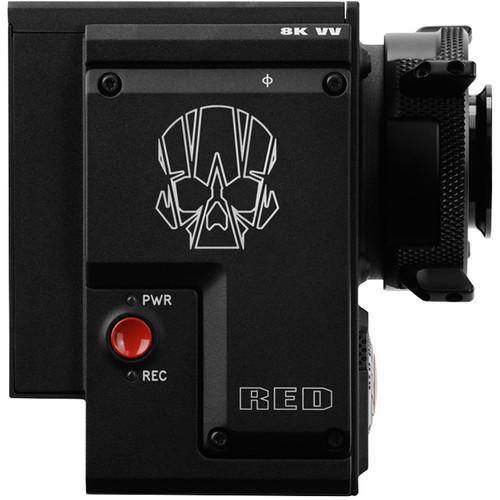

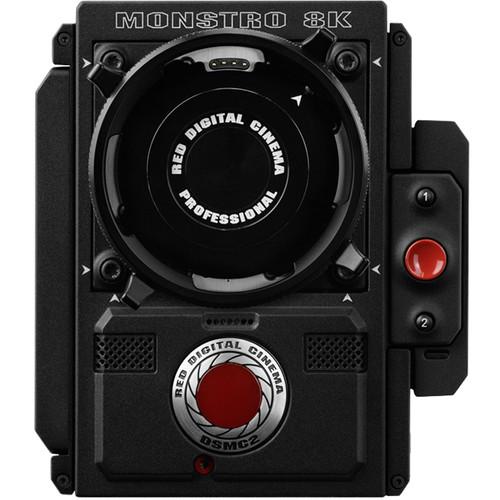

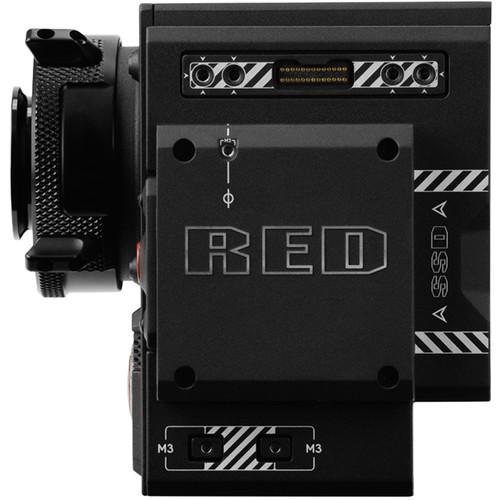

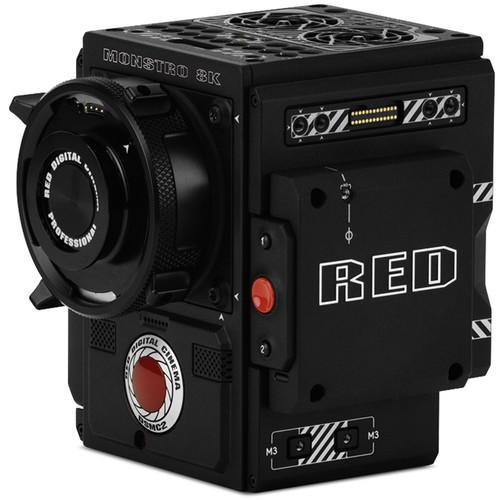

Product description In the Field: The 5K Super35mm RED DSMC2 GEMINI, Part 2 Read More Bundling high performance raw video recording in a compact camera body, the RED DIGITAL CINEMA DSMC2 BRAIN with MONSTRO 8K VV Sensor is part of the 2018 unified DSMC2 lineup and is designed to be built up the way you want, to tell your story in almost any way possible. Since the DSMC2 form factor is standard, accessories from RED and other manufacturers can be easily attached to accessorize your camera. The MONSTRO 8K full-frame sensor boasts up to 17 stops of dynamic range and can record the full image circle of full-frame 35mm lenses. You can also use Super 35mm lenses with a windowed capture area for high-frame rate recording. Sitting in front of the full-frame sensor is an interchangeable PL mount. This way you can use industry-standard cinema lenses right out of the box, or exchange the mount to use alternative photo and video lenses.REDCODE RAW is the format of choice for DSMC2 cameras. RED's versatile raw codec uses wavelet compression to reduce data rates while maintaining a visually lossless image rendering. This efficient codec can be edited on many available NLE software programs without transcoding, though if you prefer a proxy workflow, ProRes or DNx files can be recorded simultaneously to the MINI-MAG media. Lowering the recording resolution allows the sensor to capture higher frame rates for dramatic slow-motion footage. The DSMC2 cameras use sensor windowing to record slow motion in lower resolutions, requiring wider or smaller-format lenses to compensate for the additional crop. Recording rates range from 12 fps and up, including 24/25/30/48/50/60 fps and higher. - 8K MONSTRO VV Sensor
- RED's MONSTRO 8K sensor can take advantage of full-frame 35mm lenses, and then some, with its 40.96 x 21.6mm surface area. Despite its size, the MONSTRO can be driven up to 60 fps at full resolution. Higher frame rates, up to 300 fps, can be made available by windowing the sensor to lower resolutions. RED measured the MONSTRO sensor as having 17 stops of dynamic range, able to represent both deep shadows and bright highlights in the same frame.
- REDCODE RAW
- The cornerstone of RED's workflow is the robust REDCODE RAW file format. Using wavelet compression with ratios ranging from 2:1 to 22:1, REDCODE RAW offers the versatility of raw files without the overwhelming storage requirements of uncompressed image data. Since REDCODE RAW has been around since the days of the RED ONE cinema camera, many common NLE software programs including Adobe Premiere Pro, Blackmagic Design DaVinci Resolve, Apple Final Cut Pro, and Avid Media Composer can import and edit REDCODE RAW footage without transcoding, saving production time in the edit suite. Capture rates range from 12 fps and up, including 24/25/30/48/50/60 fps and higher options.Note: Not all compression ratios are available at all resolutions and frame rates
- Apple ProRes and Avid DNx Formats
- For projects requiring proxy files or quicker turnaround times than raw files permit, Apple ProRes or Avid DNx formats can be recorded at 4K and 2K resolutions directly to the onboard MINI-MAG media. Since these debayered video files can be recorded alongside the raw files, no extra time is required for transcoding the proxies. Bring the debayered files straight into your NLE and begin editing.
- DSMC2 Form Factor
- Like the preceding DSMC cameras, RED designed the DSMC2 camera line to be modular to fit a wide range of production workflows. Smaller and lighter than the original DSMC design, when stripped down to the BRAIN itself, you have a high-resolution gimbal workhorse. Likewise, add DSMC2 modules to the rear to gain professional I/O connections and battery power. Many other parts of the DSMC2 design are meant to be interchangeable. Swap out the lens mounts to open up new libraries of lenses. Exchange the included standard OLPF (Optical Low-Pass Filter) for alternative image renderings at the sensor level. Mount an EVF without cables that can get snagged, or use a separately available adapter to attach RED LCDs via LEMO cable. Since the DSMC2 form factor is standardized, any accessories that you have for this DSMC2 body will work with any other DSMC2 body, should you upgrade or acquire an additional body in the future.
- Color Management
- Supports 33x33x33, 32x32x32, 26x26x26, and 17x17x17 3D LUTs
Variable number of 3D LUT outputs with DSMC2 expander module
User-programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing In the Box RED DIGITAL CINEMA DSMC2 BRAIN with MONSTRO 8K VV Sensor (Carbon Fiber) (2018 Unified DSMC2 Lineup) DSMC2 Standard Optical Low-Pass Filter fxsyfyyuxbswyvxsdurvsavdtq VV Aluminum PL Mount 2.0 Power Supply Limited 2-Year Warranty Hands-On Review: RED Gemini 5K BH Online Videos 11/28/2018 RED Digital Cinema Streamlined DSMC2 Camera Lineup Mary Latvis 05/23/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 BRAIN with MONSTRO 8K VV Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA DSMC2 BRAIN Specs | | | Image Sensor Size | 40.96 x 21.6 mm (Vistavision) | | Sensor Type | CMOS | | Sensor Resolution | 8192 x 4320 (35.4 MP) | | Color Filter | Bayer | | Shutter Type | Rolling Shutter | | Advertised Dynamic Range | 17 Stops | | | | Lens Mount | PL Mount | | Lens Communication | Yes, Cooke /i | | Built-In ND Filter | None | | Built-In Microphone Type | Stereo | | Recording Media | 1 x RED MINI-MAG Card Slot | | | | Raw Recording | REDCODE RAW:
8192 x 4320 at 60 fps
7168 x 3780 at 60 fps
6144 x 3240 at 75 fps
5120 x 2700 at 96 fps
4096 x 2160 at 120 fps
3072 x 1620 at 150 fps
2048 x 1080 at 240 fps | | Recording Modes | ProRes 4444XQ:
2048 x 1080 up to 120 fps
ProRes 4444:
2048 x 1080 up to 120 fps
ProRes 422HQ:
4096 x 2160 up to 29.97 fps
2048 x 1080 up to 120 fps
ProRes 422:
4096 x 2160 up to 29.97 fps
2048 x 1080 up to 120 fps
ProRes 422LT:
4098 x 2160 up to 29.97 fps
2048 x 1080 up to 120 fps | | Audio Recording | 4-Channel 24-Bit 48 kHz | | | | Video Connectors | None | | Audio Connectors | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 85% | | | | Accessory Mount | 17 x 1/4"-20 Females | | Tripod Mounting Thread | 1/4"-20 Female, 3/8"-16 Female | | Material of Construction | Carbon Fiber | | Dimensions | 5.66 x 4.94 x 3.74" / 143.85 x 125.5 x 95 mm | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 16.25 x 14.0 x 10.5" |
