Product description

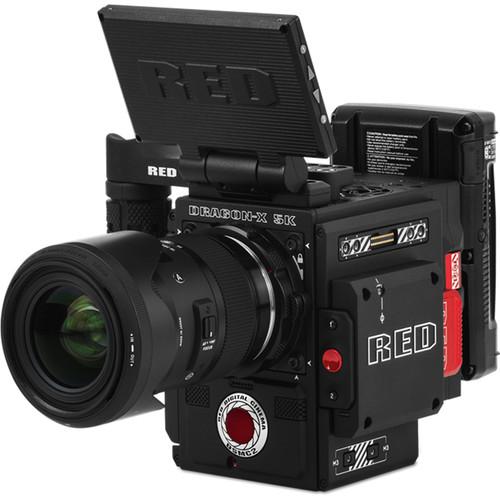

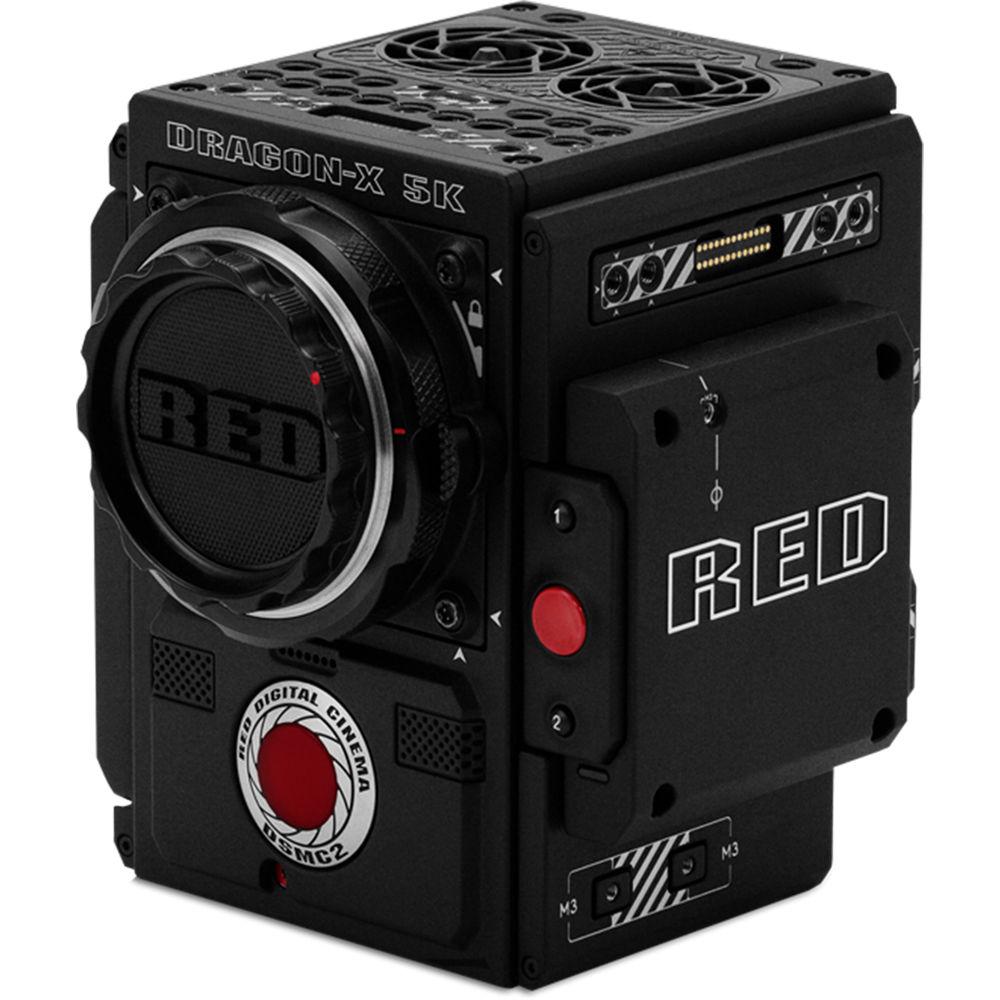

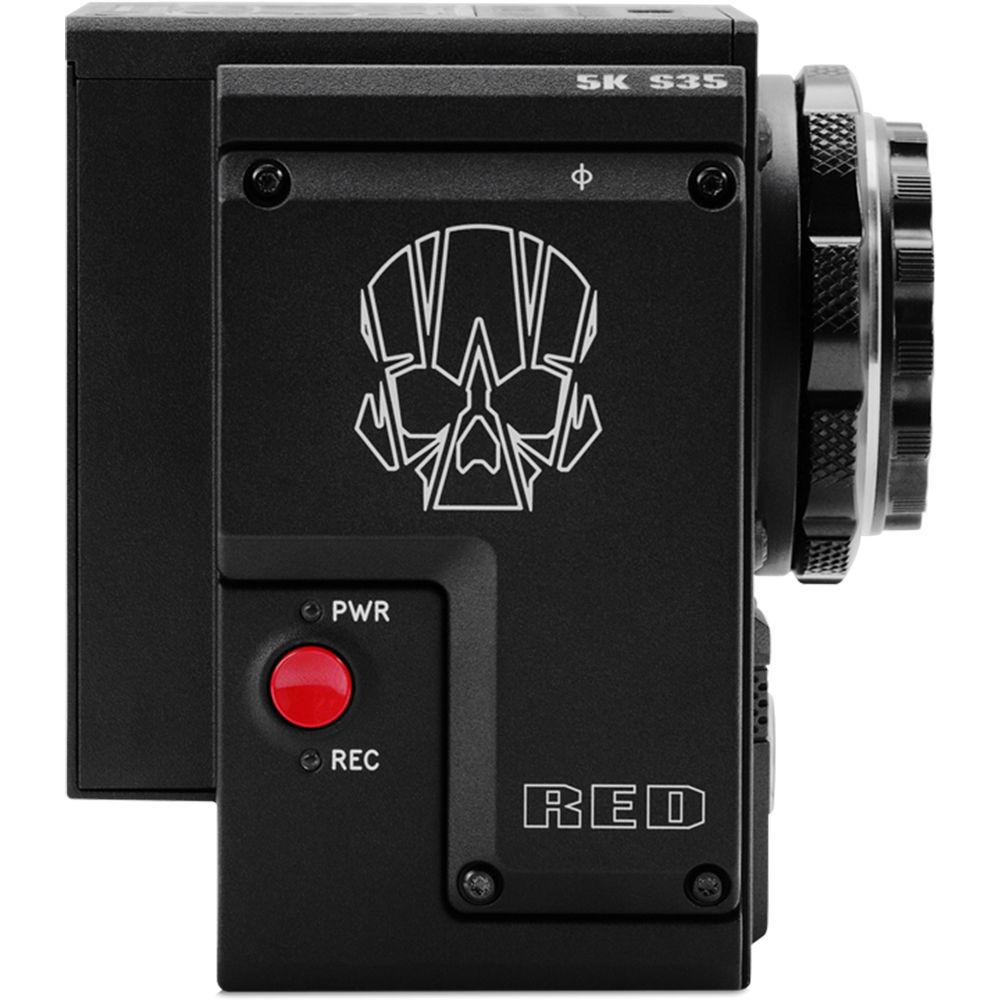

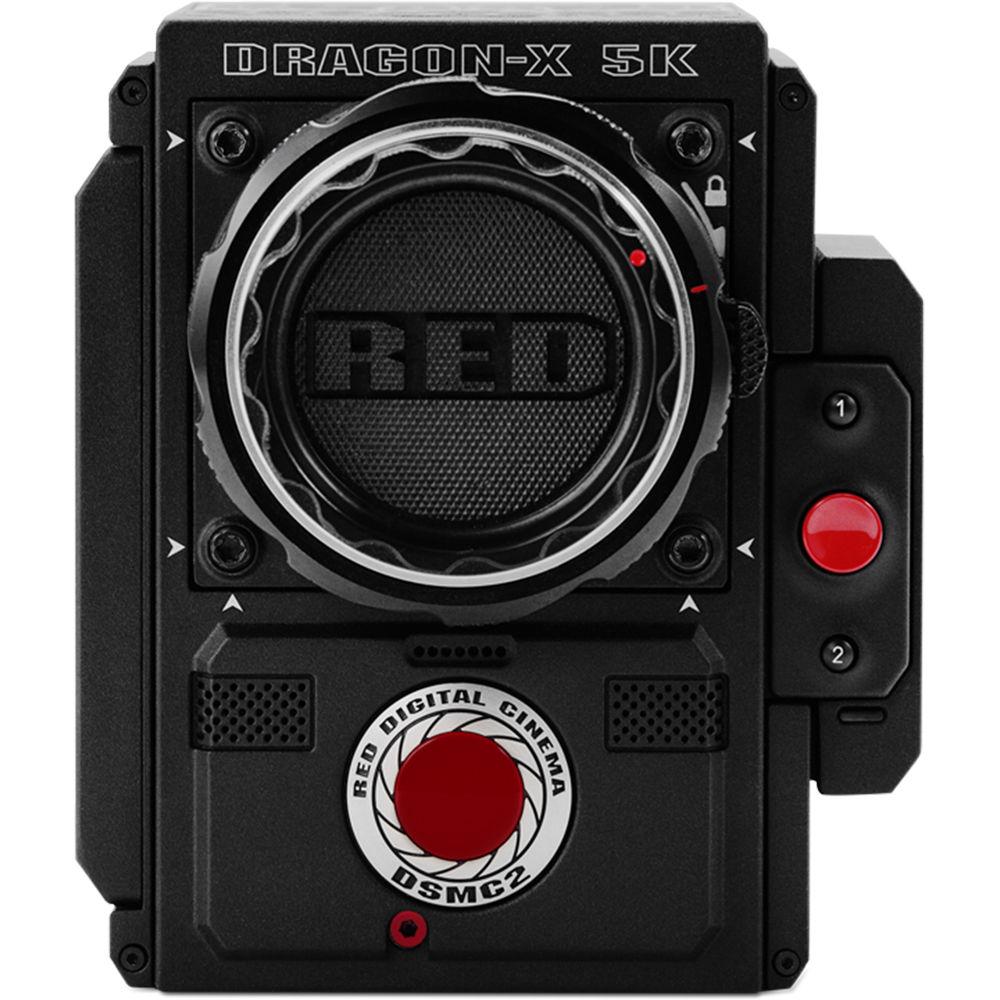

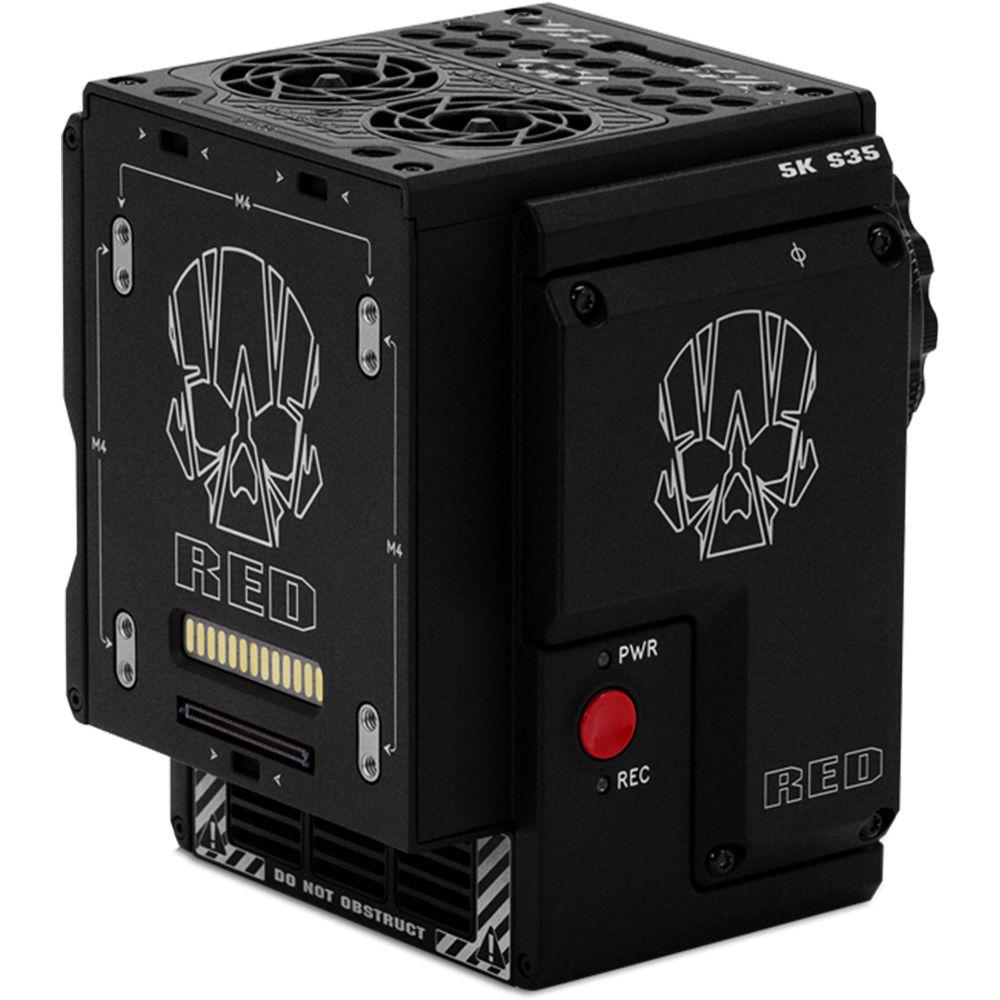

• DSMC2 BRAIN with DRAGON-X 5K S35 Sensor (2018 Unified DSMC2 Lineup) Bundling high performance raw video recording in a compact camera body, the RED DIGITAL CINEMA DSMC2 BRAIN with DRAGON-X 5K S35 Sensor is part of RED's 2018 unified DSMC2 lineup. Nearly limitless lens options are available for the DSMC2 system. While this camera requires a separately available lens mount, DSMC lens mounts themselves are offered in different varieties for compatibility with a wide array of lens systems.

  REDCODE RAW is the format of choice for DSMC2 cameras. RED's versatile raw codec uses wavelet compression to reduce data rates while maintaining a visually lossless image rendering. This efficient codec can be edited on many available NLE software programs without transcoding, though if you prefer you can record to ProRes or DNx as well. Lowering the recording resolution allows the sensor to capture higher frame rates for dramatic slow-motion footage. The DSMC2 cameras use sensor windowing to record slow motion in lower resolutions, requiring wider or smaller-format lenses to compensate for the additional crop. Recording rates range from 12 fps and up, including 24/25/30/48/50/60 fps and higher.
  DRAGON-X 5K S35 Sensor
  • The DRAGON-X 5K Super 35mm sensor is a 13.8MP CMOS sensor that features a dynamic range of 16.5+ stops and a resolution of 5120 x 2700.
  REDCODE RAW
  • The cornerstone of RED's workflow is the robust REDCODE RAW file format. Using wavelet compression with ratios ranging from 2:1 to 22:1, REDCODE RAW offers the versatility of raw files without the overwhelming storage requirements of uncompressed image data. Since REDCODE RAW has been around since the days of the RED ONE cinema camera, many common NLE software programs including Adobe Premiere Pro, Blackmagic Design DaVinci Resolve, Apple Final Cut Pro, and Avid Media Composer can import and edit REDCODE RAW footage without transcoding, saving production time in the edit suite. Capture rates range from 12 fps and up, including 24/25/30/48/50/60 fps and higher options.Note: Not all compression ratios are available at all resolutions and frame rates
  Apple ProRes and Avid DNx Formats
  • For projects requiring proxy files or quicker turnaround times than raw files permit, Apple ProRes or Avid DNx formats can be recorded at 4K and 2K resolutions directly to the onboard MINI-MAG media. Since these debayered video files can be recorded alongside the raw files, no extra time is required for transcoding the proxies. Bring the debayered files straight into your NLE and begin editing.
  DSMC2 Form Factor
  • Like the preceding DSMC cameras, RED designed the DSMC2 camera line to be modular to fit a wide range of production workflows. Smaller and lighter than the original DSMC design, when stripped down to the BRAIN itself, you have a high-resolution gimbal workhorse. Likewise, add DSMC2 modules to the rear to gain professional I/O connections and battery power. Many other parts of the DSMC2 design are meant to be interchangeable. Swap out the lens mounts to open up new libraries of lenses. Exchange the included standard OLPF (Optical Low-Pass Filter) for alternative image renderings at the sensor level. Mount an EVF without cables that can get snagged, or use a separately available adapter to attach RED LCDs via LEMO cable. Since the DSMC2 form factor is standardized, any accessories that you have for this DSMC2 body will work with any other DSMC2 body, should you upgrade or acquire an additional body in the future.
  Color Management
  • Supports 33x33x33, 32x32x32, 26x26x26, and 17x17x17 3D LUTs
    Variable number of 3D LUT outputs with DSMC2 expander module
    User-programmable shaper 1D LUTs
    Tetrahedral interpolation, 16-bit processing
  UPC: 856672007348
• 18-35mm f/1.8 DC HSM Art Lens for Canon EF The Canon EF-mount Sigma 18-35mm f/1.8 DC HSM Art Lens is a wide-angle to normal-length zoom that features a fast, bright constant f/1.8 maximum aperture. It is specifically designed for use with APS-C-sized sensors and provides a 35mm-equivalent focal length range of 28.8-56mm.

  The lens integrates four aspherical elements into its construction as well as five Special Low Dispersion (SLD) glass elements to help minimize various aberrations and distortions throughout the zoom range as well as provide greater image sharpness and clarity. A Super Multi-Layer Coating has also been applied to lens elements to reduce surface reflections, lens flare, and ghosting to produce images with higher contrast and color fidelity. The lens barrel design is constructed from a Thermally Stable Composite (TSC) material that is akin to metal in texture and resistance to temperature and environmental changes while also remaining lightweight and compact. An internal focusing and zooming mechanism also helps to maintain a compact and consistent overall length and non-rotating front ring also better enables the use of circular polarizing filters. For control of focus, a Hyper Sonic Motor (HSM) is used to ensure fast, precise, and quiet focusing capabilities that are well suited to continuous shooting and movie recording.

  For updating lens firmware and fine-tuning its nuances to best suit your personal shooting, this lens is compatible with the Sigma USB Dock. The dock allows you to specify certain parameters and other settings through the Sigma Optimization Pro software, such as AF speed and focusing limitations.
  Art Lens Line
  • This lens is part of Sigma's Art line; deeming it well-suited to creative image making due to its large, constant f/1.8 maximum aperture and ability to produce aesthetic bokeh by way of a nine-blade circular diaphragm. The range of focal lengths it covers, from wide-angle to normal-length, is nicely situated for everyday and artistic shooting applications.
  Optimized Lens Design
  • Four aspherical lens elements, as well as the incorporation of five SLD glass elements, help to minimize the appearance of distortions and aberrations throughout the zoom range and provide clear imagery with enhanced sharpness. A Super Multi-Layer Coating also benefits the image quality by reducing reflections and flare and contributing to greater overall contrast and fidelity.
  Hyper Sonic AF Motor
  • The Hyper Sonic Motor provides fast, quiet, and smooth auto focusing that is well-suited for use with video applications. This AF motor can also be manually overridden at any time by rotating the focusing ring, giving you the ability to fine-tune image sharpness through manual focusing.
  USB Dock
  • Compatible with Sigma's USB Dock and Sigma Optimization Pro software for fine-tuning your lens' performance, updating its firmware, and better suiting it to your needs.
  Other Lens Features
  • • Constructed using a TSC compound material, this lens is lightweight while also exhibiting notable durability and resistance to environmental changes.
    • An internal focusing and zooming mechanism helps to maintain a consistent overall lens length and a non-rotating front ring facilitates more efficient use of circular polarizers.
  UPC: 085126210540
• DSMC Canon Mount (Aluminum) This aluminum RED Digital Cinema DSMC Canon Mount attaches to your DSMC or DSMC2 camera brain providing an EF/EF-S compatible lens port for your camera. Dual locking rings secure your lens in the mount, minimizing play. The mount features captive screws, so you don't have to worry about accidentally dropping a screw into the sensor cavity. The mount supports electronic communication between the lens and the camera, although not all functions may be supported. RED DSMC mounts are designed to be swapped without requiring a backfocus adjustment.
  • This lens mount is made from aluminum for a balance between weight and strength
  • Autofocus support available for select EF lenses
  • Electronic iris control available for select EF and EF-S compatible lenses
  • Touch focus enabled for select lenses
  UPC: 856672007362
• DSMC2 V-LOCK I/O Expander More than just a way to power your camera, the RED DSMC2 V-LOCK I/O Expander provides a variety of input/output connections in addition to a V-Lock mount for your DSMC2 camera. The Expander is made from magnesium, so it is lightweight yet strong. It enables powering your camera from a V-Mount battery or by an alternate DC source via cable, and you can set it to automatically boot your camera up once power is connected. It provides both 3G-SDI and HDMI outputs, as well as control and sync outputs.

  Built-in USB and auxiliary power outputs enable powering accessories and limiting the number of power splitter and converter boxes hanging from your camera. Audio is not forgotten by RED, and the Expander features both an analog stereo input and a stereo headphone jack. It is compatible with the WEAPON 8K S35, WEAPON 6K, as well as the EPIC/SCARLET-W, and the RAVEN.
  Auto Boot-Up on Power-On
  • The Expander features a physical switch that allows you to enable the camera to automatically boot up when power is applied. This is a useful feature for when the camera is in a difficult-to-access position.
  Firmware
  • Since the V-Lock I/O Expander communicates with your camera, and allows electronic signals and video output, it requires that your DSMC2 camera has firmware v6.2.17 or later installed.
  • The Expander simplifies your power and output situation when shooting, and can be removed if you want your camera to have a smaller profile for stash-cam, gimbal, or drone shooting.
• Touch 4.7" LCD for Select DSMC2 RED Cameras Designed for cable-free mounting to select DSMC2 RED cameras, the RED DIGITAL CINEMA Touch 4.7" LCD features 1280 x 720 resolution. The design of the LCD provides good off-axis viewing up to 160°, with 80° left, right, up, or down so you don't have to be directly aligned with the viewfinder to see an optimal image. The LCD features multi-touch control, with hard navigation buttons on the side.

  With a brightness level of 400 cd/m² and contrast ration of 1000:1 providing a clear image, the RED Touch LCD mounts directly to your camera without any cables needed between the LCD and your camera. It can mount directly onto DSMC2 cameras including the WEAPON 8K S35, WEAPON 6K, EPIC/SCARLET-W, EPIC/SCARLET M-X, EPIC/SCARLET DRAGON, and the RED RAVEN. A built-in mirror and image flip allow for monitoring while upside down for special applications.
  • The LCD is designed to mount directly to select cameras for cable-free operation.
  • Used in conjunction with the optional DSMC2 LEMO Adapter Collection, you can mount your DSMC2 display away from the camera body.
  • The built-in hinge provides up to 240° of tilt—90° forward and 150° back—which allows the LCD to fold flat on your camera.
  • You can use an optional DSMC2 LEMO Adapter B to mount the LCD to RED EPIC or RED SCARLET cameras.
  UPC: 856672007393
• DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port The IDX DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 96Wh of capacity to power your professional devices. It is well suited for handheld gimbal and aerial applications, as well as run-and-gun productions where size and weight can become an issue. Battery data information displays in most camera's viewfinders.

  The DUO-C98 can handle a combined load of up to 10A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
  Key Features
  • • Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
    • The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
    • Handles up to 10A loads
    • Two unregulated D-tap accessory outputs at 50W each
    • USB port
    • Battery circuit protection
    • 5-LED battery life indicator
    • Fully compatible with all IDX Endura V-mount chargers
  UPC: 825781012994
• VL-2X 2-Channel V-Mount Charger & Power Supply The IDX VL-2X 2-Channel V-Mount Charger & Power Supply supports lithium-ion and NiCad batteries and features three modes of operation. Charger mode provides sequential charging, automatically switching to the second battery after fully charging the first. It delivers up to 2.7A of quick-charge current without the noise of a typical charger thanks to a fanless design. Power Supply mode offers up to 36W of DC power via a 4-pin XLR output. Power Base mode allows you to power the XLR output off of attached batteries, without having to connect the charger to a power outlet. The three modes can only be used independently.

  This portable desktop charger is designed with reliable internal safety features that protect both the battery and charger from damage should faulty or misused batteries be placed on the charger. It will automatically stop charging if any attached battery reaches an overvoltage condition.
  Charge Times for Select IDX Batteries
  • DUO-C190:
    7 hours for one / 14 hours for two

    DUO-150:
    5 hours for one / 10 hours for two

    CUE-D150:
    5 hours for one / 10 hours for two

    ELITE:
    4.5 hours for one / 9.4 hours for two

    E-HL10DS:
    3.4 hours for one / 7.2 hours for two

    DUO-C95:
    3.4 hours for one / 7.2 hours for two

    DUO-95:
    3.3 hours for one / 7 hours for two

    CUE-D95:
    3.3 hours for one / 7 hours for two

    E-HL9:
    3.2 hours for one / 6.4 hours for two

    CUE-D75:
    3 hours for one / 6 hours for two

    NP-L7S:
    3 hours for one / 6 hours for two
  UPC: 825781012918
• ev|Series Reader RED MINI-MAG Edition Simplify your RED workflow with G-Technology's ev|Series Reader RED MINI-MAG Edition. This card reader accepts RED's proprietary MINI-MAG SSDs and can connect them to a computer and offer quick upload via USB 3.0 or be integrated into your existing G-Technology Evolution workflow through the SATA connection. UPC: 705487200768
• RED MINI-MAG (480GB) This RED DIGITAL CINEMA RED MINI-MAG has a capacity of 480GB, is compatible with most RED cameras (may require SSD module), and on select cameras can attain write speeds as high as 300 MB/s. The RED MINI-MAG can support simultaneous R3D and Apple ProRes recording, when used with DSMC2 camera systems.
  • RED MINI-MAGs are encased in aluminum and offer a compact form factor
  • Compatible with DSMC2 camera systems, the RED MINI-MAGs require a RED MINI-MAG Side SSD Module for use with your RED EPIC or SCARLET BRAIN. The RED MINI-MAG system requires that your DSMC is on firmware v5.1.34 or later.
  Maximum Data Rates
  • WEAPON DRAGON (Carbon Fiber): up to 300 MB/s
    WEAPON DRAGON (Magnesium): up to 225 MB/s
    EPIC DRAGON: up to 200 MB/s
    SCARLET DRAGON: up to 72 MB/s
    SCARLET-W and RAVEN DRAGON: up to 140 MB/s
  UPC: 856672007058
• DSMC2 Outrigger Handle The RED Digital Cinema DSMC2 Outrigger Handle mounts to your camera's DSMC2 Top Handle Port, giving you a secure support handle while gripping the camera with one hand, leaving your other hand free for lens adjustments. This handle features an integrated start/stop trigger button in an ergonomically molded grip. Secured to your camera via two cap head Allen head screws, the handles integrated electronic connectors create a cable-free connection. The handle also incorporates fourteen 1/4"-20 threaded accessory mounting holes along the top.
  • Ergonomic handle with the word RED molded into the grip
  • Fourteen 1/4"-20 threaded accessory mounting holes
  • Integrated start/stop trigger button
  • Please note that only one handle at a time may be attached to the DSMC2 Top Handle Port

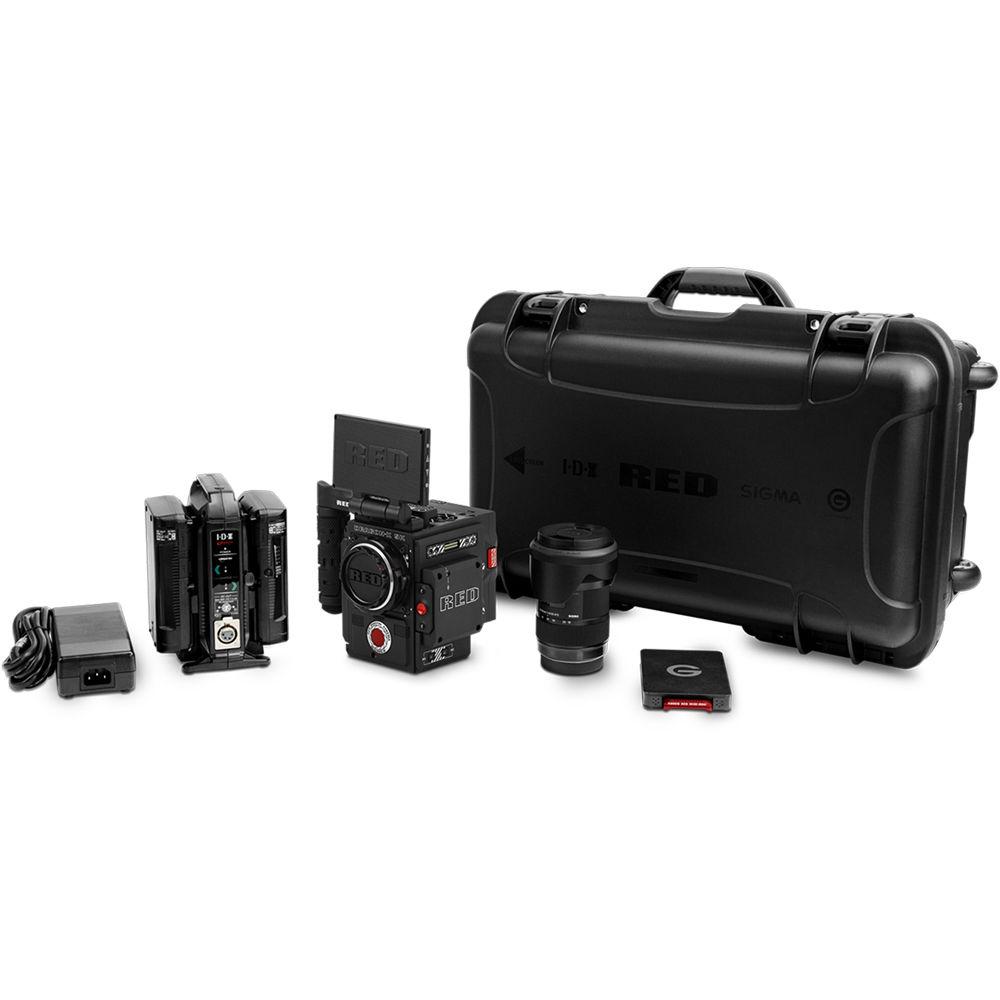

• Hard Case for DSCM2 Camera Package (Black) The RED DIGITAL CINEMA Hard Case for DSCM2 Camera Package, in black, features custom-cut foam that holds your DSCM2 with mounted Lens Port, DSMC2 Jetpack Expander or V-Lock I/O Expander, and Sidekick or Sidekick Cover. The foam is also cut to accept the RED Touch 4.7" LCD, an Outrigger Handle, Universal Handle, two MINI-MAGs, three DSMC2 OLPFs or a DSMC Battery Belt Clip, a 150W DSMC AC Power Adapter, and a T20 RED TORX L-Key. Please note that this is just the case and the foam; no other items are included.

  The case is rated at IP67 for dust and water resistance. Integrated wheels create a gliding experience when rolling. A retractable two-stage handle extends from the case, allowing you to comfortably roll it. The spring-loaded top handle easily pulls up, and then snaps out of the way when released. An integrated pressure equalization valve equalizes the pressure differential between the interior of the case and outside air.
  • This case neatly holds the following components:
    1 x DSMC2 BRAIN with Integrated Media Bay and the following items attached:
    • DSMC Lens Mount
    • DSMC2 Jetpack Expander or DSMC2 V-Lock I/O Expander
    • DSMC2 Sidekick or DSMC2 Sidekick Cover
    1 x DSMC2 RED Touch 4.7" LCD
    1 x DSMC2 Outrigger Handle
    1 x DSMC2 Universal Handle
    2 x RED MINI-MAG
    3 x DSMC2 OLPFs or 1 x DSMC Battery Belt Clip
    1 x DSMC AC Power Adapter (150W)
    1 x RED TORX L-Key T20

• DSMC2 Standard Optical Low-Pass Filter

• Case for DSMC2 Camera BRAIN

• DSMC Front Body Cap

• DSMC AC Power Adapter

• 3" Professional Logo Sticker

• Torx L-Key T20 Wrench

• Hex Wrench (3/16")

• Mini World Travel Adapter Kit

• OLPF Case

• Limited 2-Year Warranty

• Petal-Type Lens Hood

• Front Lens Cap

• Rear Lens Cap

• Pouch

• Limited 1-Year Warranty

• Limited 3-Year U.S.A. Extended Warranty Extension Against Manufacturing and Workmanship Defects.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• 60W AC Power Supply (North American)

• Limited 2-Year Warranty

• USB 3.0 Cable

• Limited 3-Year Warranty (US Only)

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• RED Microfiber Bag (Medium)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DSMC2 BRAIN with DRAGON-X 5K S35 Sensor (2018 Unified DSMC2 Lineup)

  Image Sensor Size	25.6 x 13.5 mm (Super35)
  Sensor Type	CMOS
  Sensor Resolution	5120 x 2700 (15.36 MP)
  Color Filter	Bayer
  Shutter Type	Rolling Shutter
  Advertised Dynamic Range	16.5 Stops

  Lens Mount	None
  Lens Communication	Yes
  Built-In ND Filter	None
  Built-In Microphone Type	Stereo
  Recording Media	1 x RED MINI-MAG Card Slot

  Raw Recording	REDCODE RAW: 5120 x 2700 at 96 fps 4096 x 2160 at 120 fps 3072 x 1620 at 150 fps 2048 x 1080 at 240 fps
  Recording Modes	ProRes 4444XQ: 2048 x 1080 up to 120 fps ProRes 4444: 2048 x 1080 up to 120 fps ProRes 422HQ: 4096 x 2160 up to 29.97 fps 2048 x 1080 up to 120 fps ProRes 422: 4096 x 2160 up to 29.97 fps 2048 x 1080 up to 120 fps ProRes 422LT: 4098 x 2160 up to 29.97 fps 2048 x 1080 up to 120 fps
  Audio Recording	4-Channel 24-Bit 48 kHz

  Video Connectors	None
  Audio Connectors	None

  Power Connectors	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 122°F / -20 to 50°C
  Operating Humidity	0 to 85%

  Accessory Mount	17 x 1/4"-20 Females
  Tripod Mounting Thread	1/4"-20, 3/8"-16
  Material of Construction	Aluminum Alloy
  Dimensions	5.66 x 4.94 x 3.74" / 143.85 x 125.5 x 95 mm
  Weight	3.4 lb / 1.5 kg

  Box Dimensions (LxWxH)	14.1 x 12.6 x 12.3"

• 18-35mm f/1.8 DC HSM Art Lens for Canon EF

  Focal Length	18 to 35mm (35mm Equivalent Focal Length: 28.8 to 56mm)
  Maximum Aperture	f/1.8
  Minimum Aperture	f/16
  Lens Mount	Canon EF
  Format Compatibility	APS-C
  Angle of View	73.8 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 51 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
