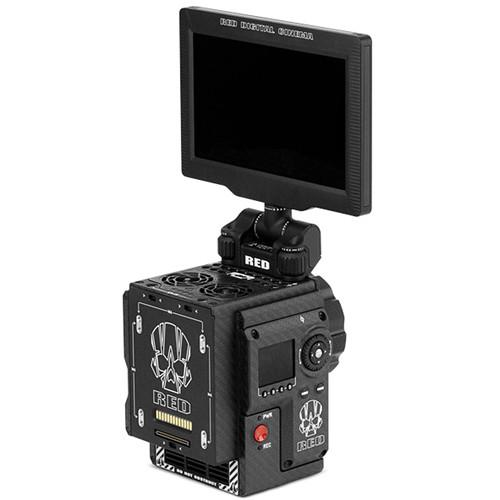

User Manual for RED DIGITAL CINEMA DSMC2 Drone Gimbal Accessory Package Click to enlarge the picture
Contents of the user manual for the RED DIGITAL CINEMA DSMC2 Drone Gimbal
- Product category: Camcorder Accessories RED DIGITAL CINEMA
- Brand: RED DIGITAL CINEMA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RED DIGITAL CINEMA Camcorder Accessories
|
User manual for the RED DIGITAL CINEMA DSMC2 Drone Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RED DIGITAL CINEMA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RED DIGITAL CINEMA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RED DIGITAL CINEMA product will considerably shorten its lifespan!
|

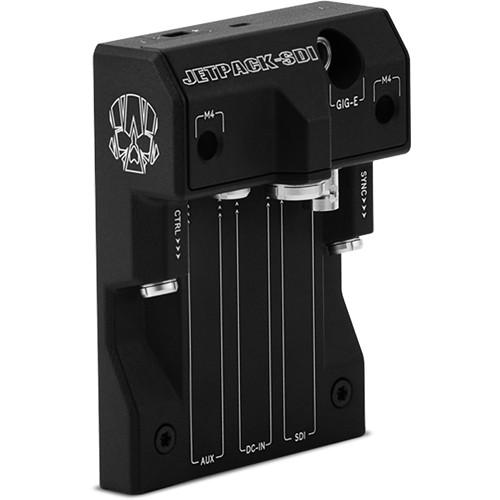

Product description With the RED DIGITAL CINEMA DSMC2 Drone/Gimbal Accessory Package, you can kit out your DSMC2 camera while keeping it light and low-profile enough to be flown as payload on a drone or part of a gimbal setup. The Jetpack-SDI Expander features connections for power, video, control, and Ethernet. All connections route the cables downwards from the back of the camera to keep a short camera profile. The included 7" monitor can be used to control the camera, and with the inclusion of the DSMC2 LEMO adapters, can be mounted away from the camera. For power, this kit includes a RED BRICK V-mount battery pack with charger and a Battery Belt Clip for V-mount batteries. Also included: a RED STATION MINI-MAG Reader for quick transfer of video recordings, and a Work Mat surface to keep your components organized and in good condition during assembly. See below for more details on the individual items included in this kit. - RED DIGITAL CINEMA DSMC2 Jetpack Expander (SDI) This RED DIGITAL CINEMA DSMC2 Jetpack Expander module attaches to your RED camera BRAIN providing output interfaces. Made from magnesium, this Expander module is extremely light and strong. Its main purpose is to provide a DC power connection and an SDI output for monitoring or recording from your RED camera; however, it also incorporates a Gigabit Ethernet connection for streaming high-quality footage. In addition to 3G-SDI and Gigabit Ethernet, the Expander also provides DC power in, AUX power, Sync, and CTRL connections. All connections are downward-facing to reduce the footprint when the camera is mounted on a gimbal or other stabilizer, for easier balancing when using larger lenses.

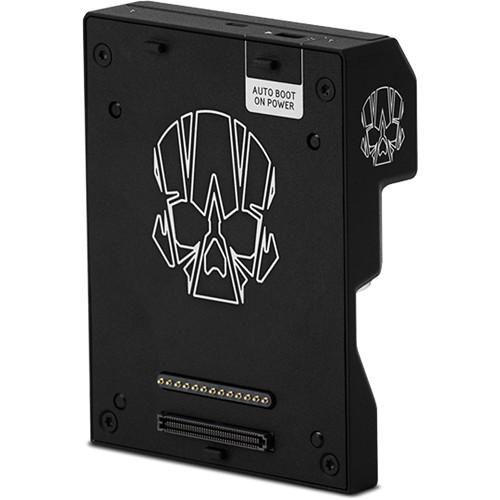

In addition to the output connections, the Jetpack Expander enables you to boot your camera automatically when power is provided to the Expander's DC-in port. This is a useful feature for when the camera is set up in a difficult-to-access location, and you can boot the camera merely by connecting its power cord to an appropriate power source. This Expander module works with DSMC2 camera bodies running firmware version 6.3 or later. - The Jetpack Expander mounts on your camera using four captive screws. It connects using the 13-pin pogo connector for power and a 40-pin I/O connector for communication, data, and video.
- Incorporates robust industry standard connectors for 3G-SDI, Gigabit Ethernet, DC-in, AUX power, Sync (genlock in, timecode in, and sync in), and CTRL (tally out, RS-232 RX/TX) functions. The Expander module is built to withstand the rigors of the production day.
- Automatically boot your camera from a remote location by powering it through the Expander module's DC-in port. The control for this functionality is an on/off slider switch, and it enables you to power the camera on from a distance instead of having to manually access and boot it.

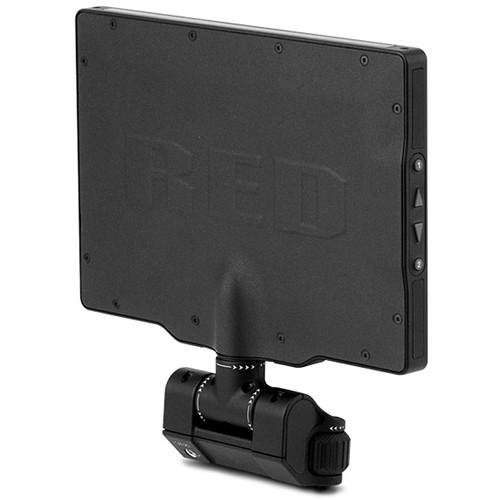

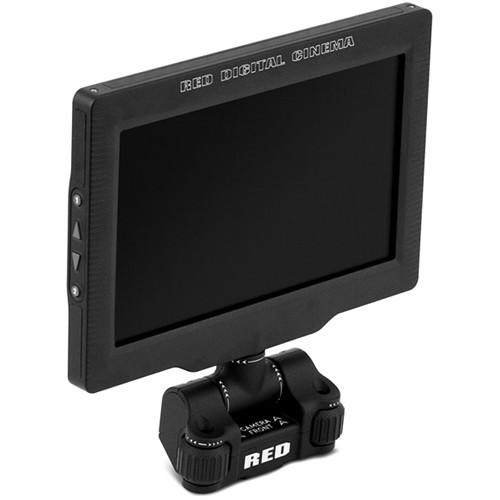

UPC: 856672007249 - RED DIGITAL CINEMA Touch 7.0" LCD for Select DSMC2 RED Cameras (Aluminum) Designed for cable-free mounting to select DSMC2 RED cameras, the RED DIGITAL CINEMA Touch 7.0" LCD (Aluminum) features 1920 x 1136 resolution. The design of the LCD provides good off-axis viewing up to 170°, with 85° left, right, up, or down so you don't have to be directly aligned with the viewfinder to see an optimal image. The LCD features multi-touch control, with hard navigation buttons on the side.
With a brightness level of 350 cd/m² and contrast ration of 1000:1 providing a clear image, the RED Touch LCD mounts directly to your camera without any cables needed between the LCD and your camera. It can mount directly onto DSMC2 cameras including the WEAPON 8K S35, WEAPON 6K, EPIC/SCARLET-W, EPIC/SCARLET M-X, EPIC/SCARLET DRAGON, and the RED RAVEN. A built-in mirror and image flip allow for monitoring while upside down for special applications. - The LCD is designed to mount directly to select cameras for cable-free operation.
- Used in conjunction with the optional DSMC2 LEMO Adapter Collection, you can mount your DSMC2 display away from the camera body.
- The built-in hinge provides up to 180° of tilt—90° forward and 90° back—which allows the LCD to fold flat on your camera. The hinge also enables rotating the display 180°.
- You can use an optional DSMC2 LEMO Adapter B to mount the LCD to RED EPIC or RED SCARLET cameras.

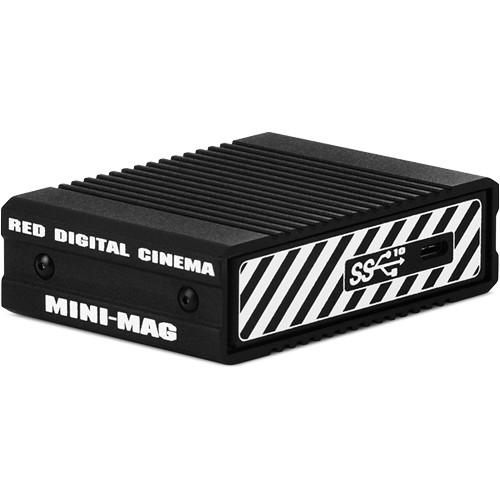

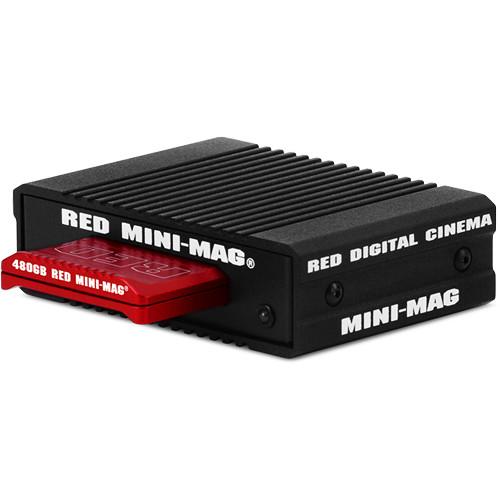

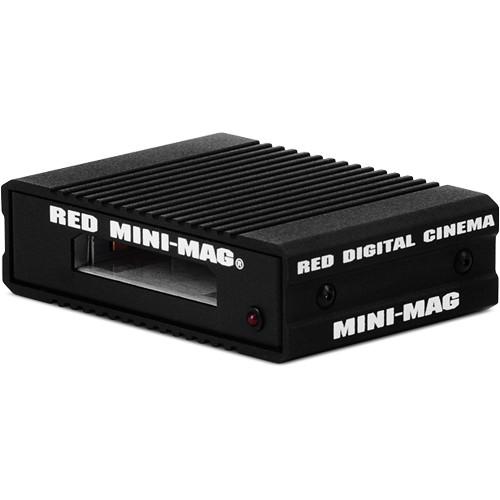

- RED DIGITAL CINEMA RED STATION RED MINI-MAG (USB 3.1) Designed with the sole purpose of offloading data from your RED MINI-MAG SSD media, the RED STATION RED MINI-MAG supports USB 3.1 protocols and allows you to transfer files to your computer at up to 10 Gbps. Sleek, compact, and durable, the unit takes up little desktop room and its small size provides more possibilities for fitting it into cases. It includes one each of a USB Type-C, and a USB Type-C to Type-A cable. UPC: 856672007041

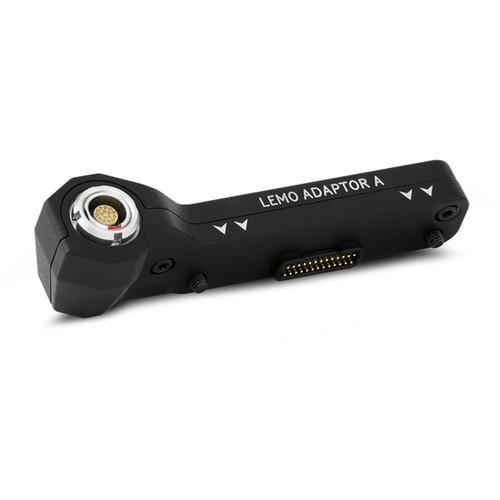

- RED DIGITAL CINEMA DSMC2 LEMO Adapter A This RED Digital Cinema DSMC2 LEMO Adapter A mounts to your RED BRAIN and creates a 16-pin LEMO port compatible with RED Touch and RED Pro Touch displays, as well as RED EVFs, so you can use your legacy viewfinder with your DSMC2 camera. It mounts securely to your camera with captive screws, and features two 1/4"-20 threaded accessory holes.
- Enables mounting of RED Touch and Pro displays, and the RED BOMB EVF—both LCoS and OLED.
- Using the DSMC2 LEMO Adapter A in conjunction with an optional DSMC2 LEMO Adapter B enables mounting the DSMC2 RED Touch 7" or 4.7" LCD off the camera, when used with an optional extension cable.
UPC: 856672007072 - RED DIGITAL CINEMA RED ARM (9") This 9" long RED ARM mounts to your camera via the 1/4"-20 threaded mounting studs. It features a single spring-loaded locking lever that loosens or tightens the central pivot, as well as the ball joints at each end of the arm.
- RED DIGITAL CINEMA RED WORK MAT (18 x 24") The RED Digital Cinema RED WORK MAT is a portable flexible non-slip surface for building your camera or for use on a DIT cart. It provides a clean surface to work on and at 18 x 24", it is large enough for you to place your camera's components on during set up or break down. When you are done, the mat is flexible enough that you can just roll it up for storage.
- RED DIGITAL CINEMA DSMC Battery Belt Clip Especially useful when shooting in lightweight handheld configurations, the RED Digital Cinema DSMC Battery Belt Clip enables you to power your camera from approximately 5.5' away. This allows you to mount the battery to your belt so you are not carrying the weight of the battery directly on your camera. Designed for RED Digital Cinema brick batteries, it features a V-Mount connector and supports V-Mount batteries.
The power cable terminates in a 6-pin LEMO 1B connector. The battery belt clip incorporates a D-Tap connector for powering accessories from a single battery. Please note there is a 70W limit on the power draw through the D-Tap connector. - The attached 1B power cable allows you to plug directly into a DSMC or DSMC2 camera without the use of a 2B-TO-1B power adapter cable
- the built-in D-Tap connector supports power draws up to 70W
UPC: 856672007195 - RED DIGITAL CINEMA RED BRICK CHARGER The RED DIGITAL CINEMA RED BRICK CHARGER enables charging two RED BRICK batteries (not included) simultaneously. It plugs into any standard AC power outlet. This charger can also be used to power any DSMC or DSMC2 camera using an optional 2B to 1B power cable (not included). For those with a RED ONE camera, an optional RED ONE POWER CABLE allows you to use this charger as a power supply for your camera. UPC: 856672007706
- 2 x RED DIGITAL CINEMA RED BRICK Battery This RED Digital Cinema RED BRICK battery has a capacity of 153Wh and can power a RED camera while displaying the full amount of available info in the viewfinder of both DSMC and DSMC2 cameras. It incorporates a push-button activated 5-LED power gauge that indicates roughly the amount of power remaining in the battery. It uses a V-mount battery mount, making it compatible with equipment that uses a V-mount battery system and select DSMC modules. To use the RED BRICK battery on your RED camera, the camera must have a V-mount, or use a V-mount expander module.
- The RED BRICK battery can be charged up to 80% in 95 minutes, achieving a full charge in 190 minutes.
- Please note that the manufacturer states that the RED BRICK battery requires a RED BRICK Charger to charge.
UPC: 856672007607 In the Box - DSMC2 Jetpack Expander (SDI) ztuwfwecrqbdwevyqerfexssezsrawcv
- Limited 1-Year Warranty
- Touch 7.0" LCD for Select DSMC2 RED Cameras (Aluminum)
- RED STATION RED MINI-MAG (USB 3.1)
- RED ARM (9") ztuwfwecrqbdwevyqerfexssezsrawcv
Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 Drone Gimbal Accessory Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RED DIGITAL CINEMA DSMC2 Jetpack Expander (SDI)
Mounting | To BRAIN: 2 x M4 captive mounting screws | Connections | BRAIN Power: 13-pin pogo connector (rear) Communication: 4 x 40-pin WEAPON Rear I/O Expander DC In: 1 x 6-pin 1B LEMO socket 3G-SDI Out: 1 x BNC (75 Ohm) - 60 Hz max frame rate Gigabit Ethernet: 1 x 9-pin 0B LEMO Aux Power Out: 2-pin 0B LEMO Sync: 4-pin 00B LEMO socket (genlock in/timecode in /sync in) CTRL: 4-pin 00B LEMO socket (tally out/RS-232 RX and TX) | Switches | Auto-Boot Power-On: 2-position slider switch | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Humidity: 0 to 85%, non-condensing Storage Temperature: -4 to 122°F / -20 to 50°C Humidity: 0 to 85%, non-condensing | Dimensions | 4.6 x 3.5 x 1.5" / 11.6 x 9 x 3.7 cm | Weight | 9 oz / 254 g | | Box Dimensions (LxWxH) | 7.6 x 7.5 x 3.8" | - RED DIGITAL CINEMA Touch 7.0" LCD for Select DSMC2 RED Cameras (Aluminum)
Material of Construction | Aluminum | Type | Touchscreen LCD | Resolution | 1920 x 1136 | Contrast Ratio | 1000:1 | Brightness | 350 cd/m² | Pixel Density | 323 PPI | Color Depth | 8-bit RGB, 4:4:4 progressive scan (16.7 million colors) | Colors | 70% NTSC | Viewing Angle | ±85° U/D/L/R | Touch | Projected capacitive (PCAP), multi-touch | Range of Motion | Tilt: +90 to -90° Rotation: +180 to -180° 1/4"-20 threaded hole | Connector | DSMC2 LCD/EVF pogo connector (26-pin) | Mounting | 2 x M4 captive screws | Hood | Mounting: M3x0.5 x 5 mm (max depth) | Power Consumption | 5.5 W | Operating Conditions | Temperature: 32 to 104°F / 0 to 40°C Humidity: 0 to 85% non-condensing | Storage Conditions | Temperature: -4 to 122°F / -20 to 50°C Humidity: 0 to 85% non-condensing | Dimensions | 7.15 x 7.28 x 0.51" / 181.5 x 185 x 13 mm (with hinge) | Weight | 19.4 oz / 549.0 g | | Box Dimensions (LxWxH) | 9.85 x 9.25 x 2.65" | - RED DIGITAL CINEMA RED STATION RED MINI-MAG (USB 3.1)
Connections | 1 x USB 3.1 port 1 x RED MINI-MAG slot | | Box Dimensions (LxWxH) | 9.55 x 5.85 x 2.65" | - RED DIGITAL CINEMA DSMC2 LEMO Adapter A
Material of Construction | Aluminum alloy | Mounting | To BRAIN: 2 x M4 captive mounting screws Accessory: 2 x 1/4"-20 threaded mounting holes | Connections | BRAIN: 1 x DSMC2 LCD/EVF pogo connector (26-pin) LCD/EVF: 1 x 16-pin 1B LEMO socket | Firmware | Works with all DSMC2 firmware | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Humidity: 0 to 85%, non-condensing
Storage Temperature: -4 to 122°F / -20 to 50°C Humidity: 0 to 85%, non-condensing | Dimensions | 1.02 x 4.41 x 1.10" / 2.59 x 11.2 x 2.79 cm | Weight | 2.4 oz / 68 g | | Box Dimensions (LxWxH) | 4.7 x 2.8 x 0.7" | - RED DIGITAL CINEMA RED ARM (9")
Locking Mechanism | Spring-loaded locking lever | Mounting | 2 x 1/4"-20 threaded studs | Length | 9" / 22.86 cm | | Box Dimensions (LxWxH) | 5.9 x 3.5 x 0.2" | - RED DIGITAL CINEMA RED WORK MAT (18 x 24")
Size | 18 x 24" / 45.72 x 60.96 cm | | Box Dimensions (LxWxH) | 12.55 x 10.2 x 3.05" | - RED DIGITAL CINEMA DSMC Battery Belt Clip
Cable Length | 5.50' / 1.68 m (approximately) | Connectors | Battery: V-Mount Camera: 6-pin 1B LEMO | | Box Dimensions (LxWxH) | 8.9 x 5.4 x 2.3" | - RED DIGITAL CINEMA RED BRICK CHARGER
Compatibility | Red Brick batteries DSMC/DSMC2 Cameras (requires RED 2B to 1B LEMO Cable) RED ONE (requires RED ONE DC power cable) | Battery Mount | 2 x V-mount | Auxiliary Output | 13.8 VDC, 100 W (max) | Output Connector | 6-pin 2B LEMO | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 122°F / -20 to 50°C | Dimensions | 10.25 x 3.20 x 5.25" / 26.04 x 8.13 x 13.34 cm | Weight | 2.56 lb / 1.16 kg (approximately) | | Box Dimensions (LxWxH) | 12.8 x 7.7 x 3.7" | - 2 x RED DIGITAL CINEMA RED BRICK Battery
Capacity | 153 Wh | Type | Lithium-Ion | Power | 10.4 Ah | Battery Mount | V-Mount | Compatibility | Charger: RED BRICK Charger | Output Voltage | 14.8 VDC | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Charging Temperature: 32 to 113°F / 0 to 45°C Storage Temperature: -4 to 122°F / -20 to 50°C | Dimensions | 6.5 x 3.5 x 2.1" / 16.4 x 9.0 x 5.2 cm | Weight | 2.29 lb / 1.04 kg | | Box Dimensions (LxWxH) | 8.9 x 5.5 x 2.4" |
