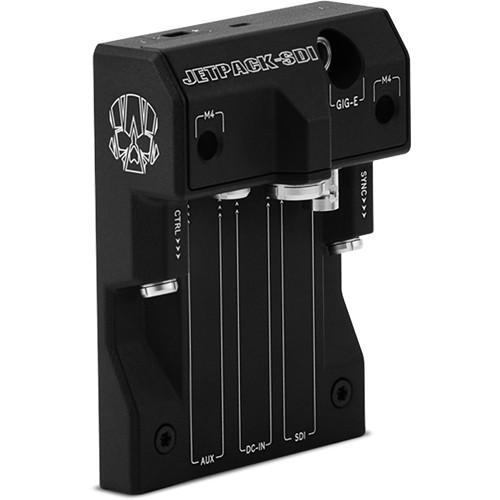

User Manual for RED DIGITAL CINEMA DSMC2 Jetpack Expander Click to enlarge the picture
Contents of the user manual for the RED DIGITAL CINEMA DSMC2 Jetpack Expander
- Product category: Camcorder Accessories RED DIGITAL CINEMA
- Brand: RED DIGITAL CINEMA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RED DIGITAL CINEMA Camcorder Accessories
|
User manual for the RED DIGITAL CINEMA DSMC2 Jetpack Expander contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RED DIGITAL CINEMA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RED DIGITAL CINEMA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RED DIGITAL CINEMA product will considerably shorten its lifespan!
|
Product description This RED DIGITAL CINEMA DSMC2 Jetpack Expander module attaches to your RED camera BRAIN providing output interfaces. Made from magnesium, this Expander module is extremely light and strong. Its main purpose is to provide a DC power connection and an SDI output for monitoring or recording from your RED camera; however, it also incorporates a Gigabit Ethernet connection for streaming high-quality footage. In addition to 3G-SDI and Gigabit Ethernet, the Expander also provides DC power in, AUX power, Sync, and CTRL connections. All connections are downward-facing to reduce the footprint when the camera is mounted on a gimbal or other stabilizer, for easier balancing when using larger lenses.
In addition to the output connections, the Jetpack Expander enables you to boot your camera automatically when power is provided to the Expander's DC-in port. This is a useful feature for when the camera is set up in a difficult-to-access location, and you can boot the camera merely by connecting its power cord to an appropriate power source. This Expander module works with DSMC2 camera bodies running firmware version 6.3 or later. - The Jetpack Expander mounts on your camera using four captive screws. It connects using the 13-pin pogo connector for power and a 40-pin I/O connector for communication, data, and video.
- Incorporates robust industry standard connectors for 3G-SDI, Gigabit Ethernet, DC-in, AUX power, Sync (genlock in, timecode in, and sync in), and CTRL (tally out, RS-232 RX/TX) functions. The Expander module is built to withstand the rigors of the production day.
- Automatically boot your camera from a remote location by powering it through the Expander module's DC-in port. The control for this functionality is an on/off slider switch, and it enables you to power the camera on from a distance instead of having to manually access and boot it.
In the Box RED DIGITAL CINEMA DSMC2 Jetpack Expander (SDI) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 Jetpack Expander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 720-0048 Specs | Mounting | To BRAIN: 2 x M4 captive mounting screws | | Connections | BRAIN
Power: 13-pin pogo connector (rear)
Communication: 4 x 40-pin WEAPON Rear I/O
Expander
DC In: 1 x 6-pin 1B LEMO socket
3G-SDI Out: 1 x BNC (75 Ohm) - 60 Hz max frame rate
Gigabit Ethernet: 1 x 9-pin 0B LEMO
Aux Power Out: 2-pin 0B LEMO
Sync: 4-pin 00B LEMO socket (genlock in/timecode in /sync in)
CTRL: 4-pin 00B LEMO socket (tally out/RS-232 RX and TX) | | Switches | Auto-Boot Power-On: 2-position slider switch | | Environmental | Operating
Temperature: 32 to 104°F / 0 to 40°C
Humidity: 0 to 85%, non-condensing
Storage
Temperature: -4 to 122°F / -20 to 50°C
Humidity: 0 to 85%, non-condensing | | Dimensions | 4.6 x 3.5 x 1.5" / 11.6 x 9 x 3.7 cm | | Weight | 9 oz / 254 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.6 x 7.5 x 3.8" |
