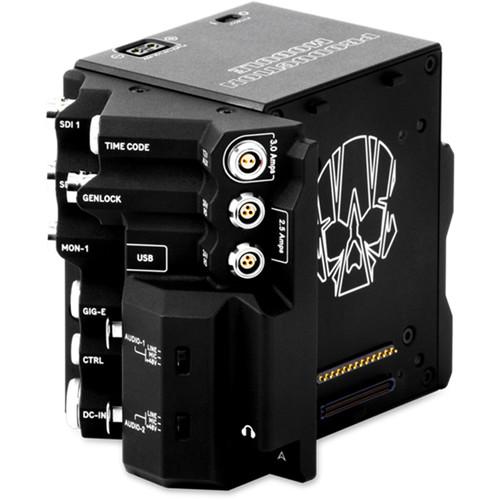

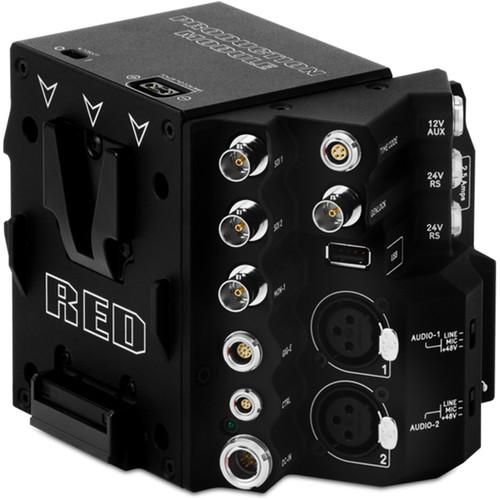

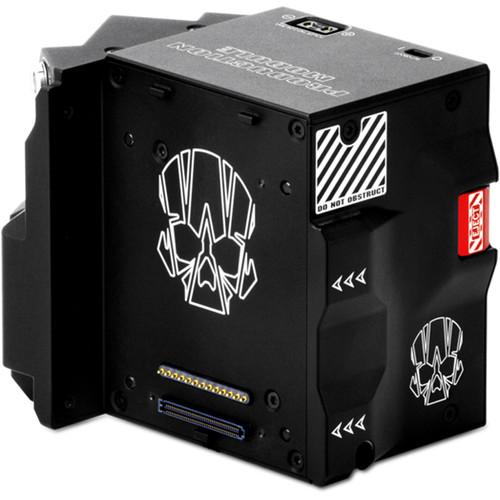

Product description Sporting a wealth of connections and a V-mount battery plate, RED DIGITAL CINEMA's DSMC2 Production Module is designed to complement professional DSMC2 camera configurations. Compatible with DSMC2 firmware 7.2 or later, this module features two 3G-SDI BNC outputs, one BNC monitor output, two 24V R/S ports, and two full-size XLR audio inputs. Additional interfaces include genlock, timecode, GigE Ethernet, and RS-232 connectors for data and control functions. LEMO, D-Tap, and USB ports are also available for powering camera accessories. A 3.5mm headphone jack enables you to monitor audio during recording and playback. Auxiliary Power Connections -
- Two front-facing 3-pin Fischer R/S ports support Remote Start/Stop functionality, and provide 24V power out (up to a combined 2.5A)
- A front-facing 2-pin LEMO auxiliary port provides power out up to 3.0A
- A 2-pin D-Tap connector on the module's top provides power out up to 3.0A
- A rear-facing USB 2.0 port with support for fast charging provides 5V at 1.5A for a powering small mobile device
- DC power in, genlock, timecode, Gig-E and control ports
- Two 3-pin XLR audio ports each offer +48V phantom power

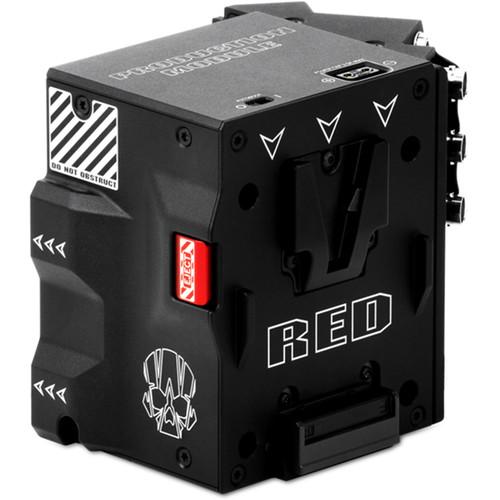

V-Mount Battery Plate - Compatible with a RED BRICK, REDVOLT-V, or other V-Lock battery
Auto-Boot Function - A selector switch enables you to automatically boot your DSMC2 camera using a connected DC power supply when it's mounted remotely or in a difficult-to-reach location
In the Box RED DIGITAL CINEMA DSMC2 Production Module (V-Mount) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 Production Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 720-0054 Specs | Inputs | DC Power: 1 x 6-Pin 1B LEMO
Balanced Audio: 2 x XLR
Genlock: 1 x BNC, 75 Ohms | | Outputs | 3G-SDI: 2 x BNC, 75 Ohms, 60 Hz Max Frame Rate
Monitor Out: 1 x BNC, 75 Ohms, 60 Hz Max Frame Rate
Power Delivery: 1 x 13-Pin Pogo Plate
Aux Power, Remote Start/Stop: 2 x 3-Pin Fischer, 24 V, 2.5 A (Shared)
Aux Power: 1 x 2-Pin 0B LEMO, 3.0 A
Aux Power: 1 x 2-Pin D-Tap, 3.0 A
Stereo Headphone: 1 x 3.5 mm
USB Power: 1 x USB Type-A, 1.5 A | | Other I/O | Timecode I/O: 1 x 5-Pin 0B LEMO
Gigabit Ethernet: 1 x 9-Pin 0B LEMO
Control / Tally Out / RS-232 I/O: 1 x 4-Pin 00 LEMO
Communication: 4 x 40-Pin | | Power On | Auto Boot: 2-Position Slider Switch | | Audio Signal Format | 2-Channel Uncompressed: 24-Bit, 48 kHz | | Audio Inputs | Balanced Line
Balanced Mic (without 48 V Phantom Power)
Balanced Mic (with 48 V Phantom Power) | | Mounting | 4 x M4 Captive Screws | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 122°F / -20 to 50°C
Relative Humidity: 0-85%, Non-Condensing | | Material of Construction | Aluminum Alloy | | Dimensions | 5.38 x 4.57 x 3.42" / 136.7 x 116 x 86.8 mm | | Weight (Approx.) | 2 lb / 907.2 g | | | | Package Weight | 2.775 lb | | Box Dimensions (LxWxH) | 7.7 x 7.4 x 4.8" |
