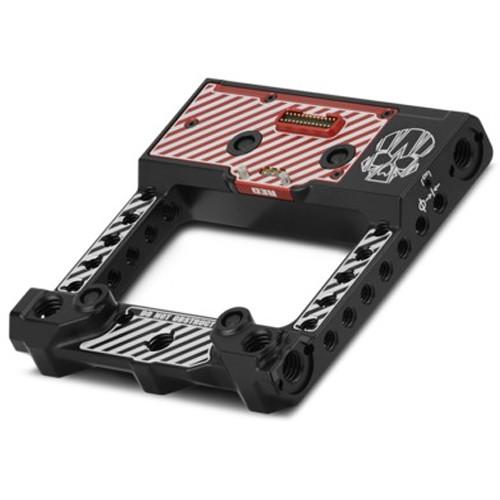

Product description Mount the DSMC2 Tactical Top Plate from RED DIGITAL CINEMA to your DSMC2 BRAIN to create a flat surface for attaching various camera components and accessories. The multiple 1/4"-20 threaded holes can be used with both RED and third-party accessories including DSMC2 battery modules and expanders. The DSMC2 Tactical Top Plate offers multiple start/stop trigger interfaces including a 3-pin pogo connector for mounting a RED "smart" handle and a non-powered 3-pin Fischer port for compatible third-party start/stop triggers. A 16-pin LEMO connector extends the DSMC2 BRAIN's top LCD/EVF interface, enabling the mounting of a RED LEMO-based display without requiring a RED LEMO Adapter A. - Features
-
- Multiple 1/4"-20 and 3/8"-16 threaded mounts for RED or third-party accessories
- Integrated 3-pin pogo, non-powered 3-pin Fischer, and 16-pin LEMO LCD/EVF interfaces
- Creates a flat top surface on your DSMC2 BRAIN
In the Box RED DIGITAL CINEMA DSMC2 Tactical Top Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 Tactical Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 790-0624 Specs | | | Firmware Requirement | DSMC2 firmware v7.0.0 or later | | Threaded Holes | 1/4"-20, 3/8"-16 | | Mounting Configuration | 4 x 1/4"-20 captive screws | | | | Camera Connections | DSMC2 LCD/EVF: 1 x 26-pin pogo connector
DSMC2 Top Handle: 1 x 3-pin pogo connector | | Other Connectors | LCD/EVF Connection: 1 x 16-pin 1B LEMO port
Top Handle Connection: 1 x 3-pin pogo connector
Remote Start/Stop: 1 x 3-pin Fischer port | | | | Material of Construction | Machined 7075 aluminum | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Humidity (Non-Condensing) | Operating & Storage: 0 to 90% | | Dimensions (LxWxH) | 4.53 x 4.02 x 0.77" (115 x 102 x 19.6 mm) | | Weight | 0.6 lb / 283 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.3 x 7.3 x 2.5" |
