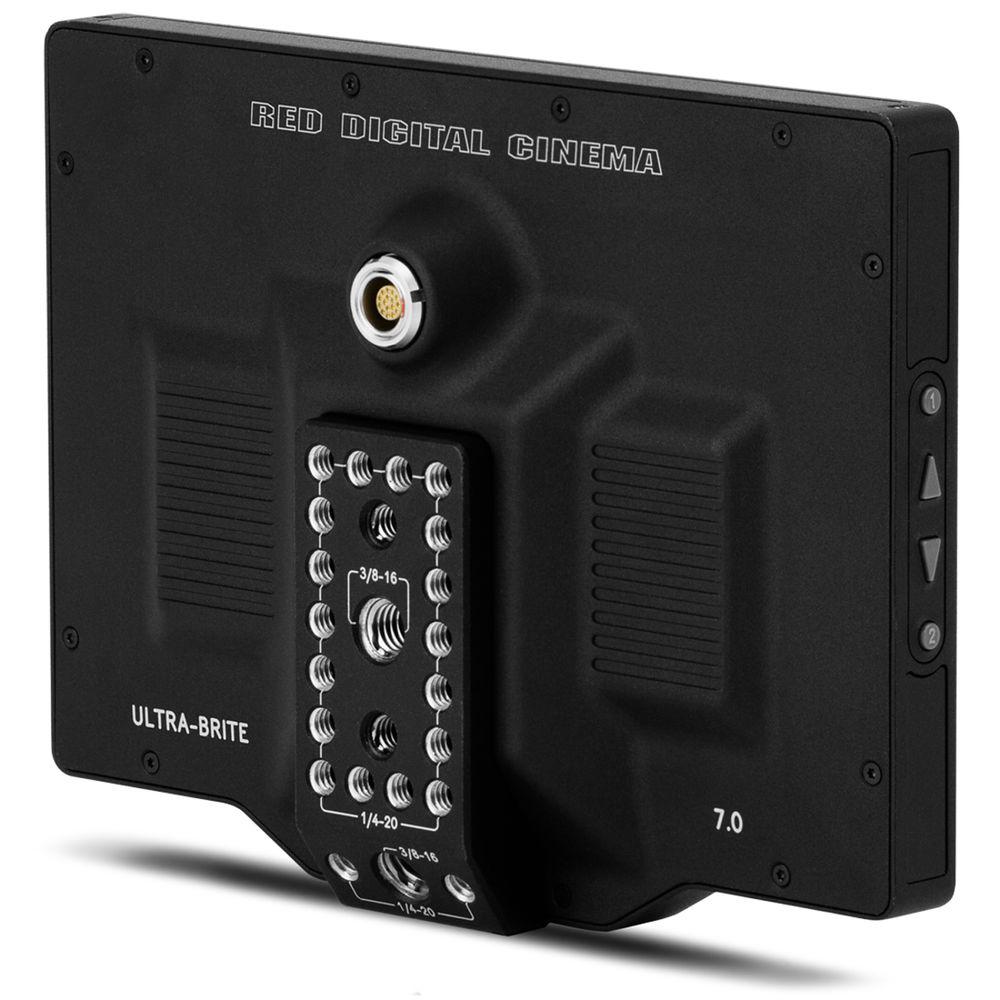

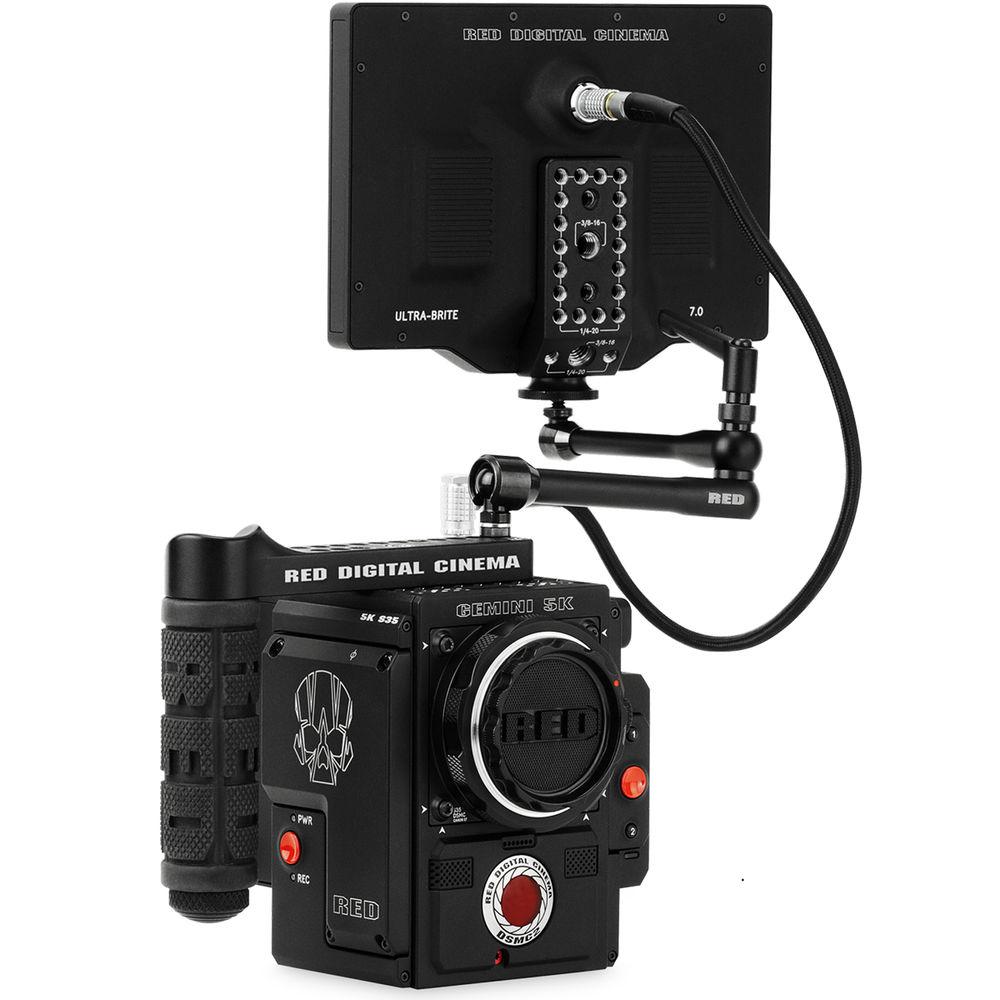

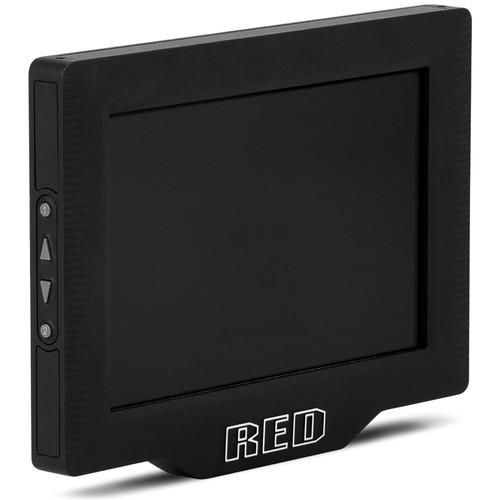

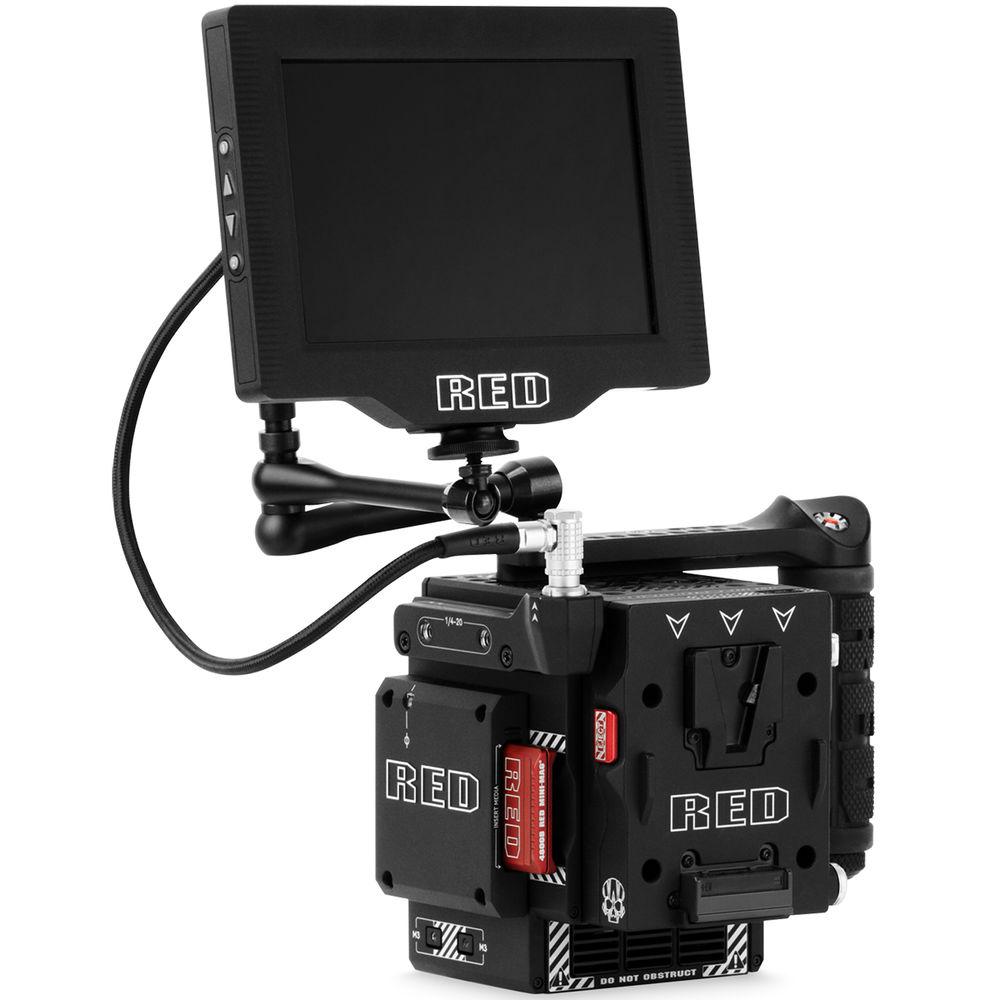

Product description The RED DIGITAL CINEMA DSMC2 Touch 7.0" Ultra-Brite LCD is an on-board monitor featuring daylight viewing, a wide color gamut, and touchscreen control for your DSMC2 camera. A high 323 ppi pixel density, 1200:1 contrast ratio, 1920 x 1200 resolution, and 2200 cd/m2 brightness combine to offer high-quality imaging. Navigate menus and adjust your DSMC2 camera's settings using the robust Gorilla Glass touchscreen. The monitor is designed with a RED 16-pin LEMO connector and multiple 1/4"-20 or 3/8"-16 mounts, providing convenient off-camera monitoring and control for gimbal, crane, and remote operating. The Touch 7.0" Ultra-Brite LCD requires the use of DSMC2 firmware v7.2.0 or later. An 18" LCD/EVF straight-to-right angle cable, a 9" RED articulating arm, and a storage bag are included with the DSMC2 Touch 7.0" Ultra-Brite LCD. Features - Designed for daylight viewing with 323 ppi, 1200:1 contrast, 1920 x 1200 resolution, and 2200 cd/m2 brightness
- 1920 x 1200 resolution and wide 83% NTSC color gamut for optimal imaging
- Robust Gorilla Glass touchscreen enables camera control from the LCD
- Requires DSMC2 firmware v7.2.0 or later
In the Box RED DIGITAL CINEMA DSMC2 Touch 7.0" Ultra-Brite LCD Monitor LCD/EVF Cable (18", Right-to-Straight) RED ARM (9") Large Microfiber Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 Touch 7.0" Ultra-Brite LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 730-0026 Specs | | | Color/Monochrome | Color | | Panel Type | Unspecified LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Viewing Angle | Horizontal: 85°
Vertical: 85° | | Touchscreen | Yes | | Maximum Brightness | 2200 cd/m2 | | Contrast Ratio | 1200:1 | | Refresh Rate | 60 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 323 ppi | | Color Gamut | 83% NTSC | | | | Camera Connection | DSMC2 LEMO | | | | Power Consumption | 6 W (Maximum) | | | | Operating Humidity | 0 to 85% | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Humidity | 0 to 85% | | Storage Temperature | -4 to 122°F / -20 to 50°C | | | | Mounting | 23 x 1/4"-20 Female
2 x 3/8"-16 Female | | Material of Construction | Aluminum | | Dimensions (W x H x D) | 7.7 x 5.7 x 1.4" / 195.58 x 144.78 x 35.56 mm | | Weight | 23.21 oz / 658 g | | | | Package Weight | 3.09 lb | | Box Dimensions (LxWxH) | 9.9 x 8.0 x 4.1" |
