User Manual for RED DIGITAL CINEMA DSMC2 V-Mount Battery Module Click to enlarge the picture
Contents of the user manual for the RED DIGITAL CINEMA DSMC2 V-Mount Battery
- Product category: Battery Mounting Plates RED DIGITAL CINEMA
- Brand: RED DIGITAL CINEMA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RED DIGITAL CINEMA Battery Mounting Plates
|
User manual for the RED DIGITAL CINEMA DSMC2 V-Mount Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RED DIGITAL CINEMA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RED DIGITAL CINEMA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RED DIGITAL CINEMA product will considerably shorten its lifespan!
|

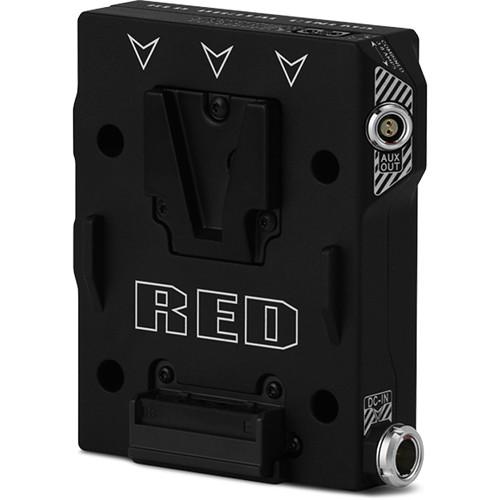

Product description The DSMC2 V-Mount Battery Module from RED DIGITAL CINEMA is a low-profile, cable-free module that enables you to power your DSMC2 BRAIN and camera accessories using RED BRICK, REDVOLT-V, and other standard V-lock batteries. The V-lock mount and protected release button ensure ongoing power even during mobile shoots.
This DSMC2 battery module offers a D-Tap connector on top and an auxiliary port on the side for powering peripherals and accessories. Together, the D-Tap and auxiliary connectors support a maximum combined current of 3.8A. The module also offers a DC input port that can be used to power the camera system when the module is attached to the BRAIN. When DC input power is supplied to the module and the camera is turned off, this module can also trickle-charge the attached V-lock battery.
Manufactured from robust aluminum alloy, this DSMC2 battery module offers a blend of utility and power support in a lightweight and space-saving form factor. It is an ideal power solution for use with most DSMC2 expanders. Alternatively, connect the module directly to your DSMC2 BRAIN for a low-profile, battery-only power configuration. In the Box RED DIGITAL CINEMA DSMC2 V-Mount Battery Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA DSMC2 V-Mount Battery Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 720-0052 Specs | Compatibility | RED BRICK, REDVOLT-V, and other standard V-lock batteries | | Power Connector | 13-pin rear pogo connector | | Connectors | 1 x 6-pin DC input (1B LEMO socket)
1 x 2-pin aux power output (D-Tap), 3 A
